Removal & Installation
- Run window to full down position. With manual lock knob in unlock position, use flat-bladed tool to disengage locking clip in service notch at front of knob.
- With door inside door handle in open position, use flat-blade tool in lower front corner to remove bezel. Remove screw retaining inside door handle.
- Use Retainer Release tool (J36796) to release 8 retainers holding trim panel to door. Push panel upward to release trim panel from door, disconnect electrical connector and remove trim panel.

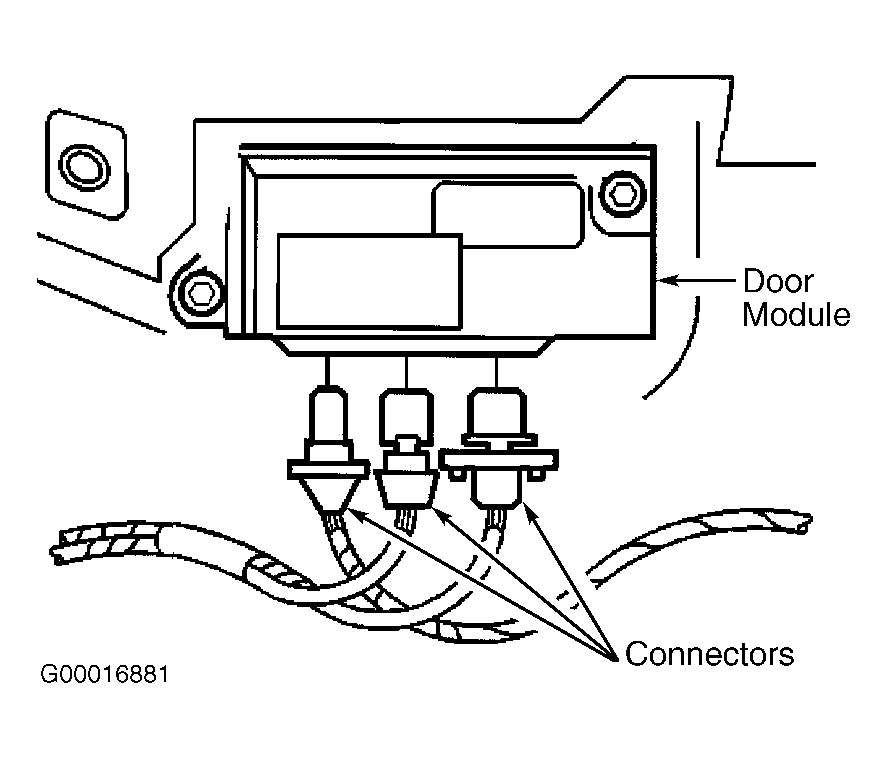

- Disconnect electrical connectors from door module. See Fig 1
. Remove module from door by releasing retainer tabs. To install, reverse removal procedure.
Courtesy of GENERAL MOTORS CORP.
