Electrical Component Locator: Switches
SWITCHES
| Component | Component Location |
|---|---|
| ABS/TCC Switch | Near top of brake pedal. |
| Automatic Transaxle Internal Mode Switch (IMS) | In transaxle. |
| Brake Fluid Level Switch | In master cylinder reservoir. See Figure . |
| Engine Coolant Level Switch | At right rear of engine compartment, in surge tank. |

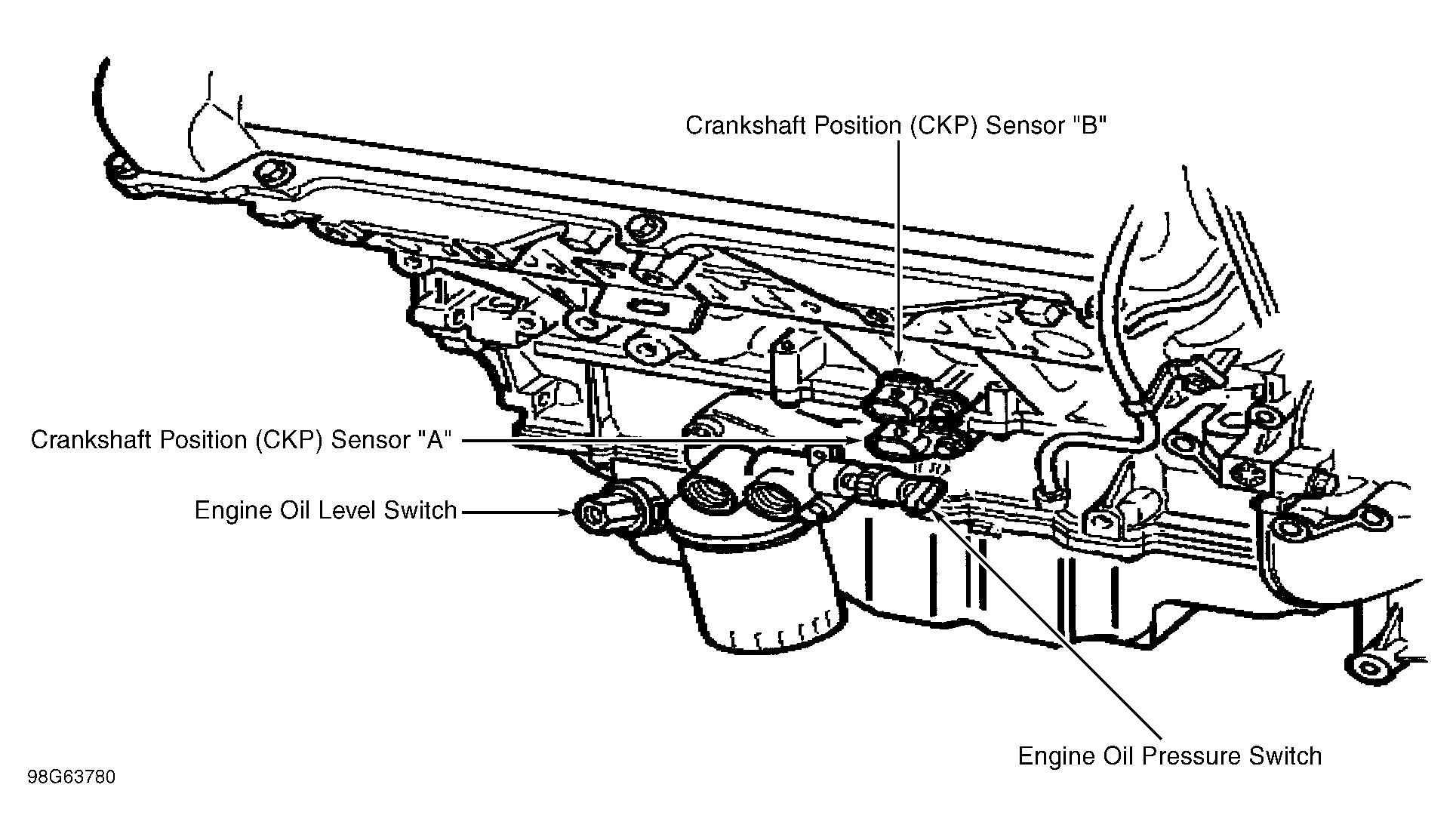

| Engine Oil Level Switch | On left side of oil pan. See Figure . |
| Engine Oil Pressure Switch | At left side of engine, on oil filter adapter. See Figure . |

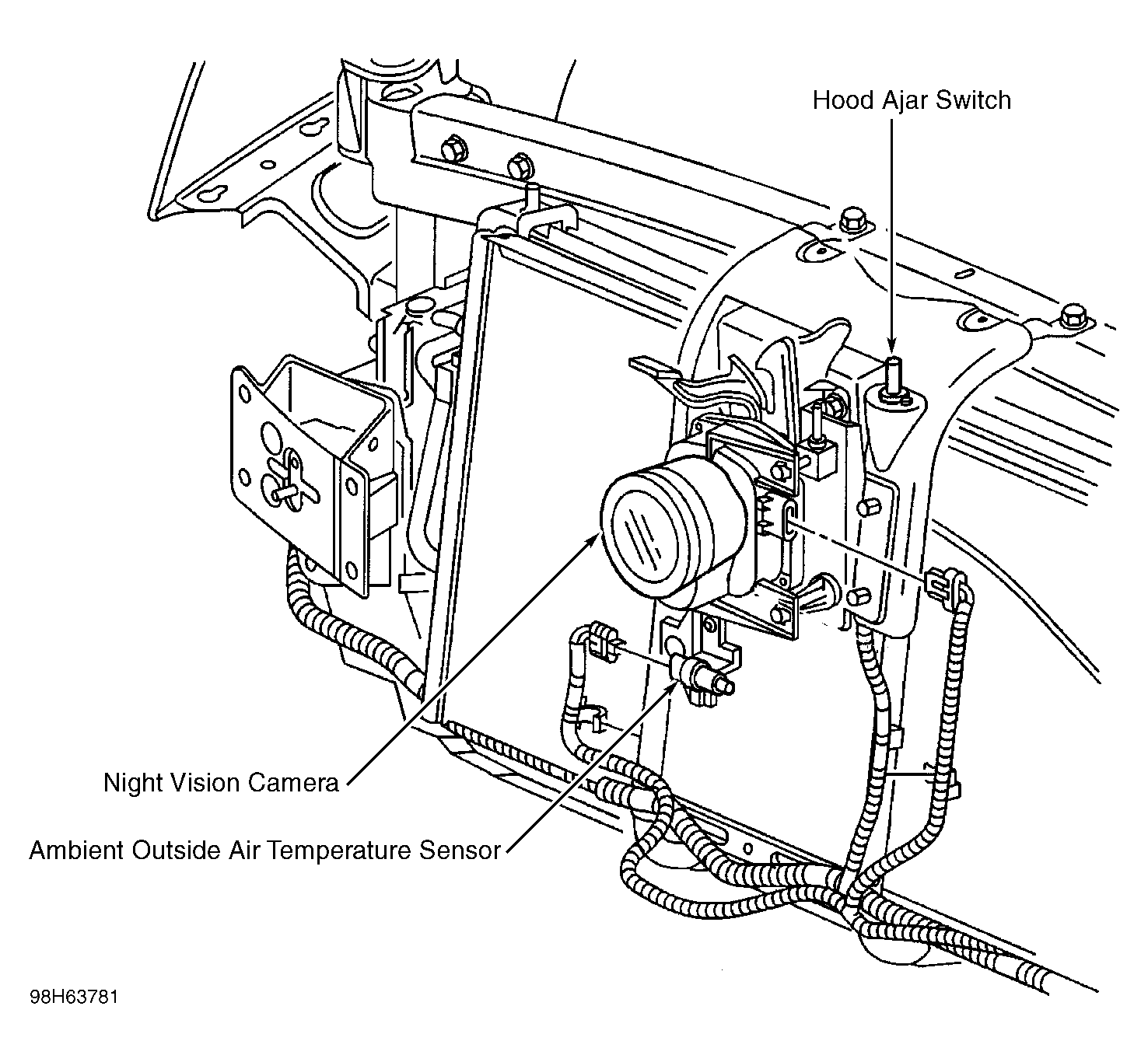

| Hood Ajar Switch | On center of upper radiator support. See Figure . |
| Park Brake Switch | On park brake pedal. |
| Rear Compartment Lid Tamper Switch | On rear compartment lid lock cylinder. |
| Stoplight/Automatic Transmission Shift Interlock Control Switch | Near top of brake pedal. |
| Windshield Washer Solvent Level Switch | On top of solvent reservoir. |
