Component Locations

COMPONENT LOCATIONS

Component Location
Data Link Connector (DLC) (1) Under Left Side Of Instrument Panel
Door Control Module Behind Respective Door Panel
Underhood Fuse Block (2) Right Side Of Engine Compartment
Forward/Back Motor (3) Under Respective Front Seat, Mounted To Seat Adjuster Frame
Front & Rear Height Motors (3) Under Respective Front Seat, Mounted To Seat Adjuster Frame
In/Out Lumbar Motor (4) In Respective Front Seat, Mounted To Seatback Frame
Memory Seat Module (MSM) (5) Under Left Front Seat, Mounted To Floor
Rear Fuse Block (6) Under Rear Seat Cushion
Recline Motor (3) Under Respective Front Seat, Mounted To Seat Adjuster Frame
Seatbelt Tower Motor (3) Attached To Seat Back Frame
Steering Column Power Tilt/Telescoping Module (7) Attached To Left Side Of Steering Column
Up/Down Lumbar Motor (4) In Respective Front Seat, Mounted To Seatback Frame
(1) See Fig 1 .
(2) See Fig 2 .
(3) See Fig 3 .
(4) See Fig 4 .
(5) See Fig 5 .
(6) See Fig 6 .
(7) See Fig 7 .
Fig 1: Locating Data Link Connector
G00011695Courtesy of GENERAL MOTORS CORP.

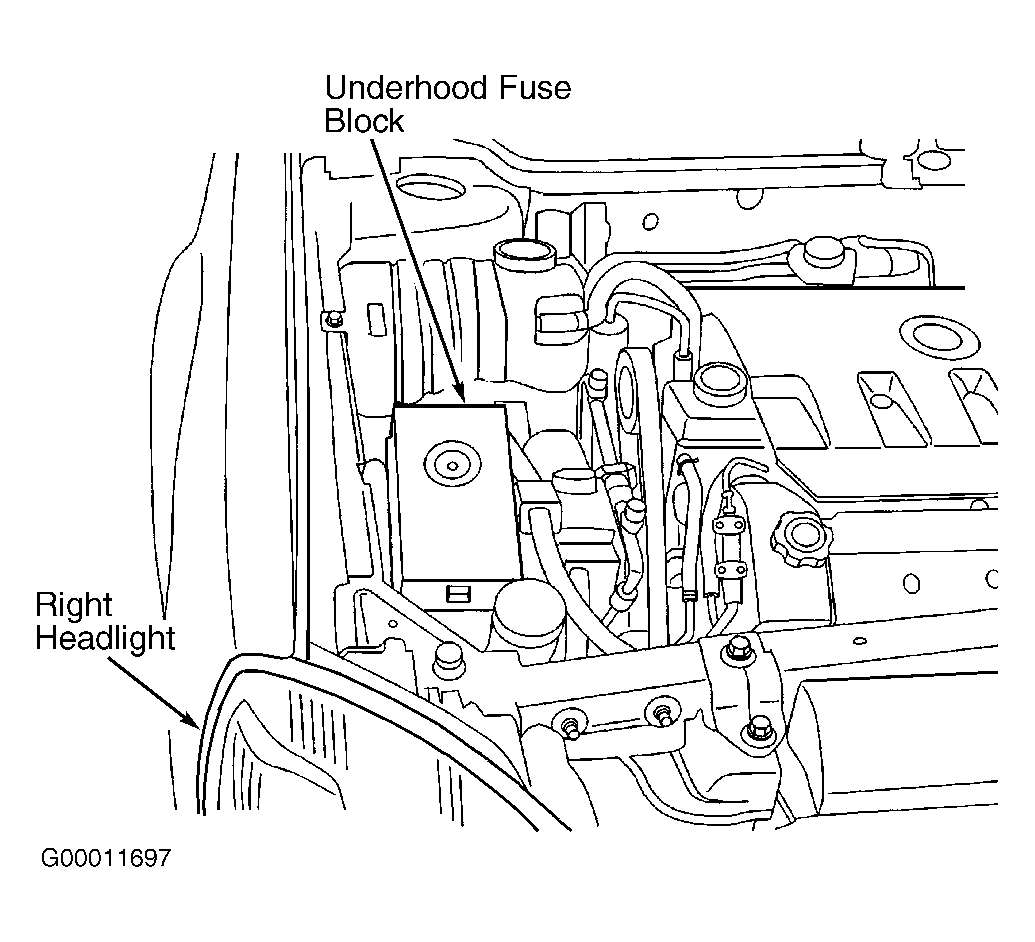

Fig 2: Locating Underhood Fuse Block
G00011697Courtesy of GENERAL MOTORS CORP.

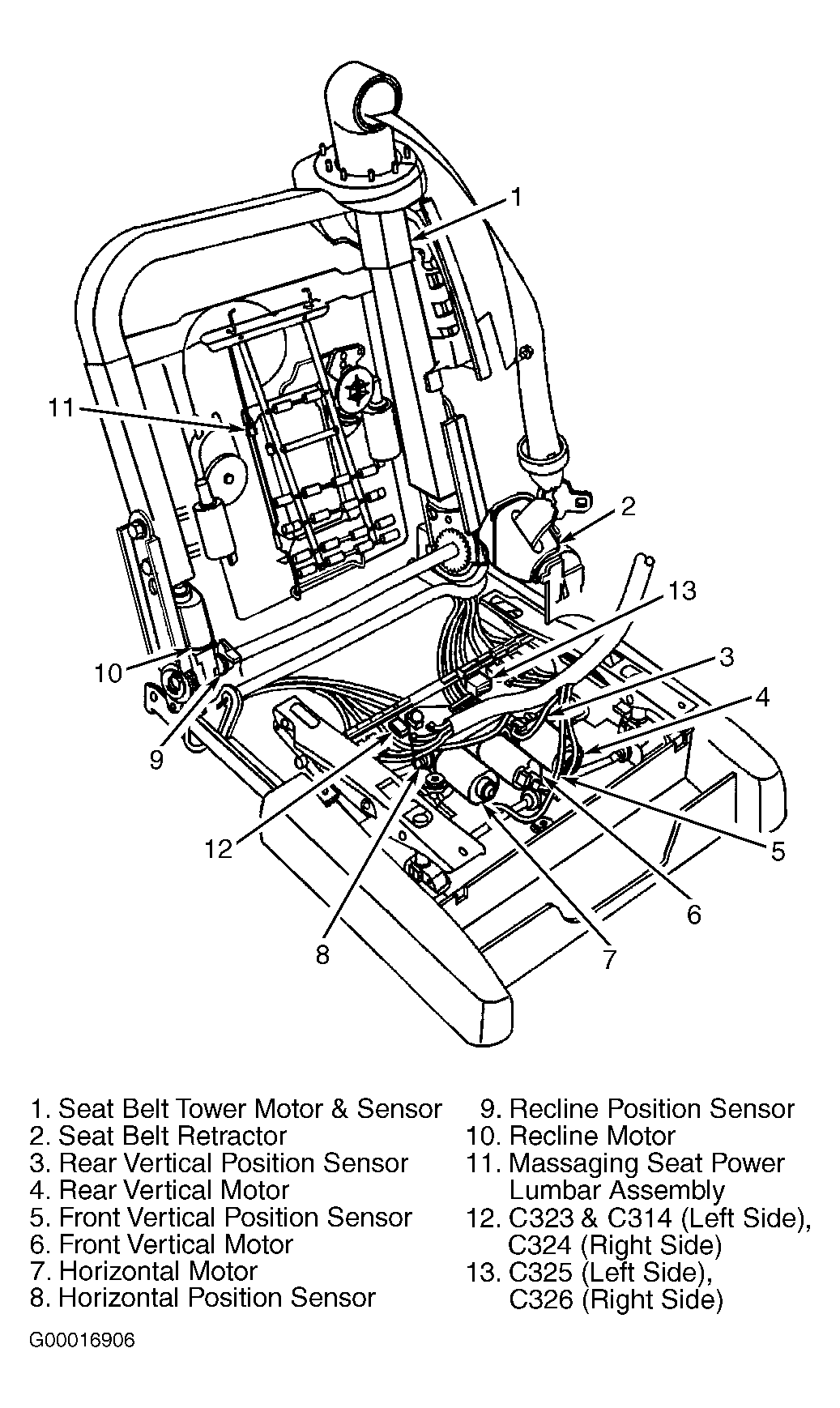

Fig 3: Identifying Power Seat Components
G00016906Courtesy of GENERAL MOTORS CORP.

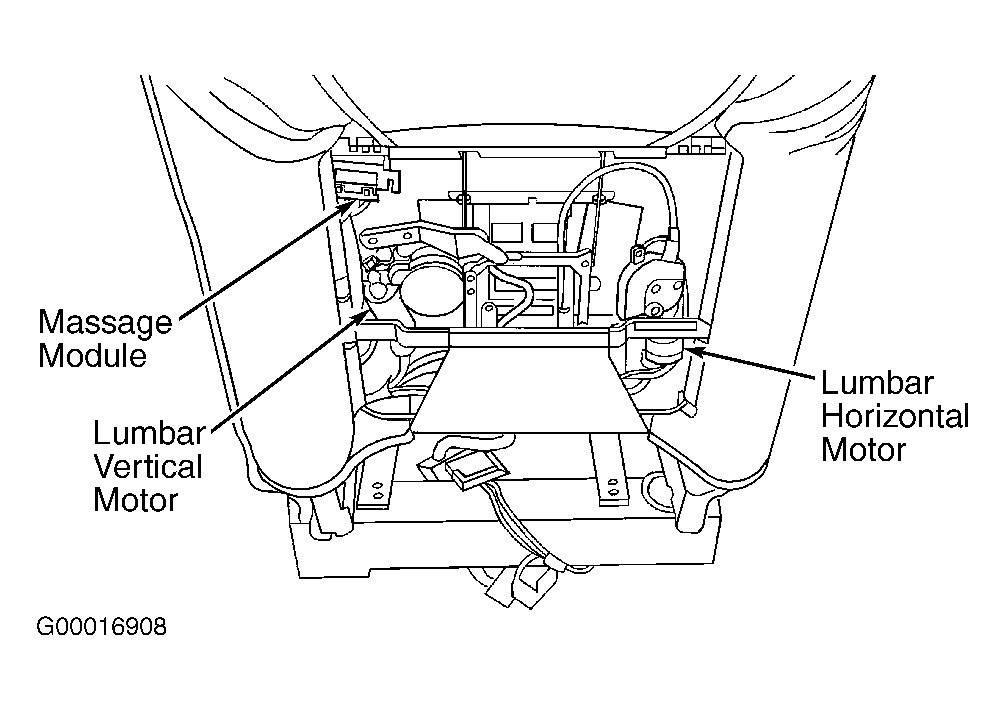

Fig 4: Identifying Power Lumbar Seat Components
G00016908Courtesy of GENERAL MOTORS CORP.

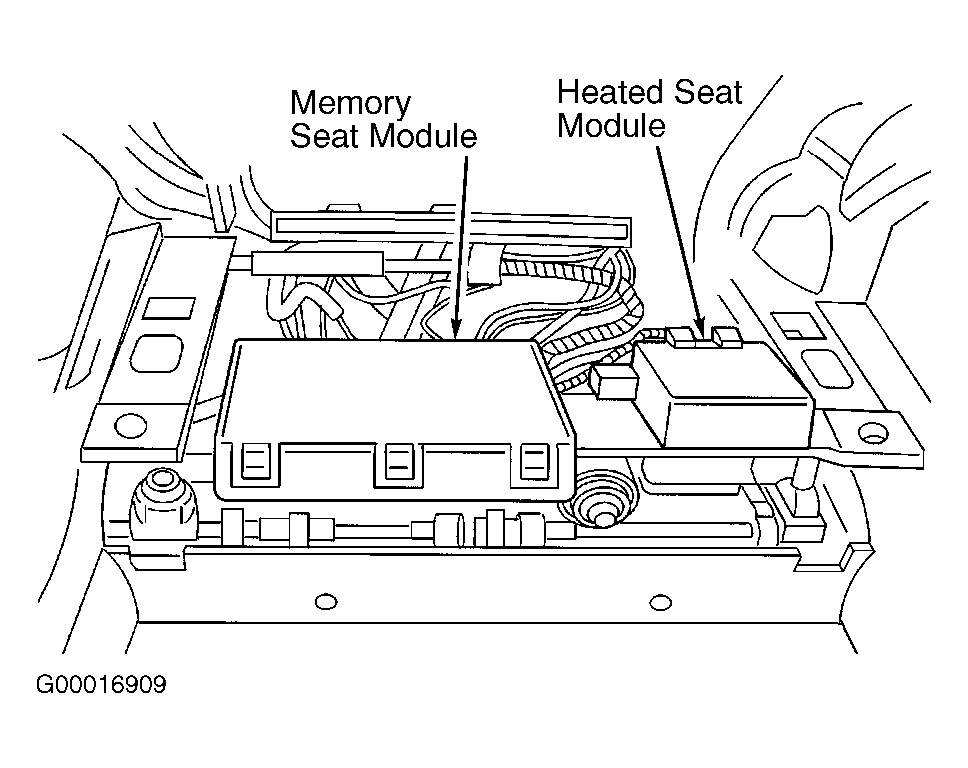

Fig 5: Identifying Memory Seat Module
G00016909Courtesy of GENERAL MOTORS CORP.

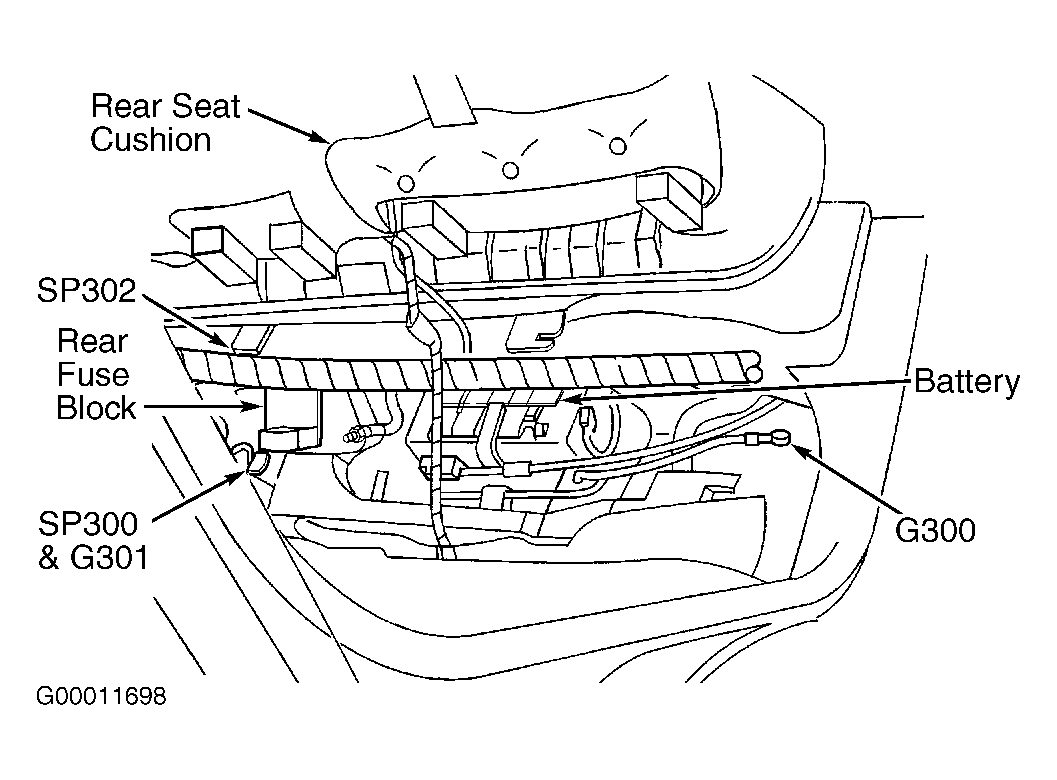

Fig 6: Locating Components Under Rear Seat Cushion
G00011698Courtesy of GENERAL MOTORS CORP.
Fig 7: Locating Steering Column Control Module
G00016870Courtesy of GENERAL MOTORS CORP.
