Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 2 .

COMPONENT LOCATIONS

Component	Location
Left Underhood Fuse Block	Left Side Engine Compartment, Near Front Strut Tower
Retained Accessory Power Relay	Left Front Passenger Compartment, Taped To Body Harness
WINDOWS Circuit Breaker	In Left Underhood Fuse Block

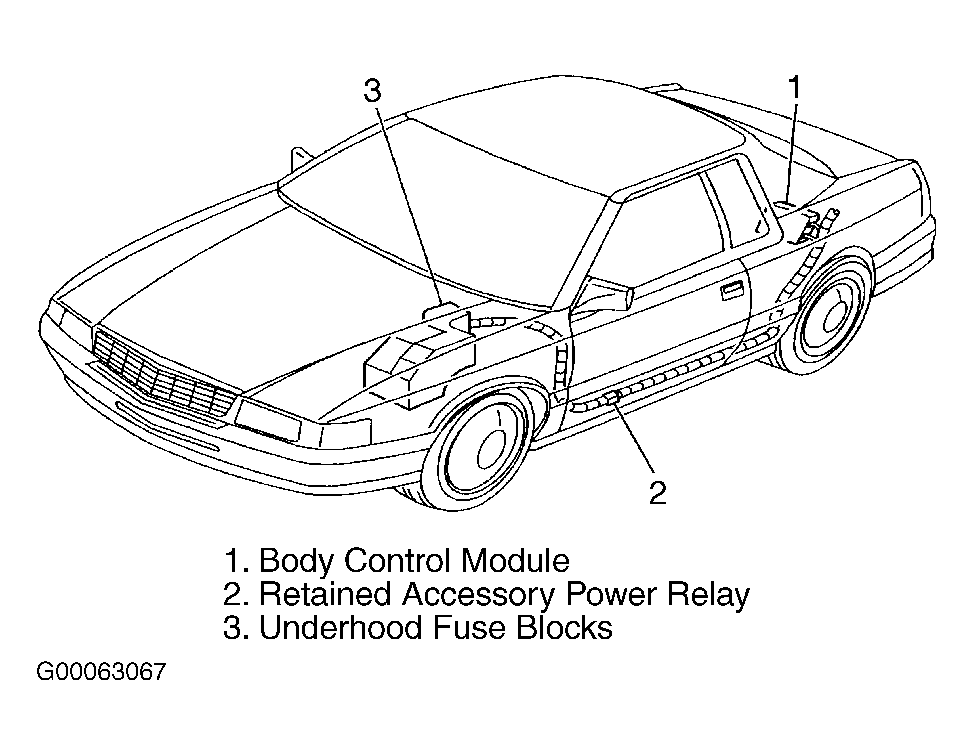

Fig 1: Locating Retained Accessory Power Relay

Courtesy of GENERAL MOTORS CORP.

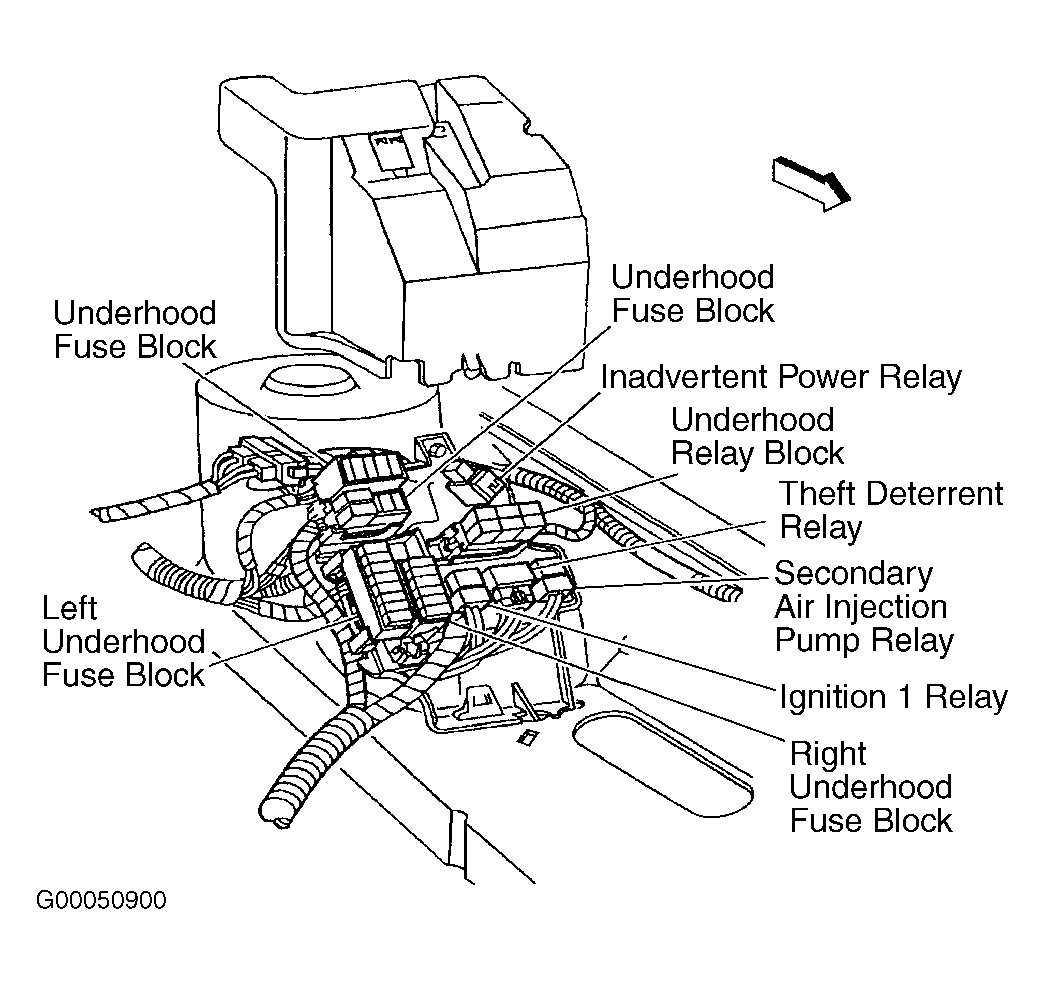

Fig 2: Locating Left Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.
