Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Adaptive Lumbar Module (Right/Left) | In respective front seat back. |
| Automatic Level Control Module | Under rear of vehicle, near rear suspension carrier. |
| Blower Control Module | Under right side of dash, near center heater outlets. See Figure . |
| Cellular Telephone Module | At front of rear compartment. |
| Continuously Variable Road Sensing Suspension (CVRSS) Module | Behind right rear seat back. See Figure . |

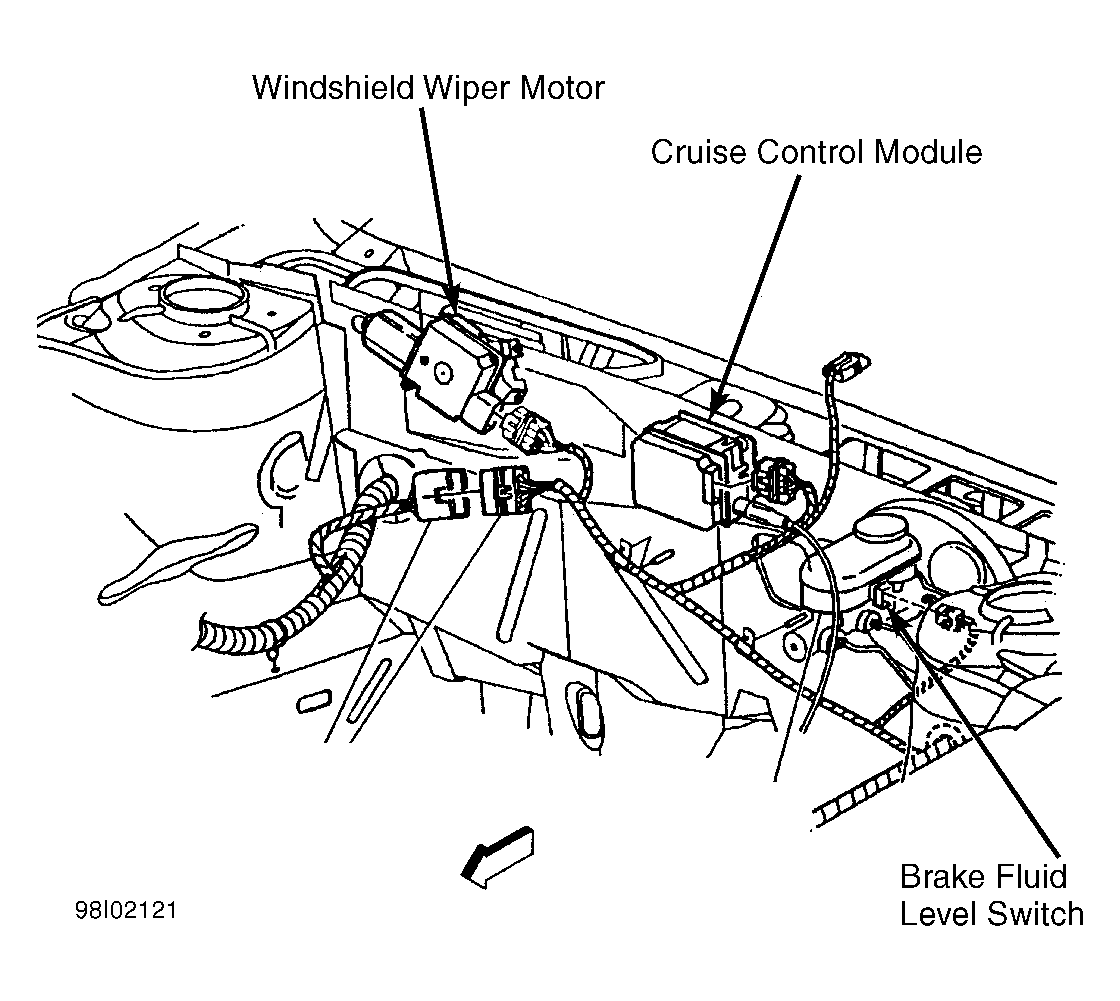

| Cruise Control Module | On center rear of engine compartment, near power brake booster. See Figure . |

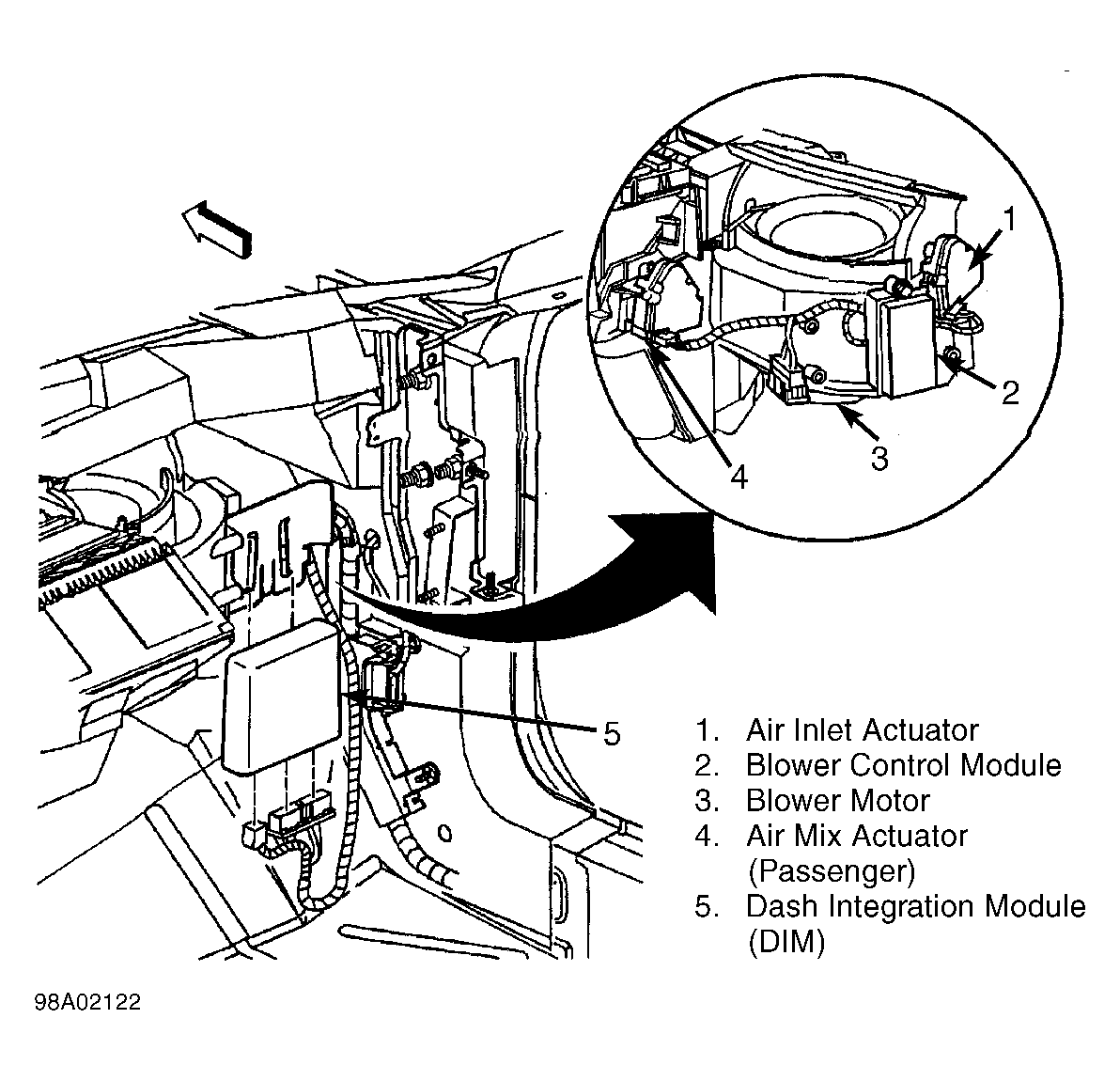

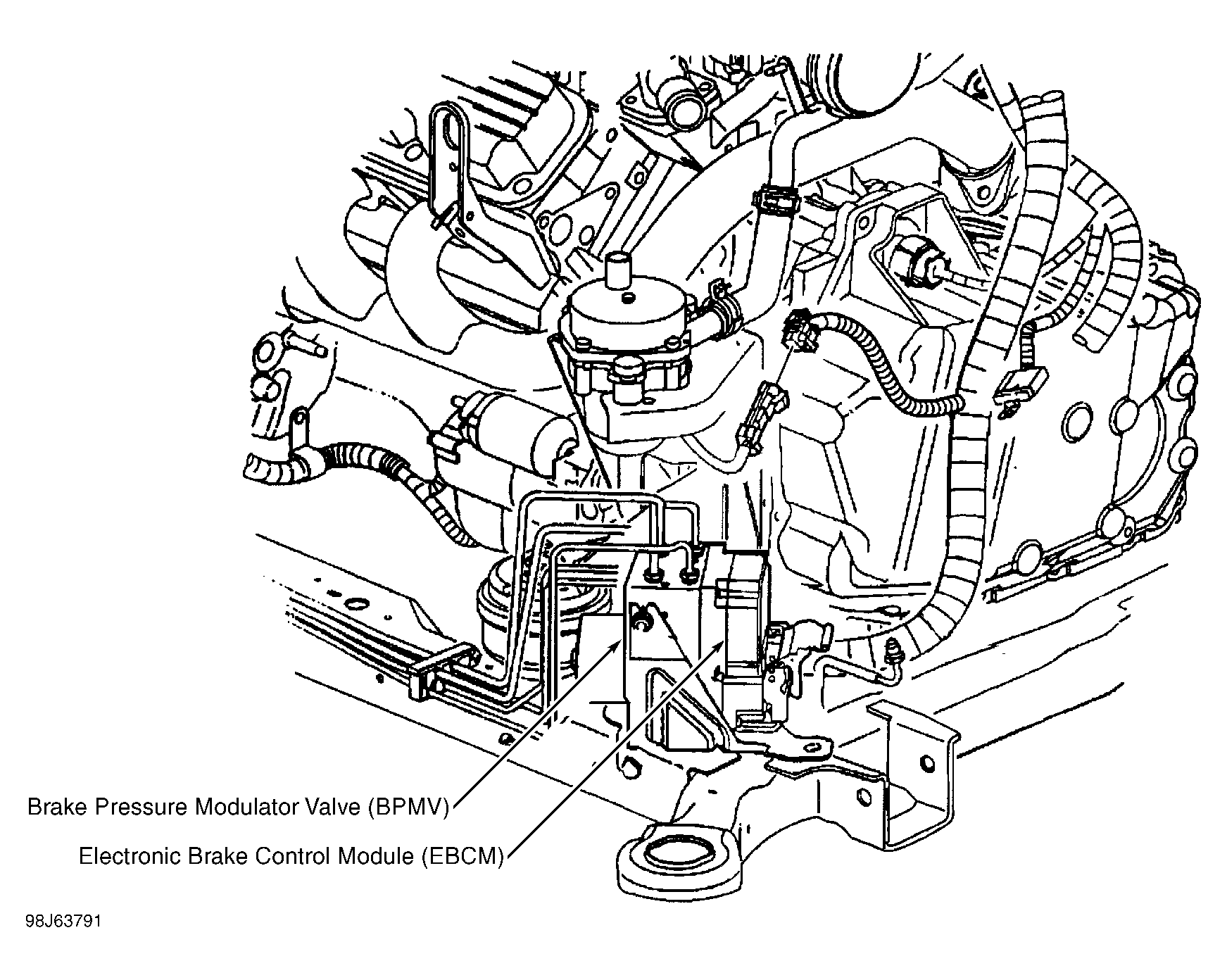

| Dash Integration Module (DIM) | On right side of dash, near blower motor. See Figure . |
| Door Module (Left Front) (LFDM) | In front of left front door, near radio speaker. |
| Door Module (Right Front) (RFDM) | In front of right front door, near radio speaker. |
| Door Module (Left Rear) (LRDM) | In front of left rear door, near radio speaker. |
| Door Module (Right Rear) (RRDM) | In front of right rear door, near radio speaker. |
| Electronic Brake Control Module (EBCM) | On left front corner of engine compartment, below air cleaner housing. See Figure . |
| Front Heated Seat Module (Right/Left) | Under respective front seat. |

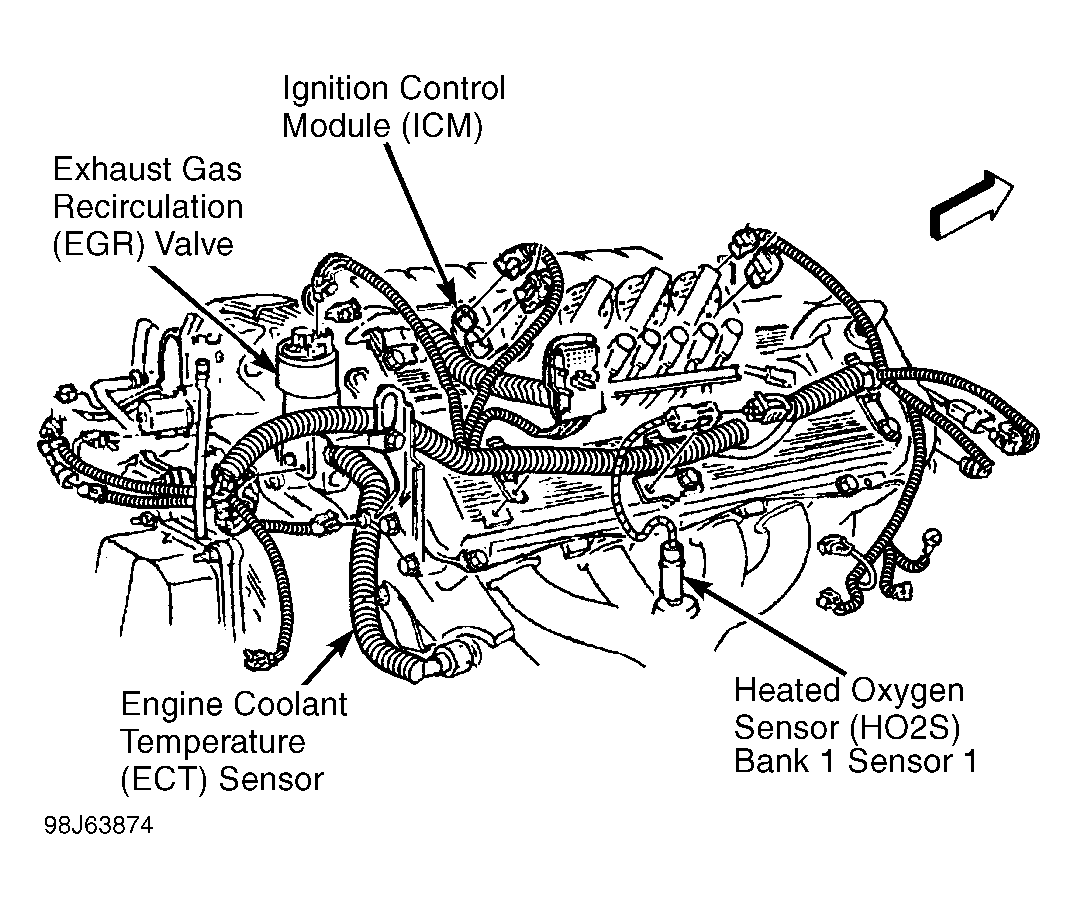

| Ignition Control Module (ICM) | At top right rear of engine, on cam cover. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat. |
| Inflatable Restraint Side Impact Sensing Module (SISM) (Left) | On base of left "B" pillar, behind trim panel. |
| Inflatable Restraint Side Impact Sensing Module (SISM) (Right) | On base of right "B" pillar, behind trim panel. |
| Instrument Panel Integration Module (IPM) | Behind center of dash, above radio. |
| Memory Seat Module (MSM) | Under left front seat. |
| Navigation Data Processor | Under center of rear package shelf. |
| PASS Key III Reader Exciter | On ignition switch. |
| PASS Key III Theft Deterrent Module | Behind left side of dash, right of steering column. |
| Powertrain Control Module (PCM) | At left front corner of engine compartment, below air cleaner. |
| Radio Antenna Module | Above center rear of headliner. |
| Rear Blower Motor Resistor Module | At front of center console, near rear blower motor. |
| Rear Heated Seat Module (Right/Left) | In center of rear seat back. |

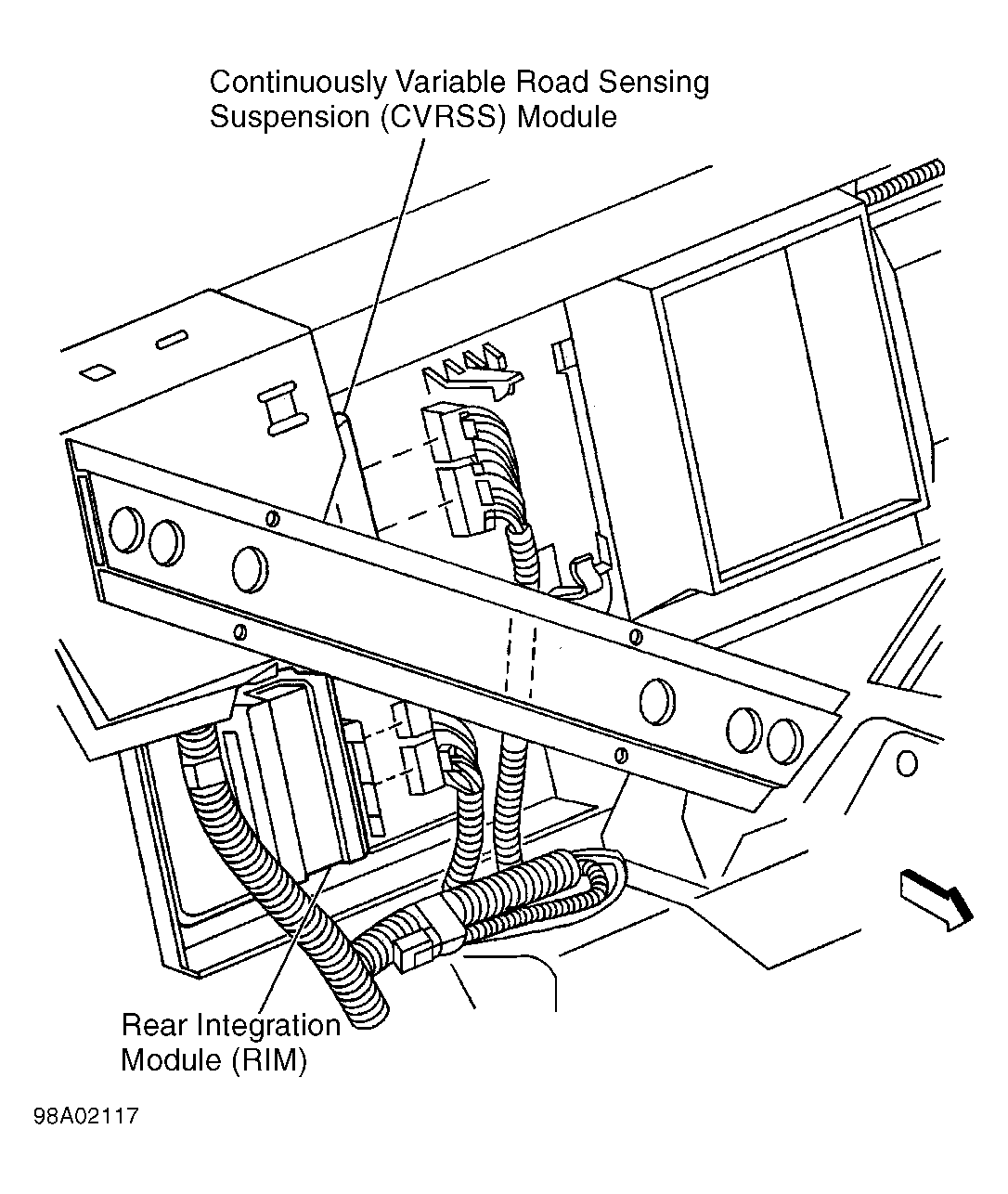

| Rear Integration Module (RIM) | Behind right side of rear seat back. See Figure . |
| Rear Object Sensor Control Module | In right side of rear compartment. |
| Remote Keyless Entry (RKE) Module | Under rear package shelf. |

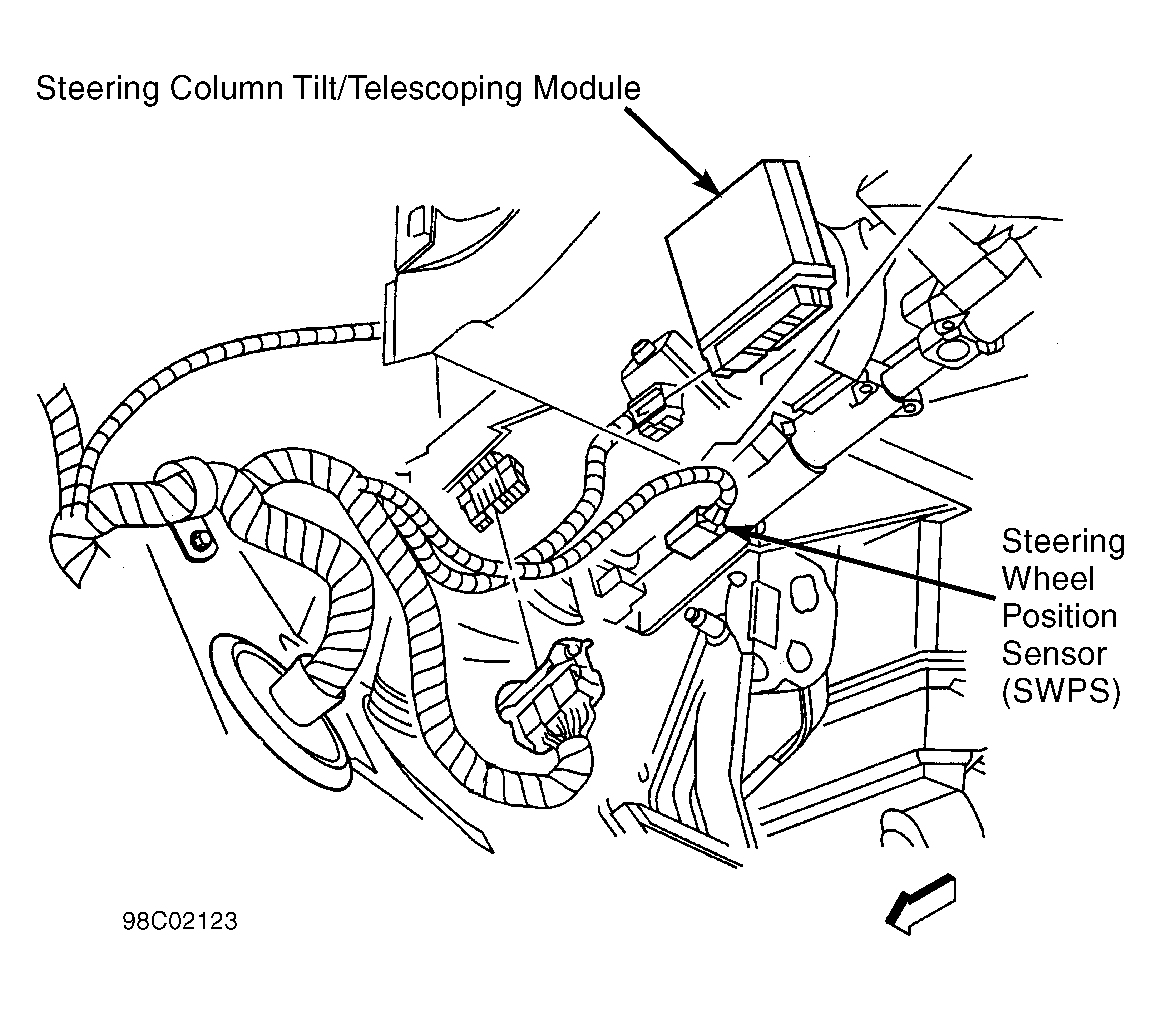

| Steering Column Tilt/Telescoping Module | Behind left side of dash, left of steering column. See Figure . |
| Sun Roof Control Module | Above headliner, near rear of sun roof. |
| Theft Deterrent Module | Behind left side of dash, right of steering column. |
| TV Antenna Module Assembly | Under right side of rear package shelf. |
| Variable Steering Actuator | On left side of power steering rack. |
