Component Locations

COMPONENT LOCATIONS

Component

Location

Battery

⁽¹⁾ Under Rear Seat

Cellular Telephone Module (w/o UE1)

Front Of Rear Compartment

Cellular Telephone Module (w/UE1 or UV8)

In Rear Compartment, Behind Rear Shelf Trim, Mounted To Right Side Of Rear Shelf Carrier

Dash Integration Module (DIM)

⁽²⁾ Behind Right Side Of Dash, Near Blower Motor

Data Link Connector (DLC)

⁽³⁾ Under Left Side Of Instrument Panel Near Steering Column

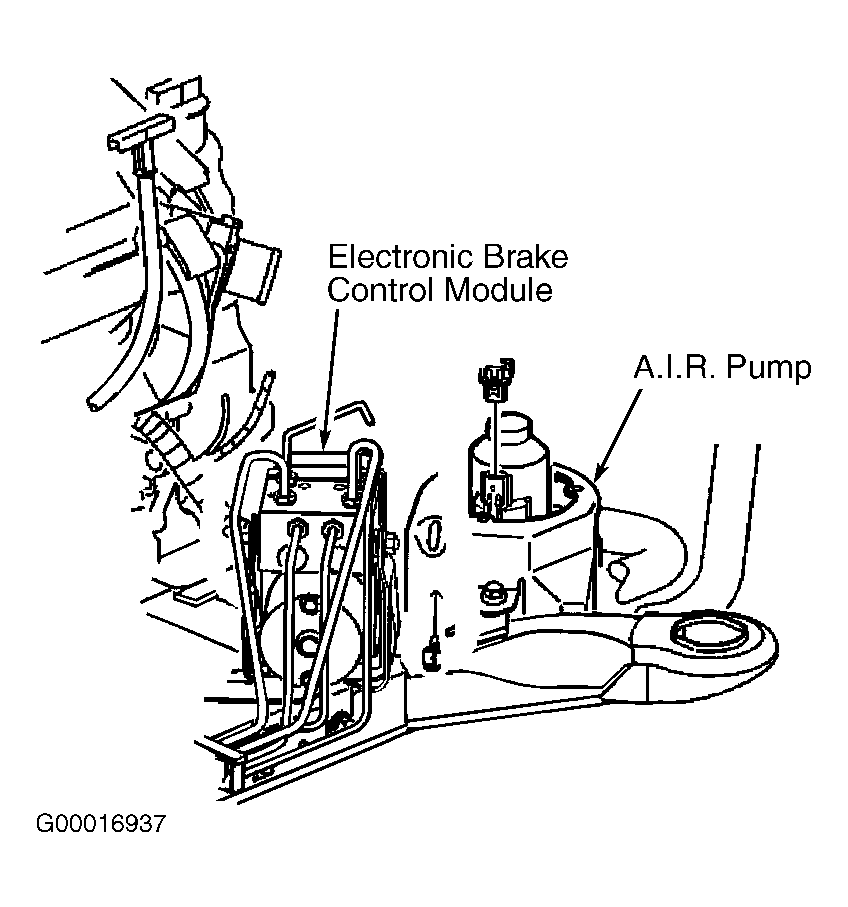

Electronic Brake Control Module

⁽⁴⁾ Left Front Of Engine Compartment Attached To Subframe

Fuel Level Sending Unit

⁽⁵⁾ Under Rear Seat

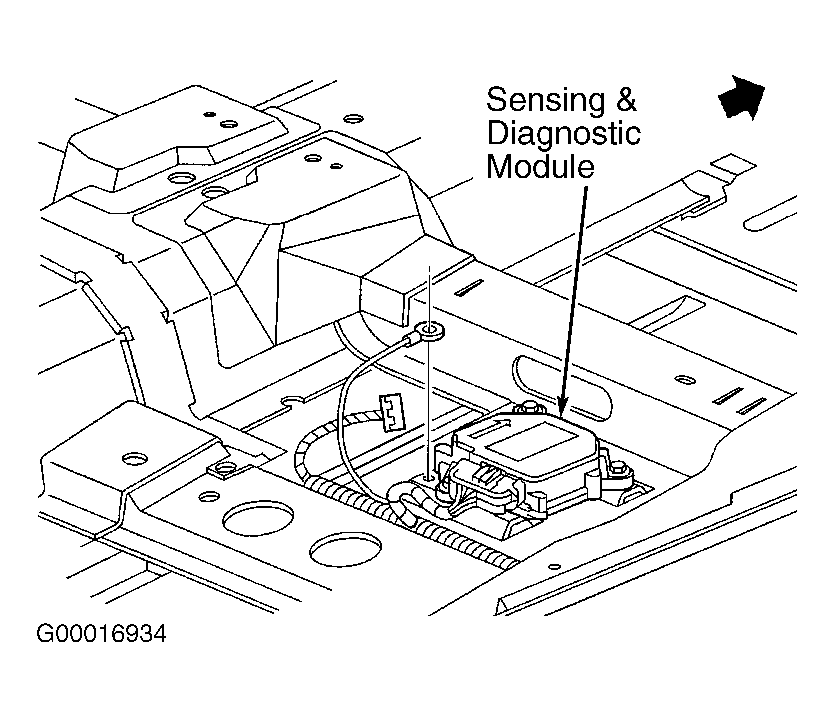

Inflatable Restraint Sensing And Diagnostic Module

⁽⁶⁾ Under Right Front Seat

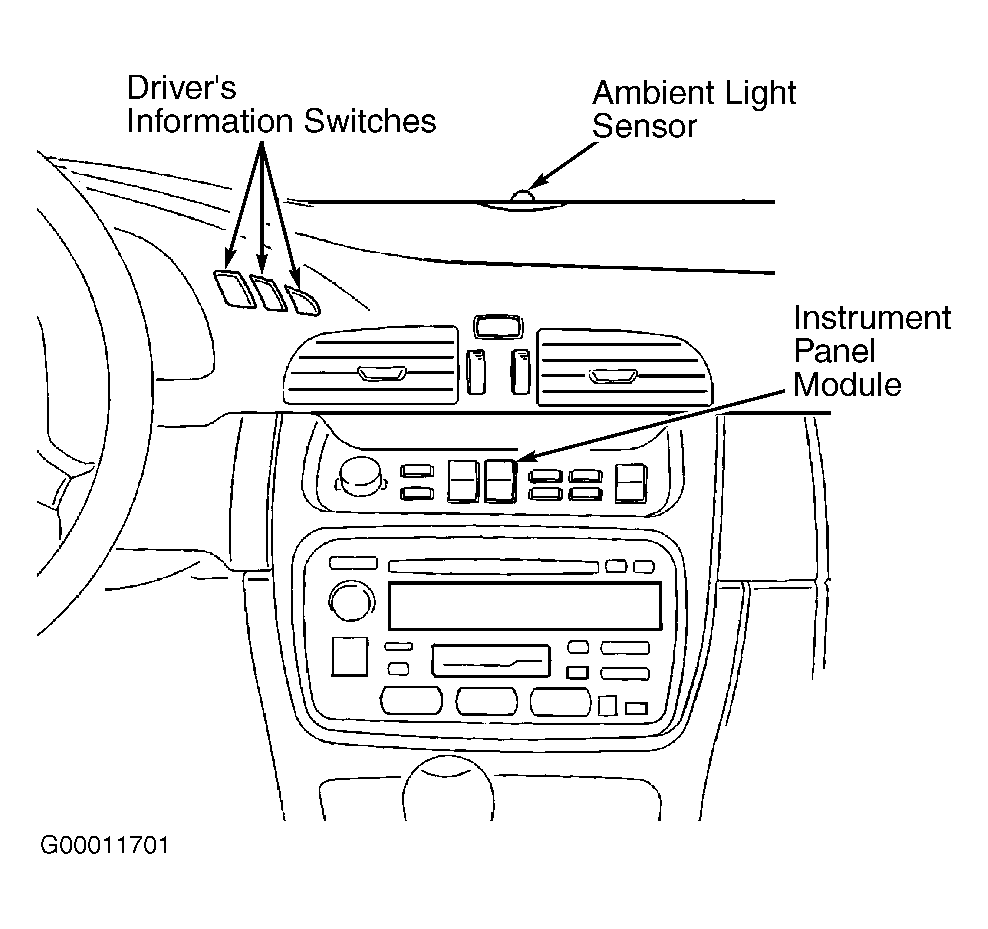

Instrument Panel Integration Module (IPM)

⁽⁷⁾ Behind Center Of Dash, Part Of Climate Control Panel

Memory Seat Module

Under Left Front Seat

Powertrain Control Module

Left Front Corner Of Engine Compartment, Below Air Cleaner

Radio Amplifier

⁽⁸⁾ Left Rear Of Passenger Compartment, Behind Rear Seat Back

Rear Integration Module (RIM)

⁽⁹⁾ Behind Rear Seat Back

Rear Fuse Block

⁽¹⁾ Under Rear Seat

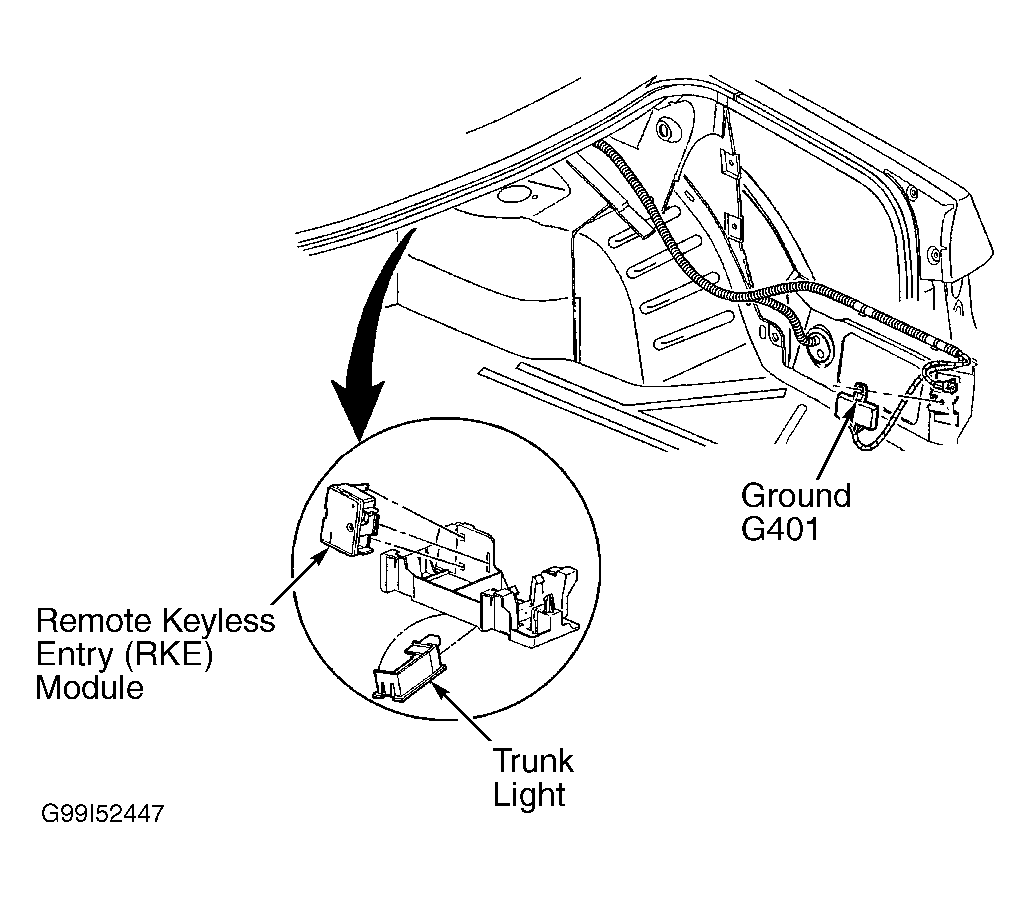

Remote Keyless Entry Module

⁽¹⁰⁾ Center Of Rear Compartment, Under Package Shelf

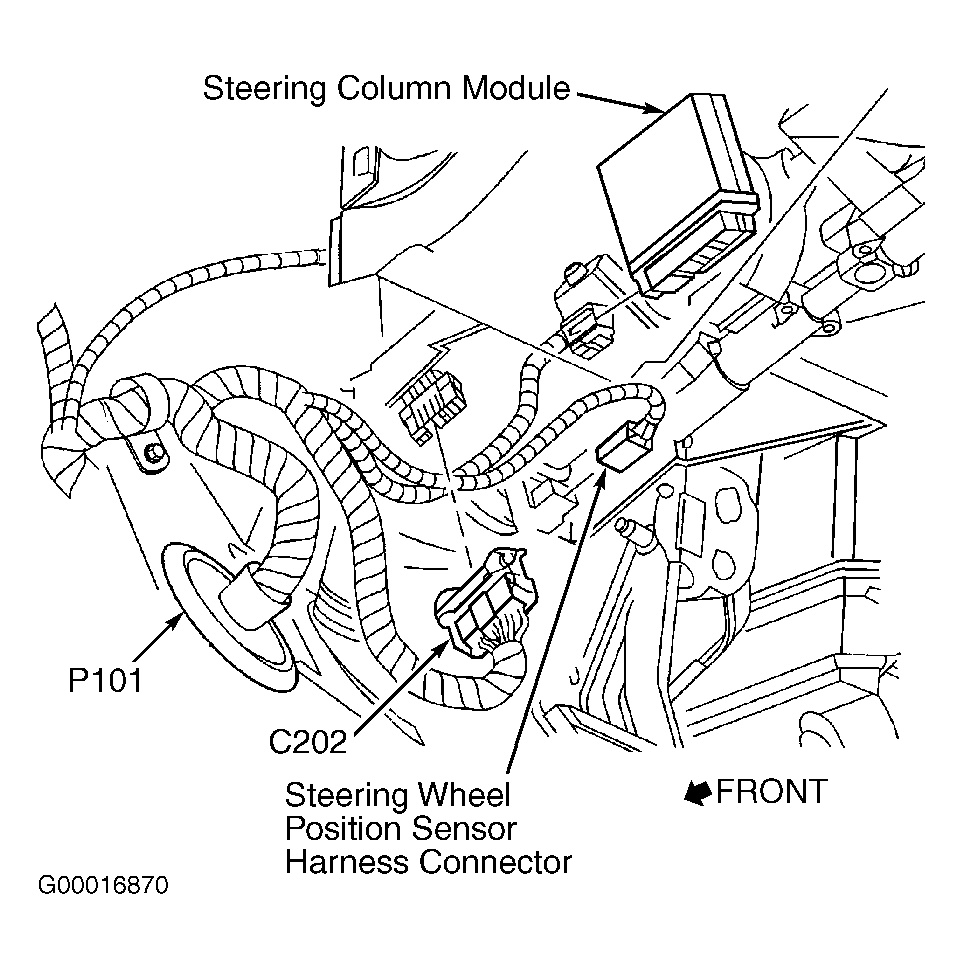

Steering Column Tilt/Telescoping Module

⁽¹¹⁾ Left Of Steering Column

Theft Deterrent Module

⁽¹²⁾ Right Of Steering Column

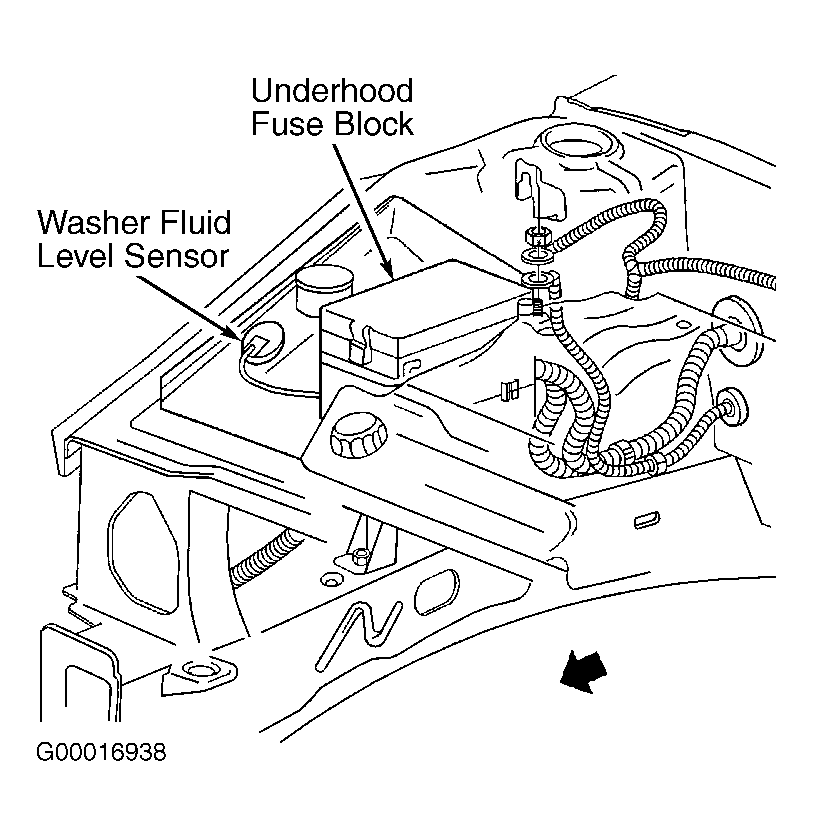

Underhood Fuse Block

⁽¹³⁾ On Right Side Of Engine Compartment, Near Power Steering Pump

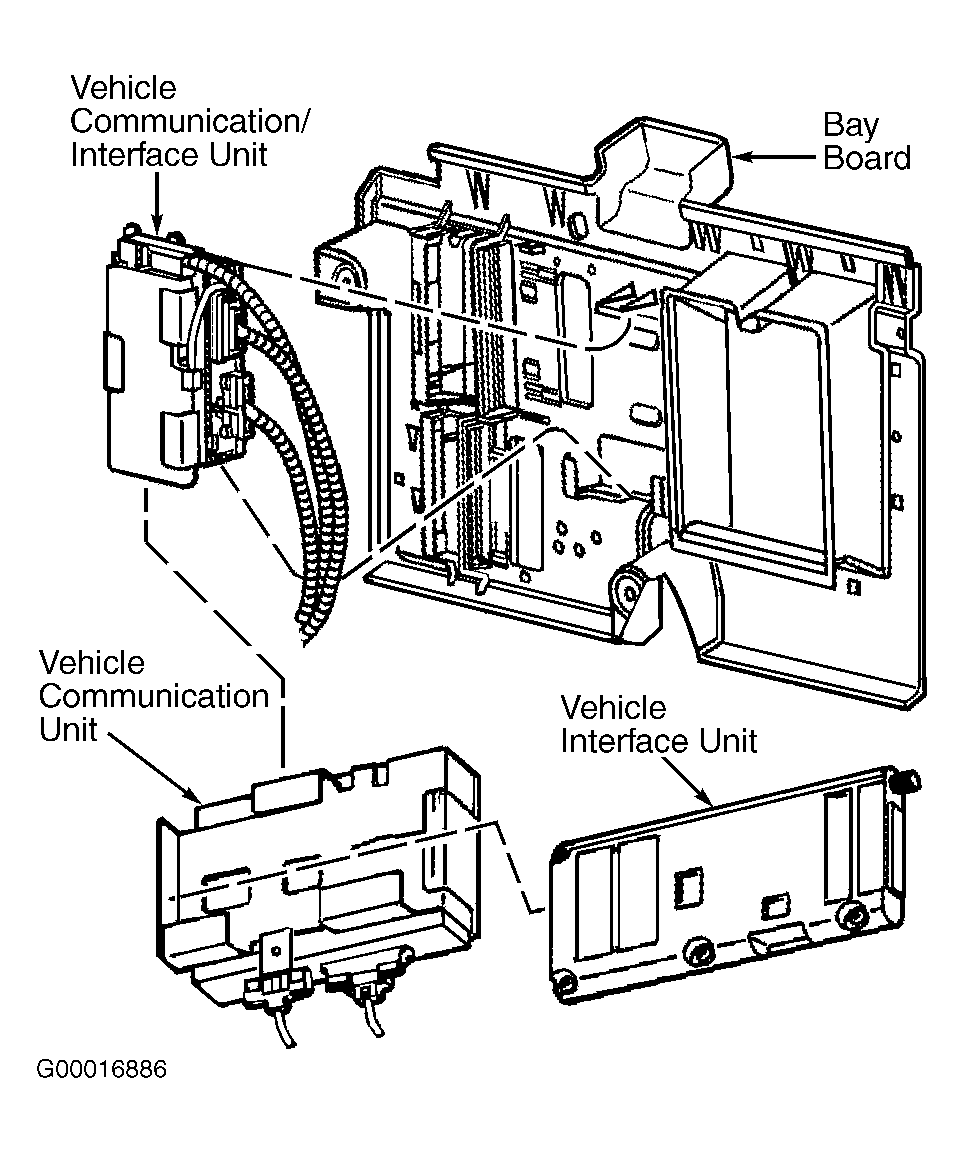

Vehicle Communication Unit

⁽¹⁴⁾ Rear Of Passenger Compartment, Behind Rear Seat Back, Mounted To Vehicle Interface Unit

Vehicle Interface Unit

⁽¹⁴⁾ Rear Of Passenger Compartment, Behind Rear Seat Back, Mounted To Electronics Bay

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Fig 3 .

⁽⁴⁾	See Fig 4 .

⁽⁵⁾	See Fig 5 .

⁽⁶⁾	See Fig 6 .

⁽⁷⁾	See Fig 7 .

⁽⁸⁾	See Fig 8 .

⁽⁹⁾	See Fig 9 .

⁽¹⁰⁾	See Fig 10 .

⁽¹¹⁾	See Fig 11 .

⁽¹²⁾	See Fig 12 .

⁽¹³⁾	See Fig 13 .

⁽¹⁴⁾	See Fig 14 .

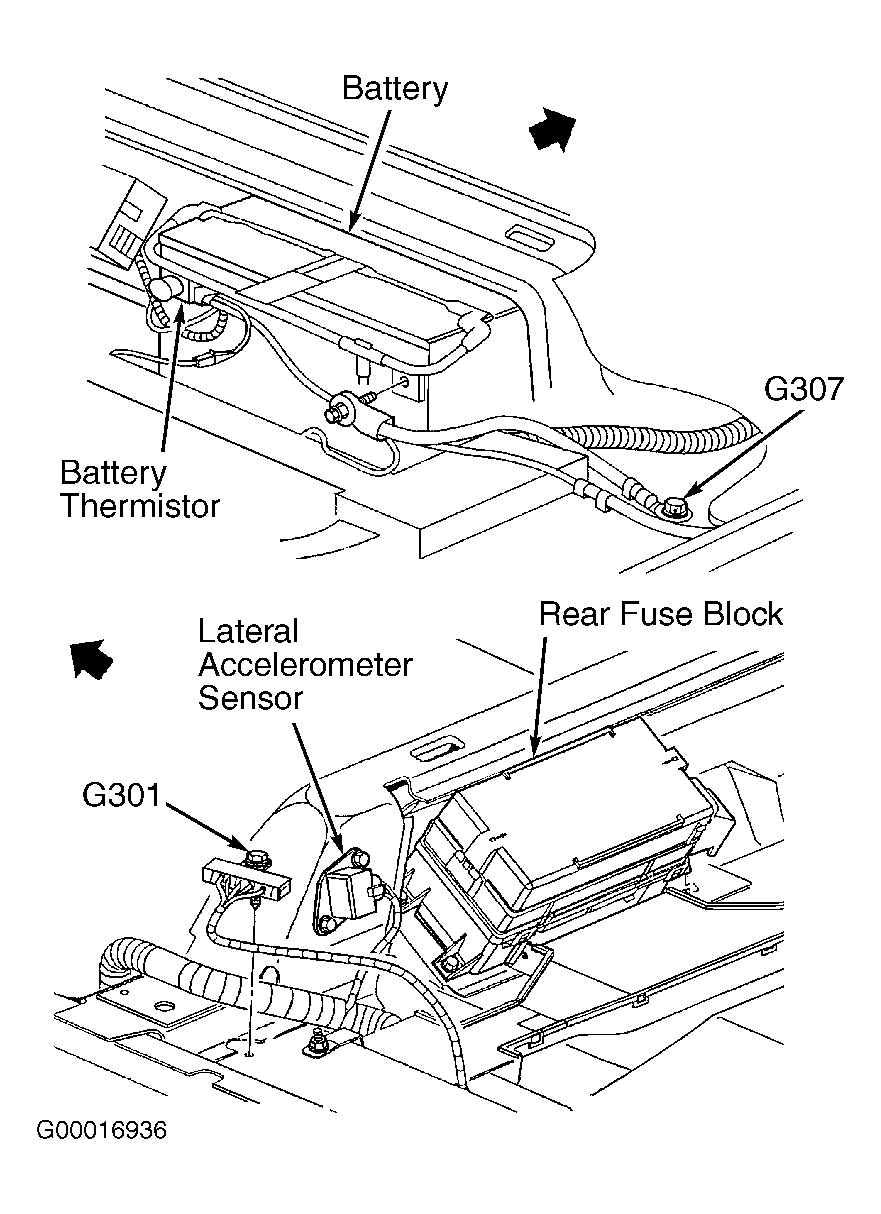

Fig 1: Locating Components Under Rear Seat
