Component Locations

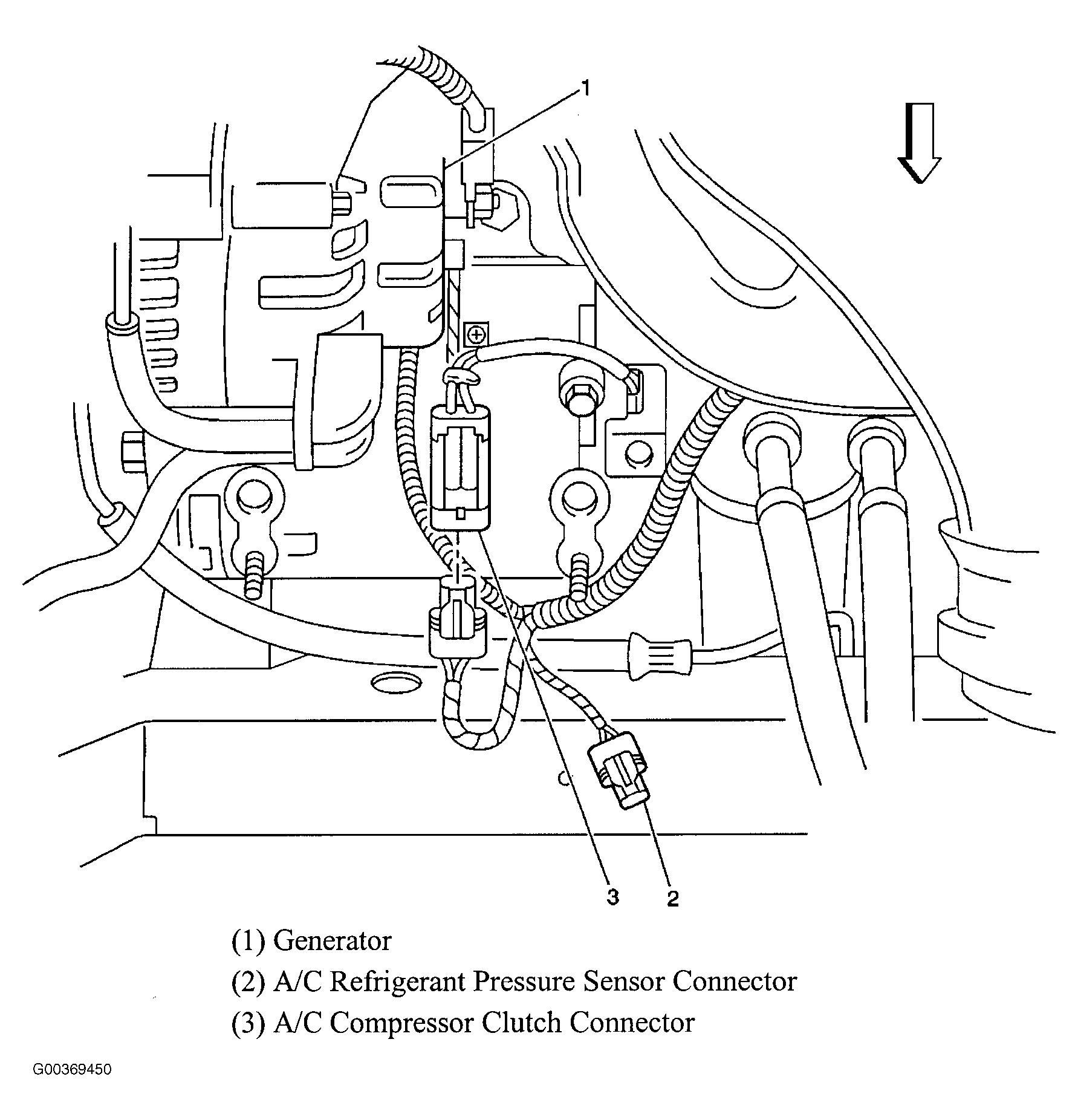

Fig 1: Identifying Generator And Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
