Dash Integration Module: Installation

  1. Install the DIM to the bracket. See Fig 1 .
  2. Slide the DIM upward until it is fully engaged. See Fig 1 .

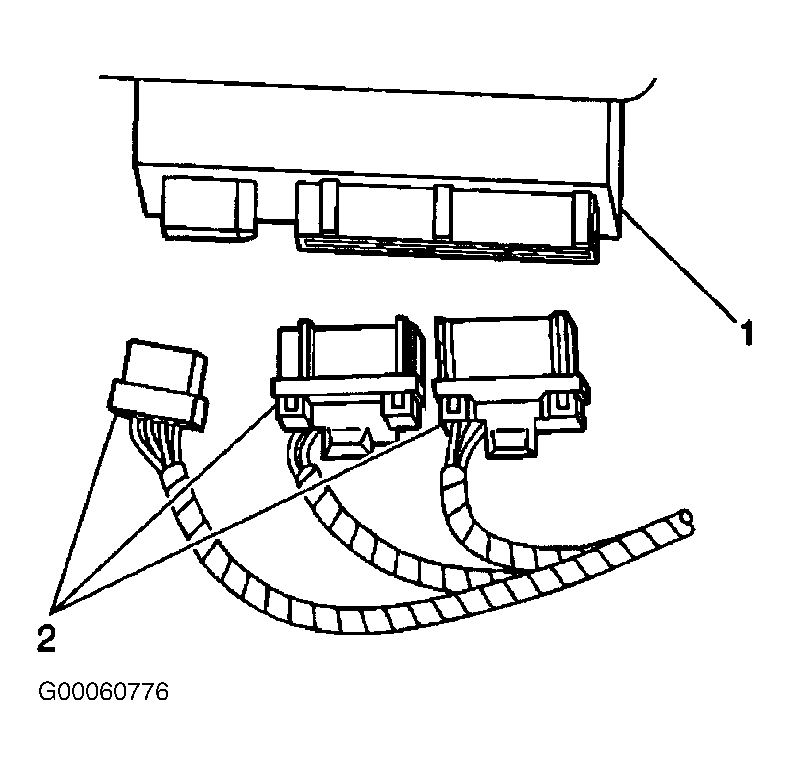

  3. Connect the DIM electrical connectors (2). See Figure .
  4. Install the right sound insulator.
  5. Reprogram the DIM. See appropriate BODY CONTROL MODULES article in ACCESSORIES & EQUIPMENT.

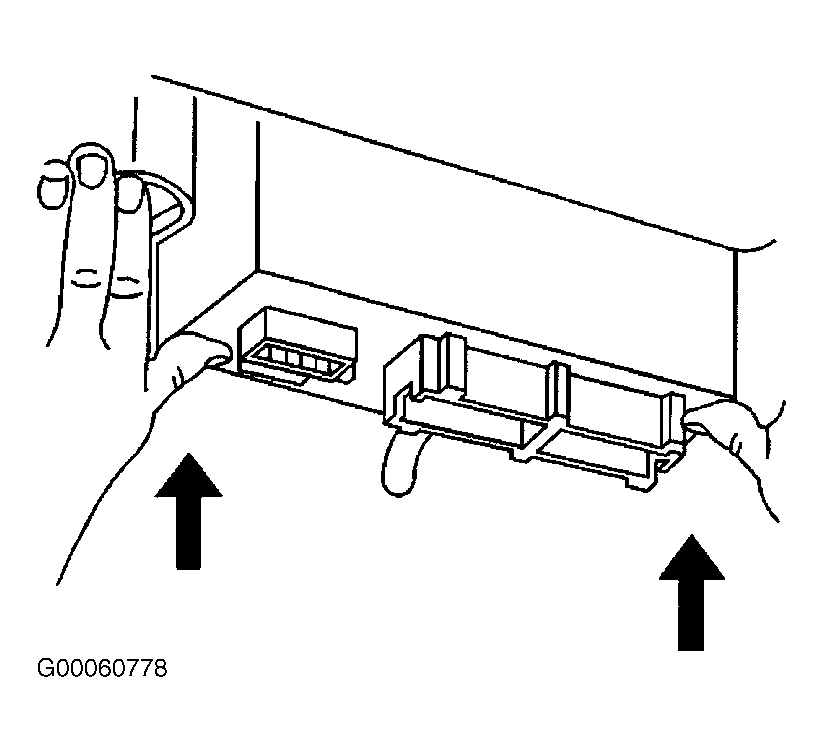

Fig 1: Installing DIM
G00060778Courtesy of GENERAL MOTORS CORP.
