Dash Integration Module: Removal

NOTE: Before replacing the DIM, record the personalization settings in order to restore the settings after the new module is installed.
  1. Remove the right sound insulator (hush panel under dash).
  2. Disconnect the DIM (1) electrical connectors (2). See Fig 1 .
  3. Depress inward on the locking tab (2). See Fig 2 .
  4. With the locking tab (2) depressed, slide the DIM (1) downward. See Fig 2 .
  5. Remove the DIM from the bracket.

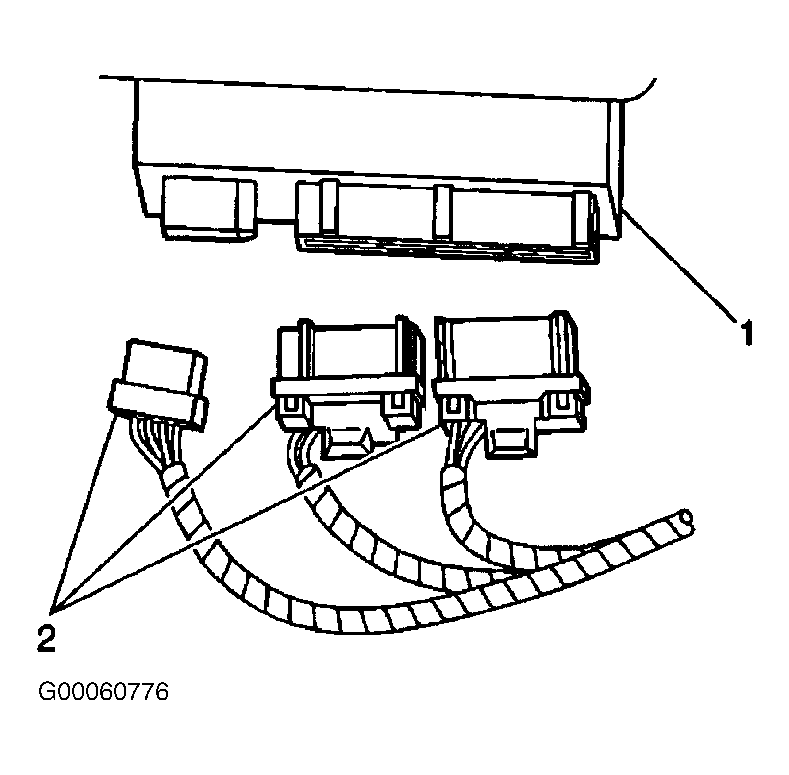

Fig 1: Identifying DIM Harness Connectors
G00060776Courtesy of GENERAL MOTORS CORP.

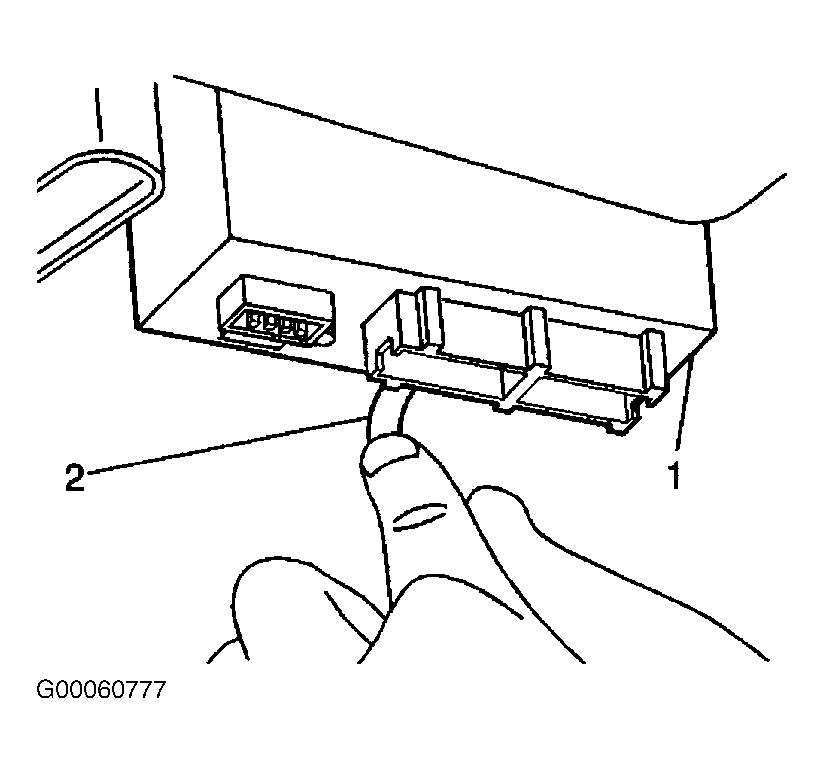

Fig 2: Removing DIM
G00060777Courtesy of GENERAL MOTORS CORP.
