Installation Procedure

Important:  During installation ensure that the child tether anchors are installed with the anti-rotation tabs firmly seated in the anti-rotation tab holes on the cross car beam. The anti-rotation tabs face forward on the outboard anchors. The center child tether anchor (1) and the anti-rotation tabs face the rear of the vehicle.

1. Install the child tether anchor (1) to the cross car beam.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
2. Install the child tether anchor fastener (2).

   Tighten

   Tighten the fastener to 30 N.m (22 lb ft).

3. Install the rear shelf panel carrier. Refer to SHELF CARRIER REPLACEMENT - REAR in Interior Trim.

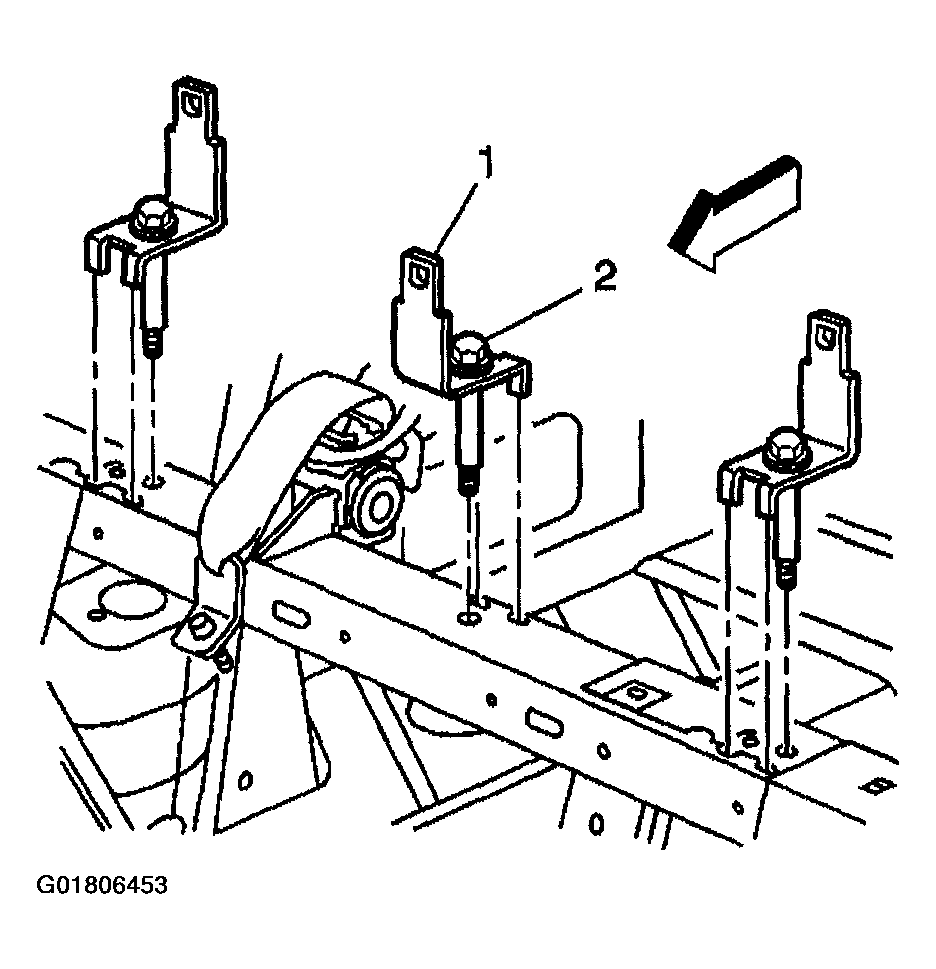

   Fig 1: Installing Child Tether Anchor & Fastener

   Courtesy of GENERAL MOTORS CORP.
4. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF (WITHOUT SUNSHADE) or TRIM PANEL REPLACEMENT - REAR WINDOW SHELF (WITH SUNSHADE) in Interior Trim.
