Removal Procedure

  1. Remove the rear shelf panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF (WITHOUT SUNSHADE) or TRIM PANEL REPLACEMENT - REAR WINDOW SHELF (WITH SUNSHADE) in Interior Trim.
  2. Remove the rear shelf panel reinforcement. Refer to SHELF CARRIER REPLACEMENT - REAR in Interior Trim.
  3. Remove the fastener (2) that retains the child tether anchor (1) that is being serviced.
  4. Remove the child tether anchor (1) from the vehicle.

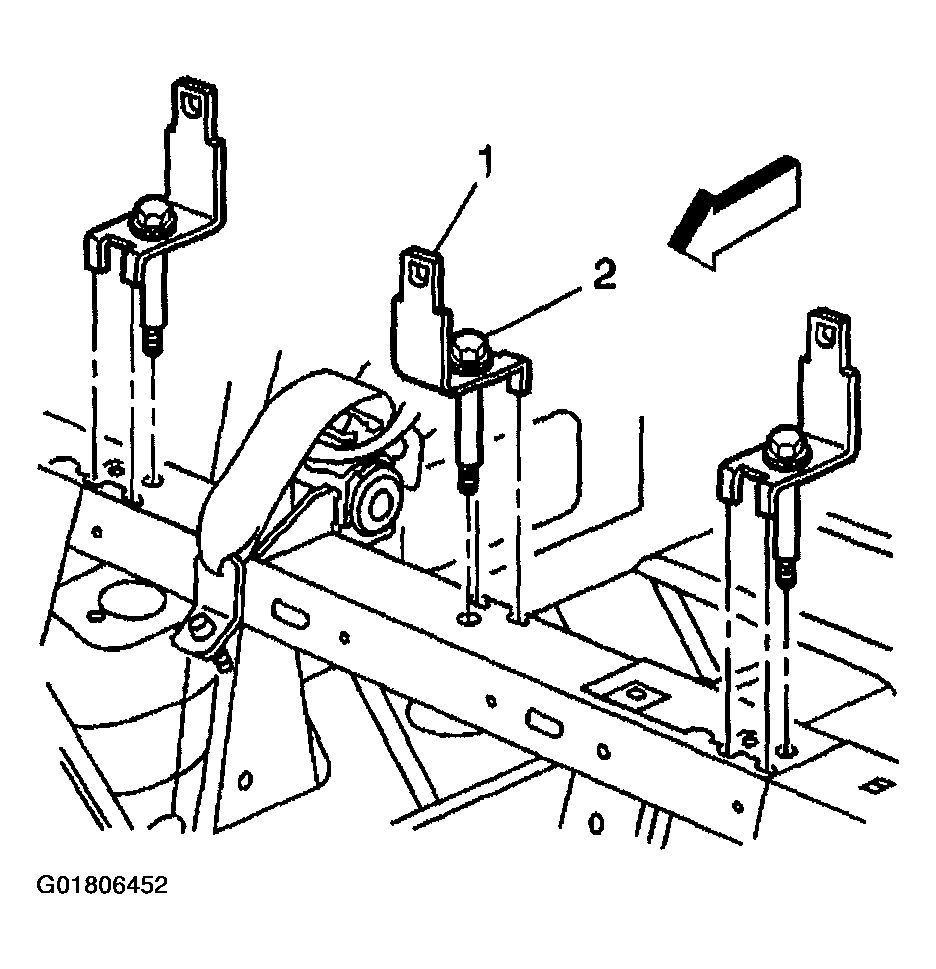

    Fig 1: Removing Child Tether Anchor & Fastener
    G01806452Courtesy of GENERAL MOTORS CORP.
