Connector Identification

NOTE: Park/Neutral Position (PNP) switch may be referred to as Transmission Range (TR) switch, and Brake Transmission Shift Interlock (BTSI) switch may be referred to as stoplamp switch.

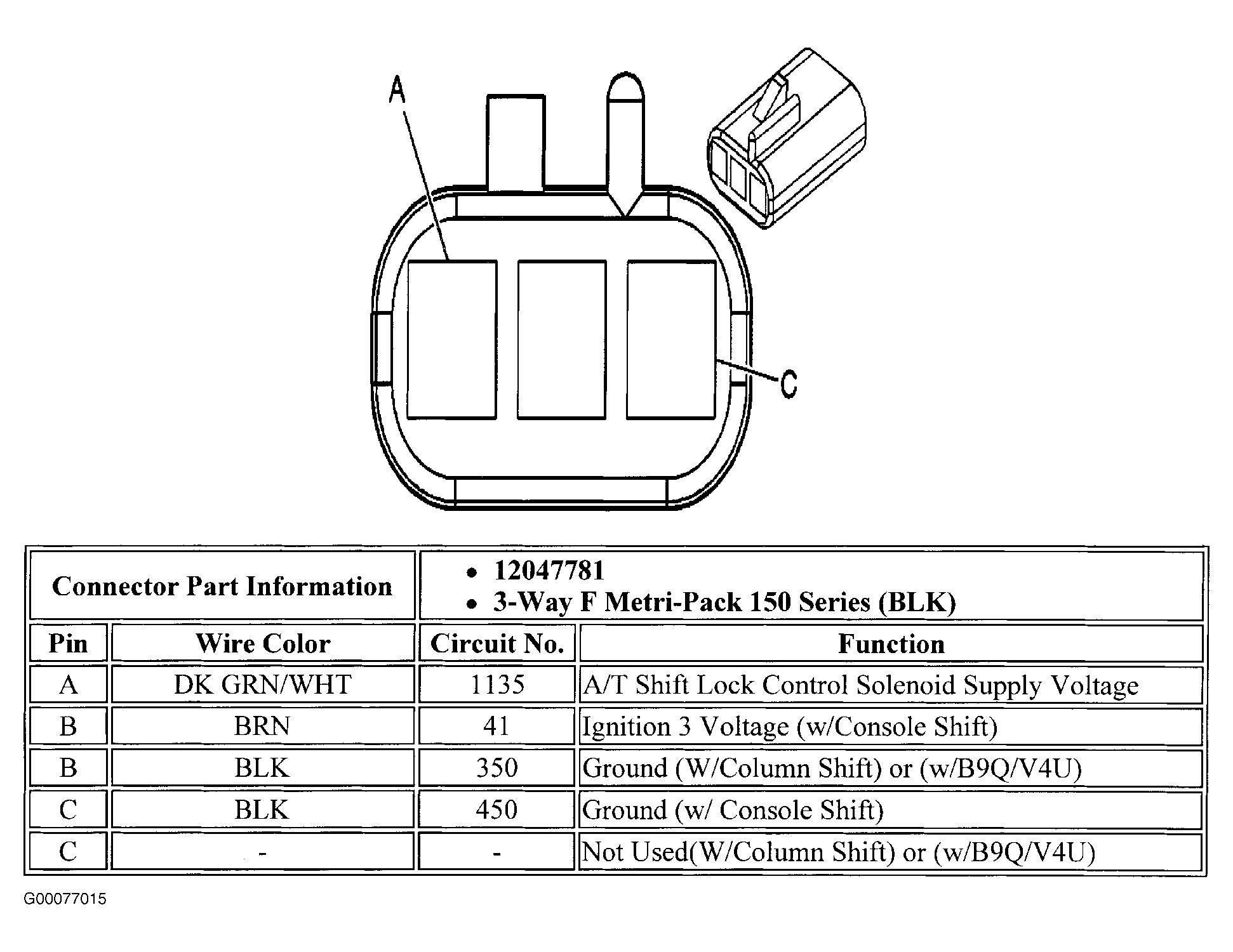

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector Terminals

Courtesy of GENERAL MOTORS CORP.

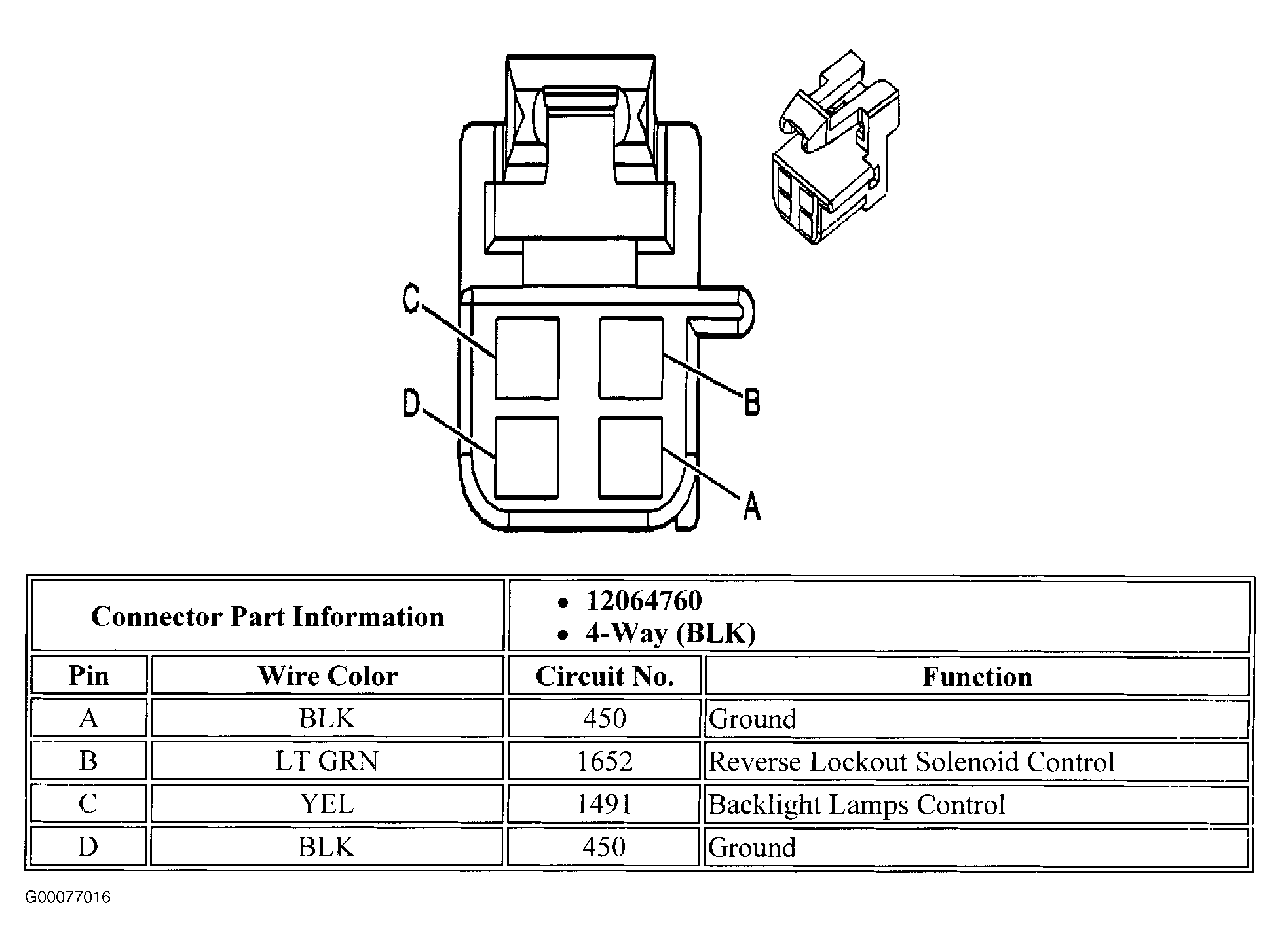

Fig 2: Identifying Reverse Lockout Actuator Connector Terminals

Courtesy of GENERAL MOTORS CORP.

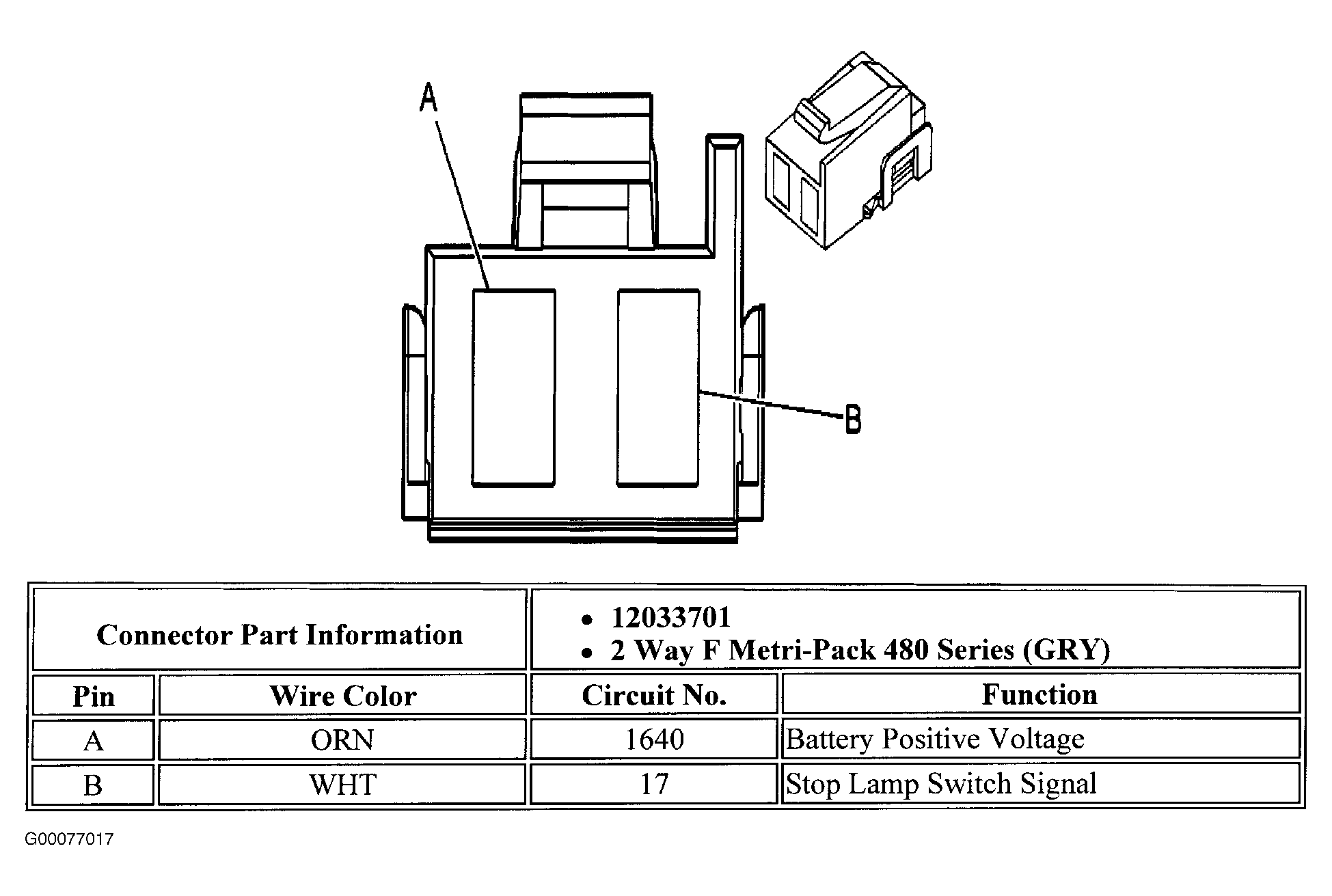

Fig 3: Identifying Stoplamp Switch Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

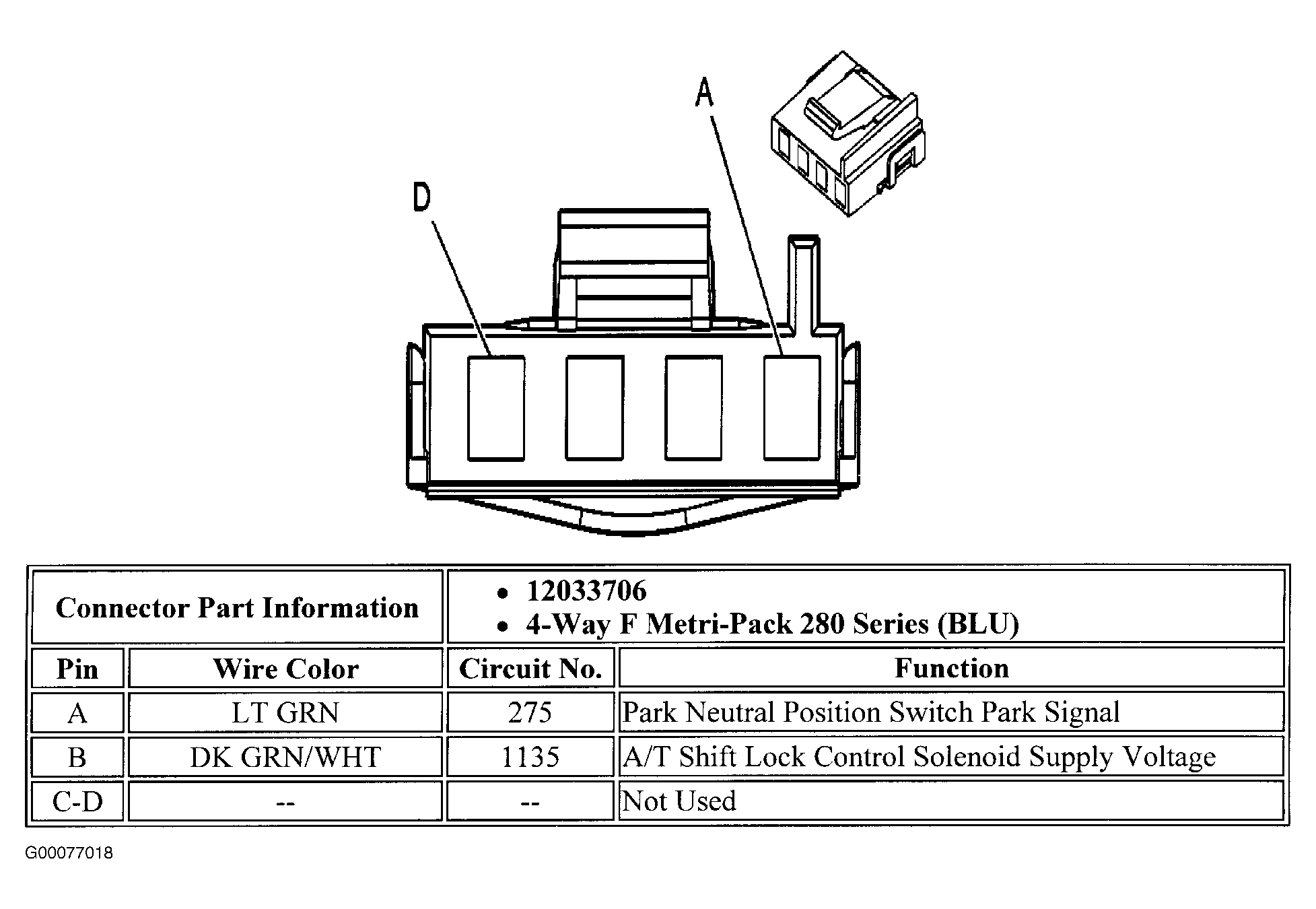

Fig 4: Identifying Stoplamp Switch Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

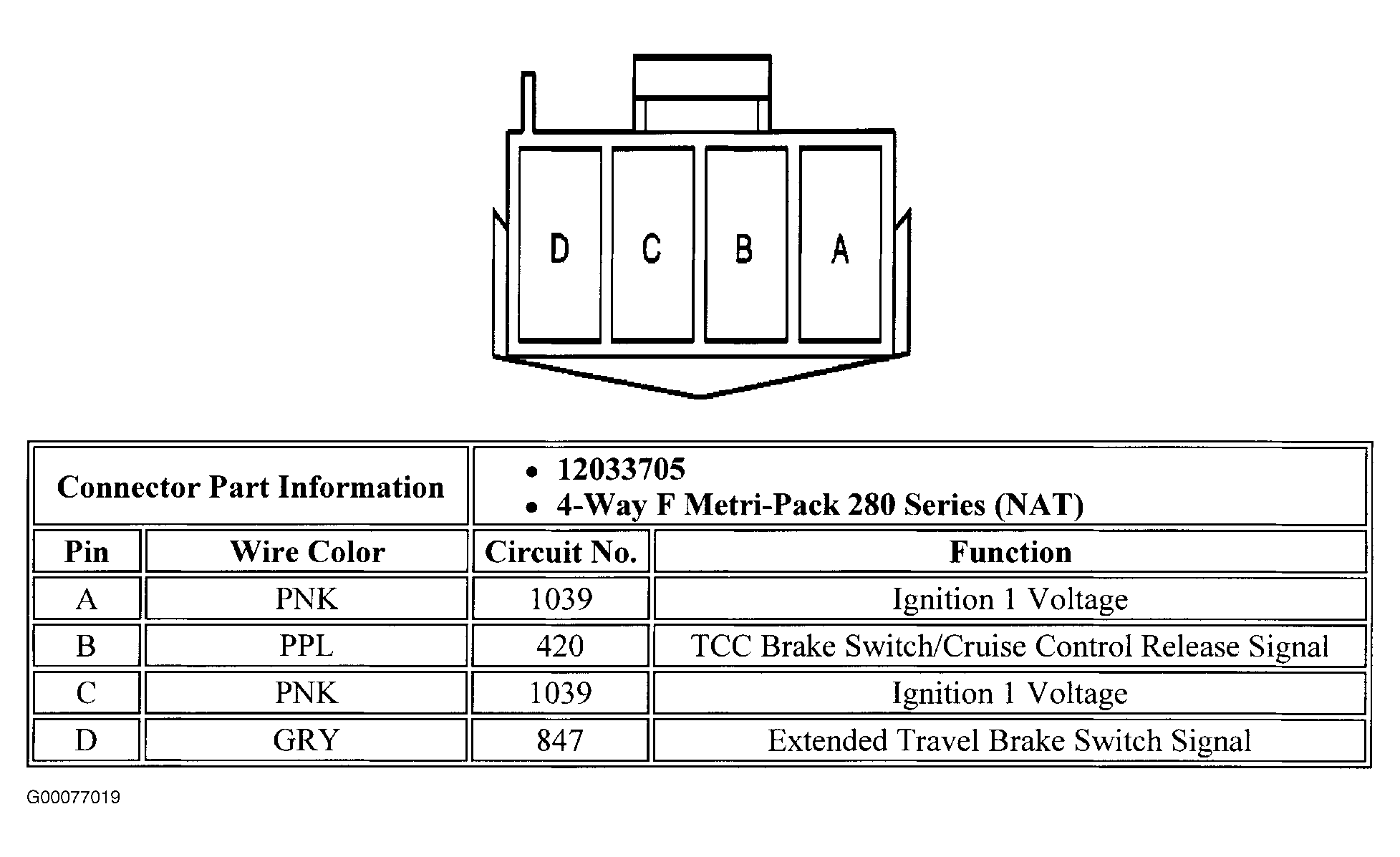

Fig 5: Identifying Stoplamp Switch Connector Terminals (TCC/Cruise)

Courtesy of GENERAL MOTORS CORP.
