Connector Identification

NOTE: Park/Neutral Position (PNP) switch may be referred to as Transmission Range (TR) switch. Brake Transmission Shift Interlock (BTSI) switch may be referred to as stoplamp switch. BCM may be referred to as Platform Zone Module (PZM).

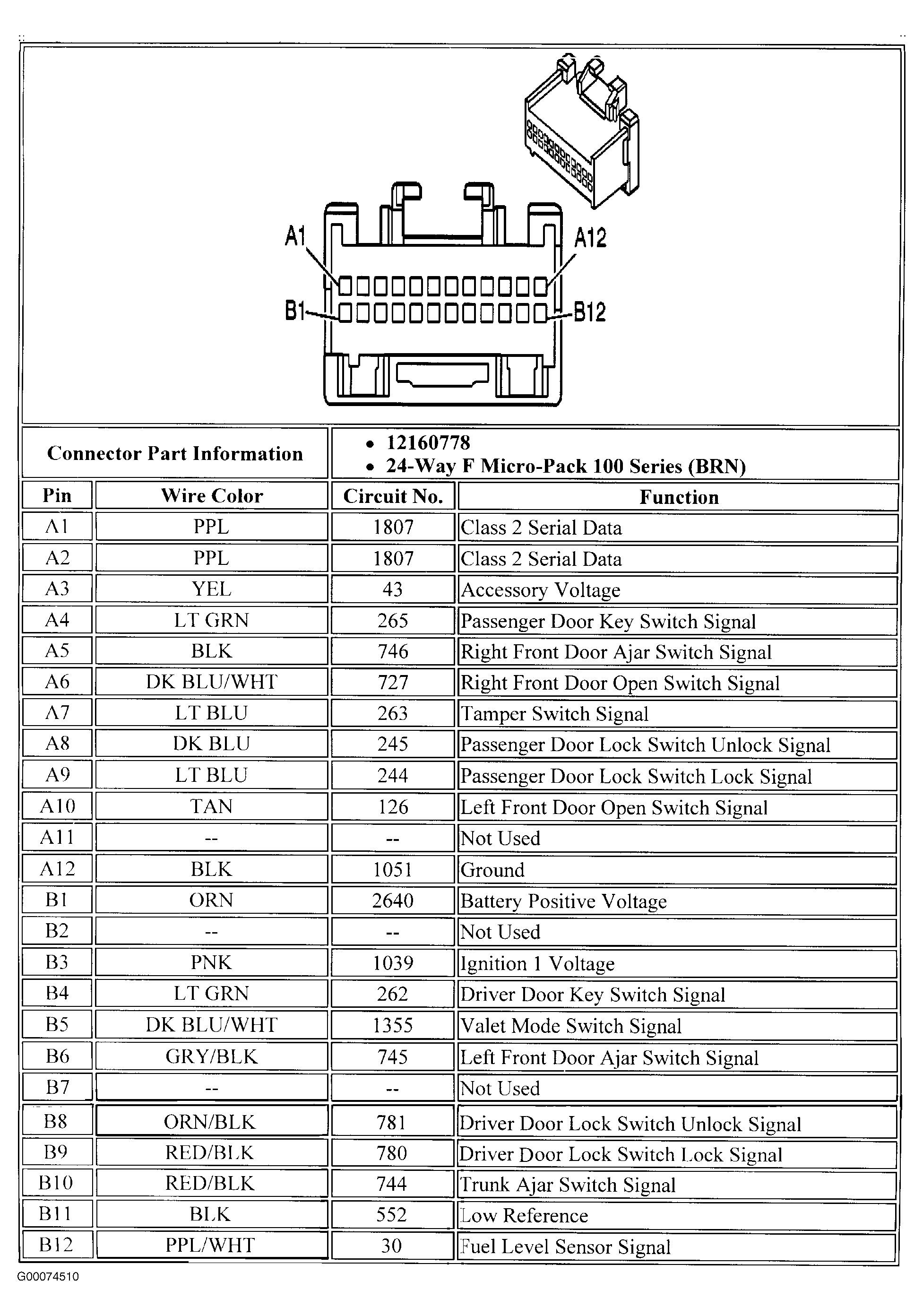

Fig 1: Identifying BCM/PZM Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

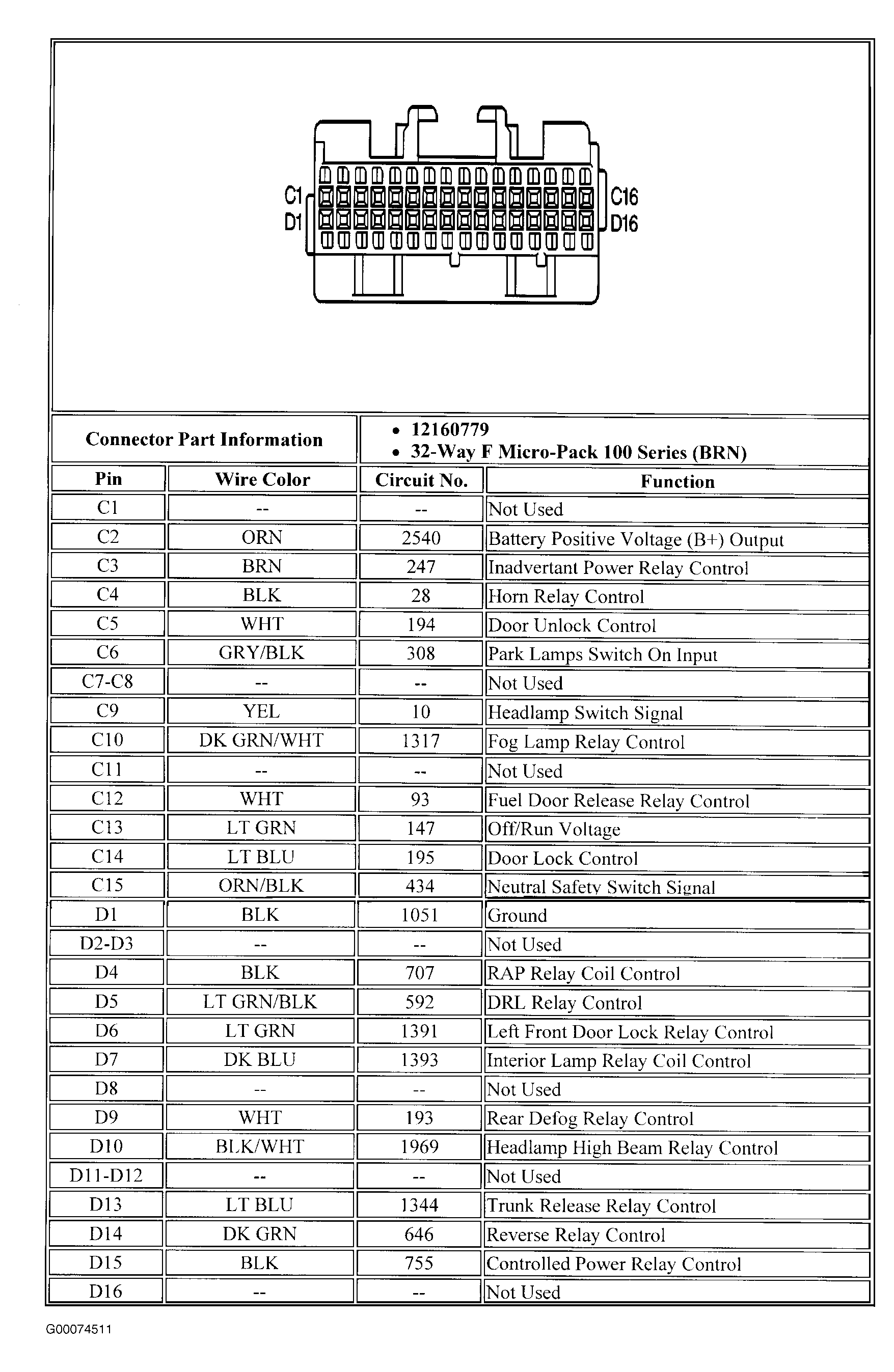

Fig 2: Identifying BCM/PZM Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying BTSI Solenoid Connector Terminals

Courtesy of GENERAL MOTORS CORP.

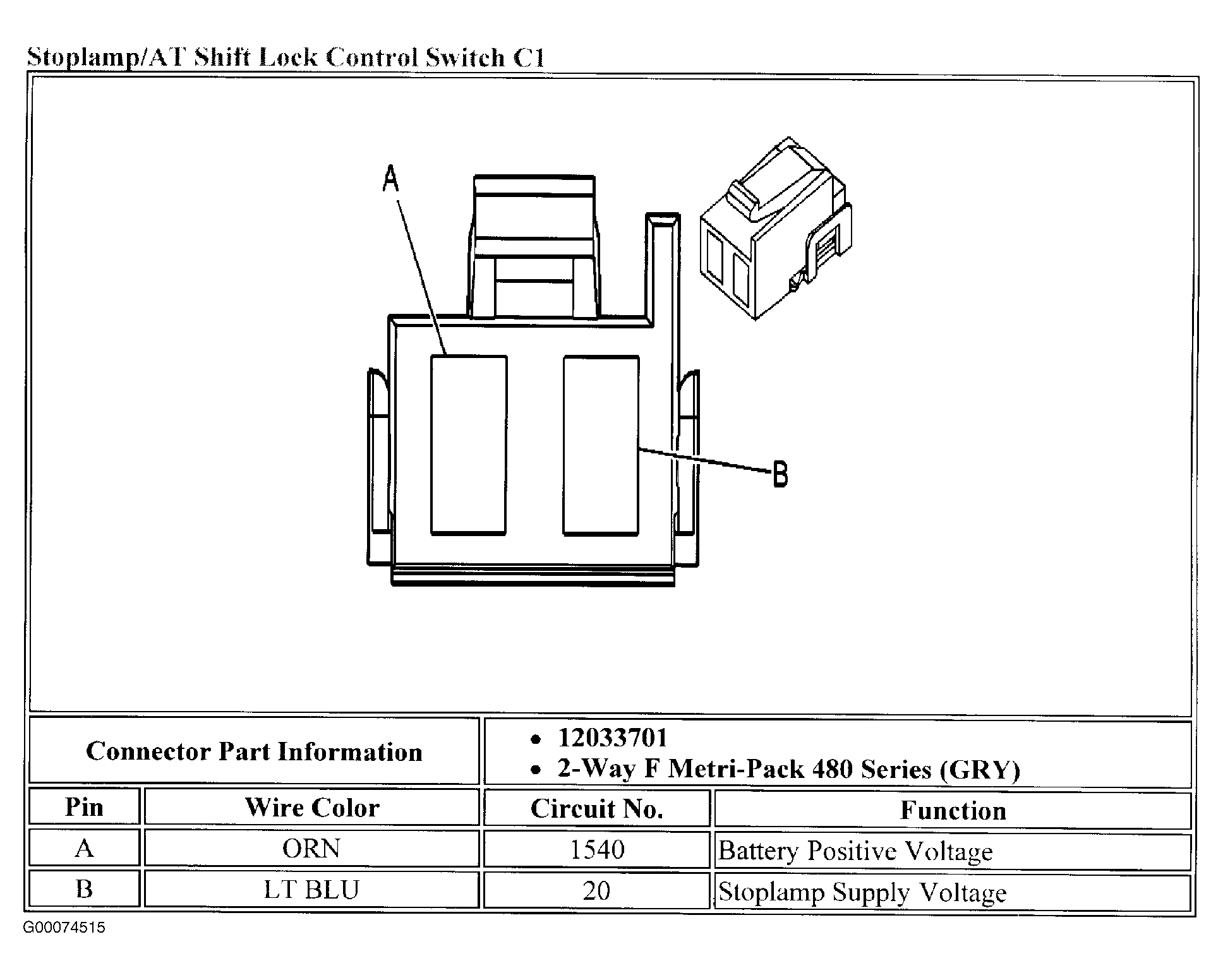

Fig 4: Identifying Stoplamp Switch/A/T Shift Lock Control Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

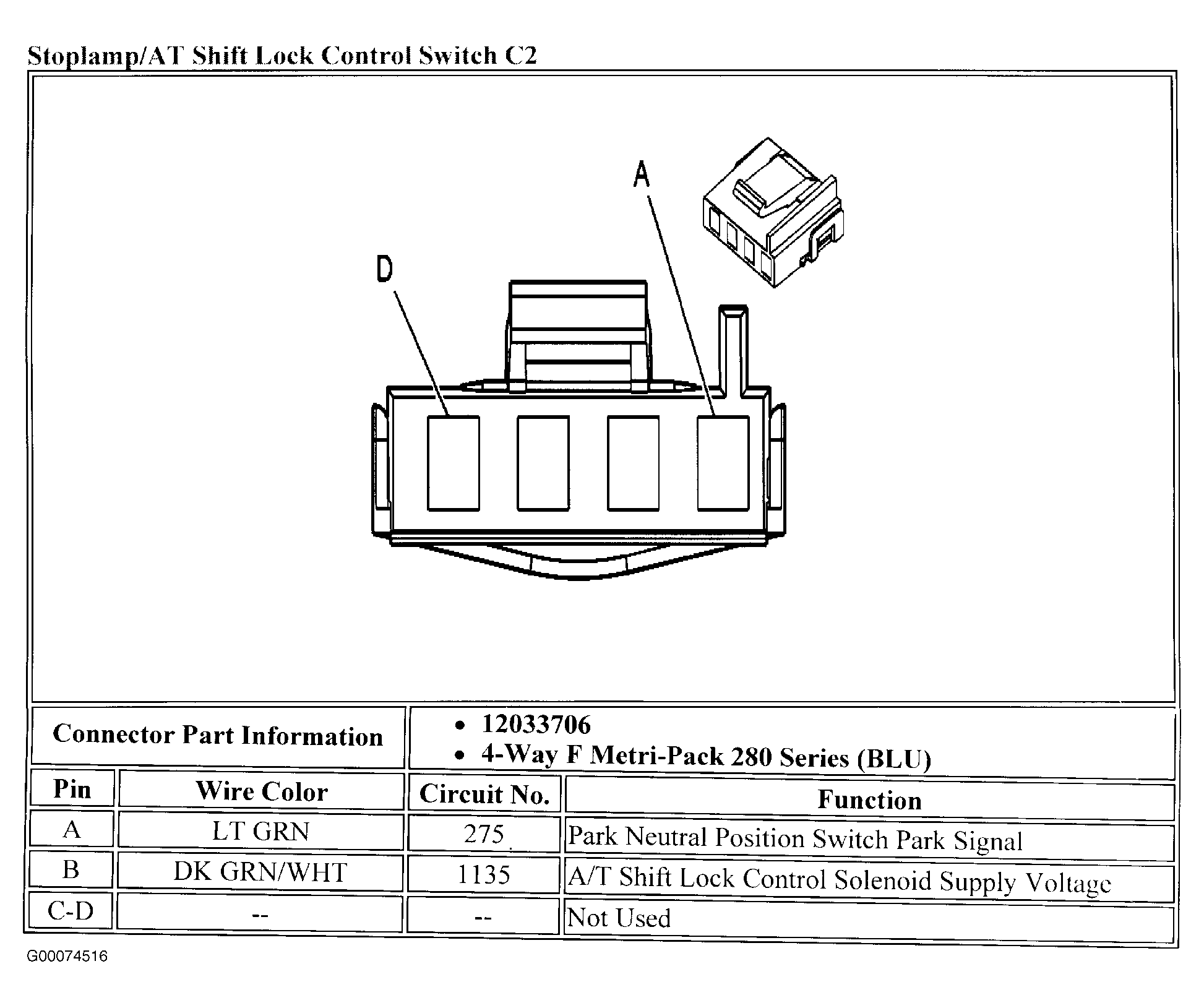

Fig 5: Identifying Stoplamp Switch/A/T Shift Lock Control Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

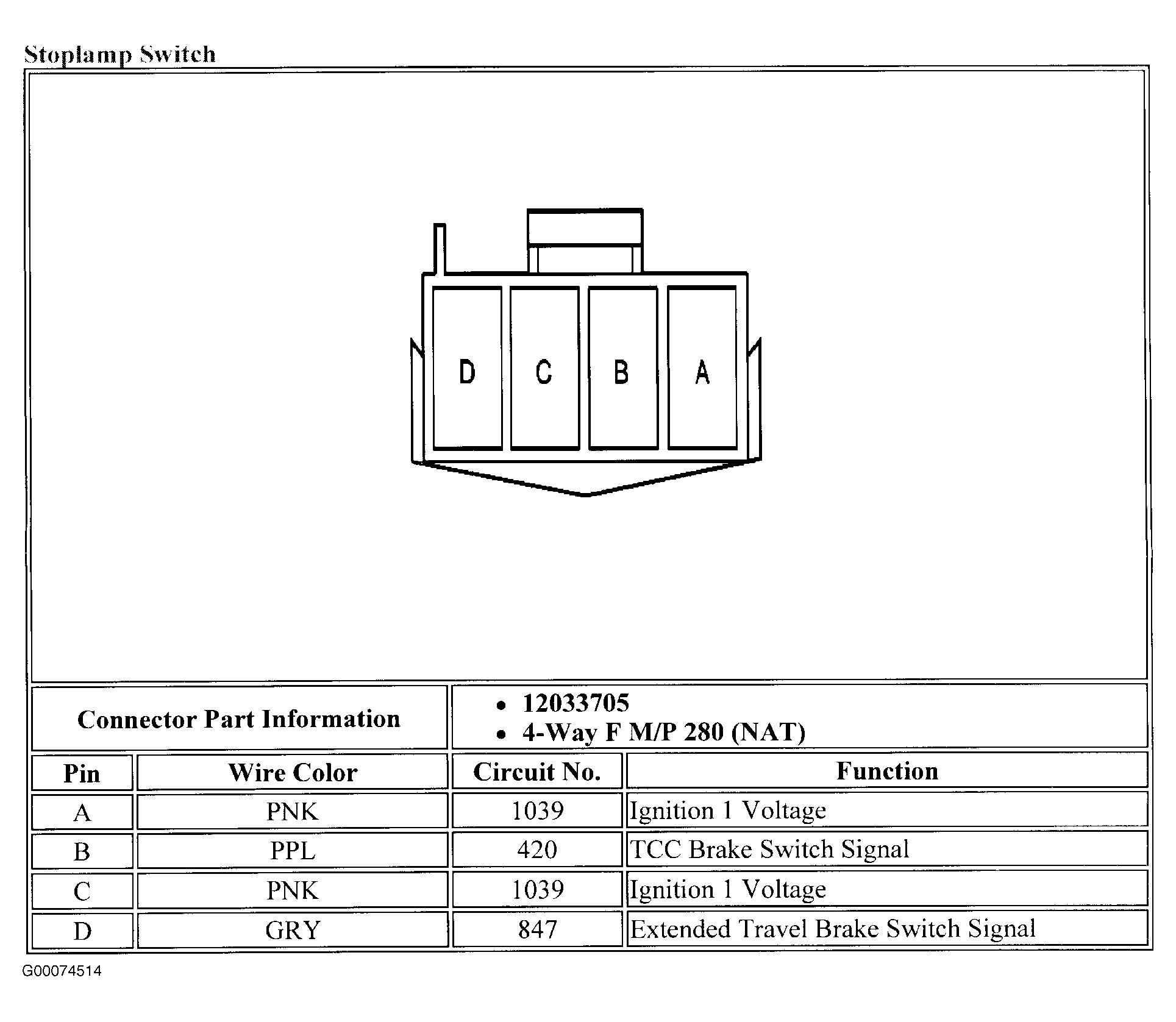

Fig 6: Identifying Stoplamp Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.
