Inverting Driver Module Connector End View

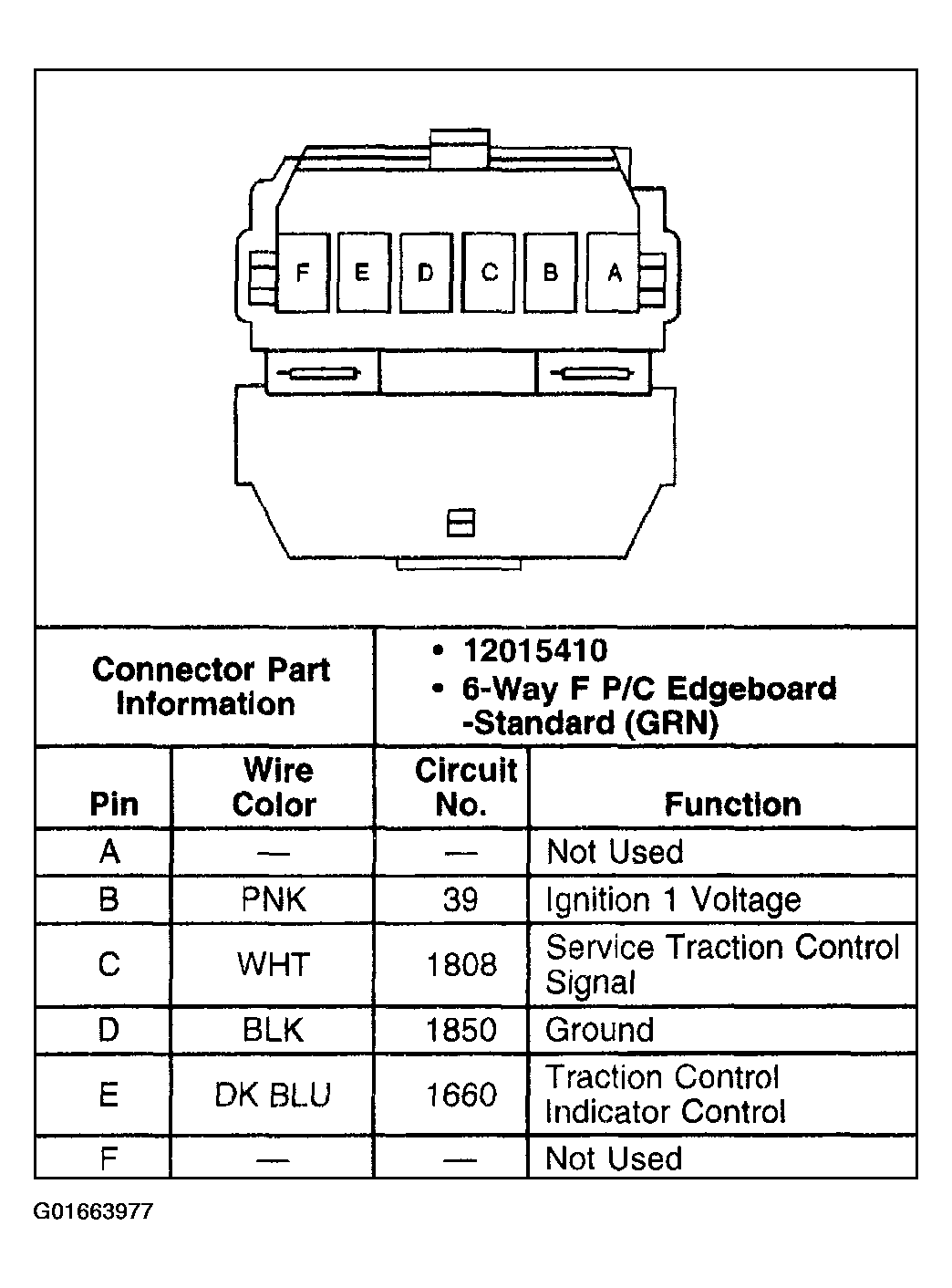

Fig 1: Inverting Driver Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
