Engine Block-Rear View

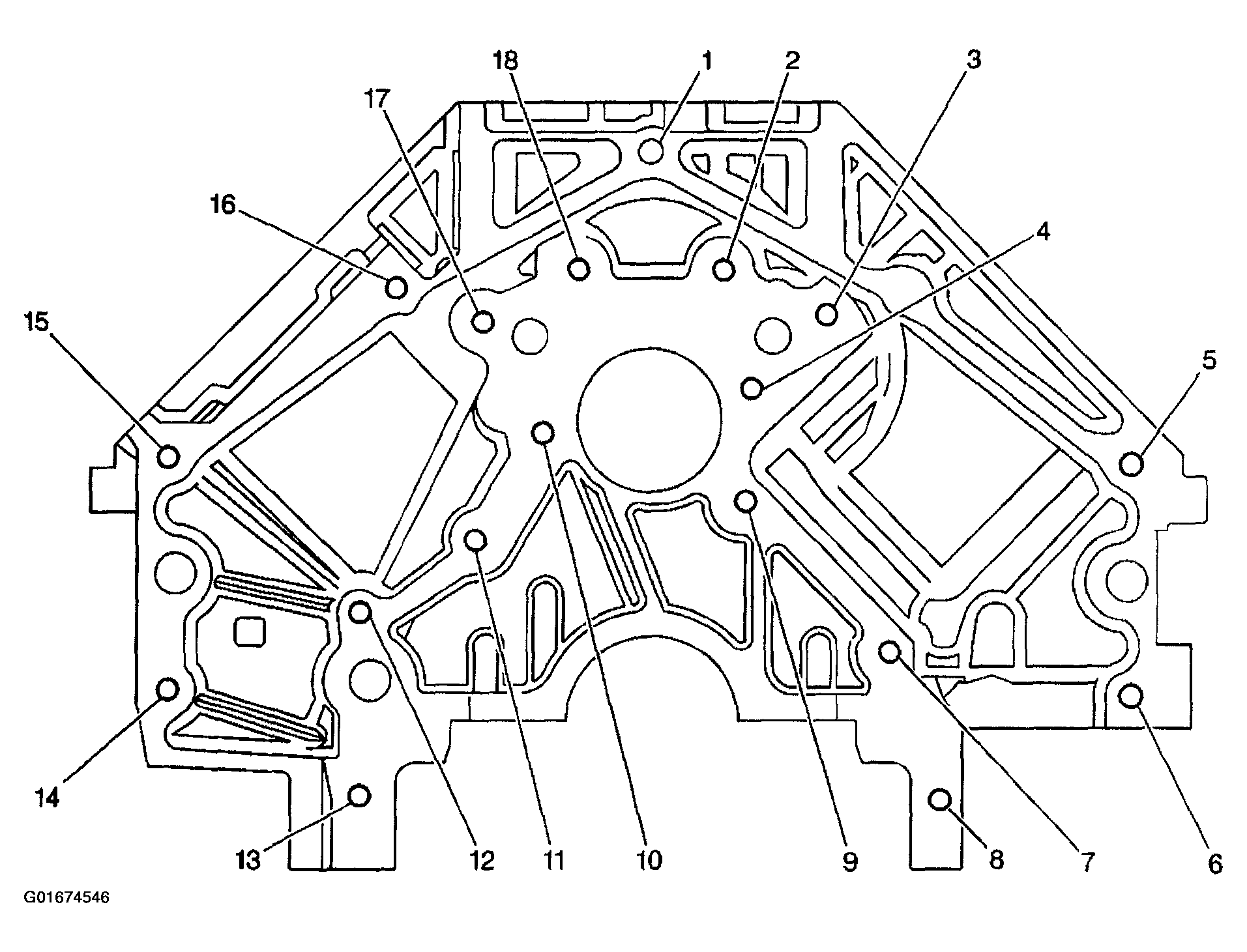

Fig 1: Engine Block - Rear View
G01674546Courtesy of GENERAL MOTORS CORP.

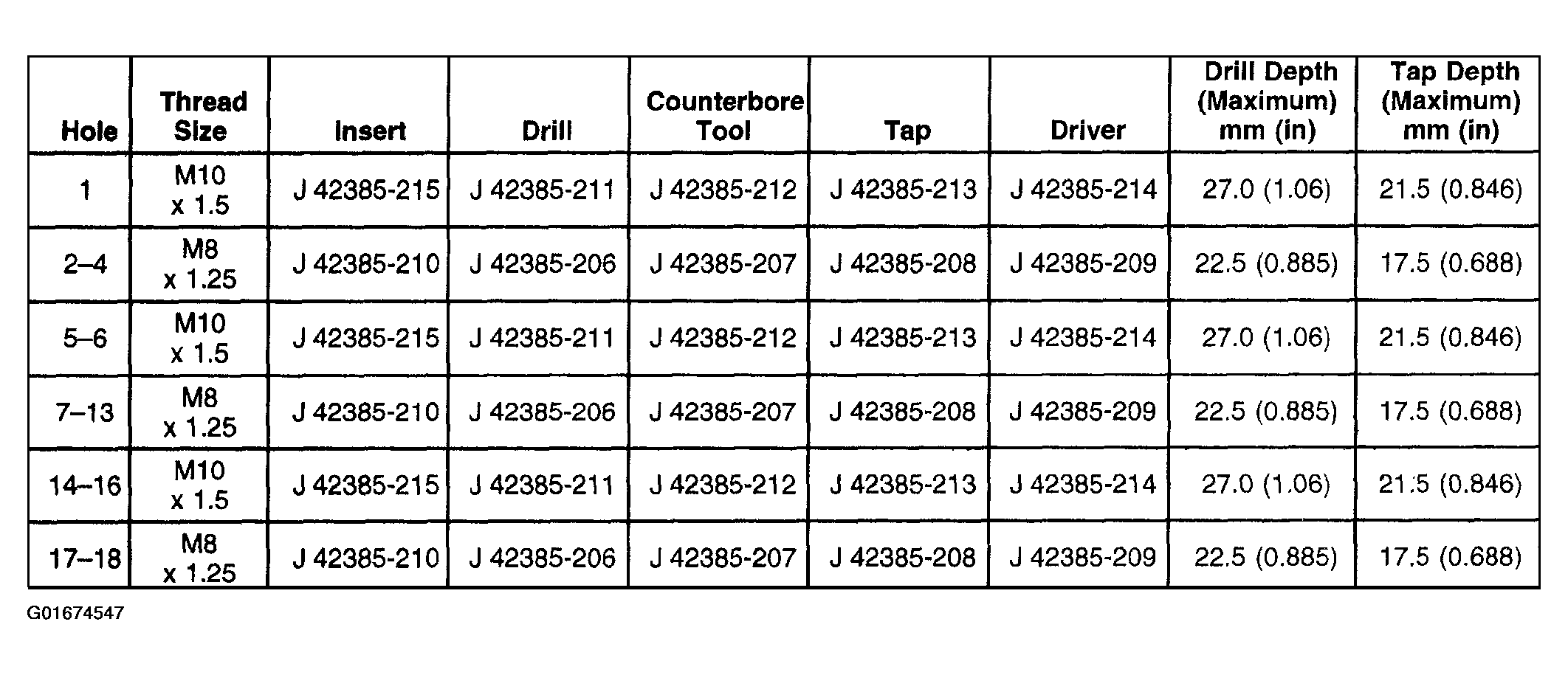

Fig 2: Engine Block - Rear View Hole Thread Sizes
G01674547Courtesy of GENERAL MOTORS CORP.
