Power Door Systems Component Views

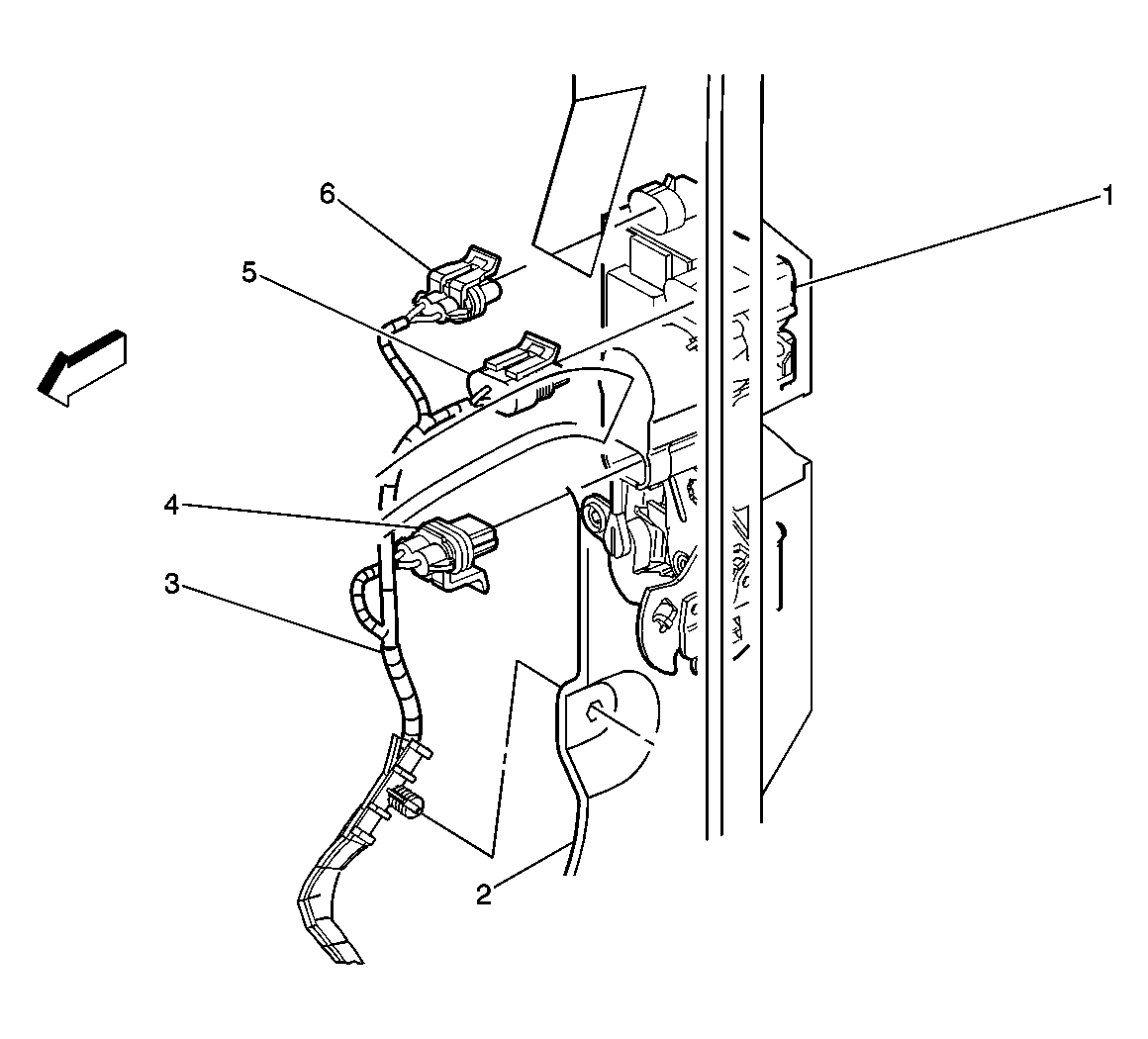

Fig 1: Front Passenger Door Components - Lock Assembly
GM349984Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Latch Assembly
2 Door
3 Harness
4 Door Handle Switch-Right Connector
5 Mini-Wedge (Door Jamb Switch)-Passenger Connector
6 Door Lock Actuator-Passenger Connector

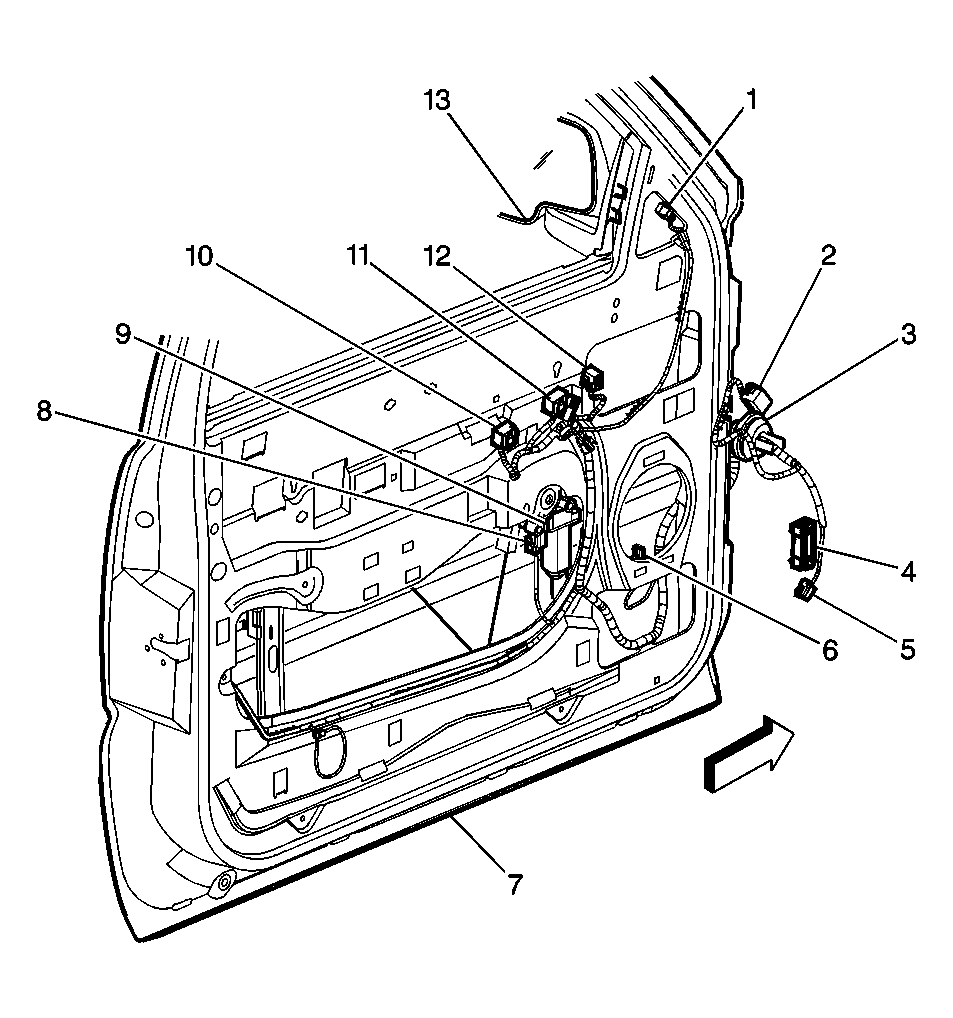

Fig 2: Driver Door Component Views
GM309973Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror-Passenger Connector
2 Harness Inline Connector
3 Pass Through 500 (P500)
4 Inline Connector-C200
5 Harness Inline Connector
6 Speaker Connector
7 Door-Driver
8 Window Motor-Driver Connector
9 Window Motor-Driver Connector
10 Door Lock Switch-Driver Connector
11 Window Switch-Driver Connector
12 Outside Rearview Mirror Switch-Driver Connector
13 Outside Rearview Mirror-Passenger

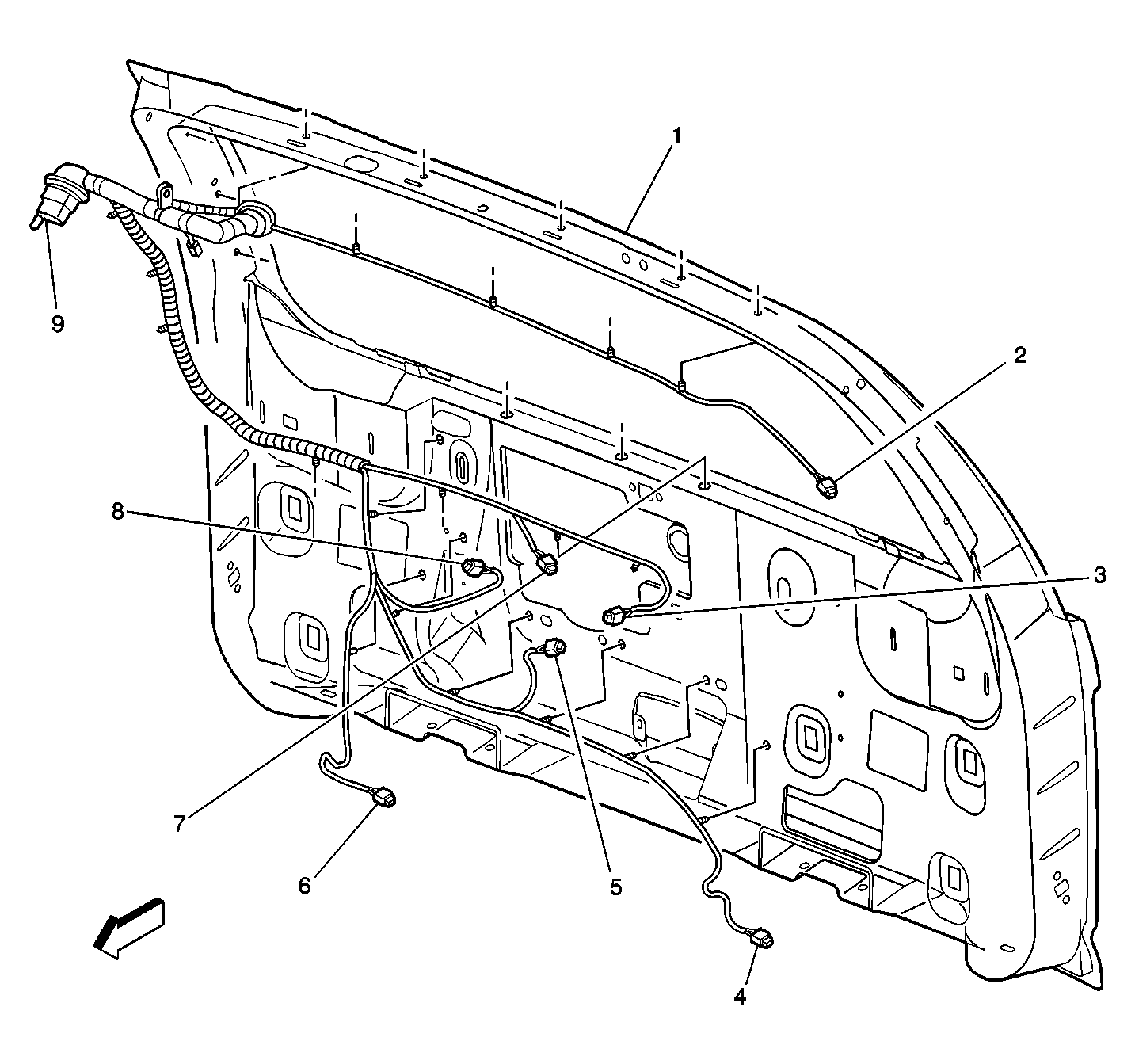

Fig 3: Liftgate Wiring Harness To Liftgate Component Views
GM573926Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Liftgate with Liftglass
2 Liftglass Defog Connector
3 Liftgate Latch Connector
4 Liftgate Lower Latch Connector
5 Liftgate Latch Connector
6 Liftgate Lower Latch Connector
7 Liftgate Latch Connector
8 Windshield Wiper Motor Connector
9 Inline Connector Harness

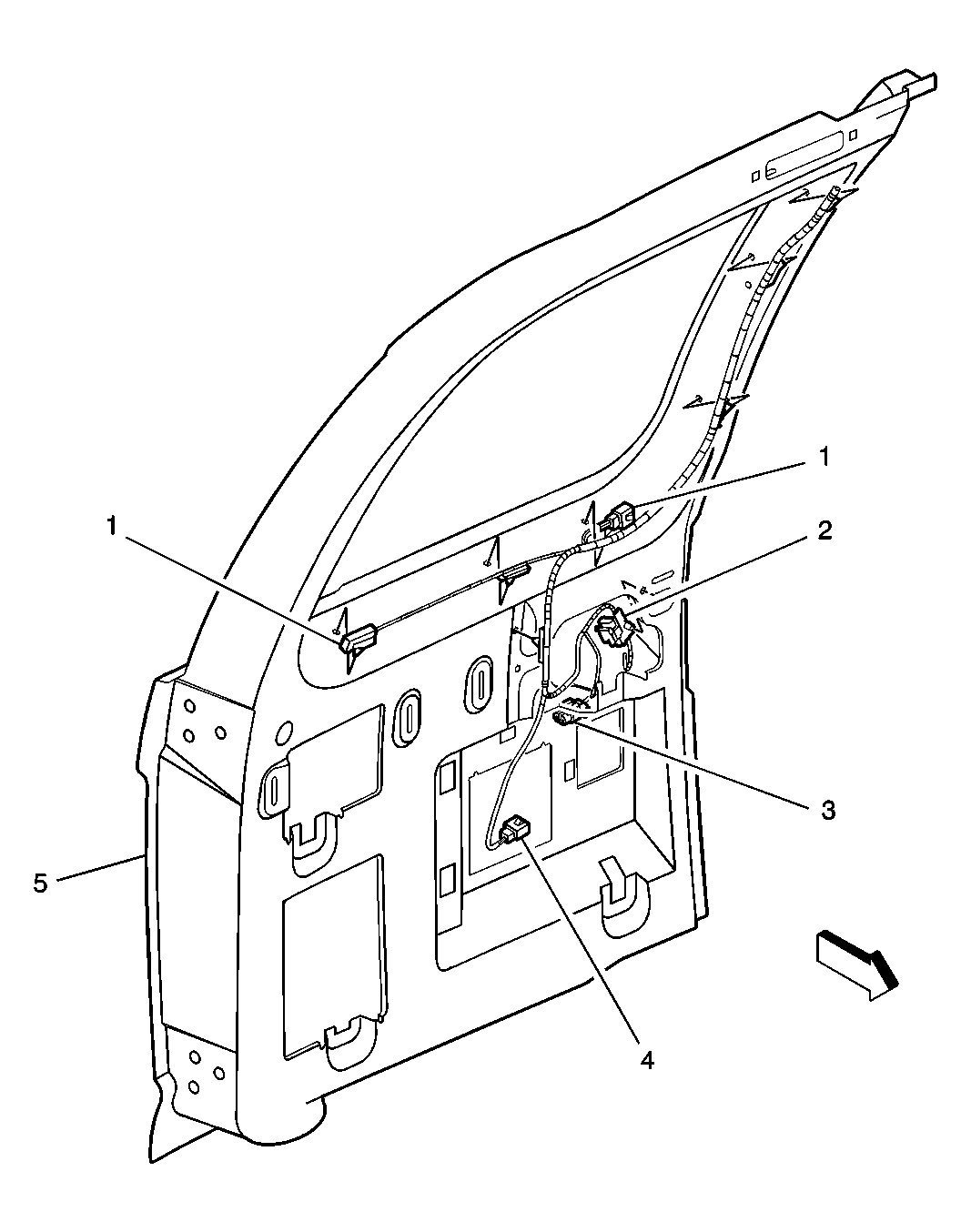

Fig 4: RR Cargo Door Components (Utility)
GM573904Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Defog Connector
2 Rear Door Upper Latch
3 Rear Door Lock Cylinder Connector
4 Rear Door Lock Actuator Connector
5 Rear Door Inner Panel

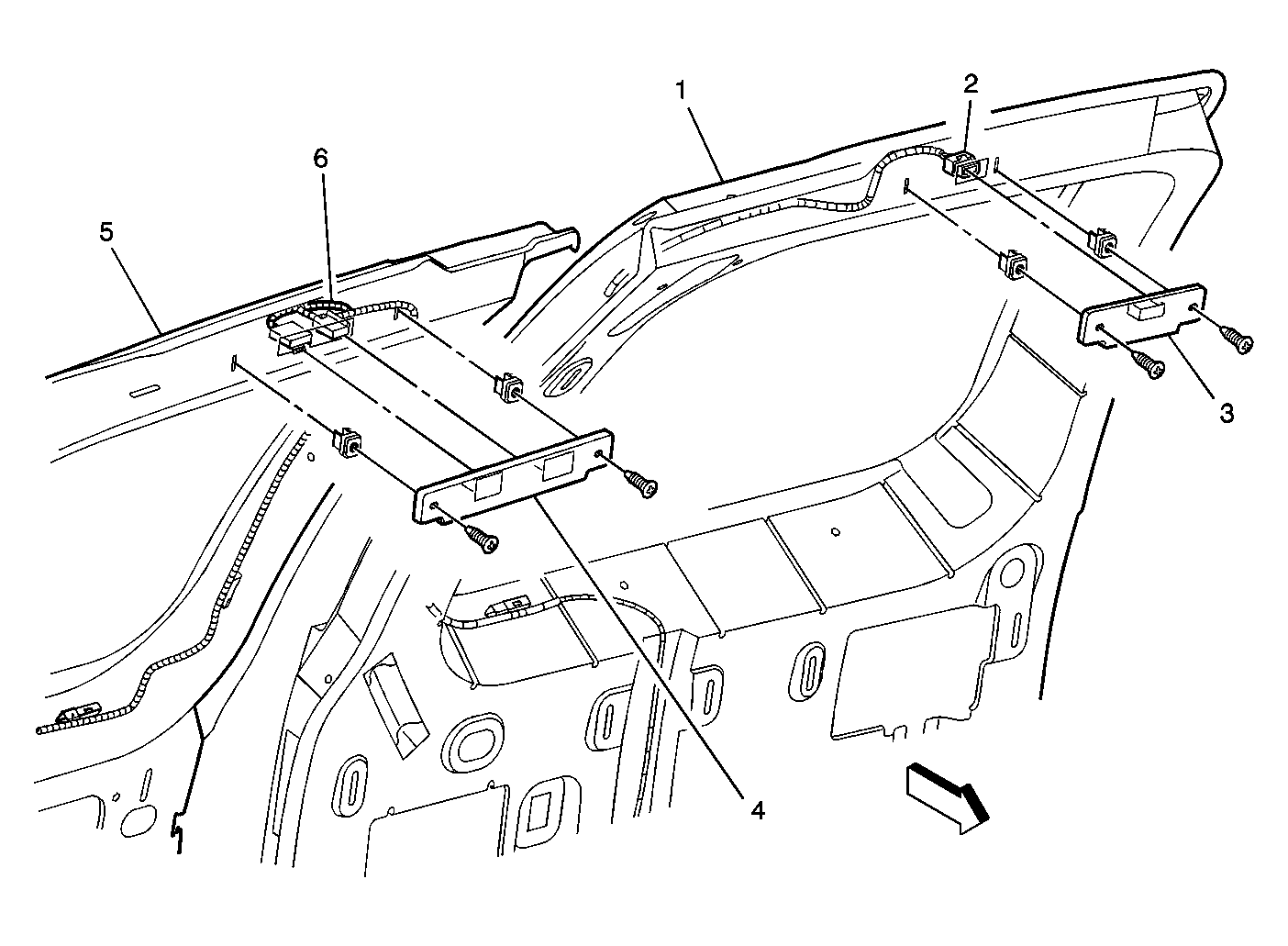

Fig 5: Top of Cargo Door Components (Utility)
GM573973Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Door Inner Panel
2 Door Ajar Connector-Right Cargo
3 Door Contact Plate-Right Cargo
4 Door Contact Plate-Left Cargo
5 Rear Door Inner Panel
6 Door Ajar Connector-Left Cargo

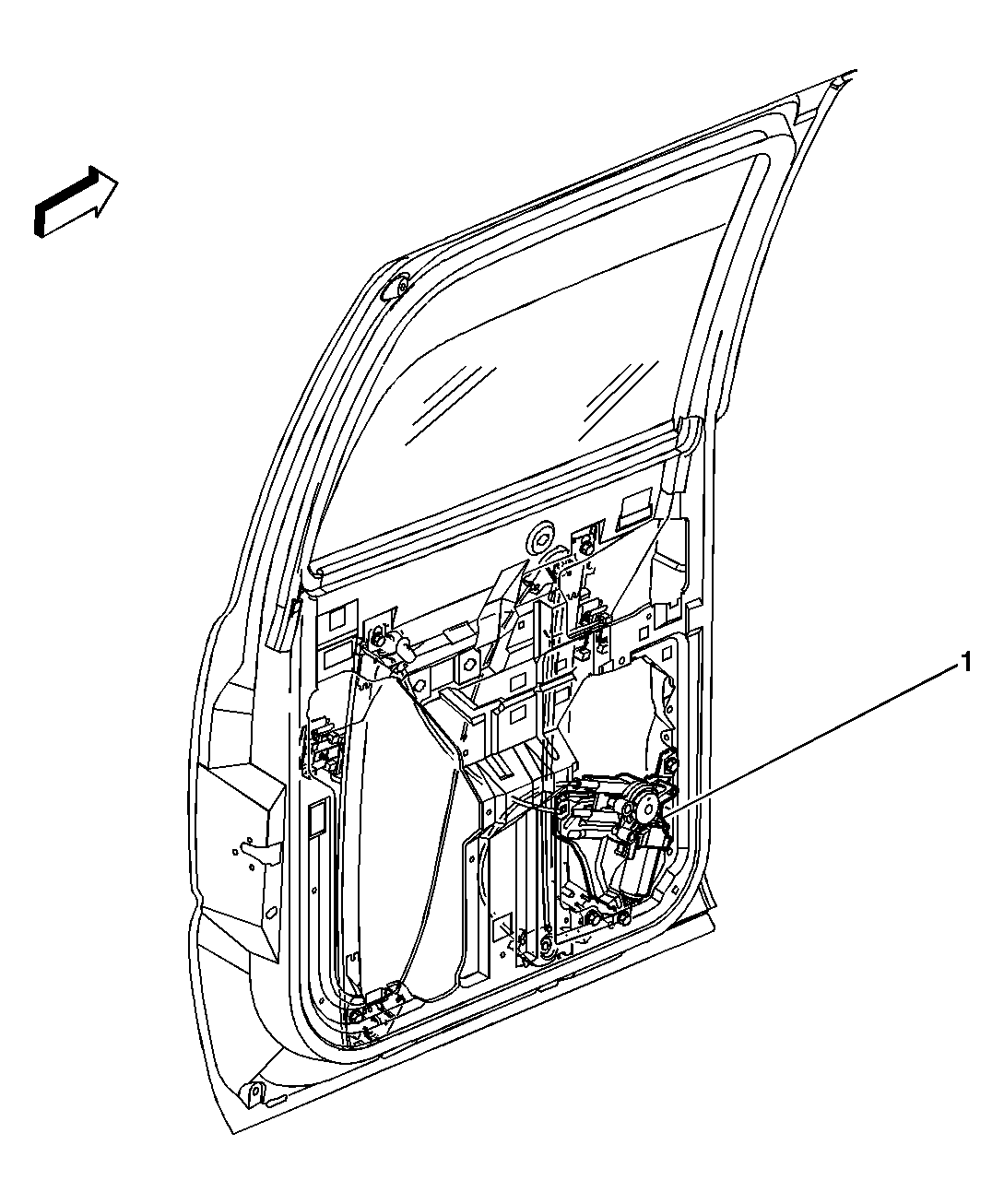

Fig 6: Power Window Motor, LR Shown RR Opposite-Suburban/Yukon XL Shown, All Others Similar Component Views
GM781899Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Motor

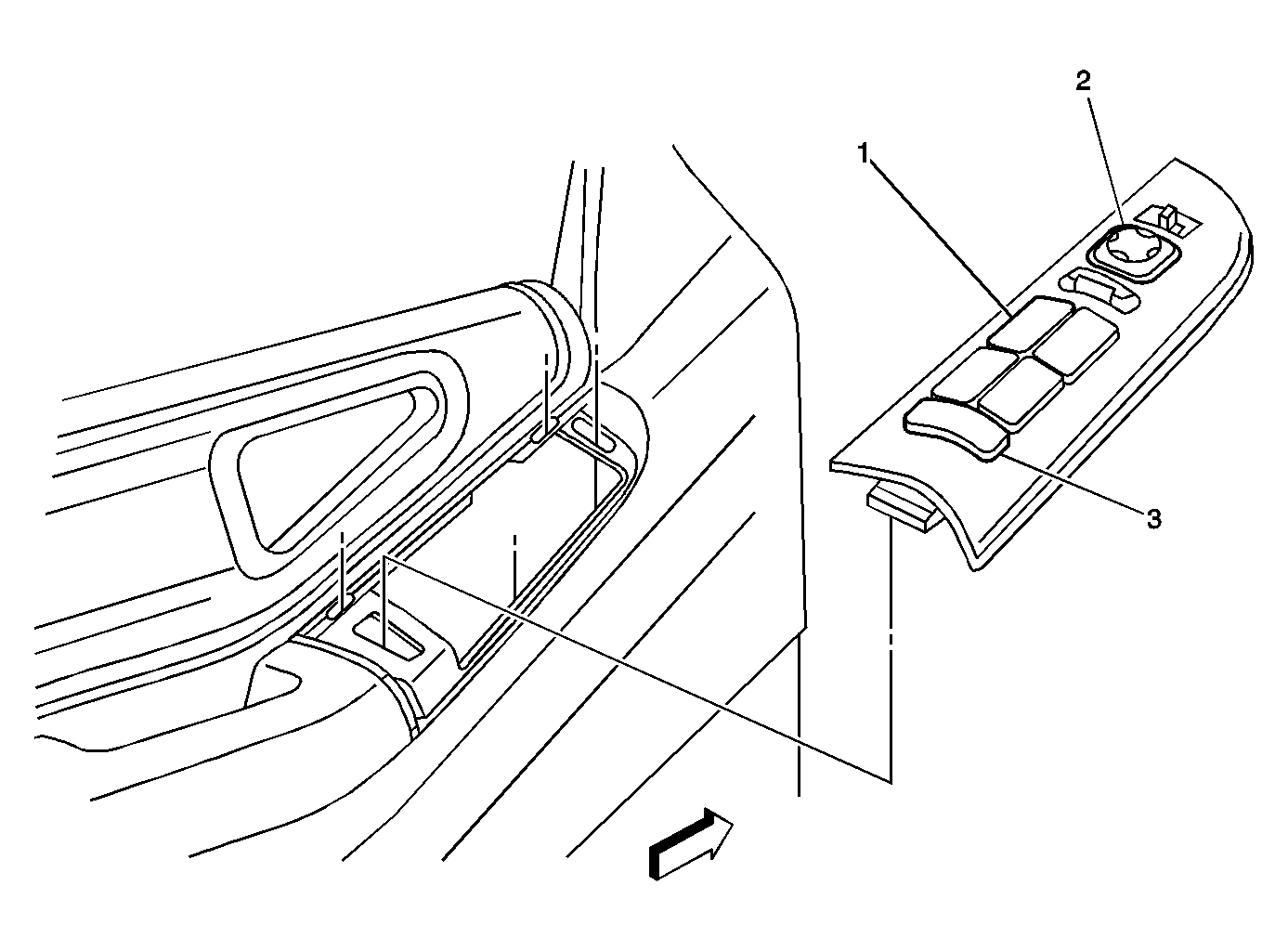

Fig 7: Drivers Door Switches Component Views
GM781901Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Window Switch
2 Mirror Switch
3 Window Lockout Switch

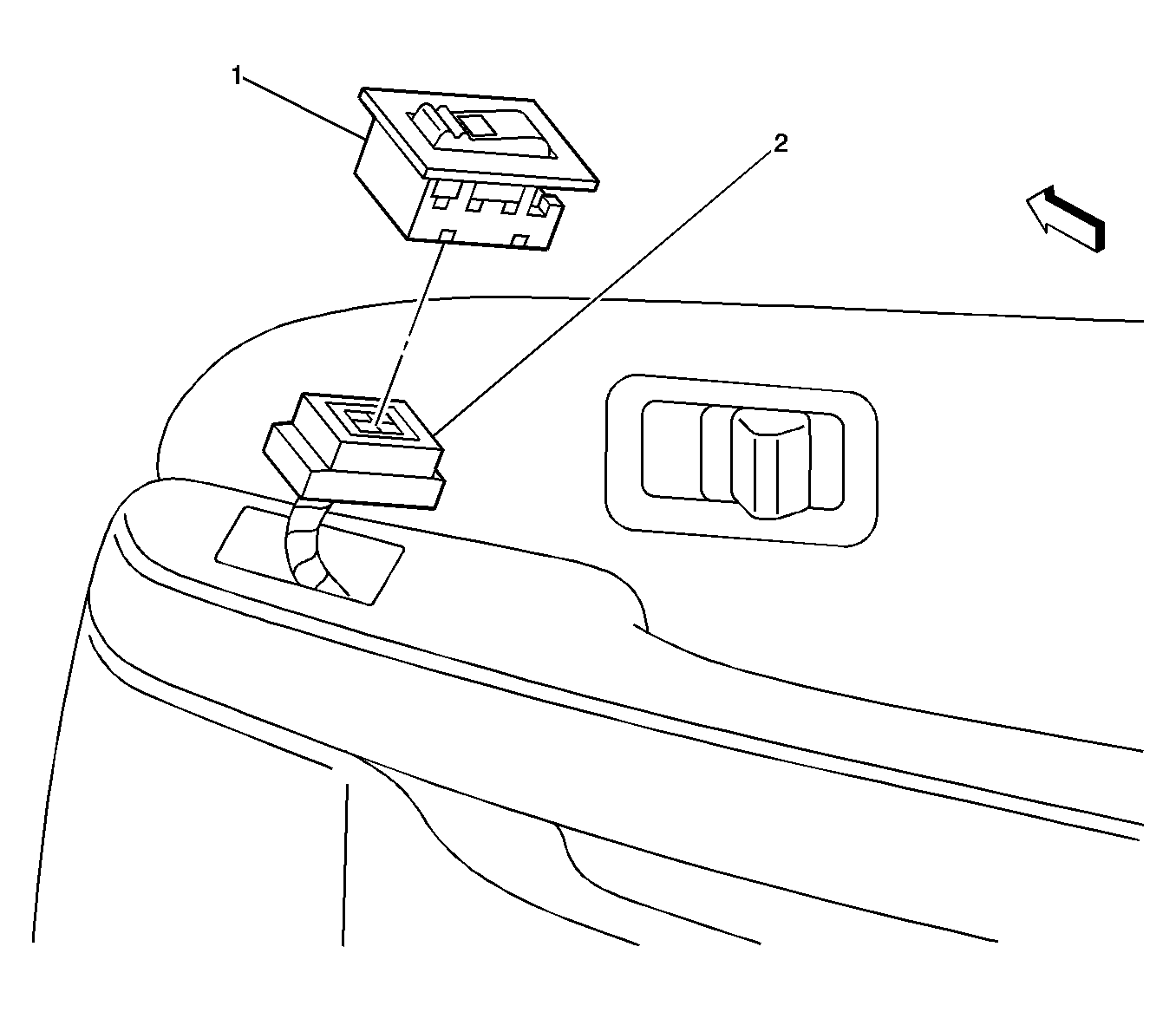

Fig 8: Power Window Switch, RR Shown LR Similar Component Views
GM781900Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - RR
2 Window Switch Connector

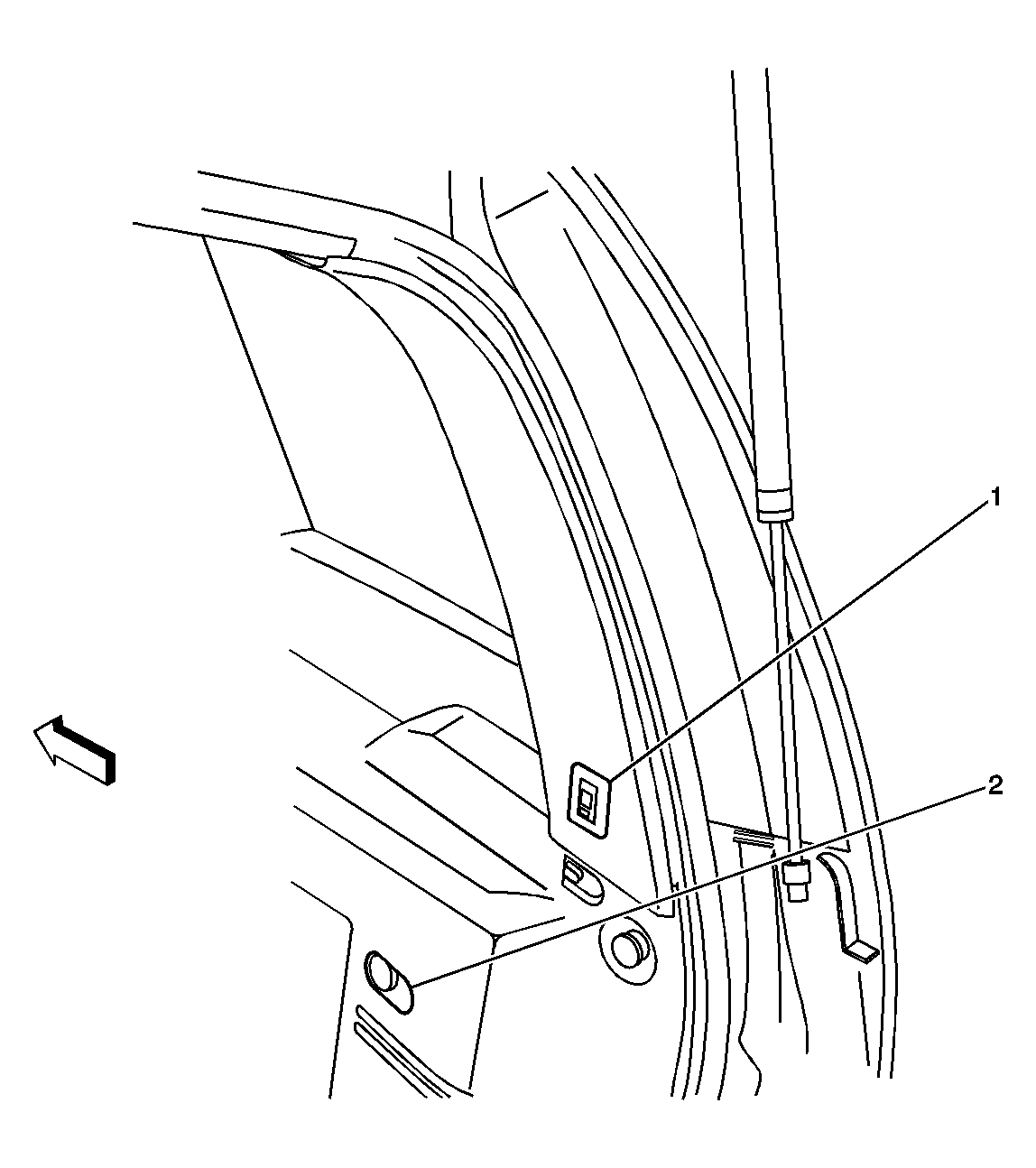

Fig 9: Door Lock Switch - Rear Cargo Component Views
GM781904Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch - Rear Cargo
2 Auxiliary Power Outlet - Rear

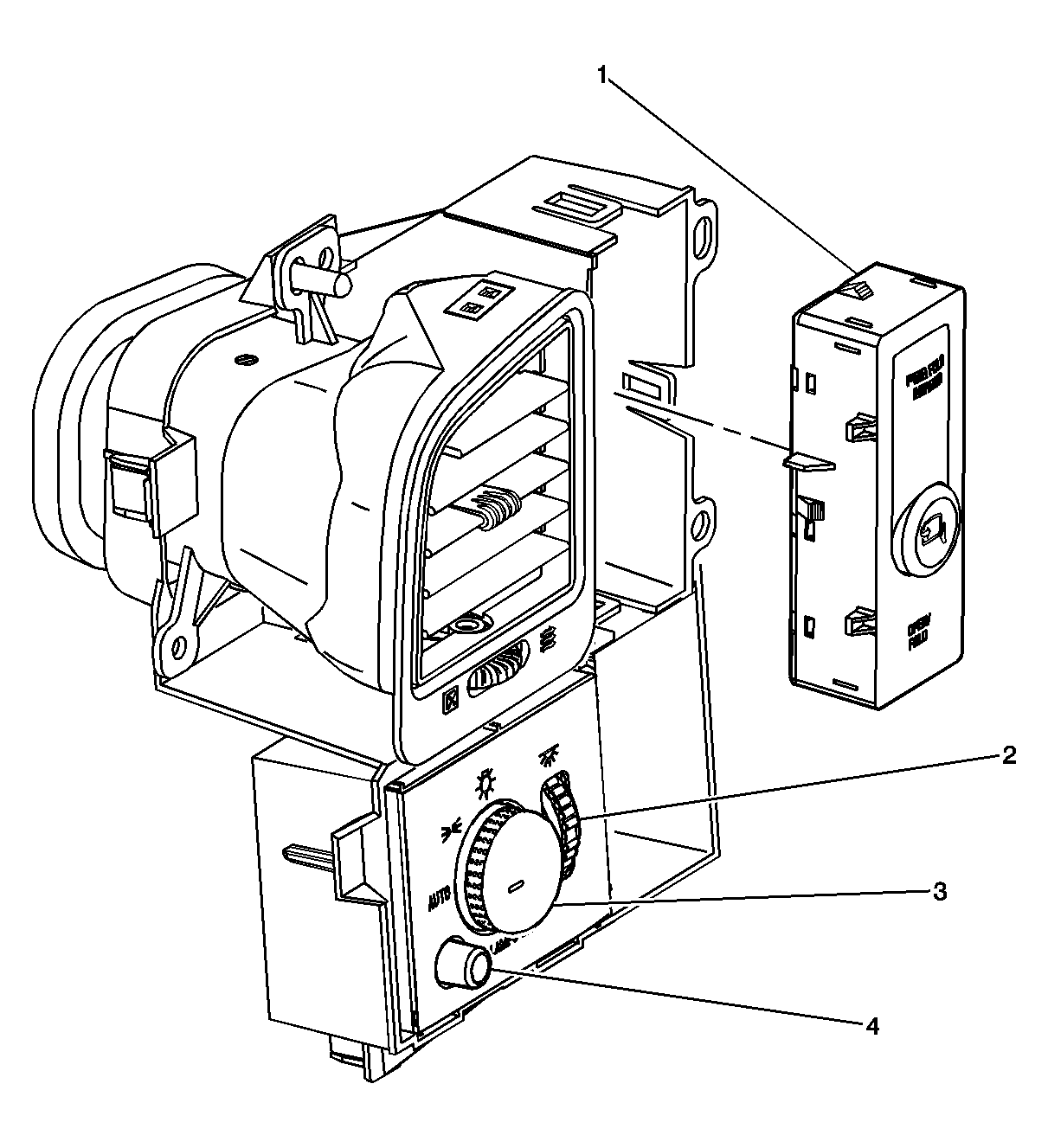

Fig 10: Power Folding Mirror Switch Component Views
GM781905Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Folding Mirror Switch
2 Dimmer Switch
3 Headlamp Switch
4 Dome Lamp Defeat Switch
