Removal Procedure

  1. Remove the drivers side door panel. Refer to Trim Panel Replacement - Side Front Door .

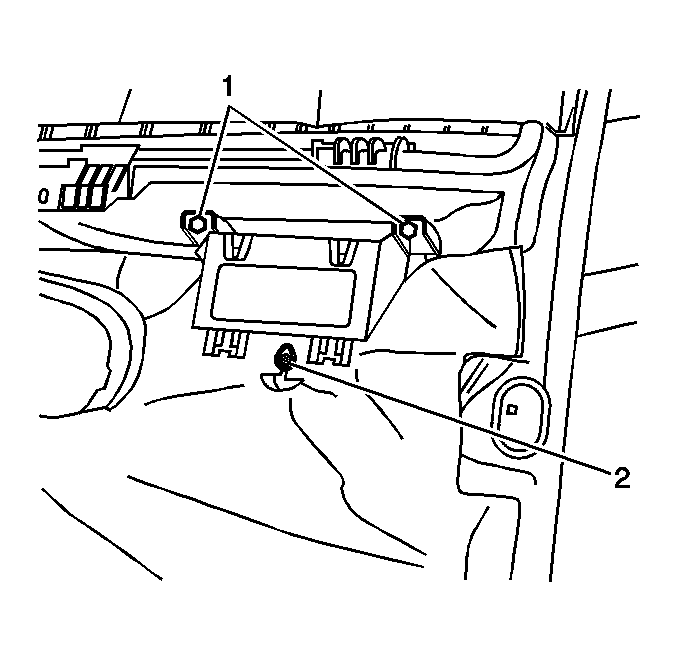

    2. Fig 1: Accessory & Outside Rear View Mirror Module
    GM772992Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws (1) that retain the accessory and outside rear view mirror module from the door panel.
  3. Remove the nut (2) that retains the accessory and outside rear view mirror module from the door panel.
  4. Remove the module from the door panel.
