Stationary Windows Connector End Views

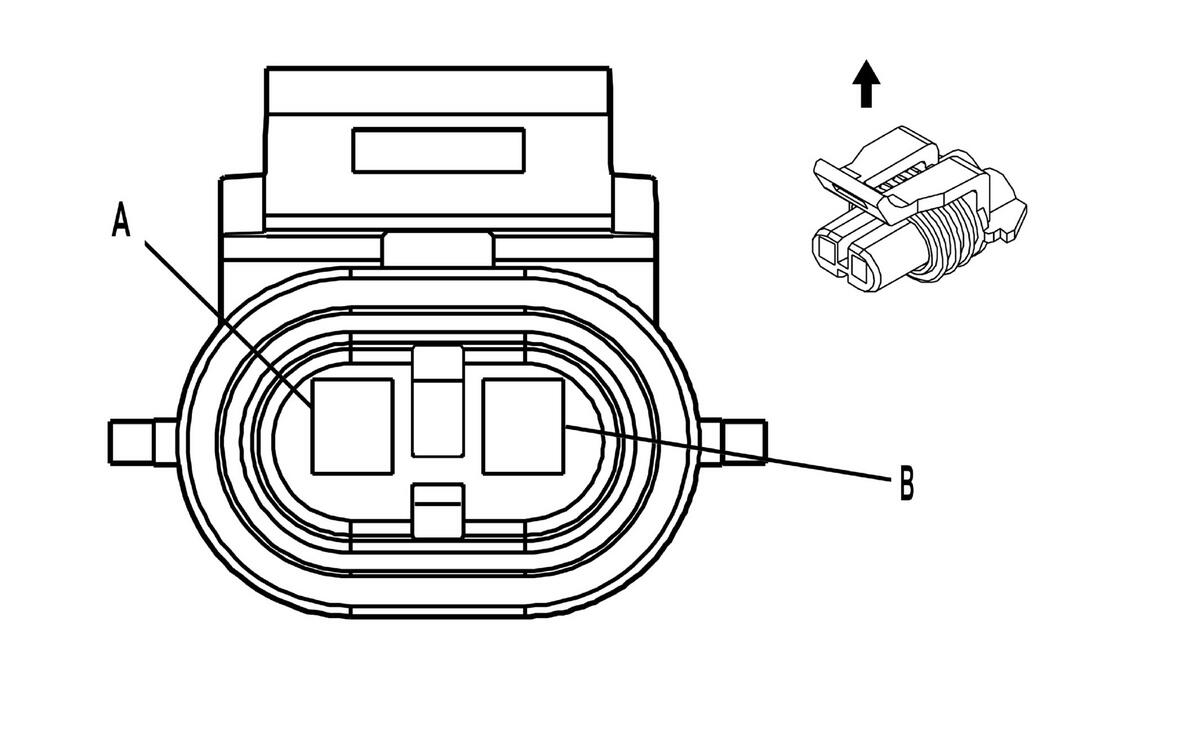

Air Temperature Sensor - Outside Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052642 2-Way F Metri-Pack 150 Series Sealed (LT GRN)
Pin	Wire Color	Circuit No.	Function
A	DK GRN/ WHT	636	Outside Air Temperature Sensor Signal -Z75
B	BLK/WHT	1704	Low Reference & Z75

Inside Rearview Mirror Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12124782 7-Way (BLK)
Pin	Wire Color	Circuit No.	Function
1	PNK	39	Ignition 1 Voltage
2	BLK	1850	Ground
3	LT GRN	1324	Backup Lamp Supply Voltage
4	GRY	1690	Automatic Day/Night Mirror Signal
5	PNK	1691	Automatic Day/Night Mirror Low Reference
6	DK GRN/ WHT	636	Outside Air Temperature Sensor Signal
7	BLK/WHT	1704	Low Reference

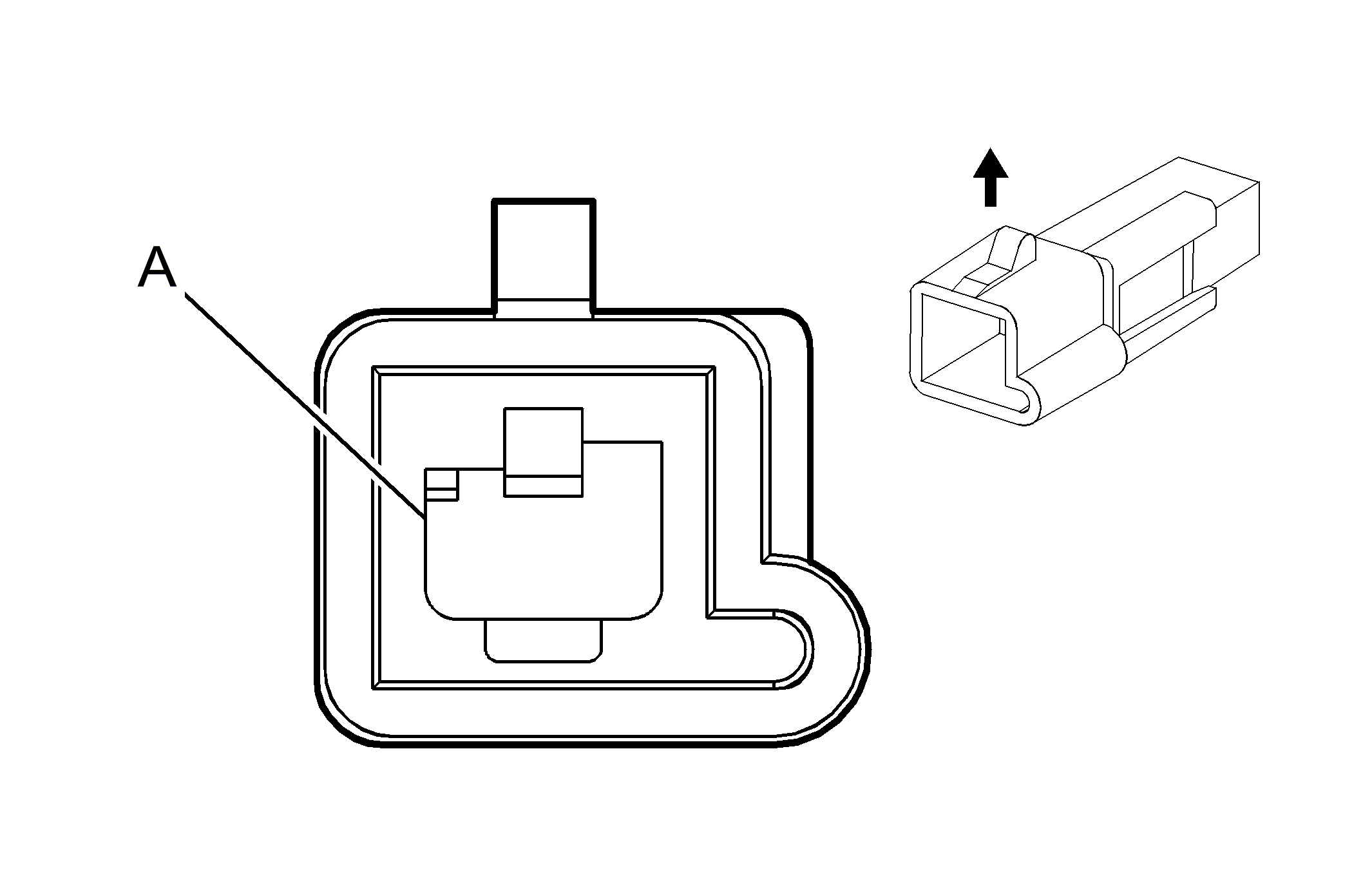

Rear Window Defogger Grid - Liftgate Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12092133 1-Way F Metri-Pack 630 Series Self Lock (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	1093	Rear Defog Element Supply Voltage
A	BLK	1250	Ground

Rear Window Defogger Grid - C1, LH - Cargo Door Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065652 1-Way M Metri-Pack 480 (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	1093	Rear Defog Element Supply Voltage

Rear Window Defogger Grid - C1, RH - Cargo Door Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065652 1-Way M Metri-Pack 480 (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	1093	Rear Defog Element Supply Voltage

Rear Window Defogger Grid - C2, LH - Cargo Door Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065652 1-Way M Metri-Pack 480 (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1450	Ground

Rear Window Defogger Grid - C2, RH - Cargo Door Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12065652 1-Way M Metri-Pack 480 (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1450	Ground
