Installation Procedure

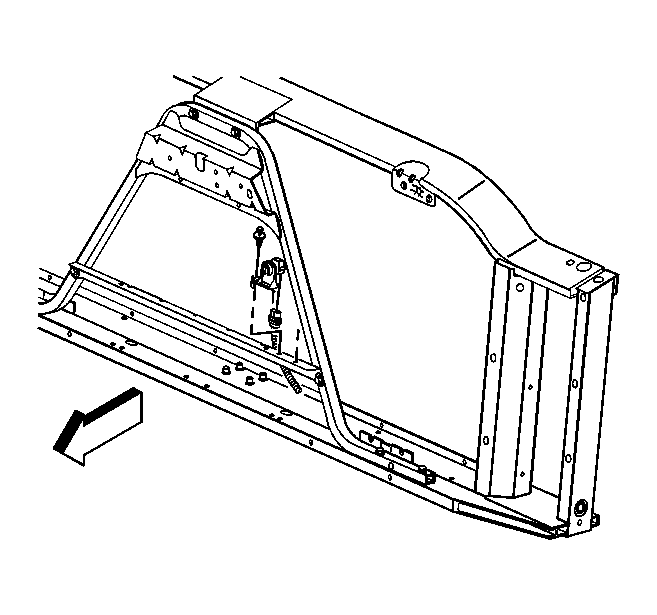

    Fig 1: Air Temperature Sensor
    GM702824Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the sensor.
  2. Install the sensor to the radiator support brace and install the push pin retainer.
  3. Install the radiator grille to the vehicle. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) .
