Removal Procedure

    CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION .
    IMPORTANT: Before cutting out a window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  1. Remove the window garnish molding from the door frame. Refer to TRIM PANEL REPLACEMENT - REAR DOOR .
  2. Disconnect the electrical connector from the window defogger, if equipped.
    Fig 1: Disconnecting Electrical Connector
    GM379401Courtesy of GENERAL MOTORS CORP.

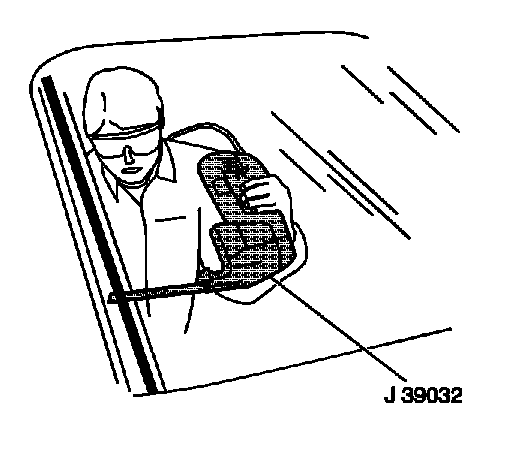

    3. Fig 2: Separating Urethane Adhesive From Window
    GM315335Courtesy of GENERAL MOTORS CORP.
    CAUTION: If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
    IMPORTANT: Keep the cutting edge of the tool against the rear window. This will allow the urethane adhesive to be separated from the window.
  3. Use J 24402-A  , J 39032  , or equivalent in order to remove the rear window.
    • Leave a base of urethane on the pinchweld flange.
    • The only suitable lubrication is clear water.

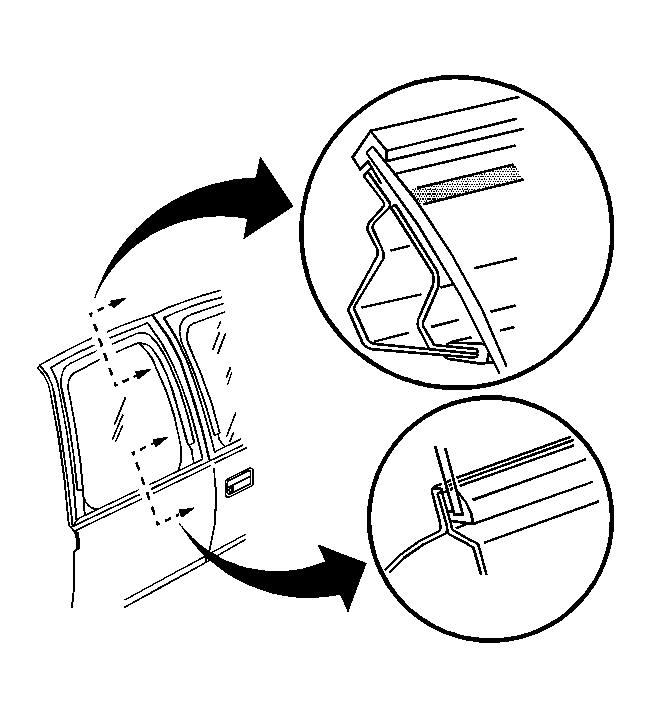

    4. Fig 3: Removing Window From Opening
    GM264824Courtesy of GENERAL MOTORS CORP.
  4. With the aid of an assistant, remove the window from the opening.
