Removal Procedure

  1. Use a flat-bladed tool in order to remove the wire cover, if equipped.

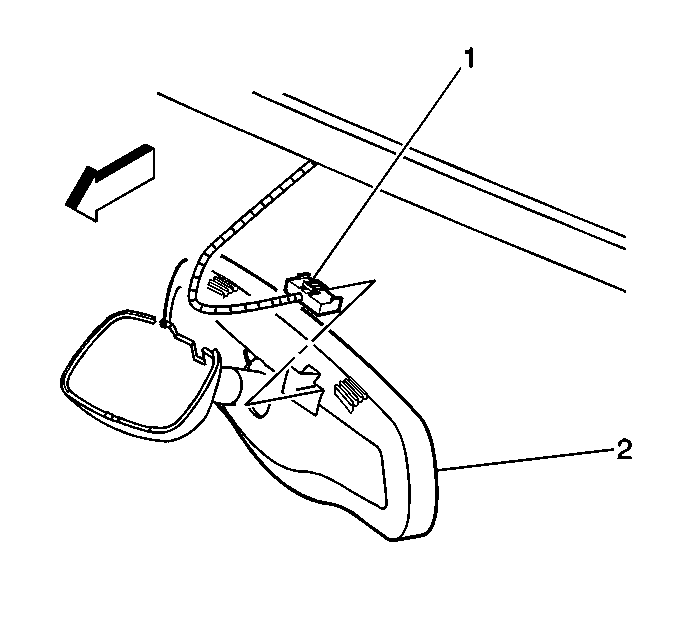

    2. Fig 1: Electrical Connector
    GM375840Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector (1), if equipped.
  3. Using a TORX-head® screwdriver, loosen the set screw that holds the mirror base to the windshield button.
  4. Slide the mirror off of the support.
