ABS Component Views

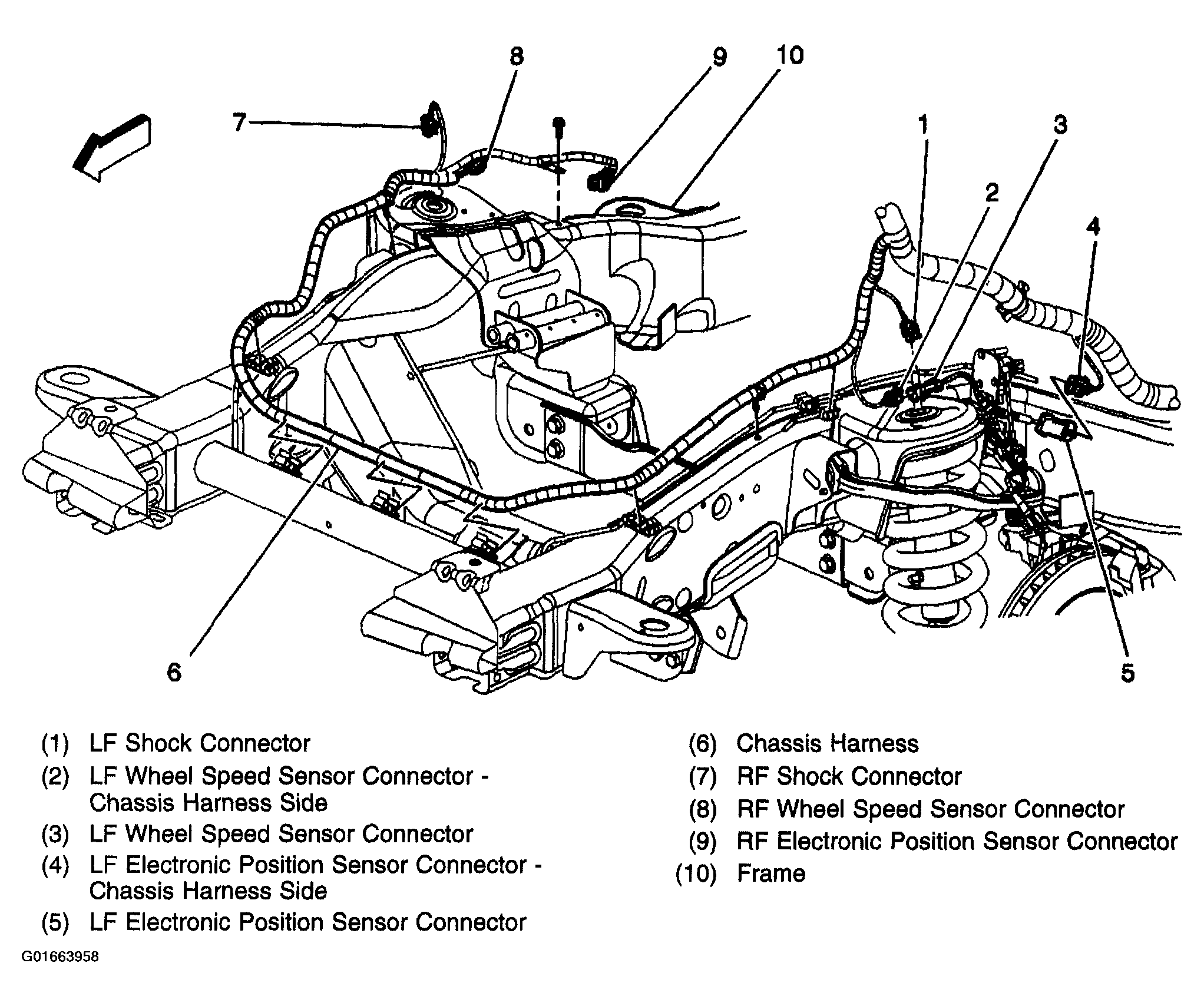

Fig 1: Chassis Wiring Harness To Front Frame - (25 Series 3/4 Ton)

Courtesy of GENERAL MOTORS CORP.

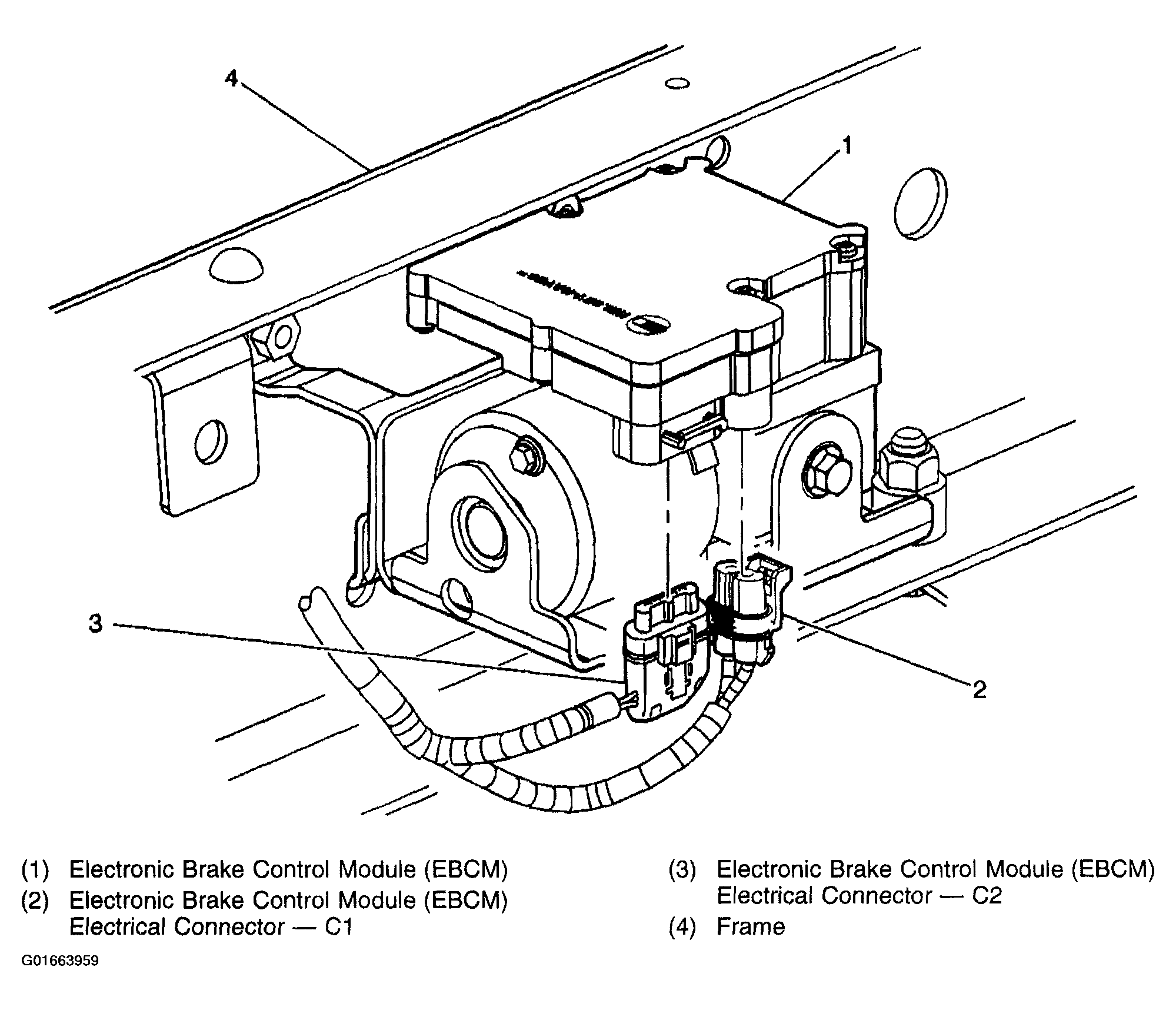

Fig 2: Electronic Brake Control Module (EBCM)

Courtesy of GENERAL MOTORS CORP.

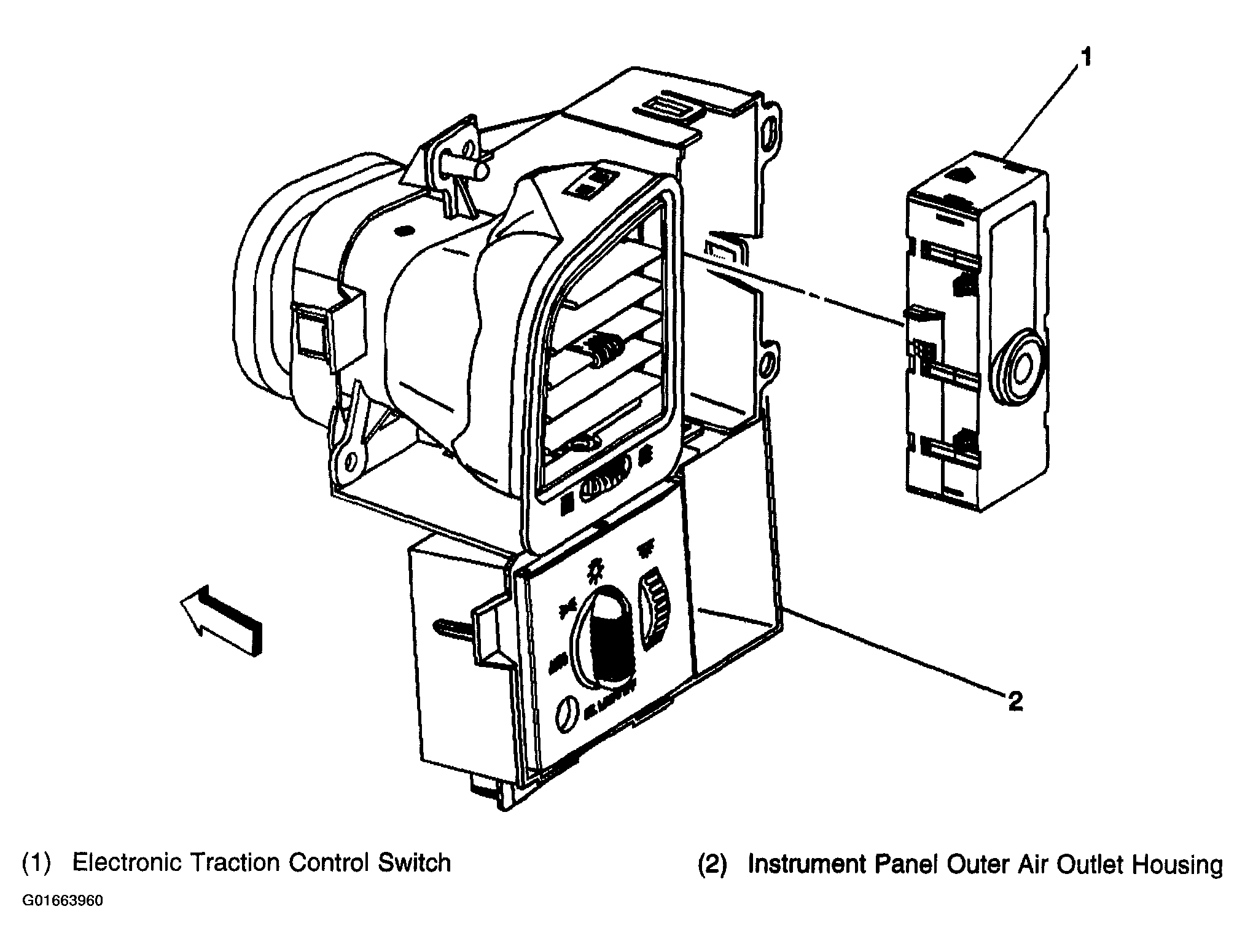

Fig 3: Electronic Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

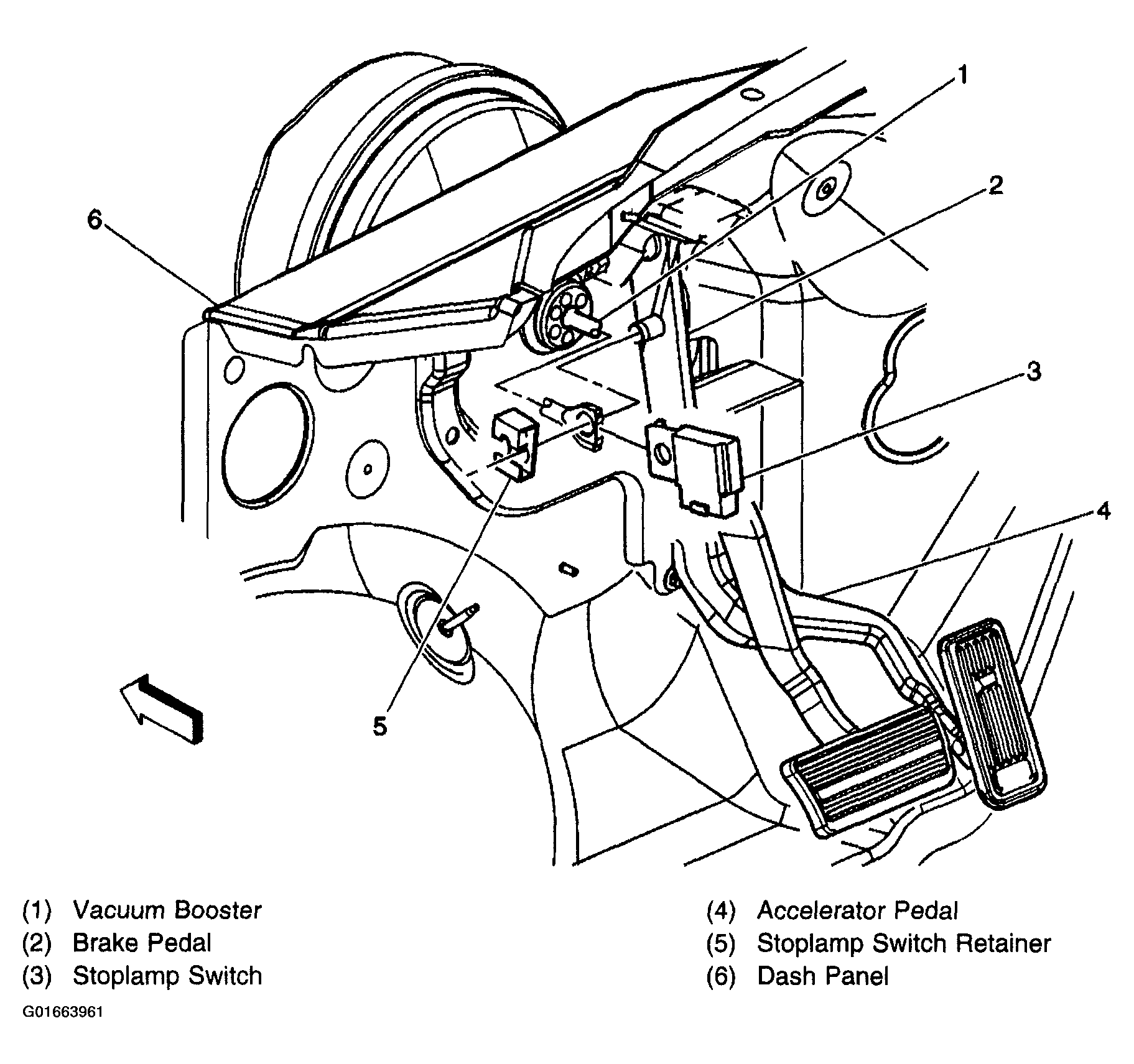

Fig 4: Stoplamp Switch

Courtesy of GENERAL MOTORS CORP.

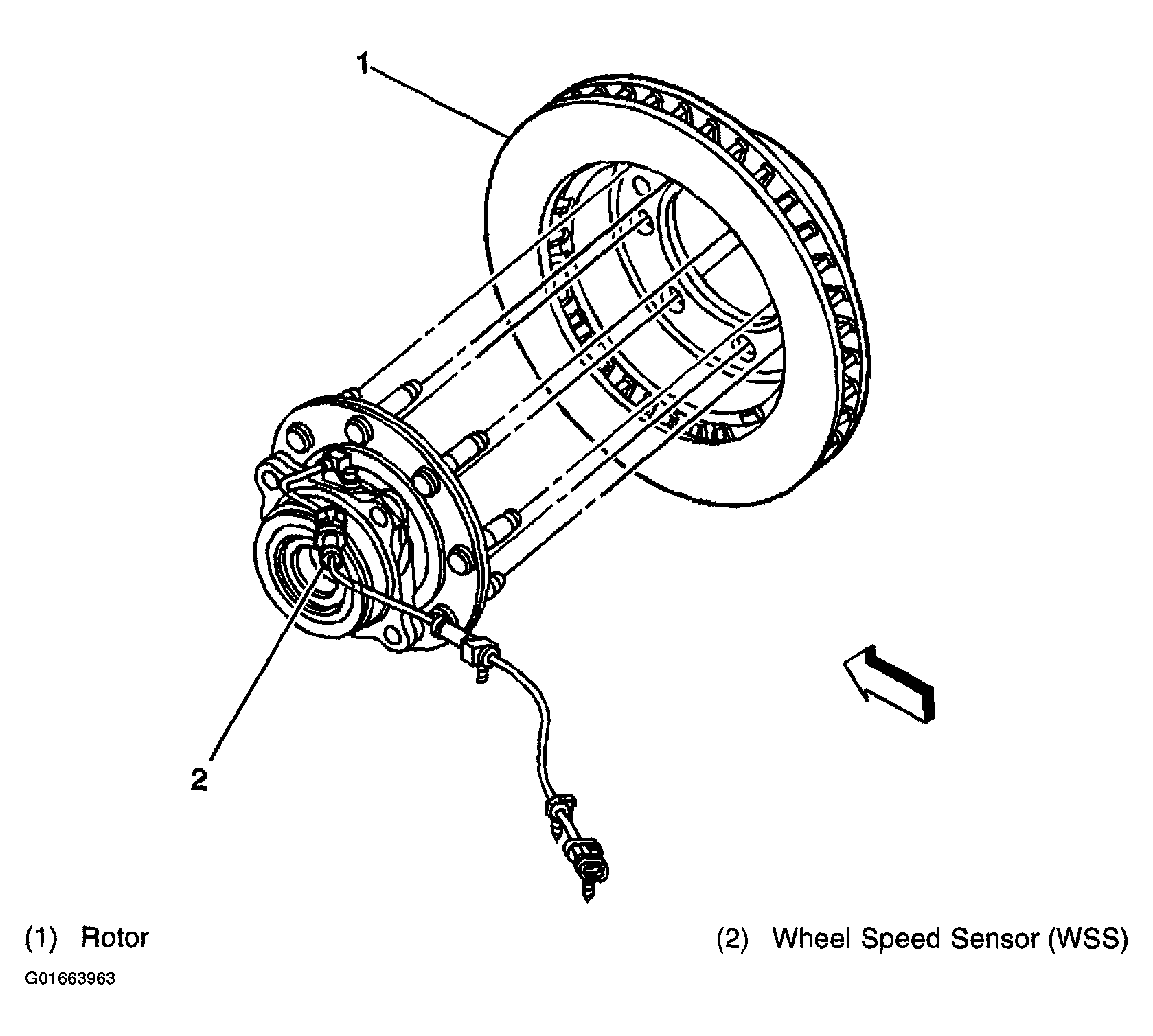

Fig 5: Wheel Speed Sensor (WSS - RWD)

Courtesy of GENERAL MOTORS CORP.

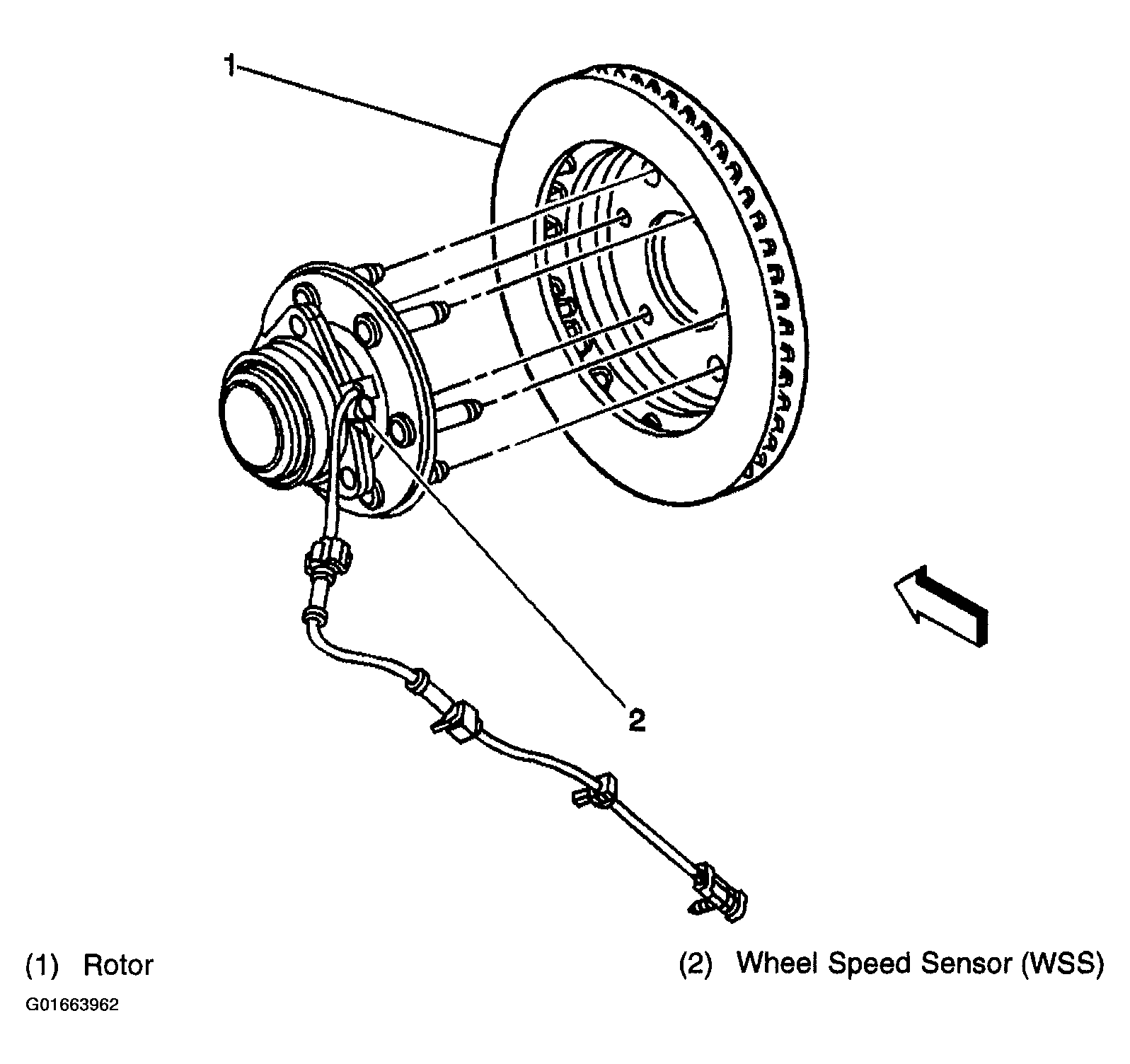

Fig 6: Wheel Speed Sensor (WSS - 4WD)

Courtesy of GENERAL MOTORS CORP.

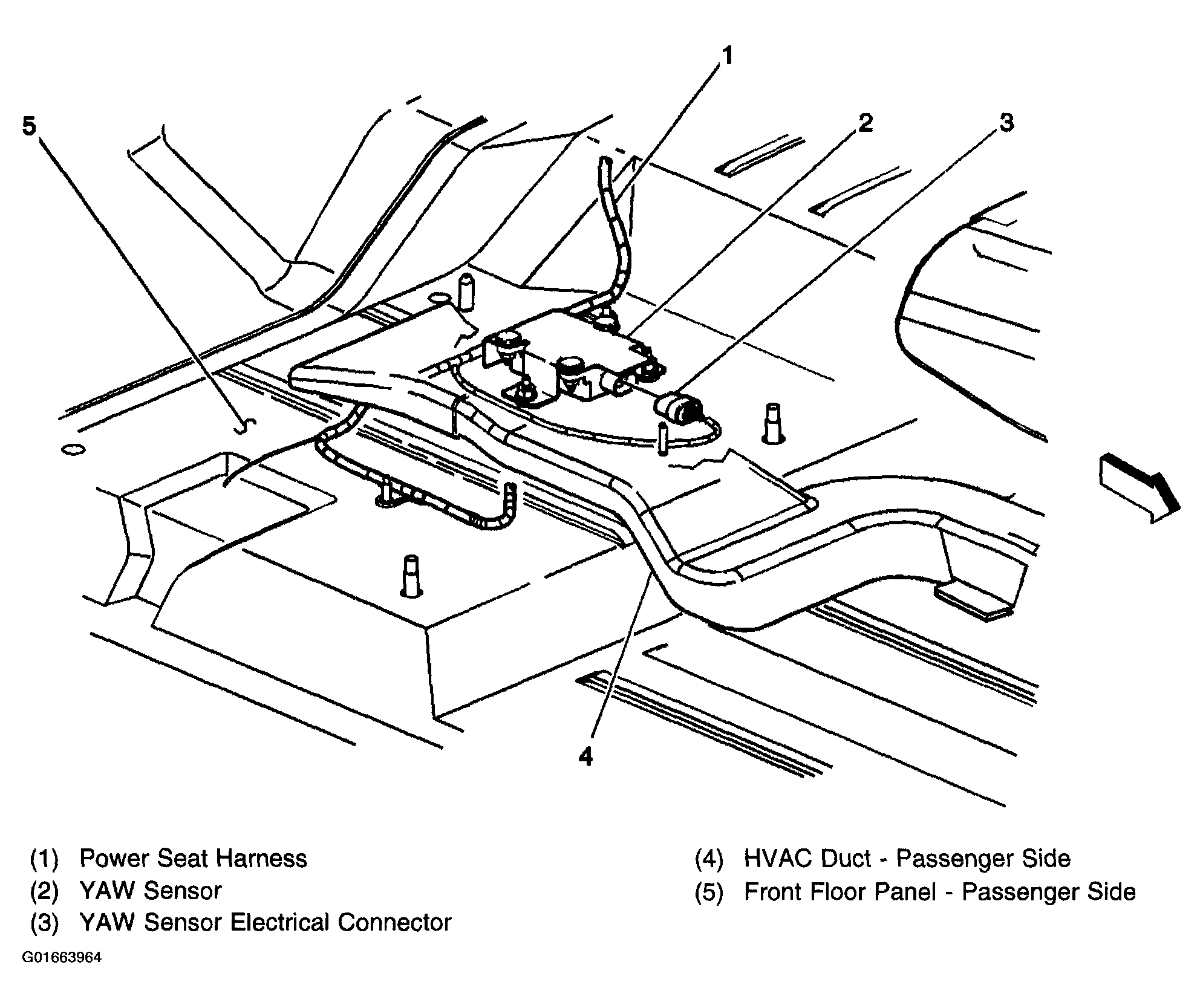

Fig 7: YAW/Rate Sensor - (Escalade EXT)

Courtesy of GENERAL MOTORS CORP.

Fig 8: YAW/Rate Sensor - (Escalade)

Courtesy of GENERAL MOTORS CORP.
