ABS Connector End Views

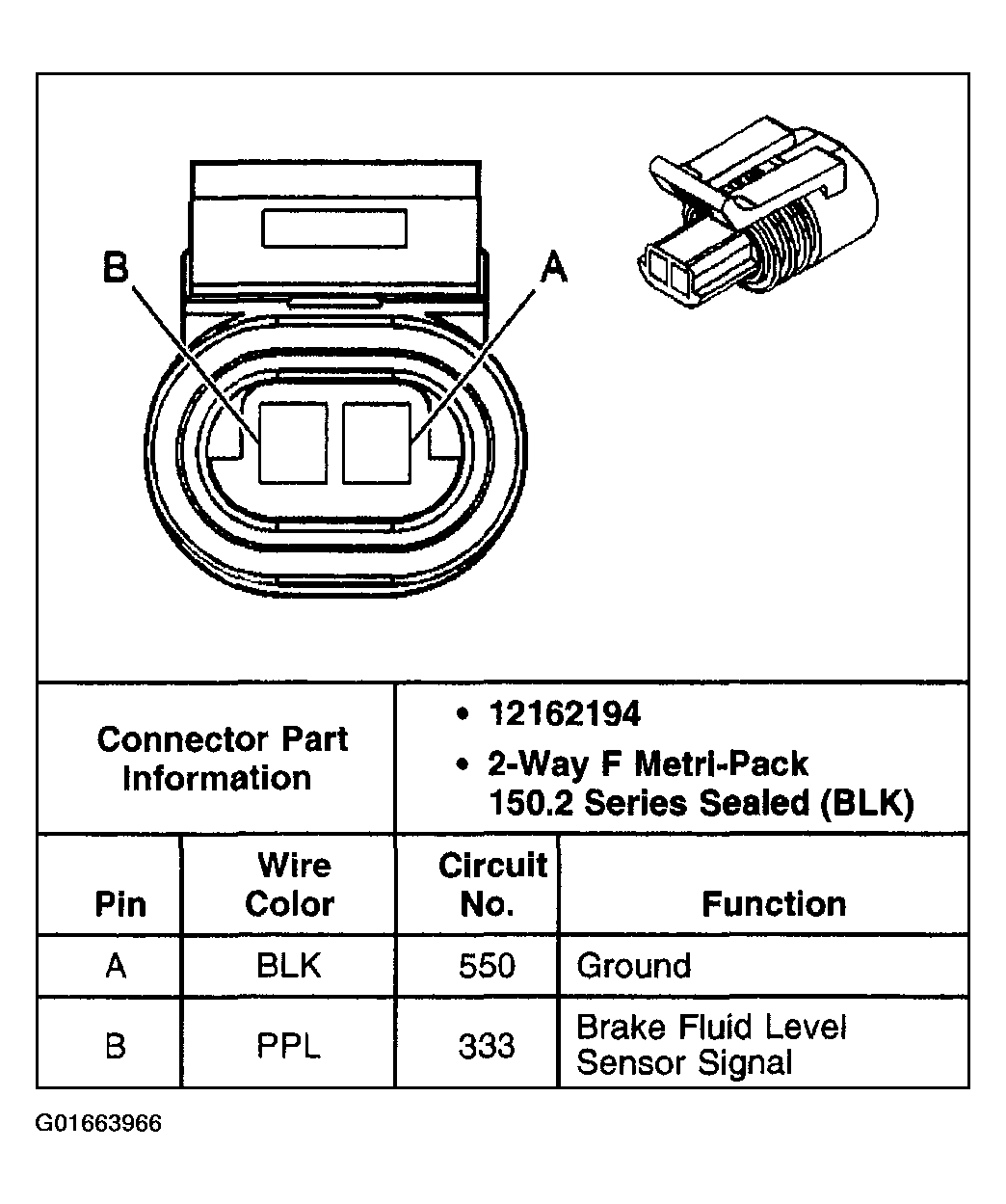

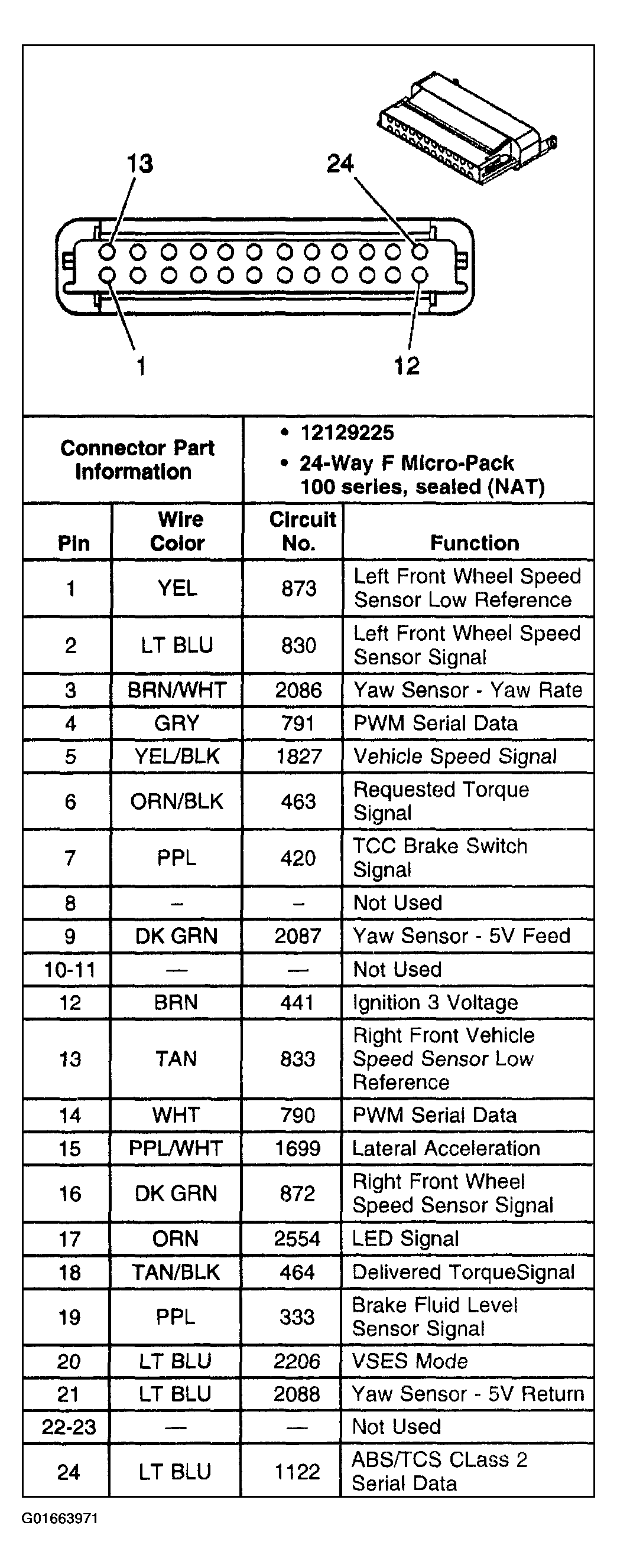

Fig 1: Brake Fluid Level Switch

Courtesy of GENERAL MOTORS CORP.

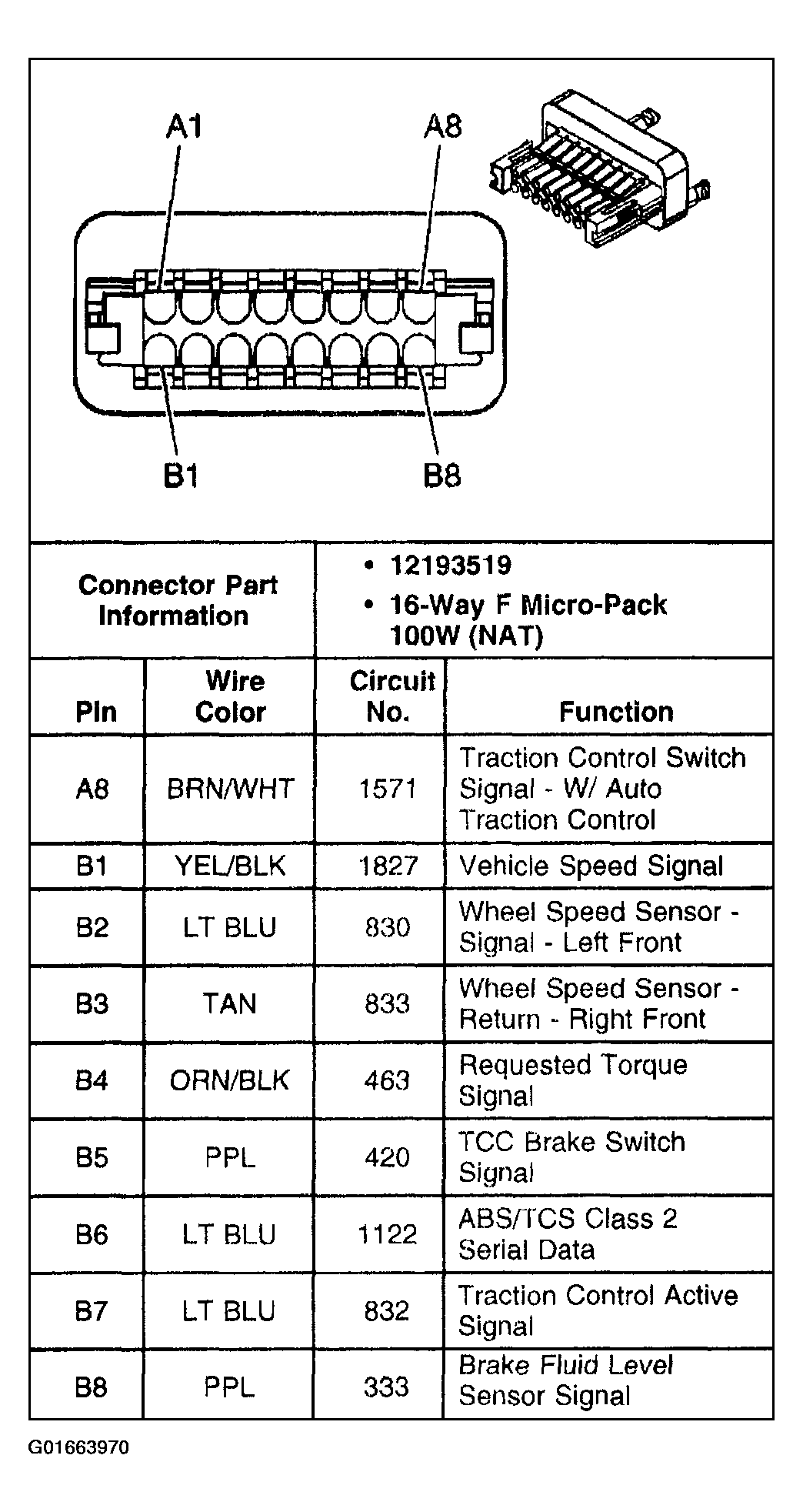

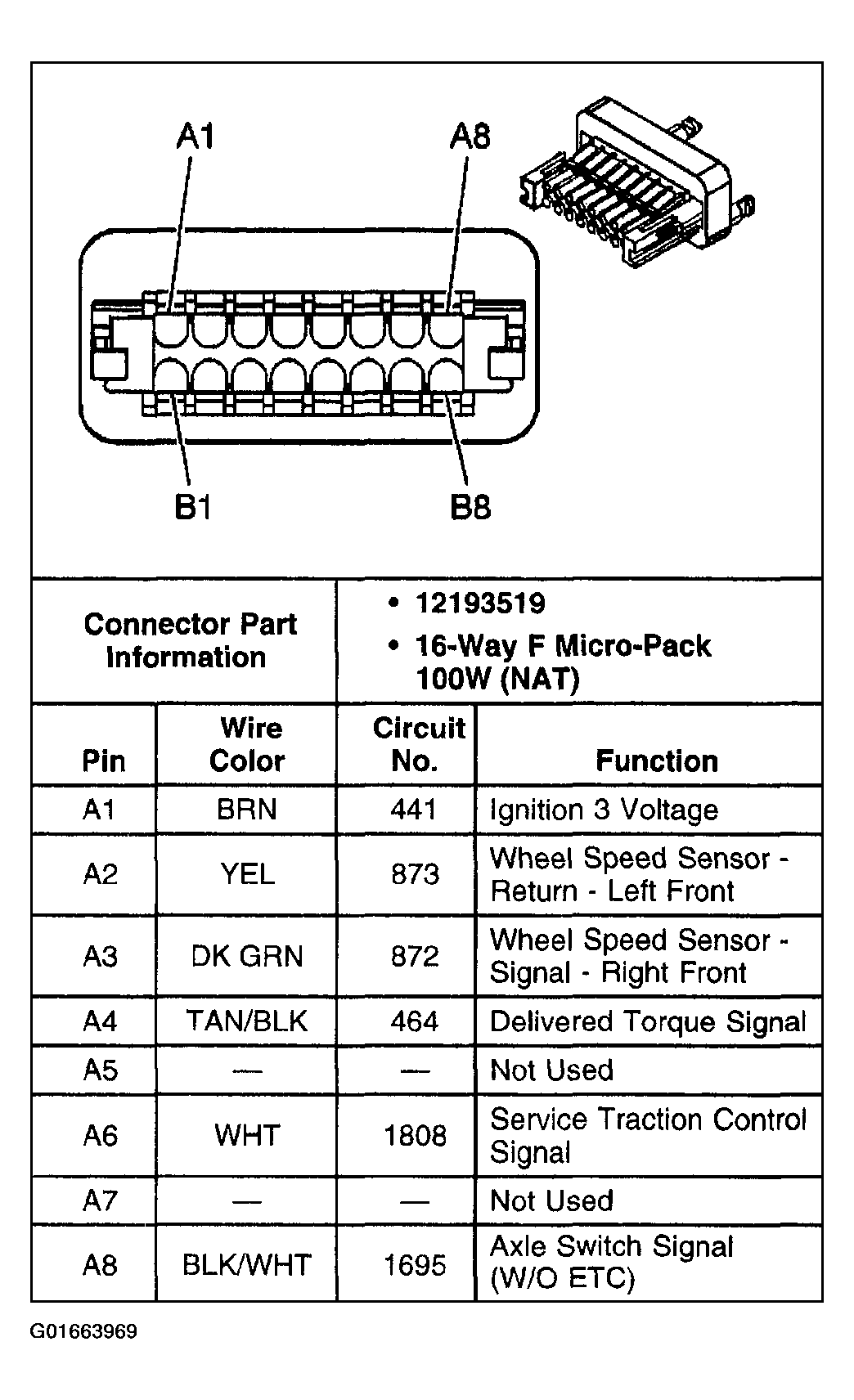

Fig 2: Electronic Brake Control Module (EBCM) - C1

Courtesy of GENERAL MOTORS CORP.

Fig 3: Electronic Brake Control Module (EBCM) - C1 - W/VSES

Courtesy of GENERAL MOTORS CORP.

Fig 4: Electronic Brake Control Module (EBCM) - C2 - W/VSES

Courtesy of GENERAL MOTORS CORP.

Fig 5: Electronic Brake Control Module (EBCM) - C2 - W/O VSES

Courtesy of GENERAL MOTORS CORP.

Fig 6: Electronic Brake Control Module (EBCM) - C2 - W/VSES

Courtesy of GENERAL MOTORS CORP.

Fig 7: Electronic Brake Control Module (EBCM) - C3 - W/VSES

Courtesy of GENERAL MOTORS CORP.

Fig 8: Electronic Brake Control Module (EBCM) - C4 - W/VSES

Courtesy of GENERAL MOTORS CORP.

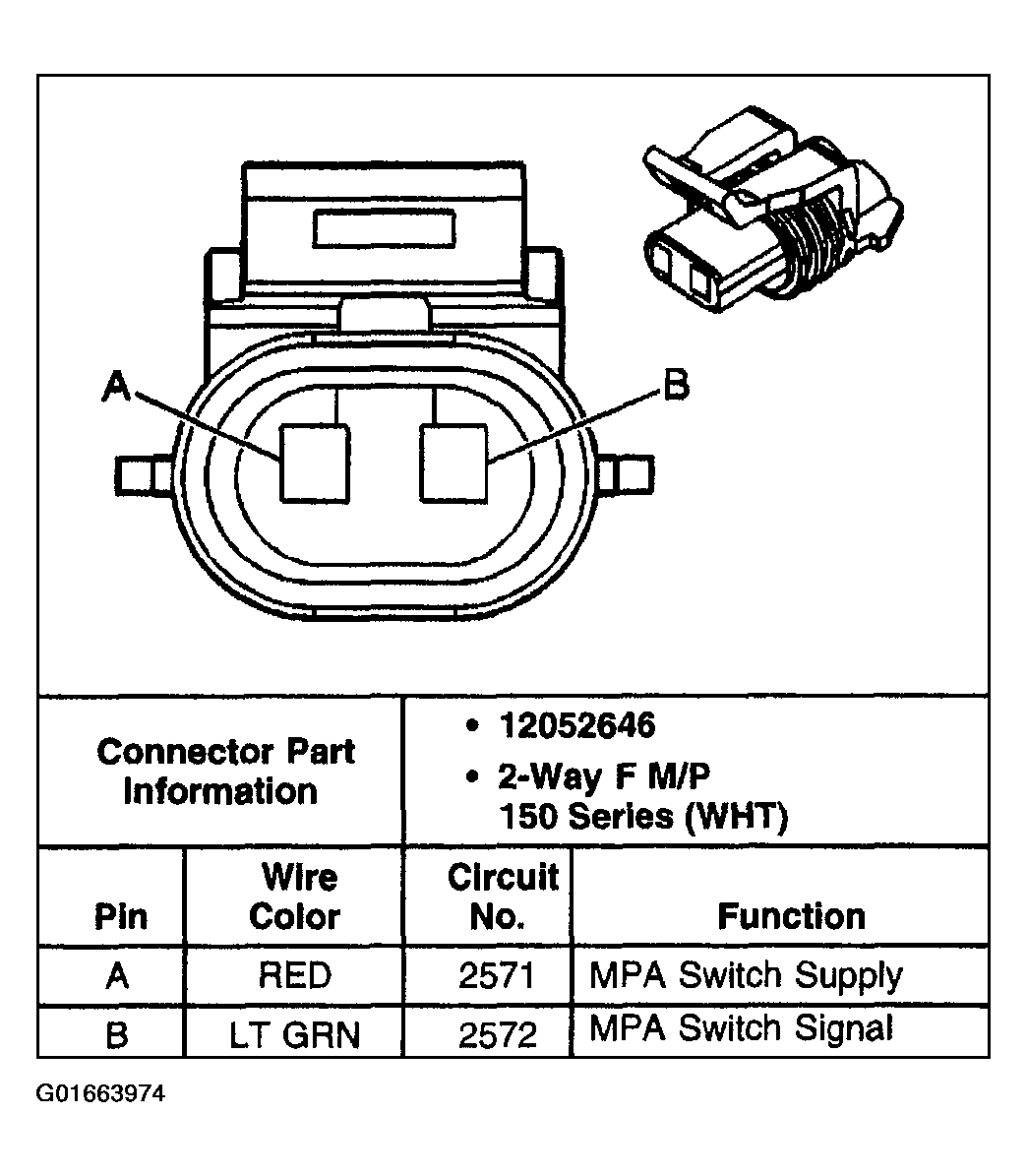

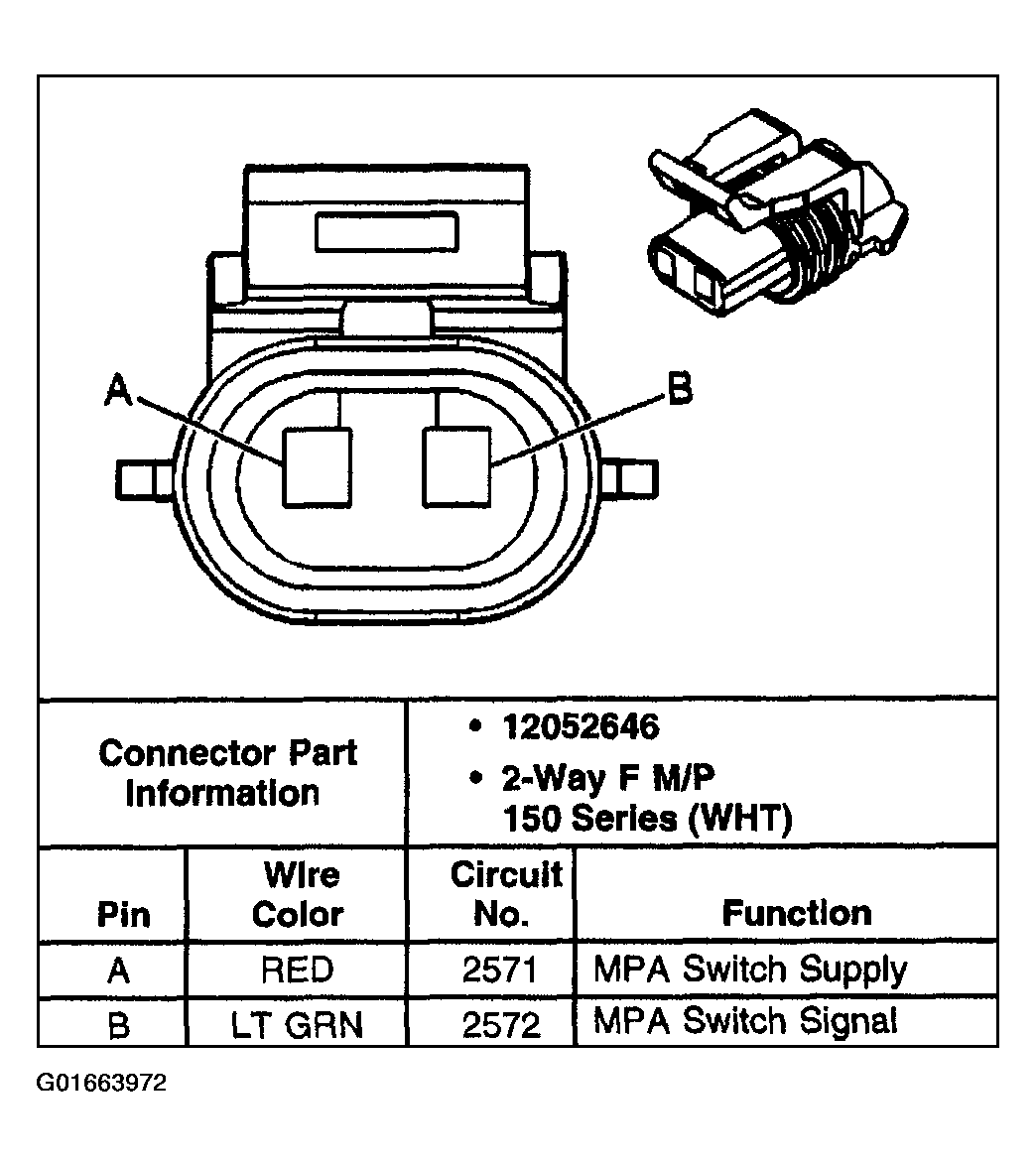

Fig 9: MPA Switch

Courtesy of GENERAL MOTORS CORP.

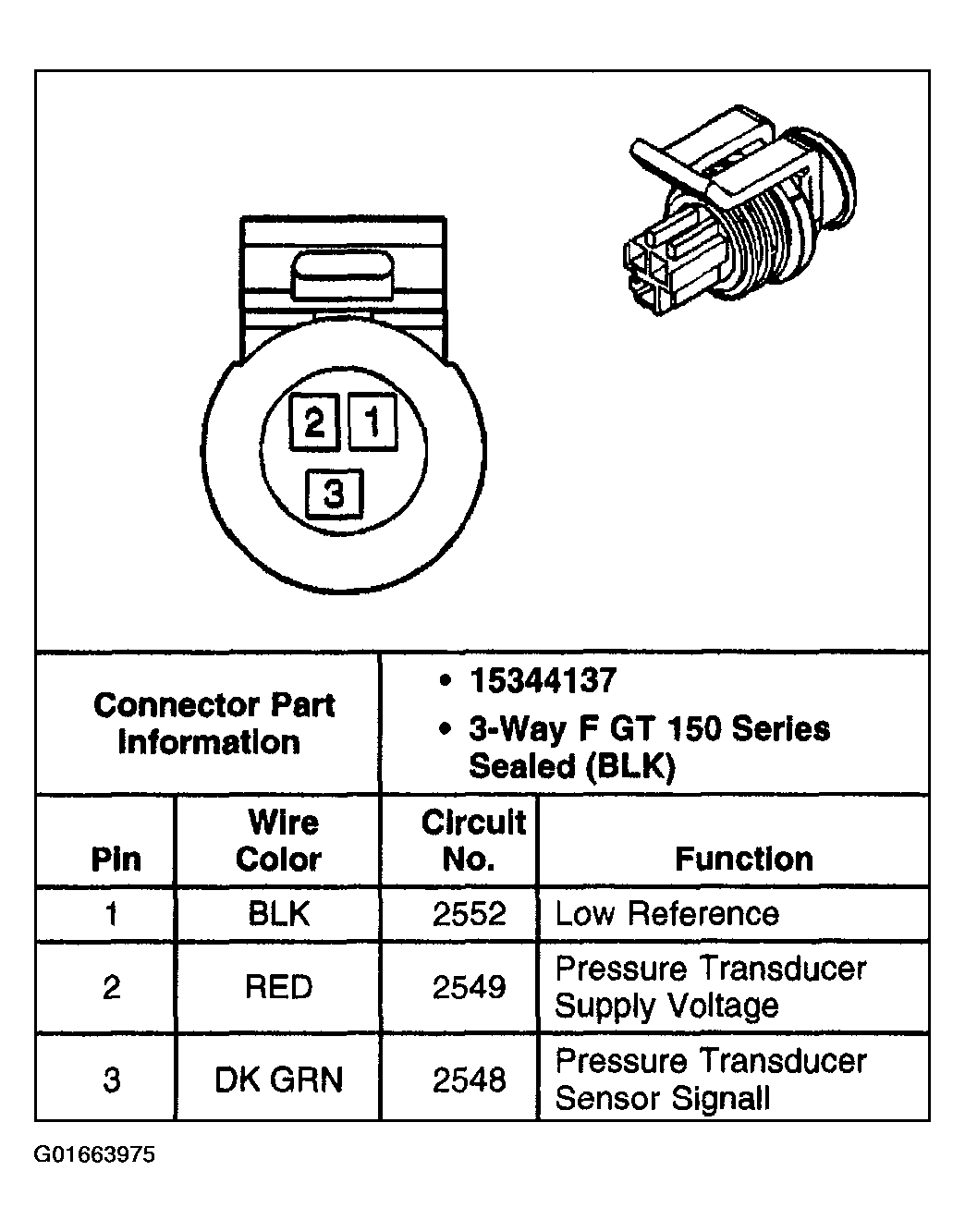

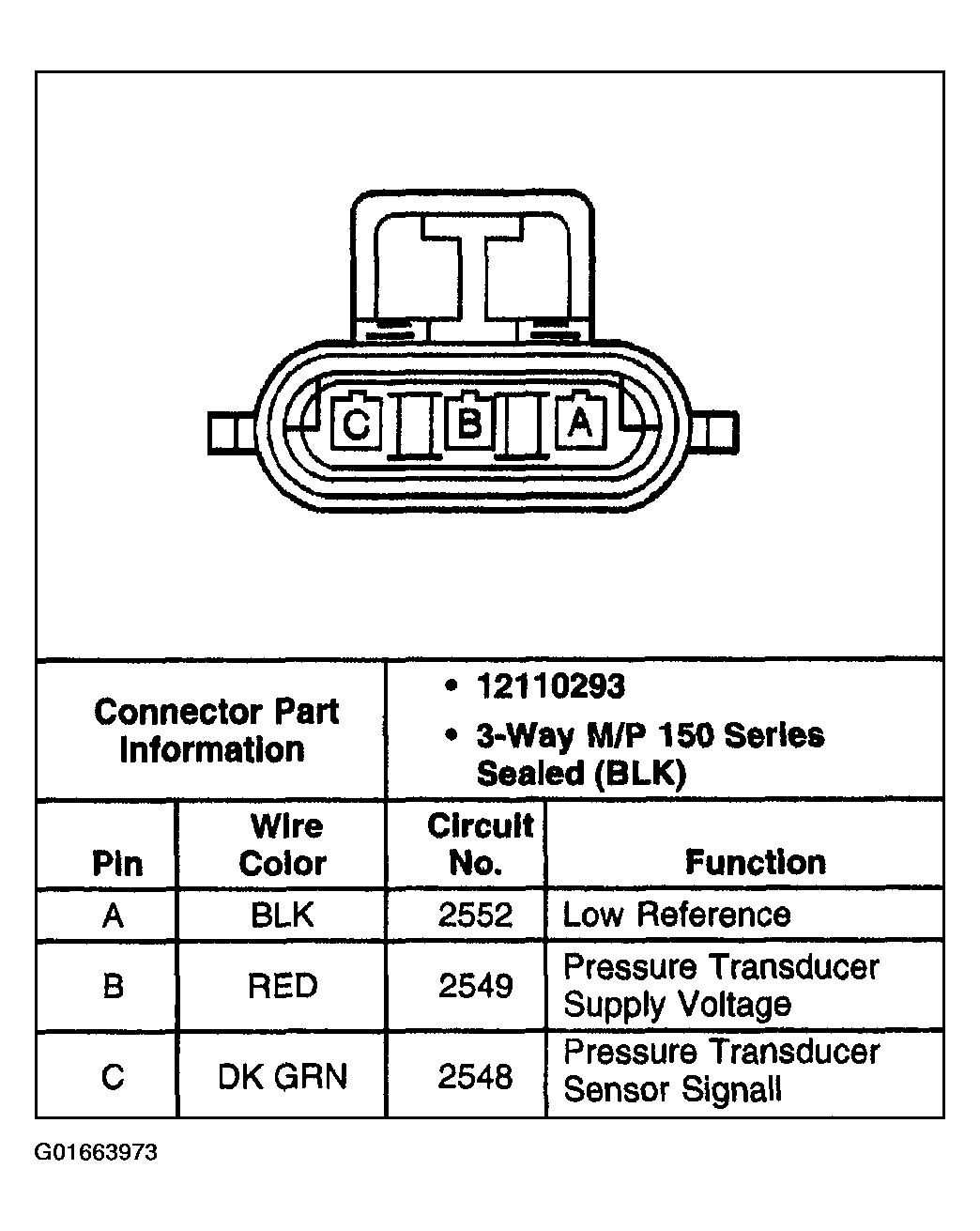

Fig 10: Pressure Transducer

Courtesy of GENERAL MOTORS CORP.

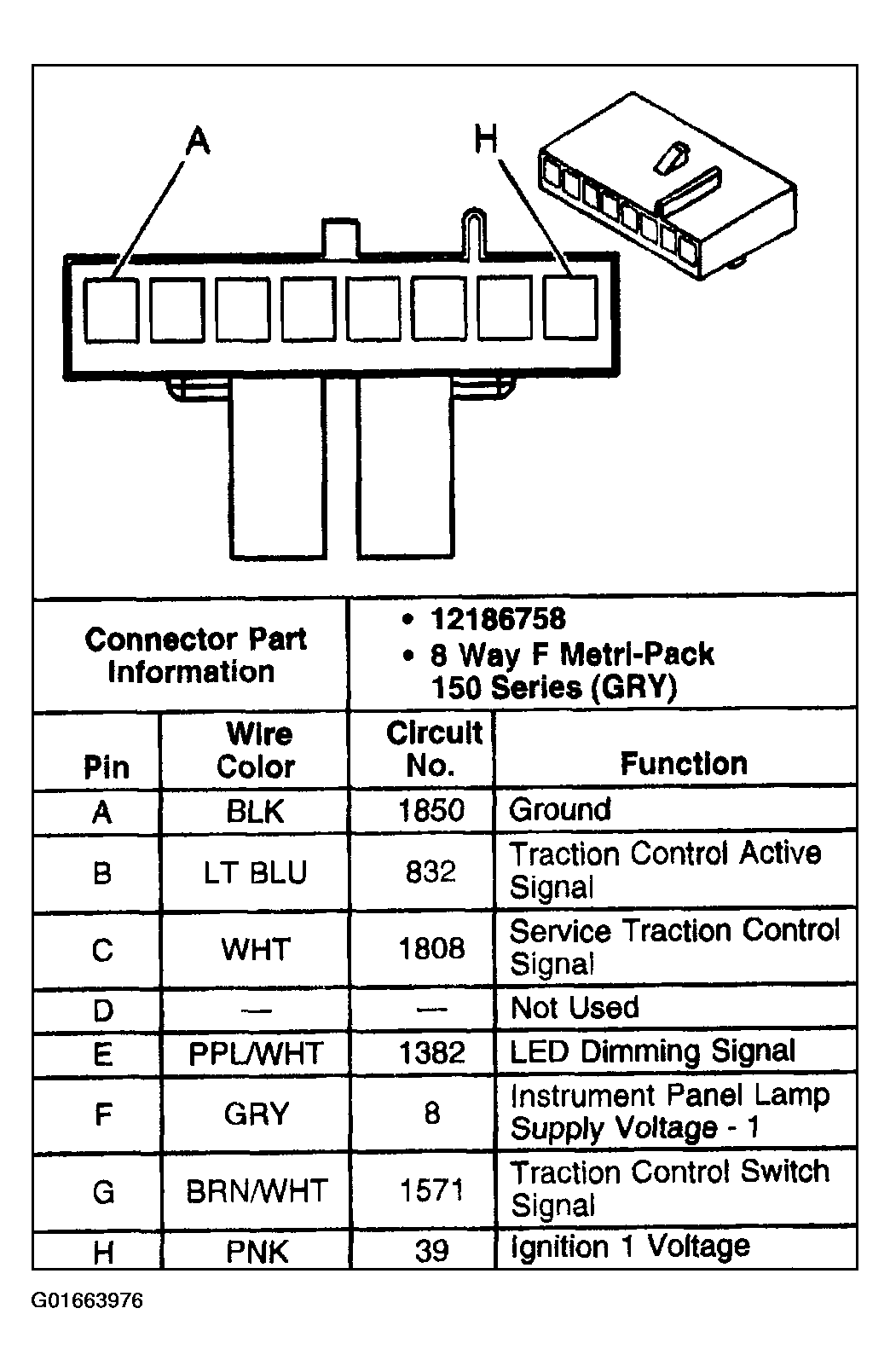

Fig 11: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

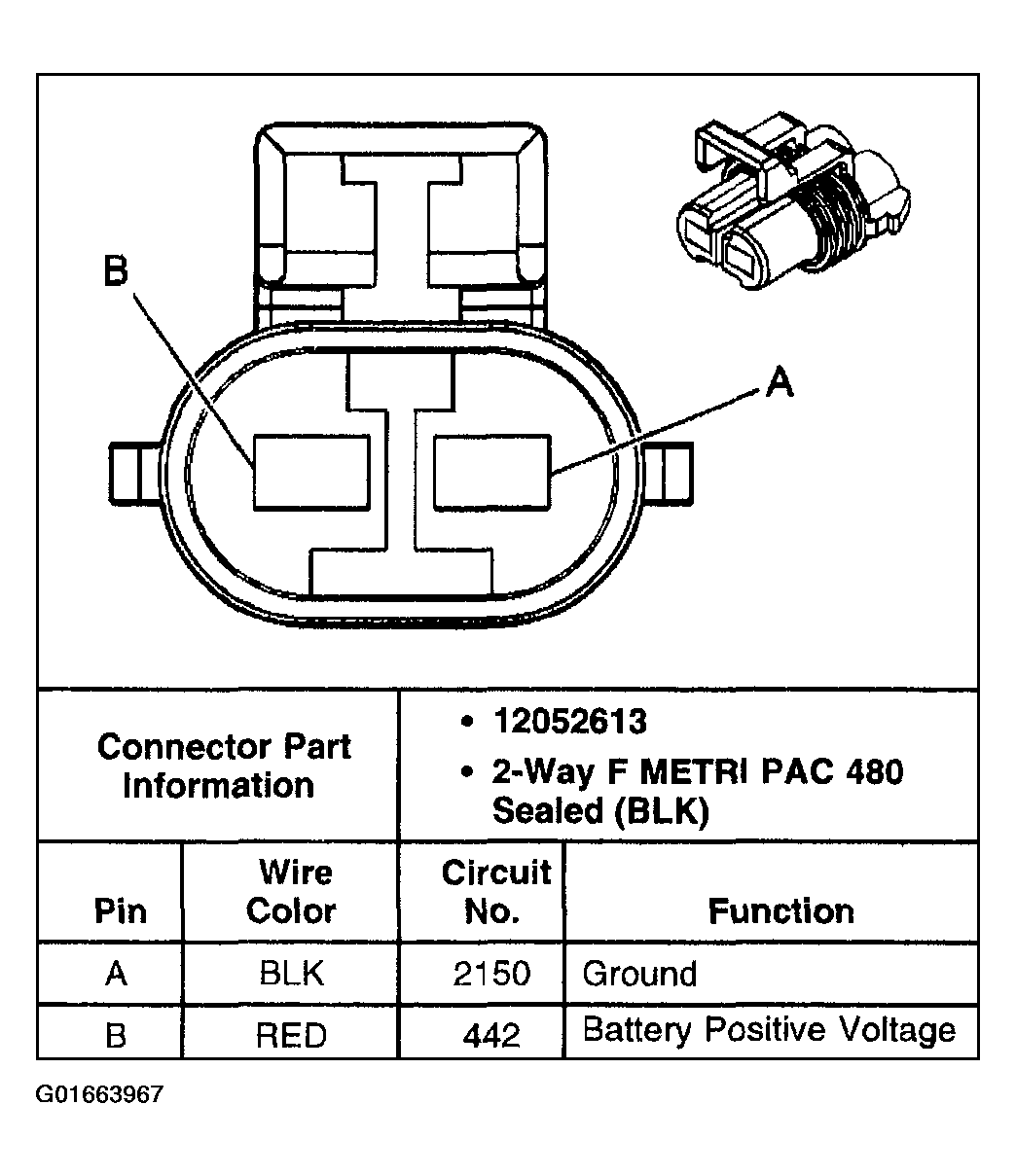

Fig 12: Inverting Driver Module

Courtesy of GENERAL MOTORS CORP.

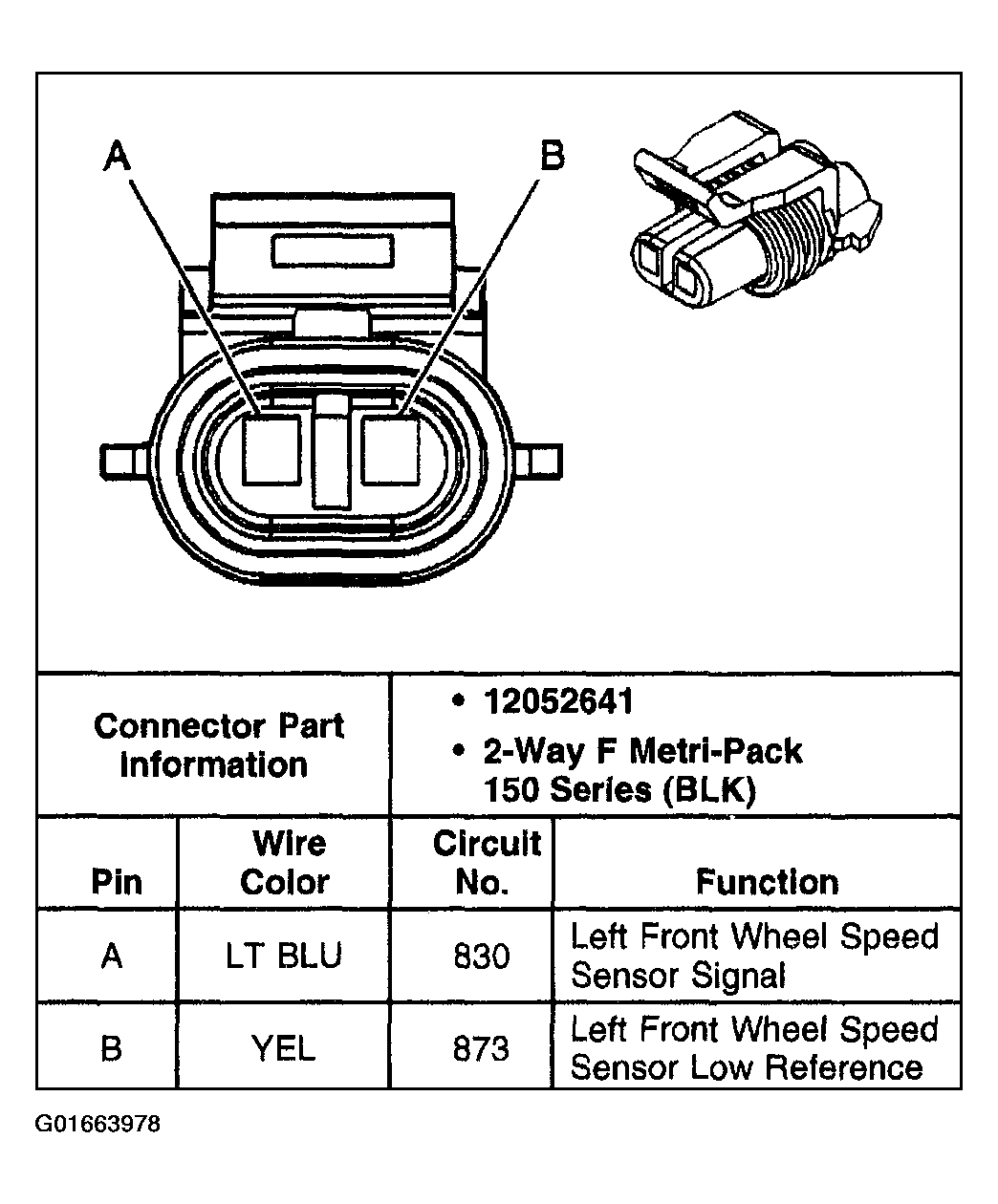

Fig 13: Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

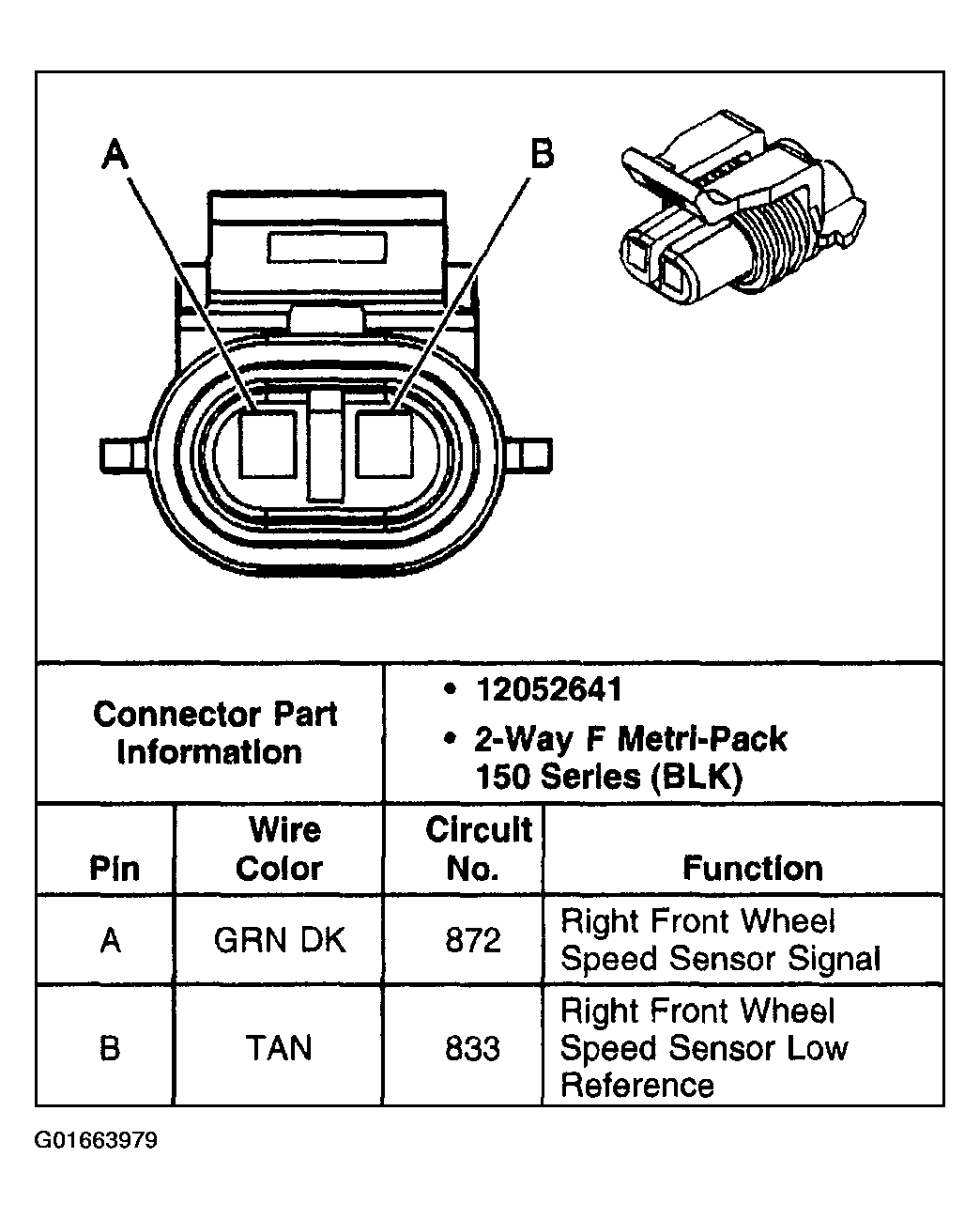

Fig 14: Wheel Speed Sensor (WSS) - RF

Courtesy of GENERAL MOTORS CORP.
