Installation Procedure
NOTE:
Do not reuse the old mounting screws. Always install new mounting screws with the new EBCM.
NOTE:
Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

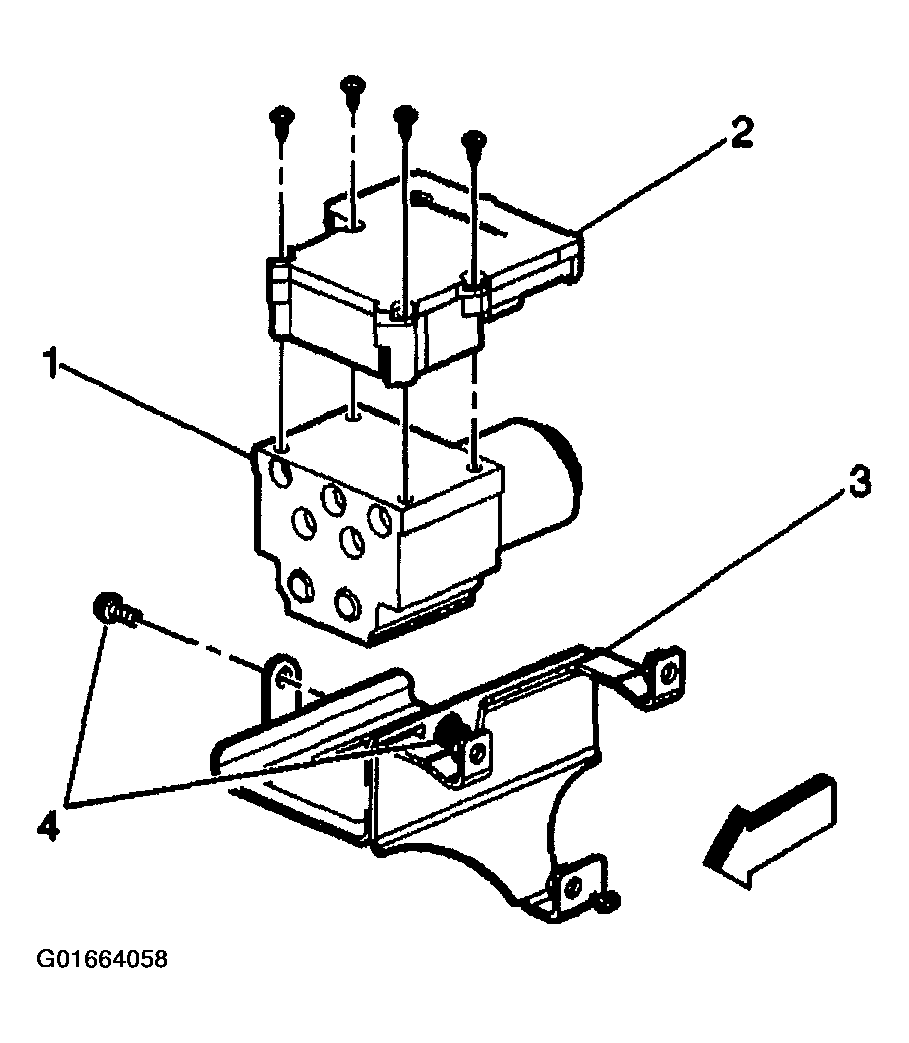

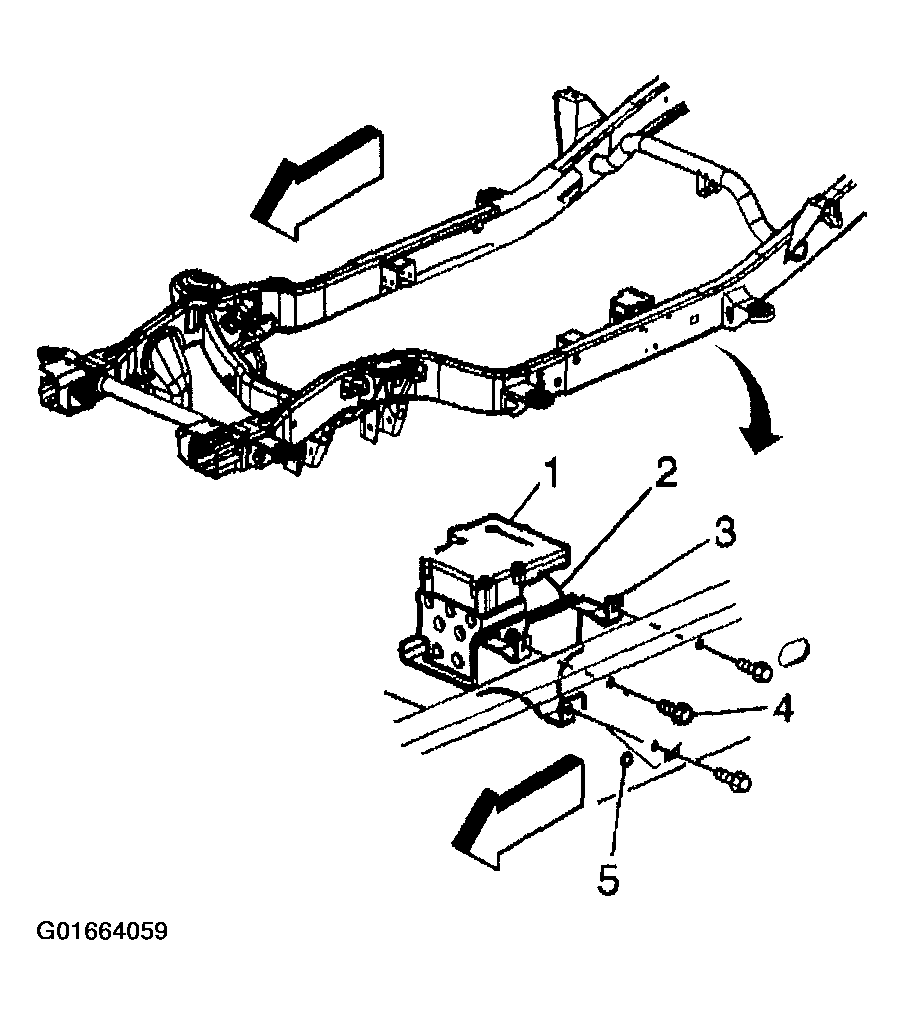

- Install the EBCM (2) on to the BPMV (1).CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the four new screws in the EBCM (2). Tighten the four screws to 5 N.m (39 lbs in) in an X-pattern.
- Install or tighten three EHCU bracket mounting bolts. Tighten the EHCU bracket mounting bolts to 25 N.m (18 lbs ft).
- Connect the electrical connectors to the EBCM.
- Lower the vehicle.
- Connect the negative battery cable.
- Revise the tire calibration using the Scan Tool Tire Size Calibration function.
- Return to Diagnostic Starting Point - Anti-lock Brake System .
