Installation Procedure

  1. Install the pressure accumulator switch to the BPMV. Tighten the pressure accumulator switch to 3 N.m (30 lbs in).

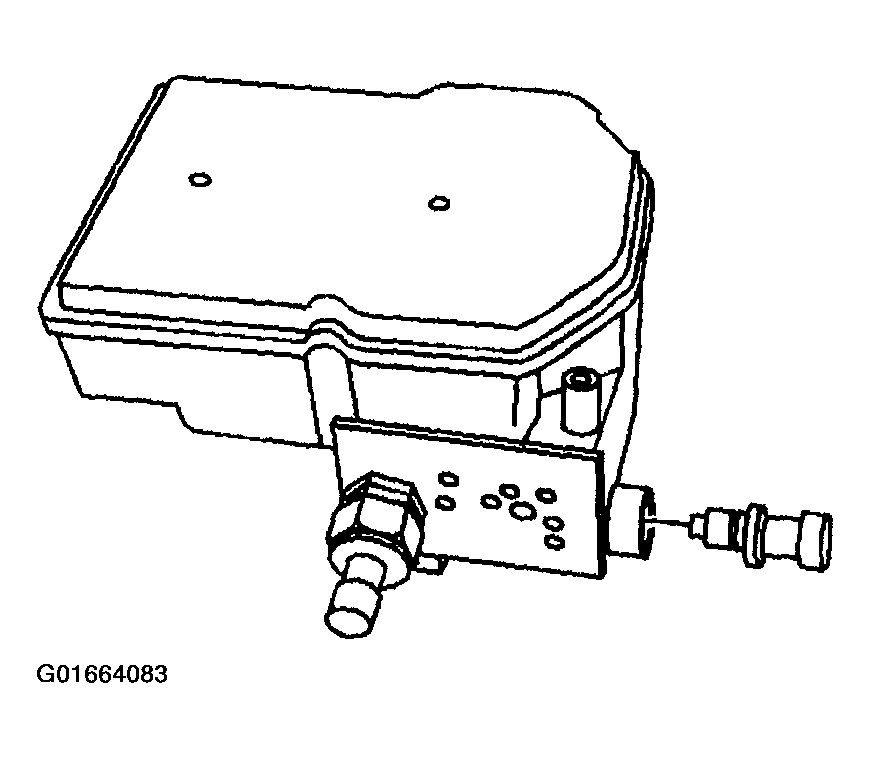

    2. Fig 1: Installation Of Pressure Accumulator Switch To The BPMV
    G01664083Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the pressure accumulator switch.

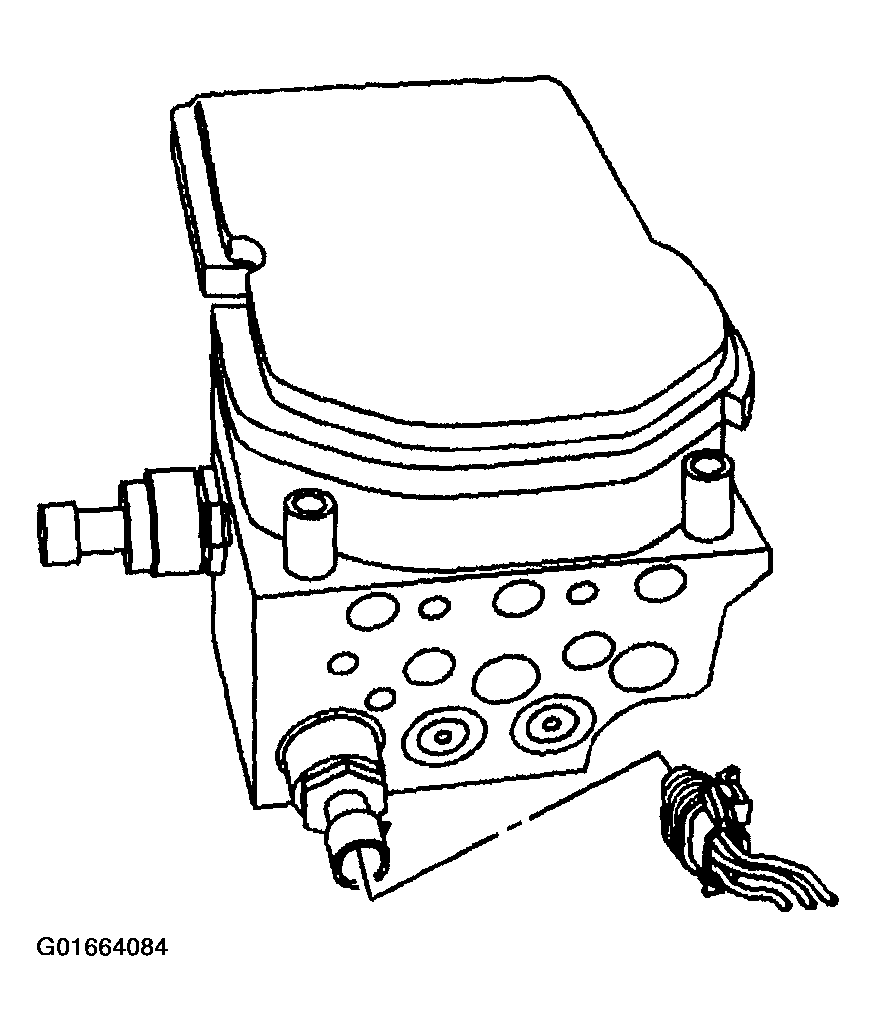

    3. Fig 2: Installation Of Electrical Connector To The Pressure Accumulator Switch
    G01664084Courtesy of GENERAL MOTORS CORP.
  3. Install the brake pressure modulator valve (BPMV) (1) and the bolts (2) to the mounting bracket (3). Tighten the bolts to 9 N.m (7 lbs ft).
  4. Lower the vehicle.

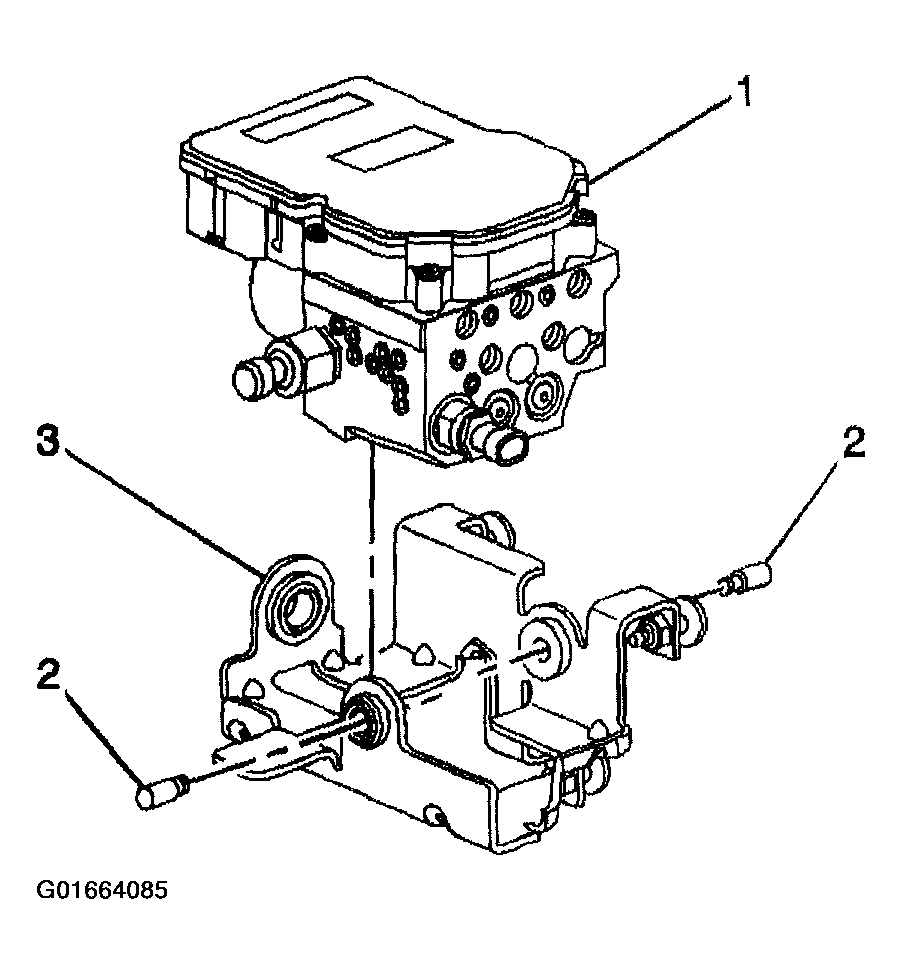

    5. Fig 3: Installing BPMV Mounting Bracket Bolts
    G01664085Courtesy of GENERAL MOTORS CORP.
