Installation Procedure

  1. Connect the harness connector to the stabilitrak switch.

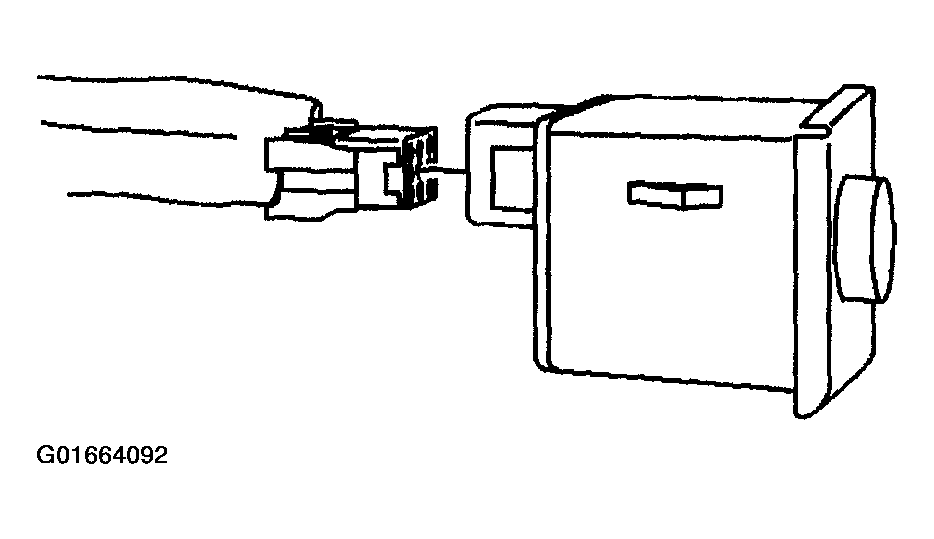

    2. Fig 1: Installation Of StabiliTrak Switch Harness Connector
    G01664092Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilitrak switch (3) into the Instrument Panel (IP) assembly (1).
  3. Ensure that the switch is secure into both retaining tabs (2).
  4. Install Instrument Panel (IP) bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER in Instrument Panel, Gages and Console.

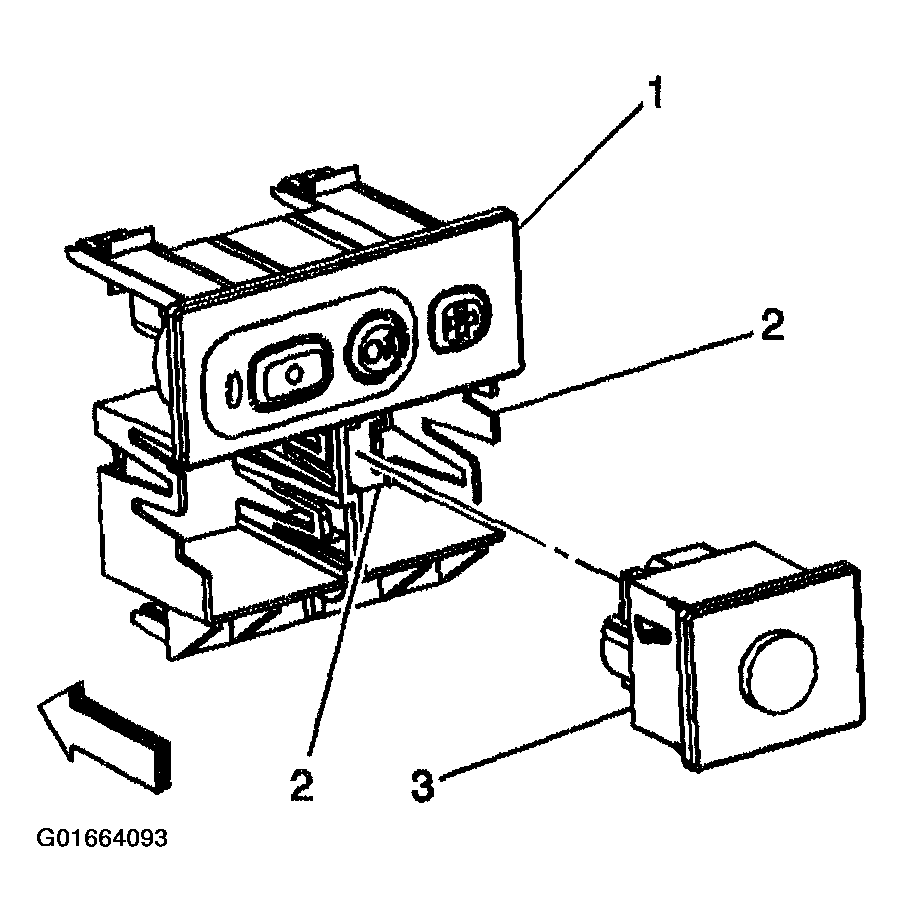

    5. Fig 2: Installation Of StabiliTrak Switch Into Instrument Panel
    G01664093Courtesy of GENERAL MOTORS CORP.
