Engine Electrical Component Views

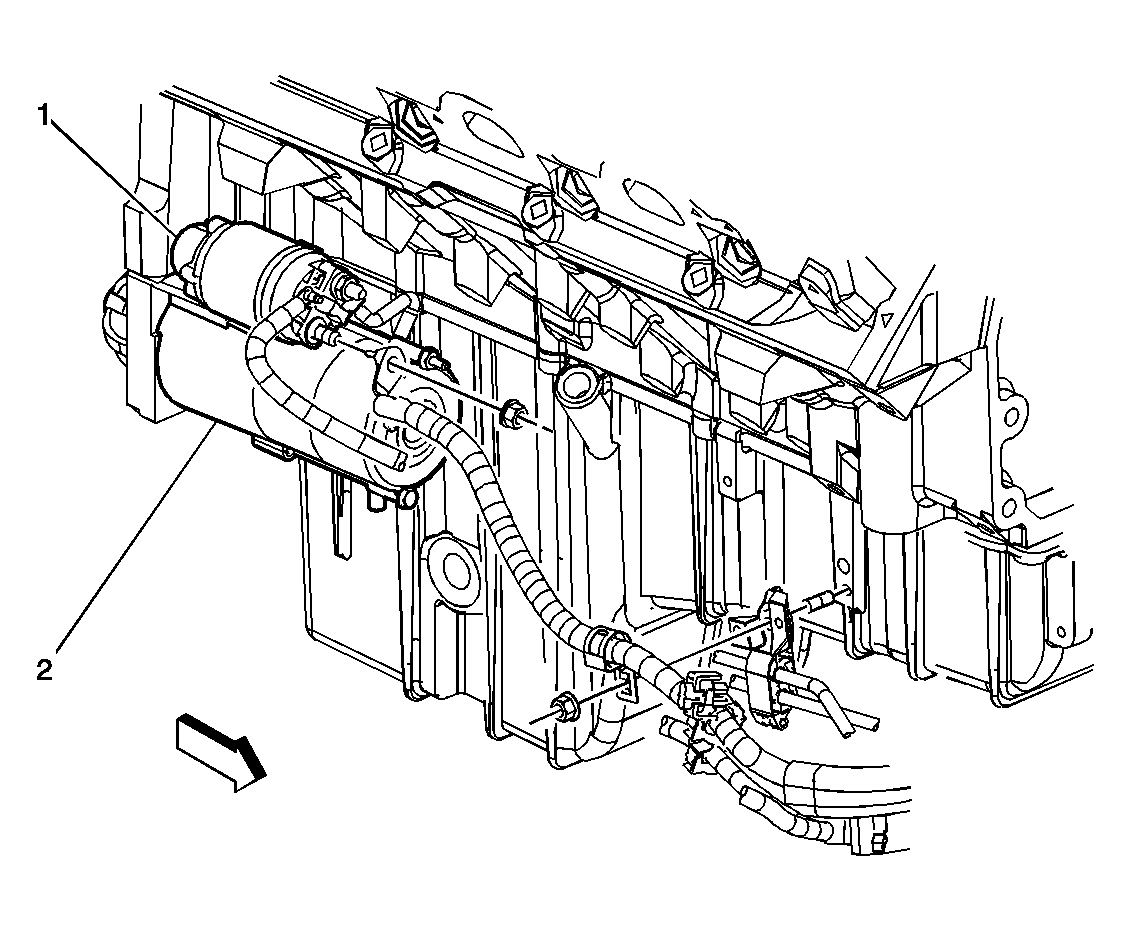

Fig 1: Starter Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter Solenoid
2	Starter

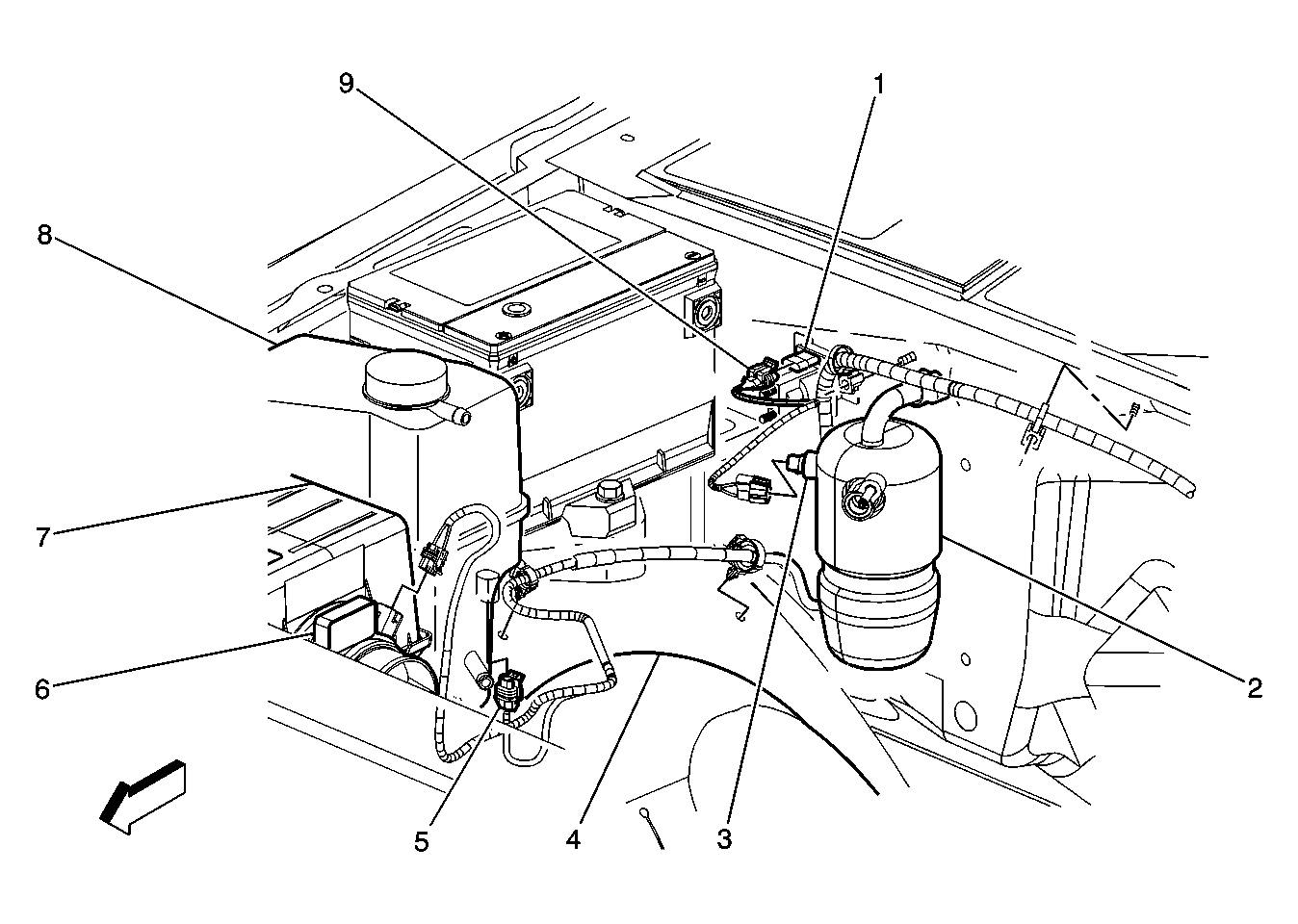

Fig 2: Auxiliary Battery Relay Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Battery Relay
2	A/C Accumulator
3	A/C Low Pressure Switch
4	Inner Wheel Well
5	Engine Coolant Level Switch Connector
6	Mass Air Flow (MAF) Sensor
7	Air Cleaner Assembly
8	Engine Coolant Recovery Reservoir
9	Auxiliary Battery Relay Electrical Connector
