Installation Procedure

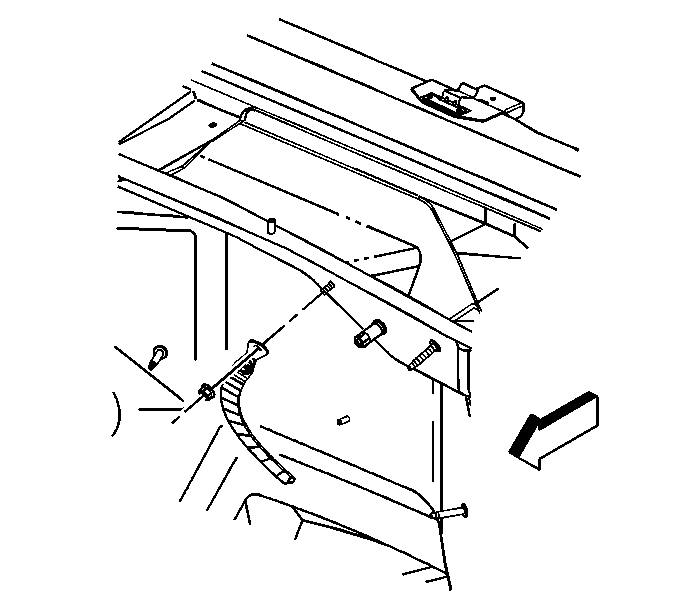

Fig 1: View of Ground Strap

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Install the ground strap to the stud.
Install the ground strap nut to the stud at the front of dash.
Tighten: Tighten the ground strap nut to 9 N.m (80 lb in).

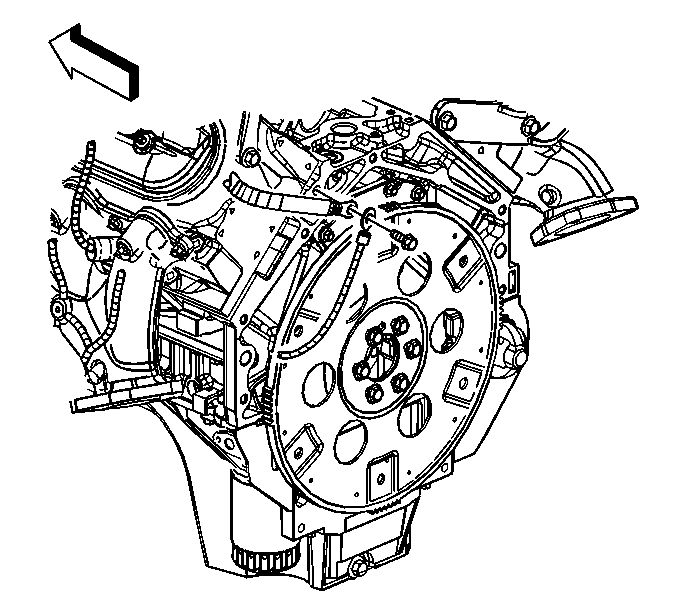

Fig 2: View Of Ground Cable Bolt At Engine Block

Courtesy of GENERAL MOTORS CORP.

Position the ground strap and engine wiring harness ground.
Install the engine wiring harness ground bolt.
Tighten: Tighten the engine wiring harness ground bolt to 16 N.m (12 lb ft).
If necessary, install the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, or ENGINE SIGHT SHIELD REPLACEMENT (6.0L (LQ9)) .
