Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C High Pressure Switch | On rear of A/C compressor. |

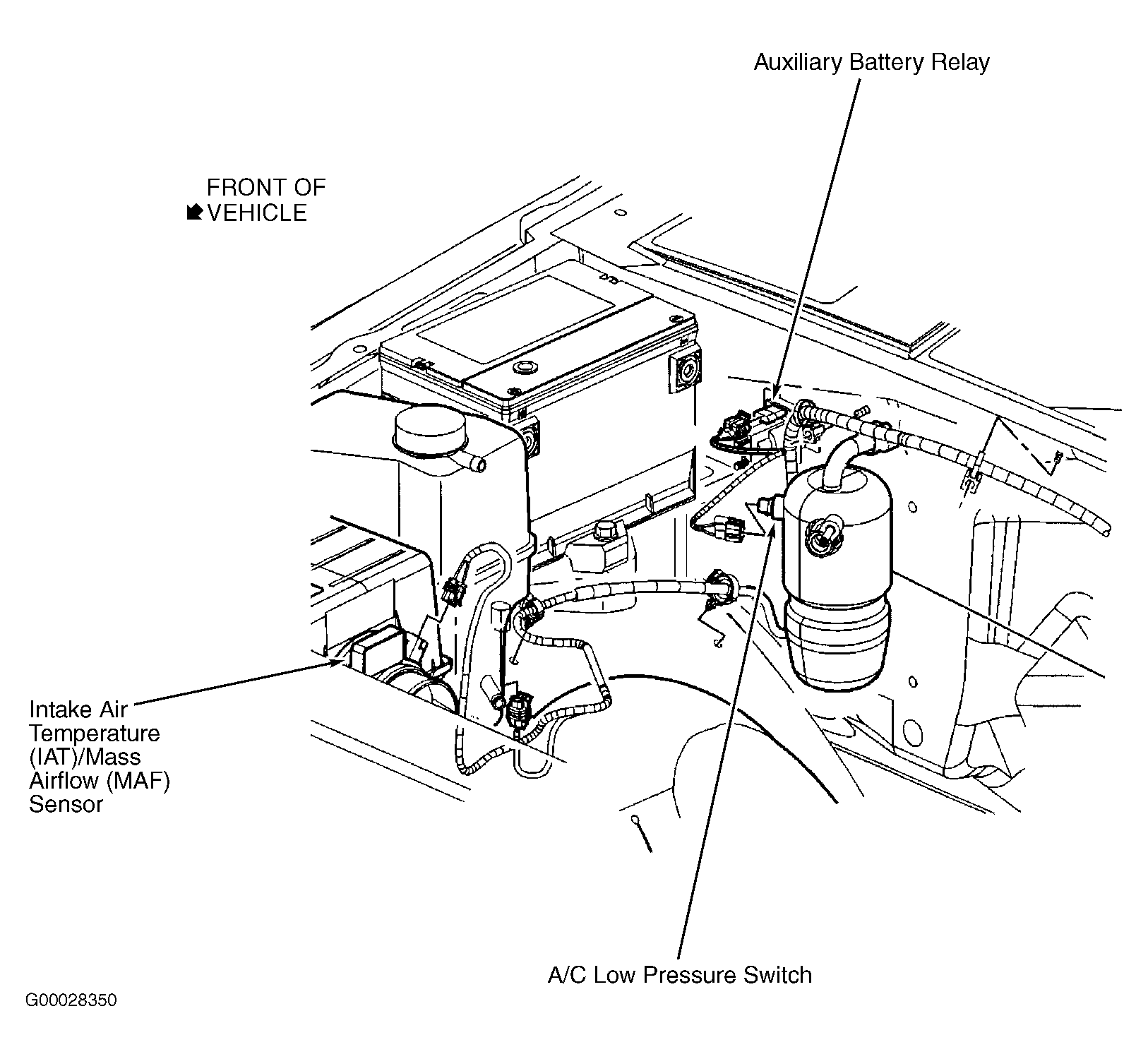

| A/C Low Pressure Switch | On right side of accumulator. See Figure. |
| Back-Up Lamp Switch | On left side of transmission. |
| Brake Fluid Level Switch | On left side of brake fluid reservoir. |
| Clutch Start Switch | On top of clutch pedal assembly, near reservoir. |
| Coolant Level Switch | In coolant reservoir. |
| Engine Oil Level Switch (4.3L VIN W) | On right side of oil pan. |
| Engine Oil Level Switch (4.8L VIN V) | On right side of oil pan. |
| Engine Oil Level Switch (5.3L VIN T) | On right side of oil pan. |
| Engine Oil Level Switch (6.0L VIN U) | On right side of oil pan. |
| Engine Oil Level Switch (6.6L VIN 1) | On left rear of oil pan. |
| Engine Oil Level Switch (8.1L VIN G) | On right side of oil pan. |
| Engine Oil Pressure (EOP) Switch (4.3L VIN W) | On top left rear of engine, near distributor. See Figure. |
| Headlamp Dimmer Switch | In steering column, integral to multifunction switch. |
| MPA Switch | On electronic brake control module. |
| Park Brake Switch | Part of the park brake assembly. |
| Park/Neutral Position (PNP) Switch | On left side of transmission. |
| Park Switch | In steering column. |
| Seat Belt Switch | On driver's seat belt buckle. |
| Stoplamp Switch | On top of brake pedal bracket. |
| Transfer Case Shift Control Switch | On left front of transfer case. |
