Cruise Control Component Views
WARNING:
This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Upper Left Side Of Engine Compartment Bulkhead
Courtesy of GENERAL MOTORS CORP.

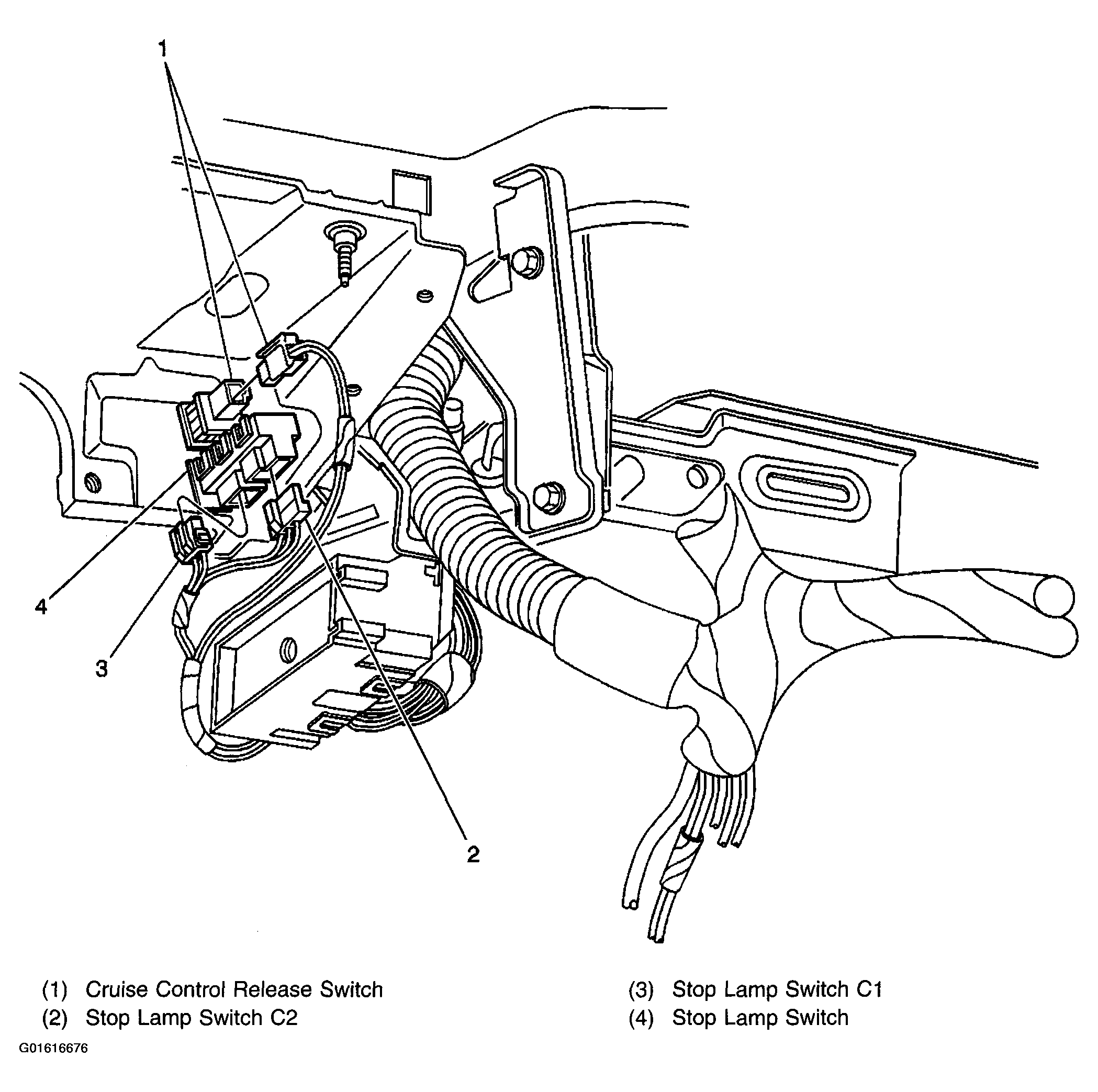

Fig 2: Above Brake Pedal
Courtesy of GENERAL MOTORS CORP.

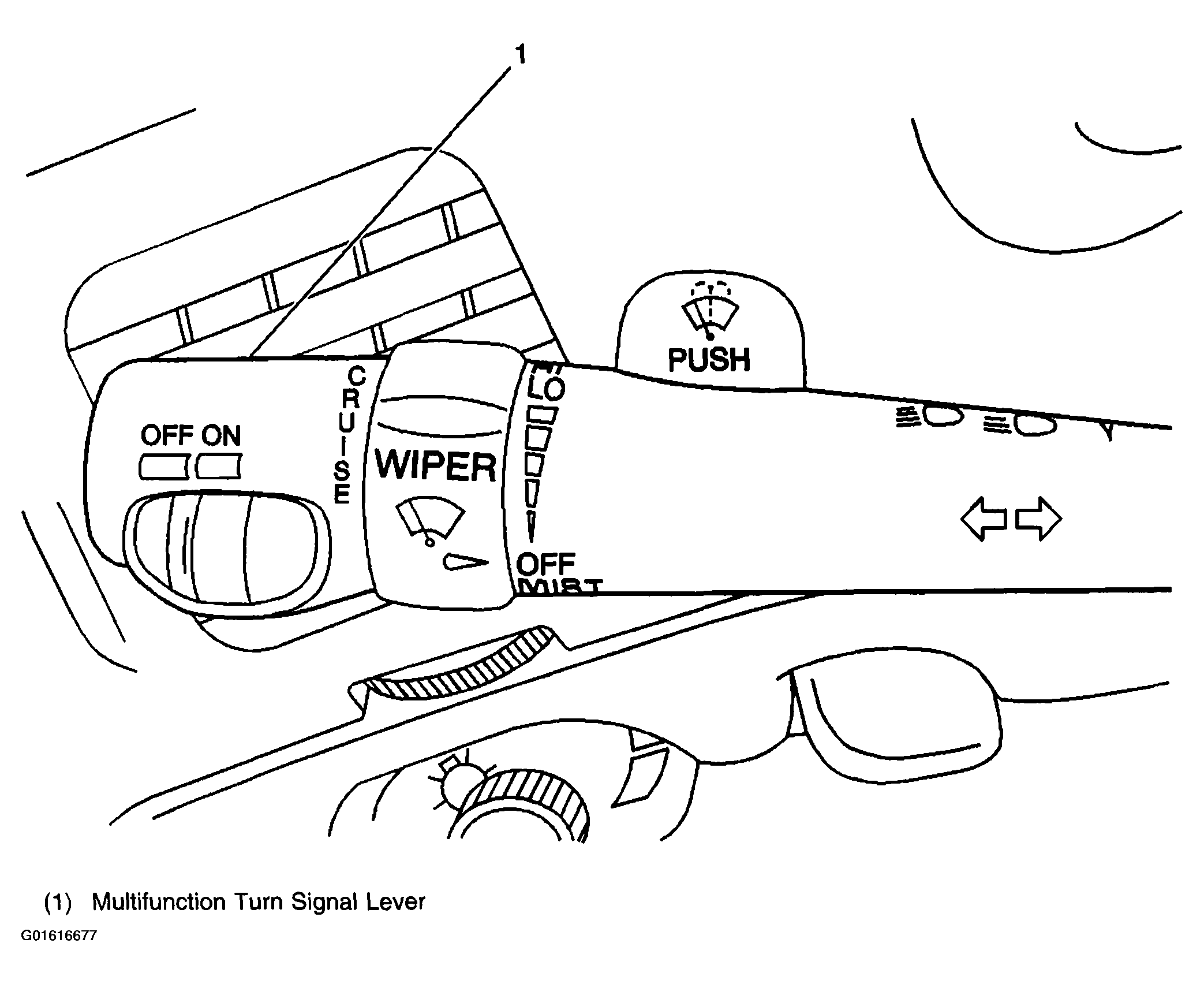

Fig 3: Turn Signal/Multifunction Lever
Courtesy of GENERAL MOTORS CORP.
