Keyless Entry Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

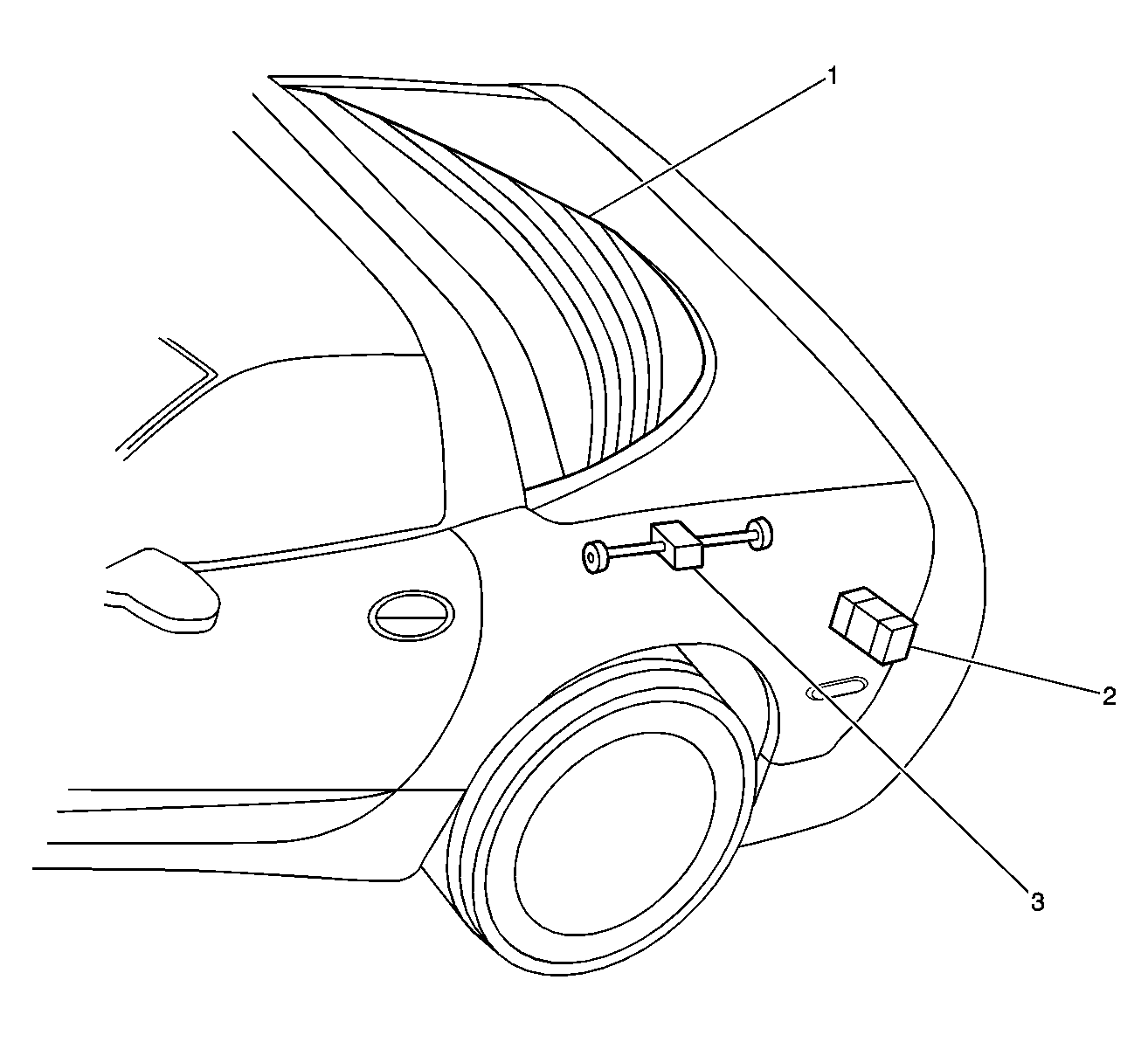

Fig 1: Rear Of Vehicle Component Views - Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Defogger Grid
2	Electronic Suspension Control (ESC) Module
3	Remote Control Door Lock Receiver (RCDLR)
