Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Connect the receiver connector (2).
Line up the receiver (1) with the slots on the retainer.

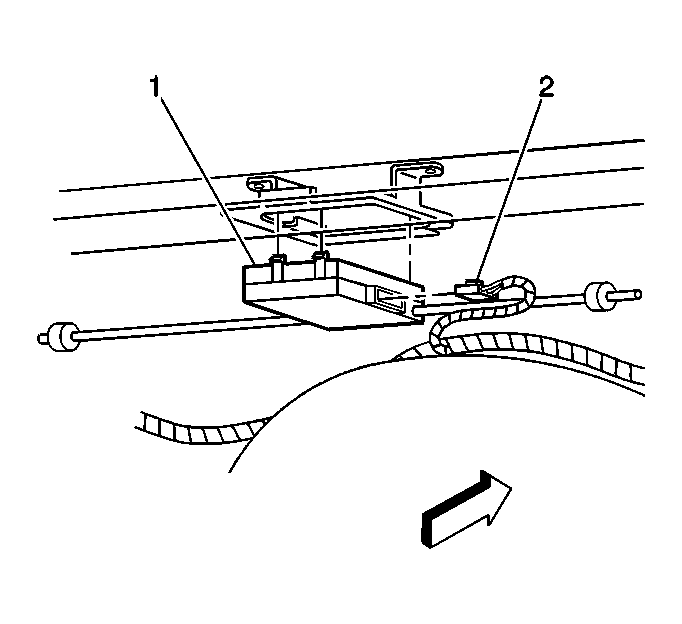

Fig 1: Remote Control Door Lock Receiver And Connector
Courtesy of GENERAL MOTORS CORP.
Snap the receiver (1) into place on the retainer.

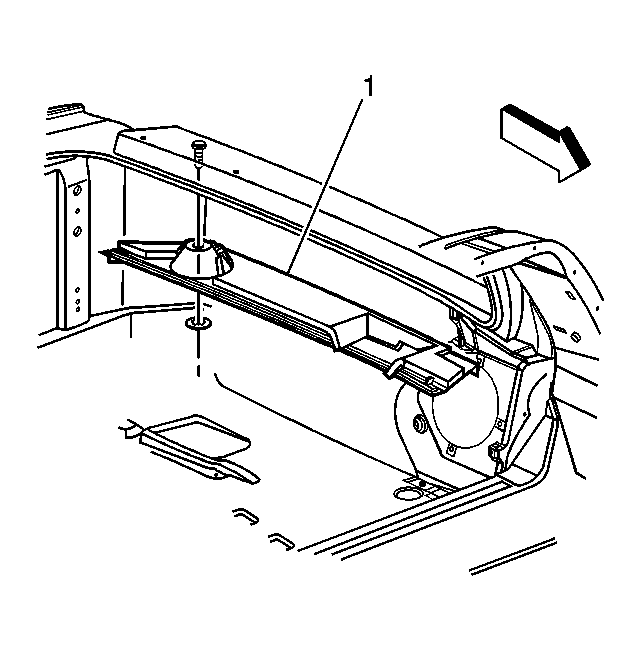

Fig 2: Left Rear Compartment Insulator

Courtesy of GENERAL MOTORS CORP.

Install the left rear compartment insulator (1).
Program the keyless entry transmitters. Refer to Transmitter Programming .
Program the TPM sensors. Refer to Tire Pressure Sensor Learn in Tire Pressure Monitoring.
