Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

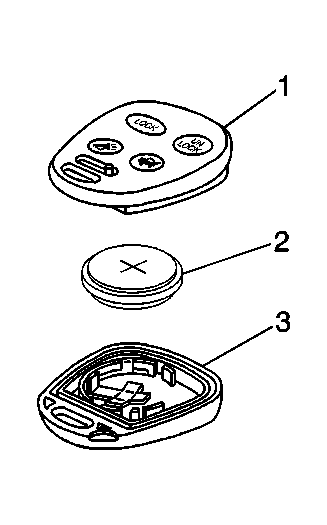

    Fig 1: Transmitter Halves And Battery
    GM305032Courtesy of GENERAL MOTORS CORP.
  1. Install the new battery (CR 2450 or equivalent) (2) with the positive (+) side facing up.
  2. Inspect that the seal is properly positioned.
  3. Snap the 2 halves together (1, 3).
  4. Synchronize the transmitter to the receiver. Refer to Transmitter Resynchronization .
