Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small coin between the 2 halves of the transmitter case in the slot located near the key ring.
  2. Twist the coin in order to open the case.

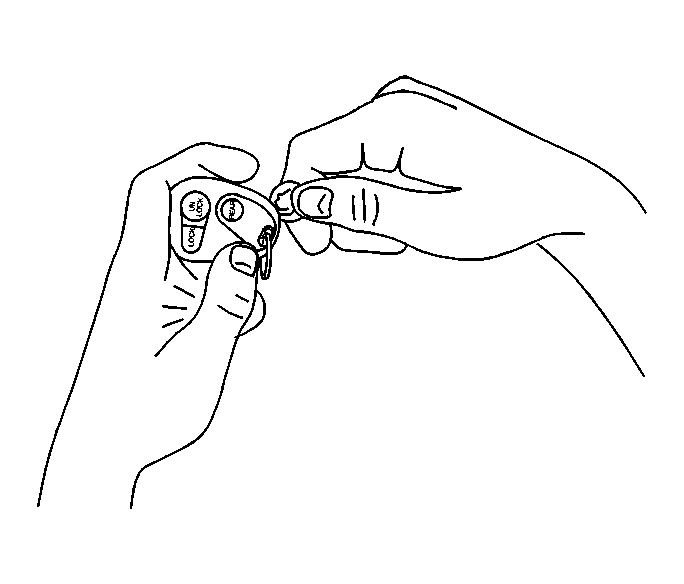

    Fig 1: Opening Transmitter Case
    GM264911Courtesy of GENERAL MOTORS CORP.
  3. Remove the cover while being careful not to damage the seal.
  4. Remove the battery from the transmitter.
