Keyless Entry Schematics

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

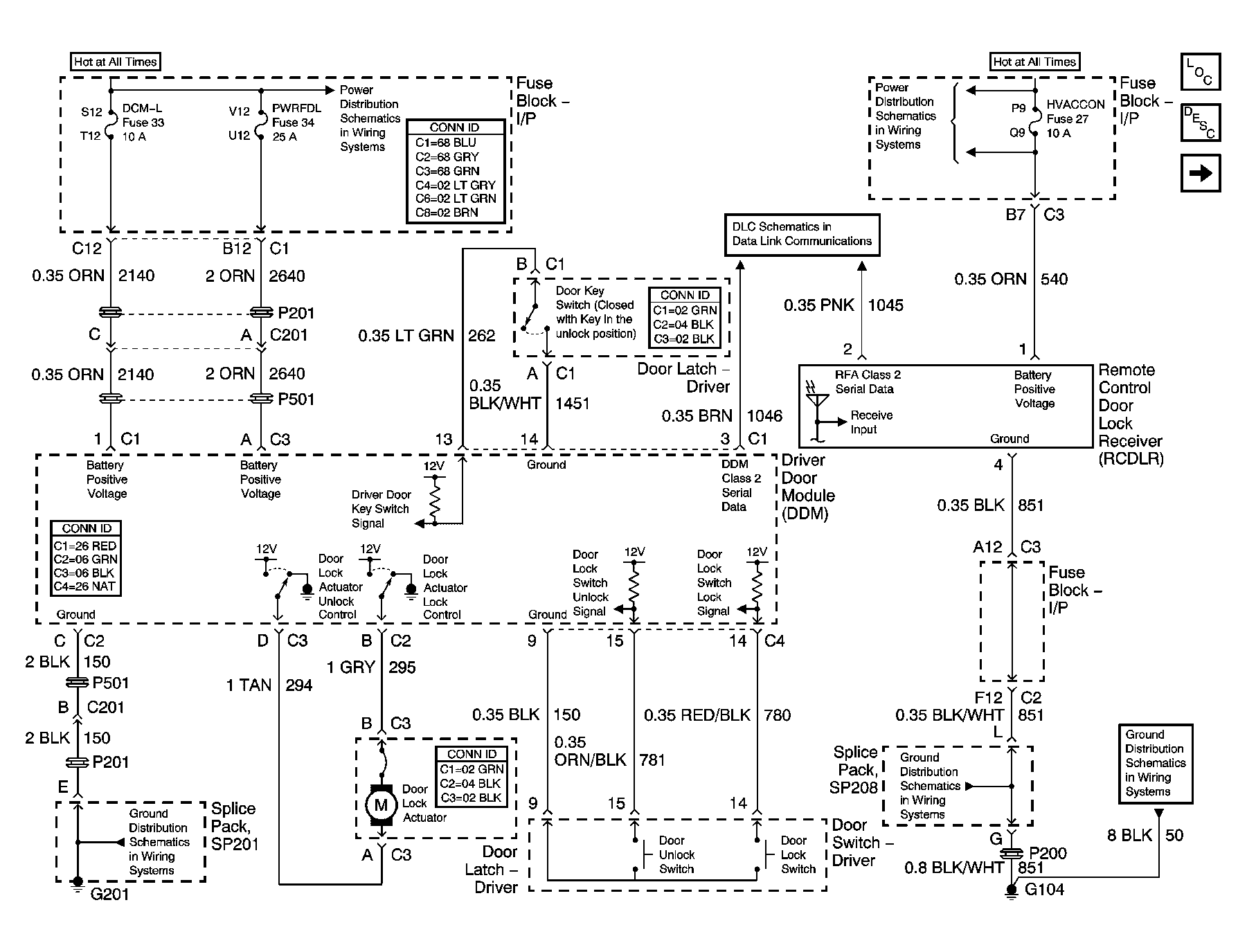

Fig 1: Driver Door Schematic
GM690491Courtesy of GENERAL MOTORS CORP.

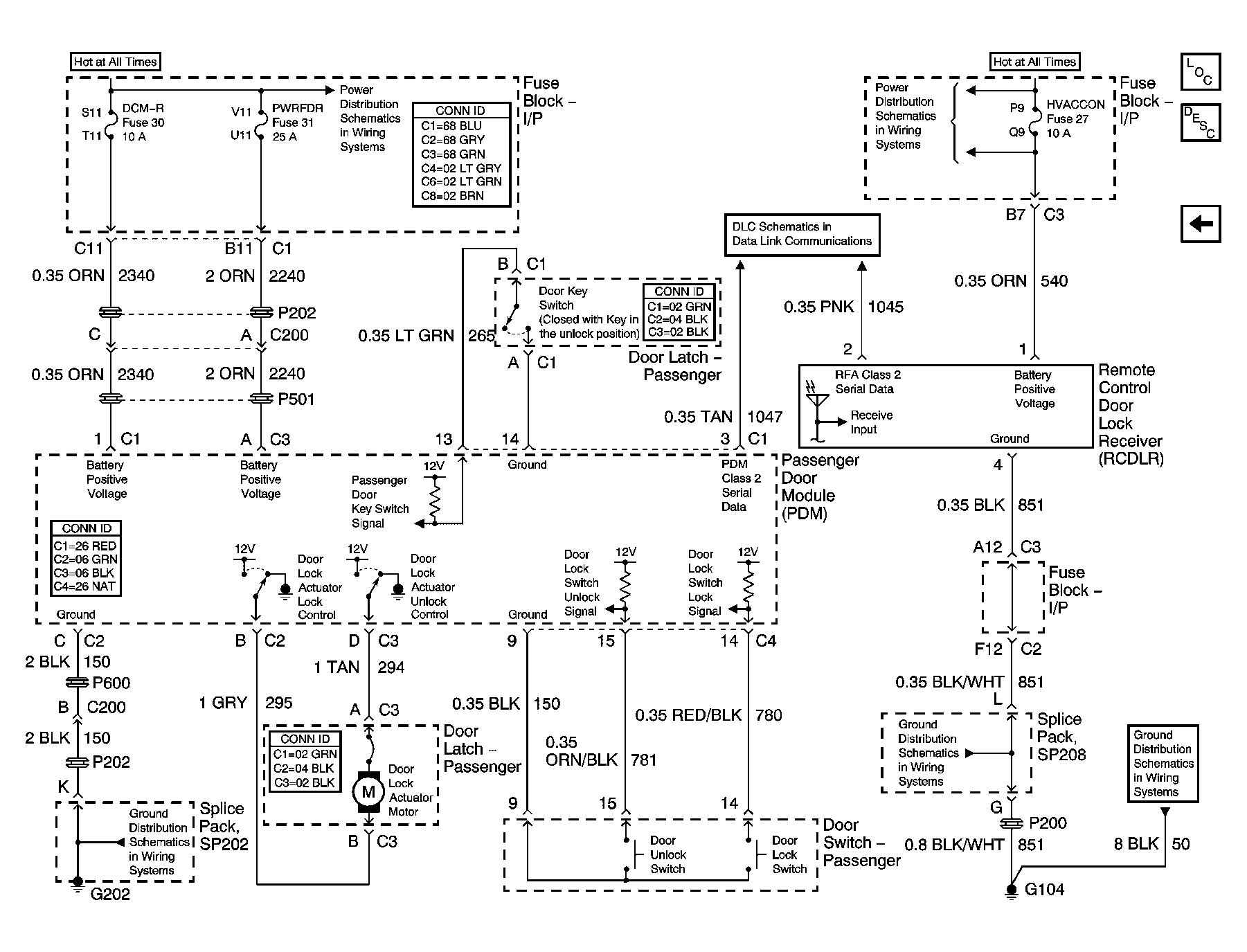

Fig 2: Passenger Door Schematic
GM690504Courtesy of GENERAL MOTORS CORP.
