Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper fender brace bolts.
Remove the upper fender brace.

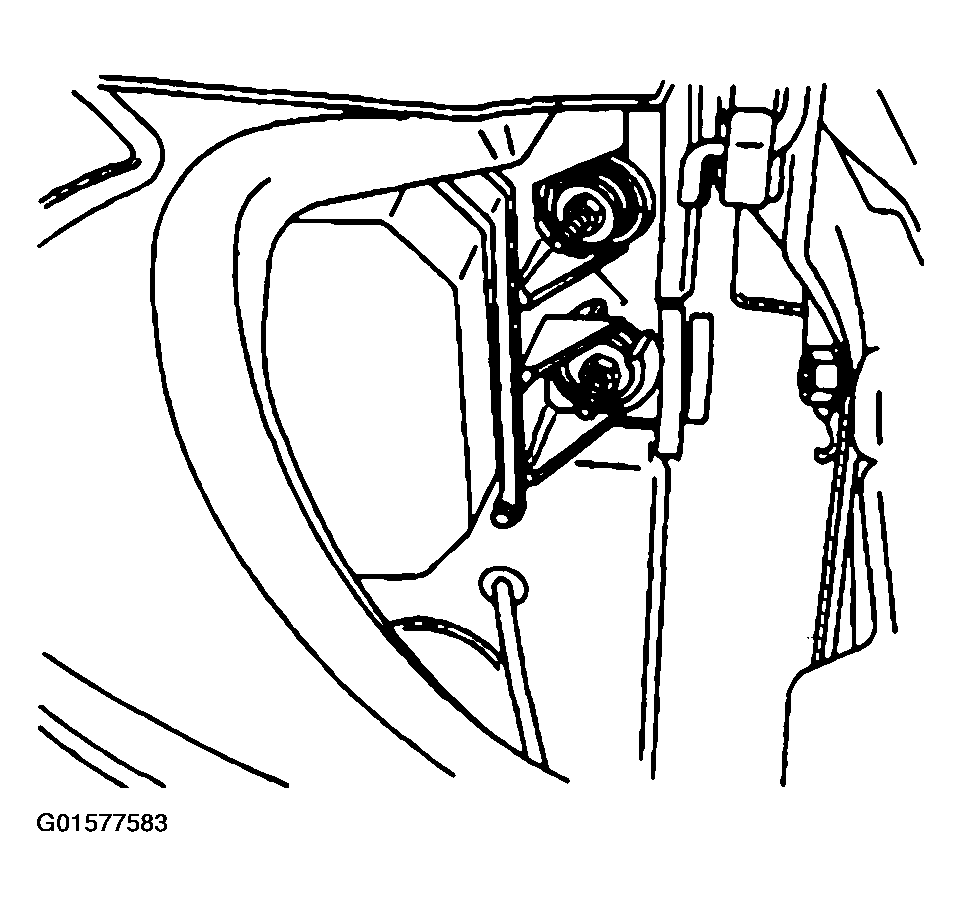

Fig 1: Removing Upper Fender Brace
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control module electrical connector.

Fig 2: Disconnecting Cruise Control Module Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control module nuts.
Disconnect the cruise control cable from the module. Refer to Cruise Control Cable Replacement (4.3L Engine) .
Remove the cruise control module.

Fig 3: Removing Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
