Component Location Graphics

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine (3.1L VIN J)

G00028307

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Of Engine (3.1L VIN J)

G00028314

Courtesy of GENERAL MOTORS CORP.

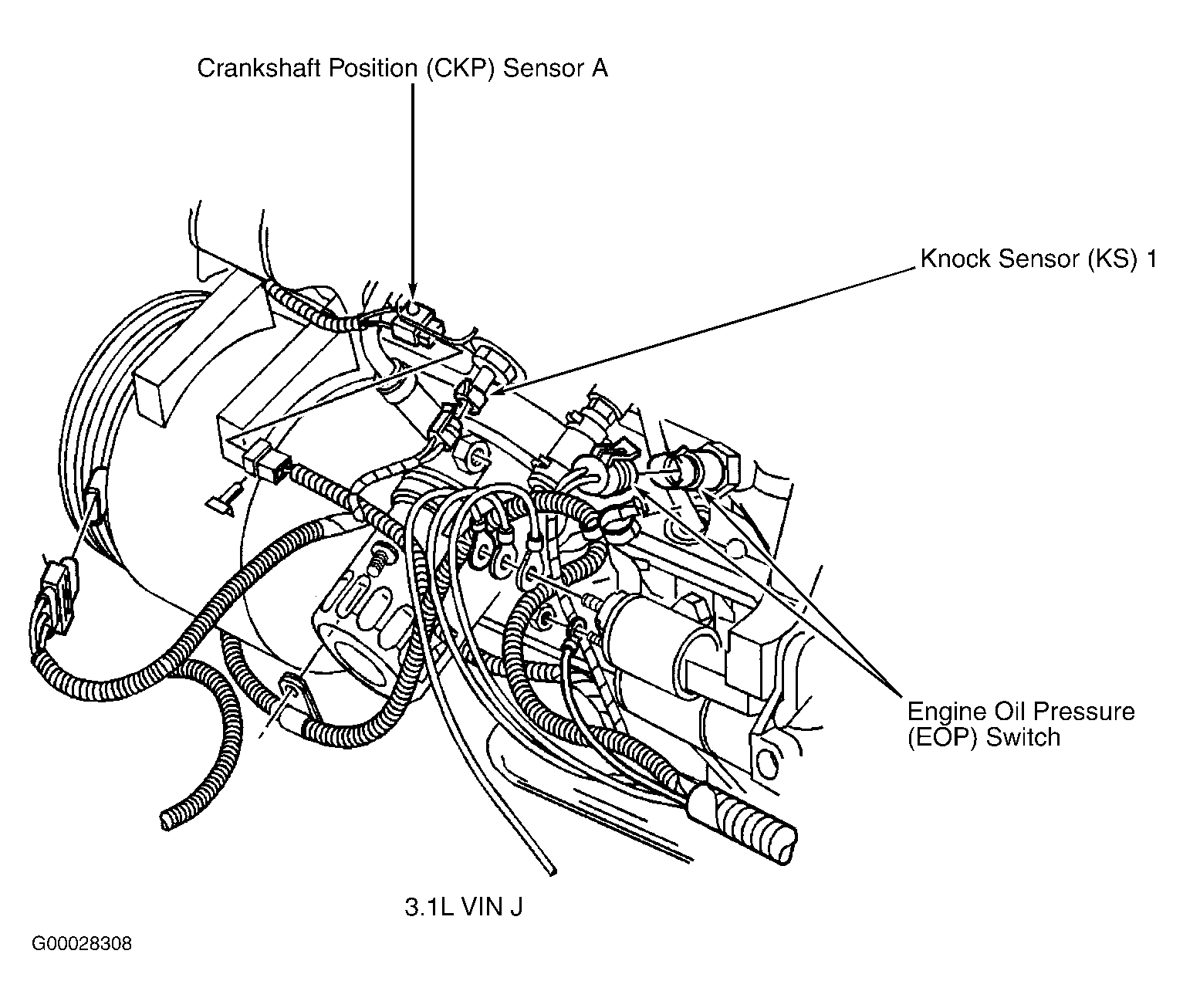

Fig 3: Left Side Of Engine (3.1L VIN J)

G00028308

Courtesy of GENERAL MOTORS CORP.

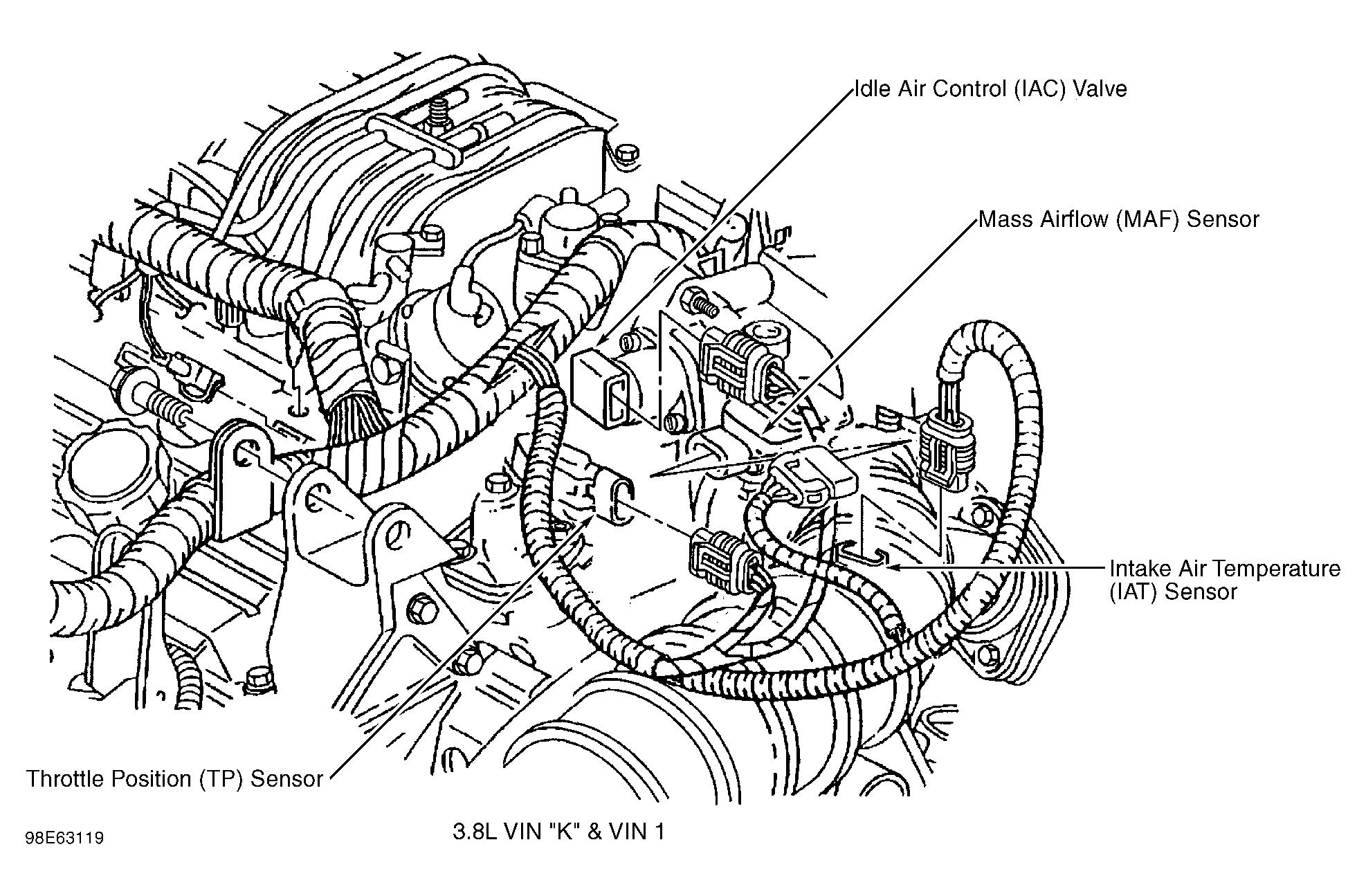

Fig 4: Rear Of Engine (3.8L VIN K & 3.8L VIN 1)

G98E63119

Courtesy of GENERAL MOTORS CORP.

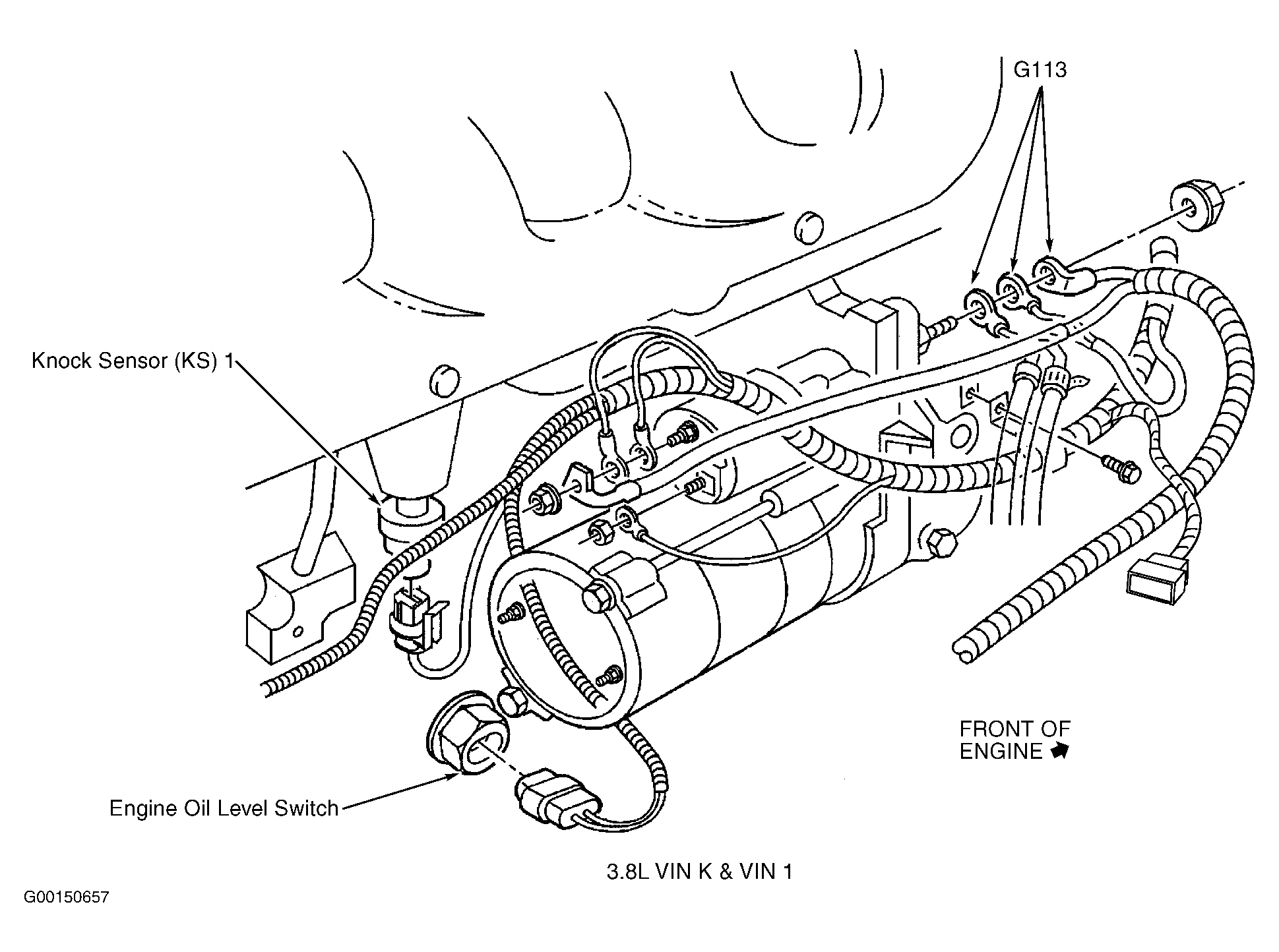

Fig 5: Right Side Of Engine (3.8L VIN K & 3.8L VIN 1)

G00150657

Courtesy of GENERAL MOTORS CORP.

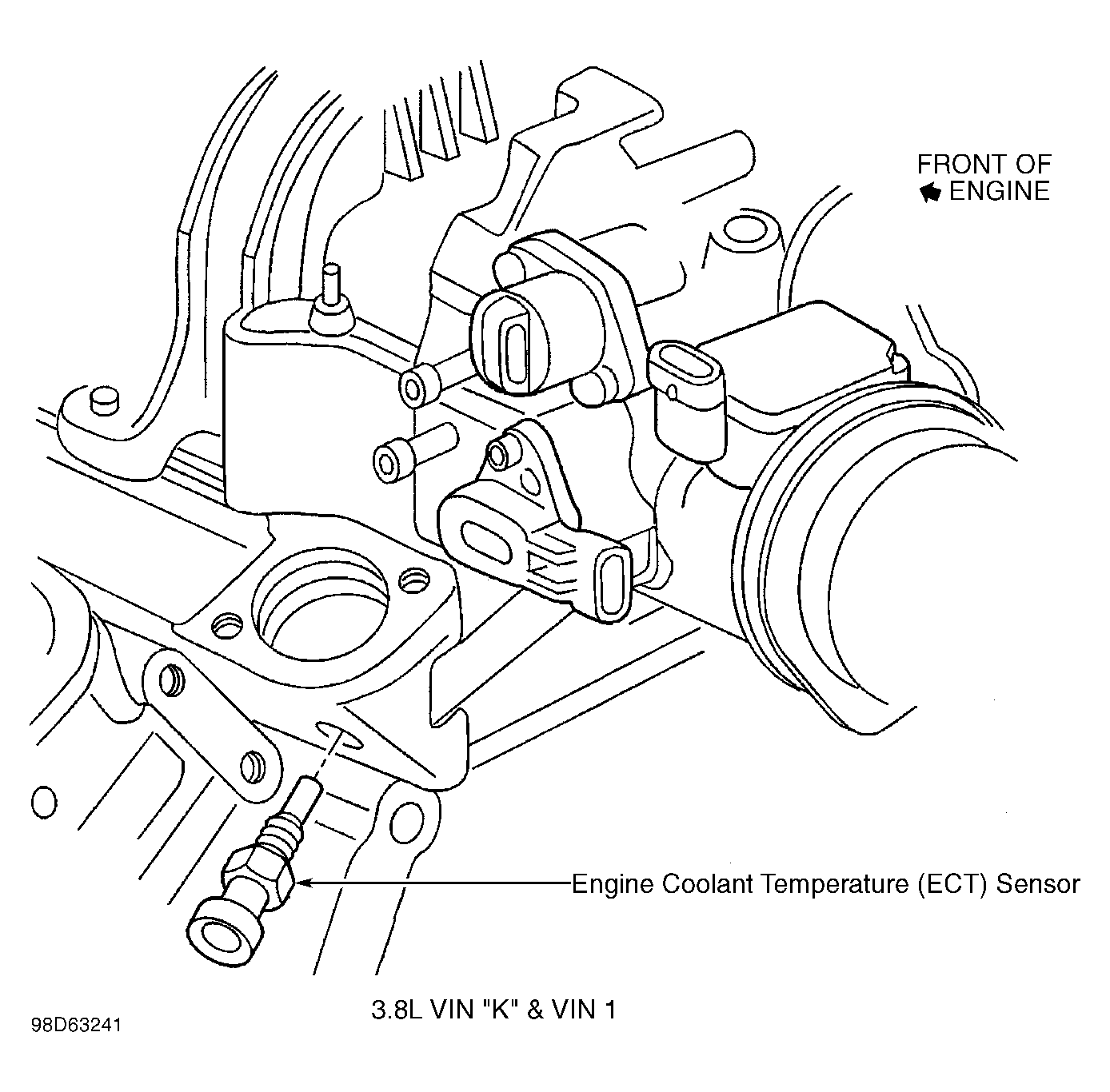

Fig 6: Rear Of Engine (3.8L VIN K & 3.8L VIN 1)

G98D63241

Courtesy of GENERAL MOTORS CORP.

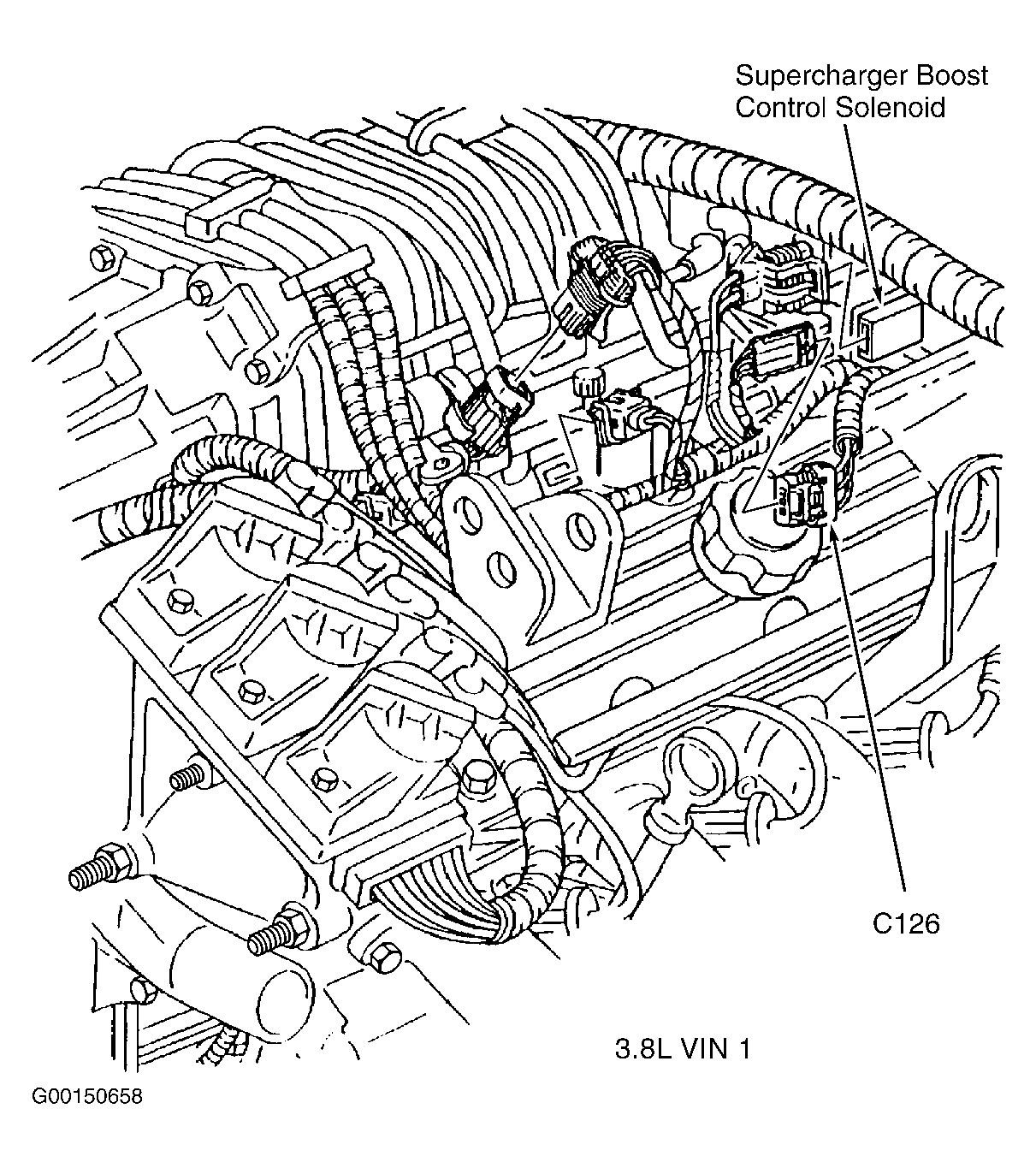

Fig 7: Left Side Of Engine (3.8L VIN 1)

G00150658

Courtesy of GENERAL MOTORS CORP.

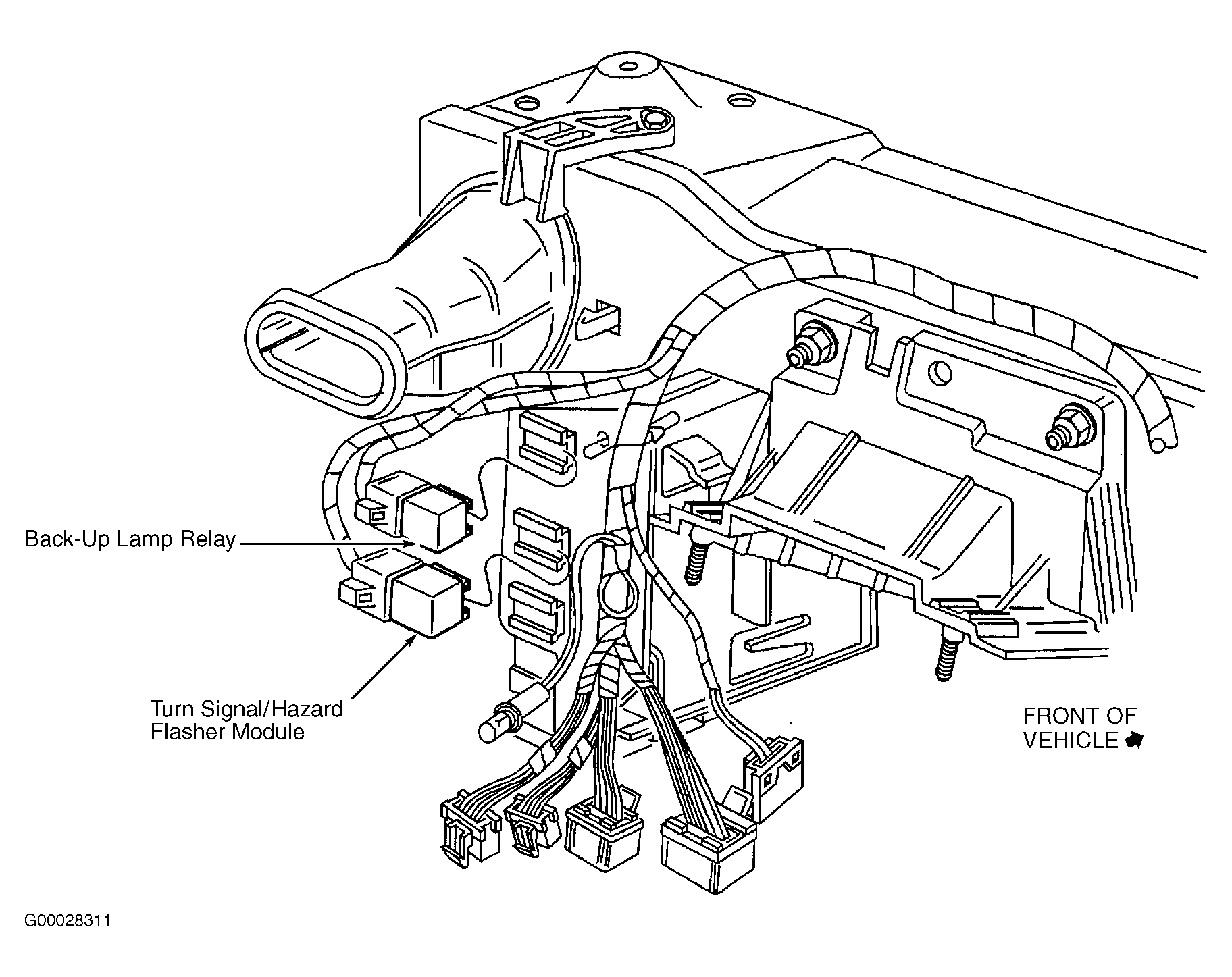

Fig 8: Left Front Of Passenger Compartment

G00028311

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Side Of Dash

G00028312

Courtesy of GENERAL MOTORS CORP.

Fig 10: HVAC Module

G00122759

Courtesy of GENERAL MOTORS CORP.
