Control Units
WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

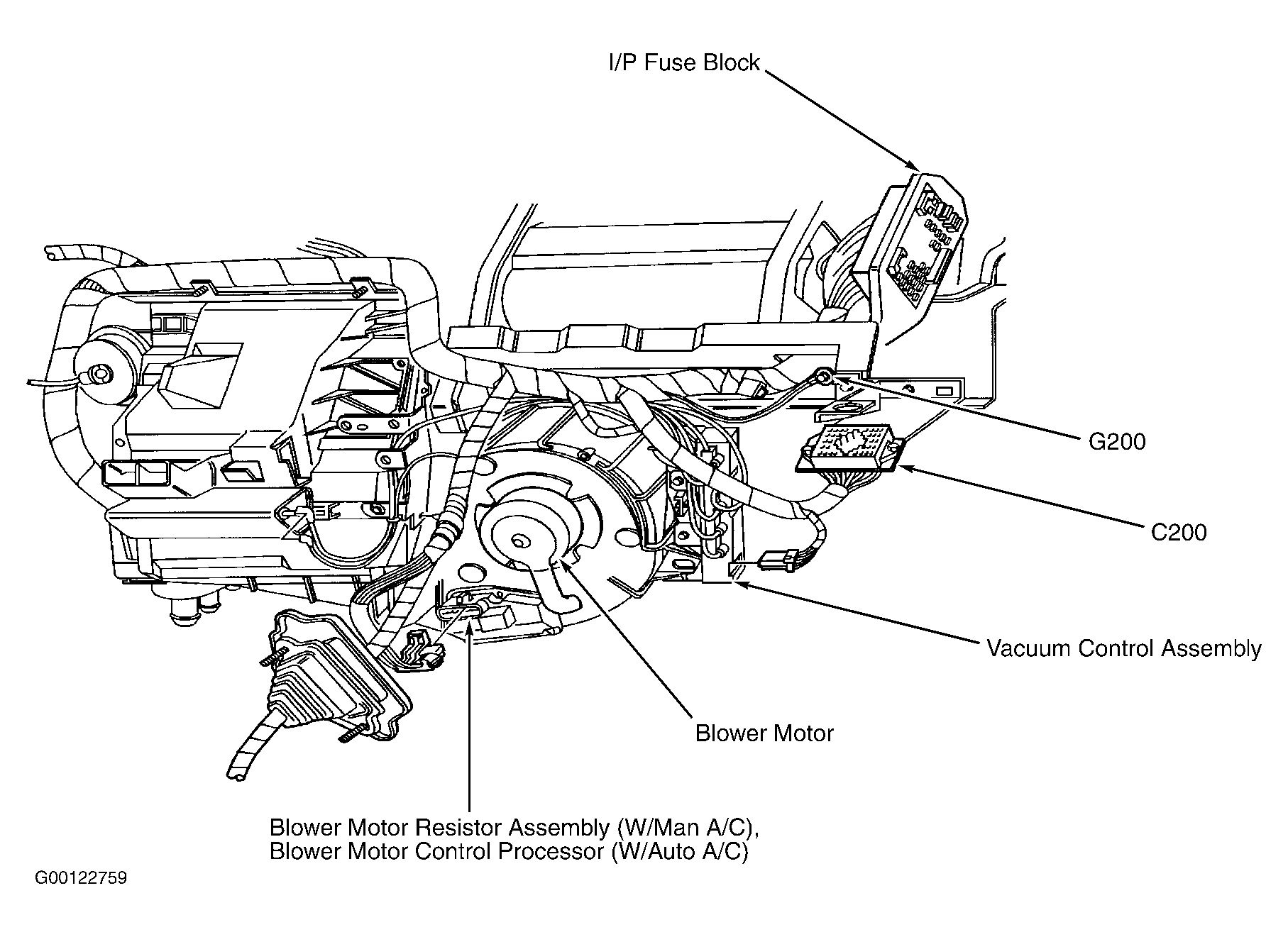

| Blower Motor Control Processor (W/ Auto A/C) | Behind right side of dash, in HVAC module. See Figure . |
| Body Control Module (BCM) | Behind left side of dash, left of steering column. |
| Cruise Control Module (CCM) | Front of left strut tower. |
| Electronic Brake Control Module (EBCM) | At left side of engine compartment, near strut tower. |
| Heated Seat Control Module (Driver) | Below driver's seat. |
| Heated Seat Control Module (Front Passenger) | Below right front seat. |
| Ignition Control Module (ICM) (3.1L VIN J) | Top right side of engine. See Figure . |
| Ignition Control Module (ICM) (3.8L VIN K) | Top front of engine. |
| Ignition Control Module (ICM) (3.8L VIN 1) | Top front of engine. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below carpet, under right front seat. |
| Powertrain Control Module (PCM) | Left front side of engine compartment, in air cleaner assembly. |
| Radio Antenna Module | On rear window header panel, above headliner. |
| Remote Control Door Lock Receiver (RCDLR) | Behind instrument cluster. |
| Sun Roof Module (Express Open) | Center rear of sun roof. |
| Vehicle Communication Interface Module (VCIM) | On rear of left rear wheelhouse. |
