Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a small bladed tool, or a small coin, at the slot provided near the key ring hole (5), between the two halves (6, 4) of the transmitter case.
  2. Twist the small bladed tool, or small coin, between the two halves in order to separate the case.
  3. Remove the battery (2) from the transmitter.

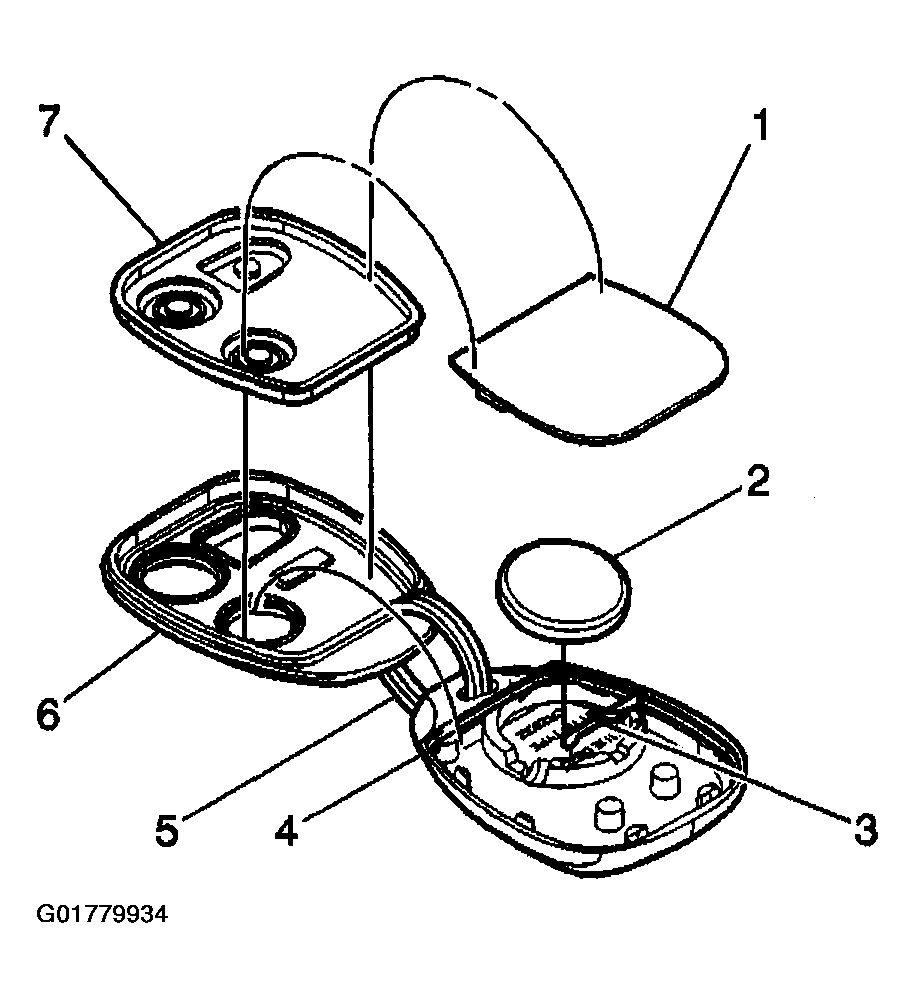

    Fig 1: Removing Transmitter Battery
    G01779934Courtesy of GENERAL MOTORS CORP.
