Installation Procedure

CAUTION: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the brake booster inlet hose (1) to the brake booster (2).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the brake booster inlet hose to the power steering pump.

    Tighten

    Tighten the brake booster inlet hose fittings to 27 N.m (20 lb ft).

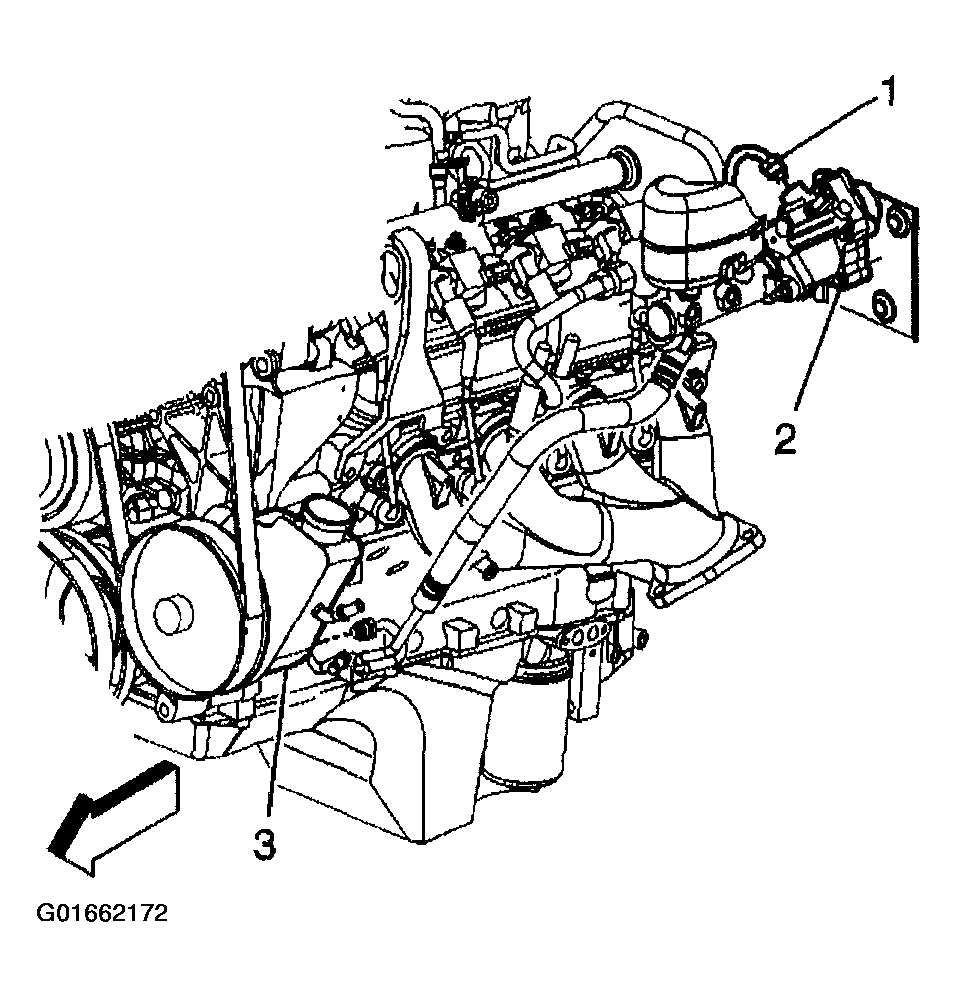

    4. Fig 1: Installing Brake Booster Inlet Hose
    G01662172Courtesy of GENERAL MOTORS CORP.
  4. Remove the drain pan from under the vehicle.
  5. Bleed the power steering system. Refer to Bleeding the Power Steering System .
