Body Control Module Connector End Views

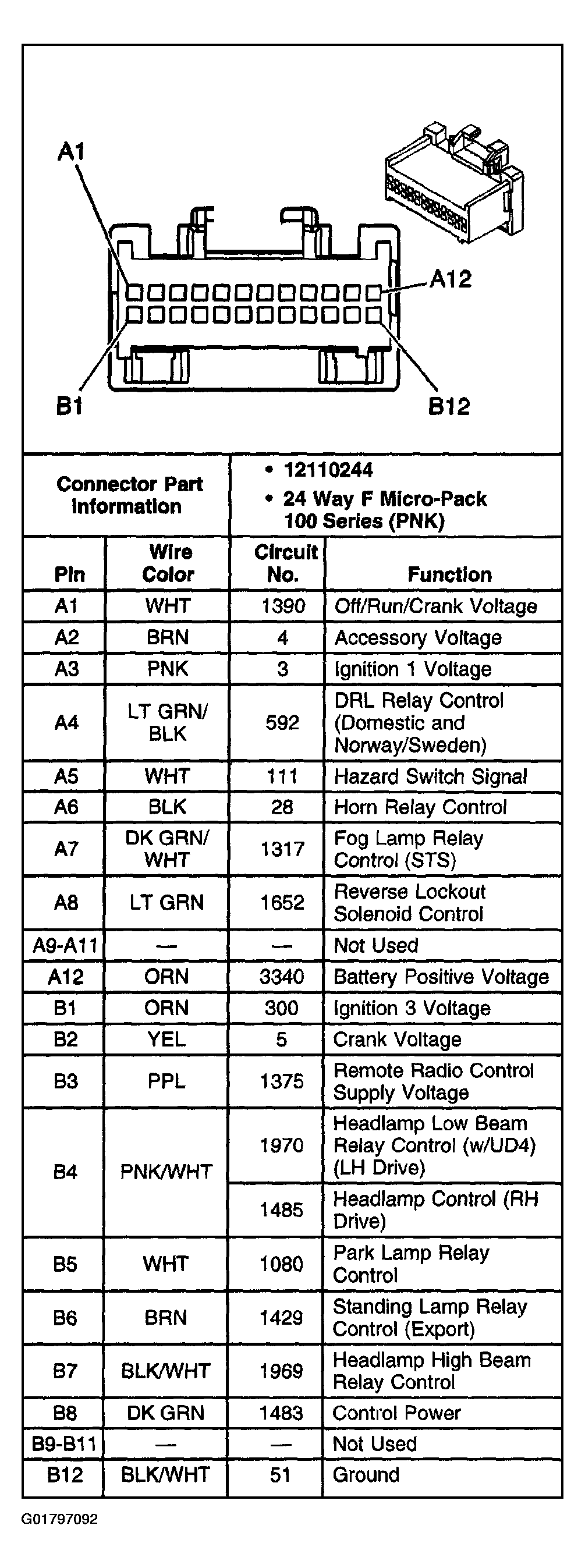

Fig 1: Dash Integration Module (DIM) C1
G01797092Courtesy of GENERAL MOTORS CORP.

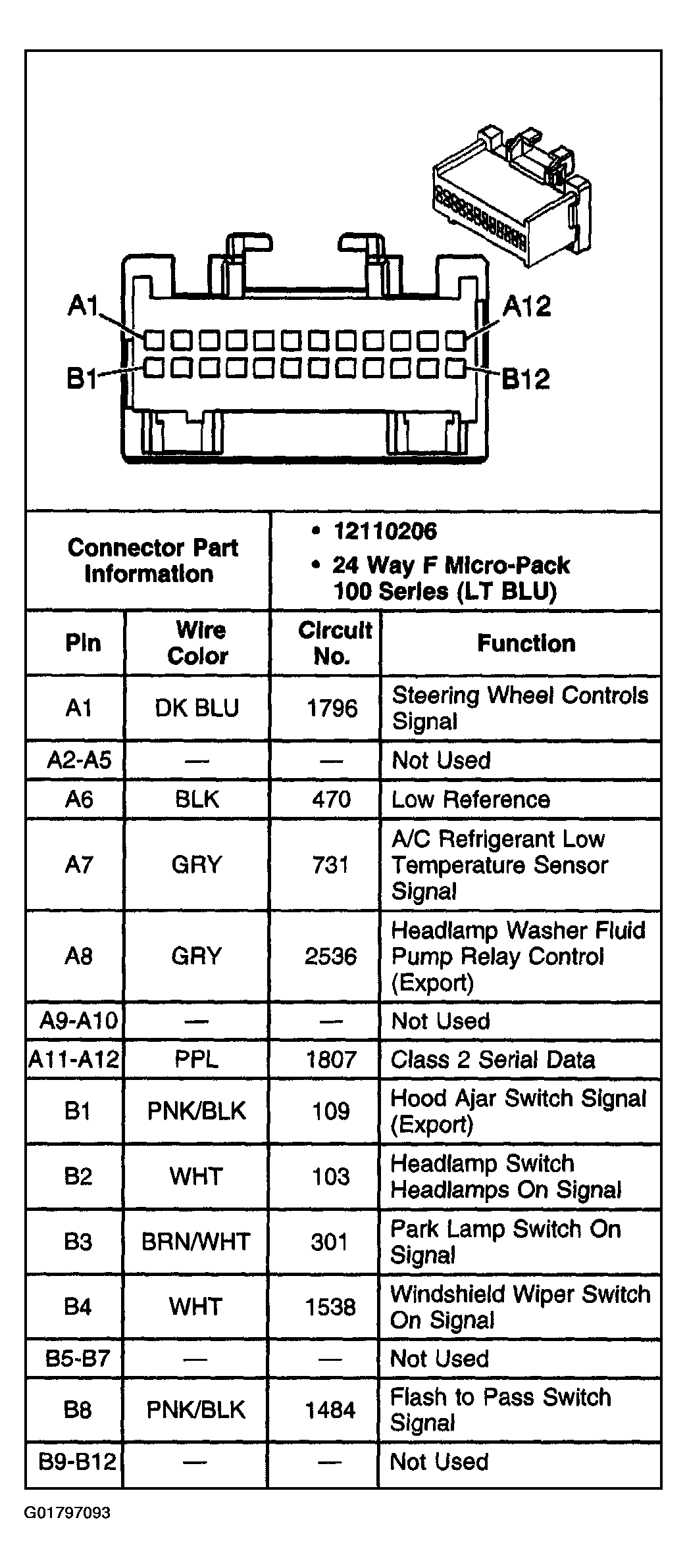

Fig 2: Dash Integration Module (DIM) C2
G01797093Courtesy of GENERAL MOTORS CORP.

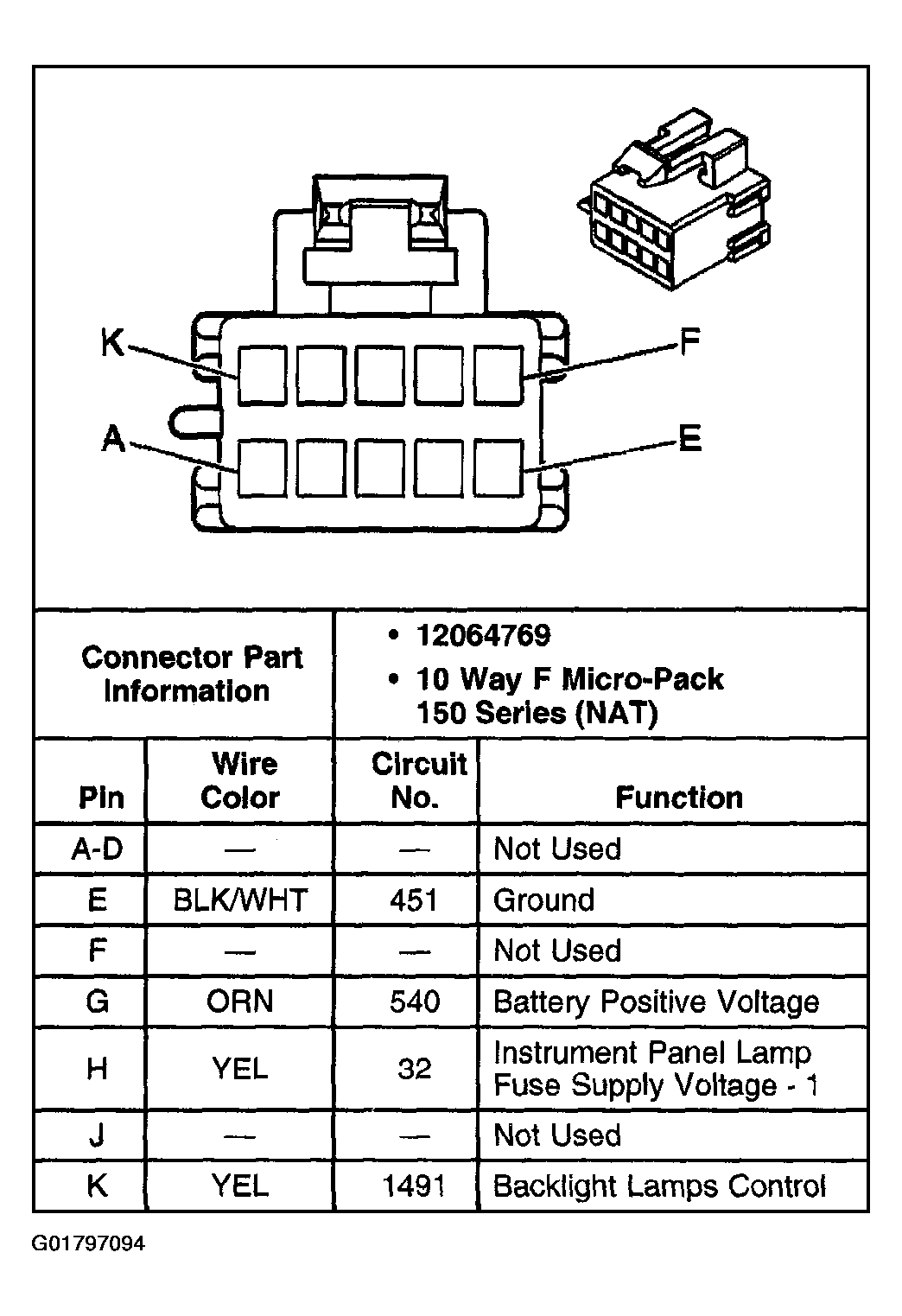

Fig 3: Dash Integration Module (DIM) C3
G01797094Courtesy of GENERAL MOTORS CORP.

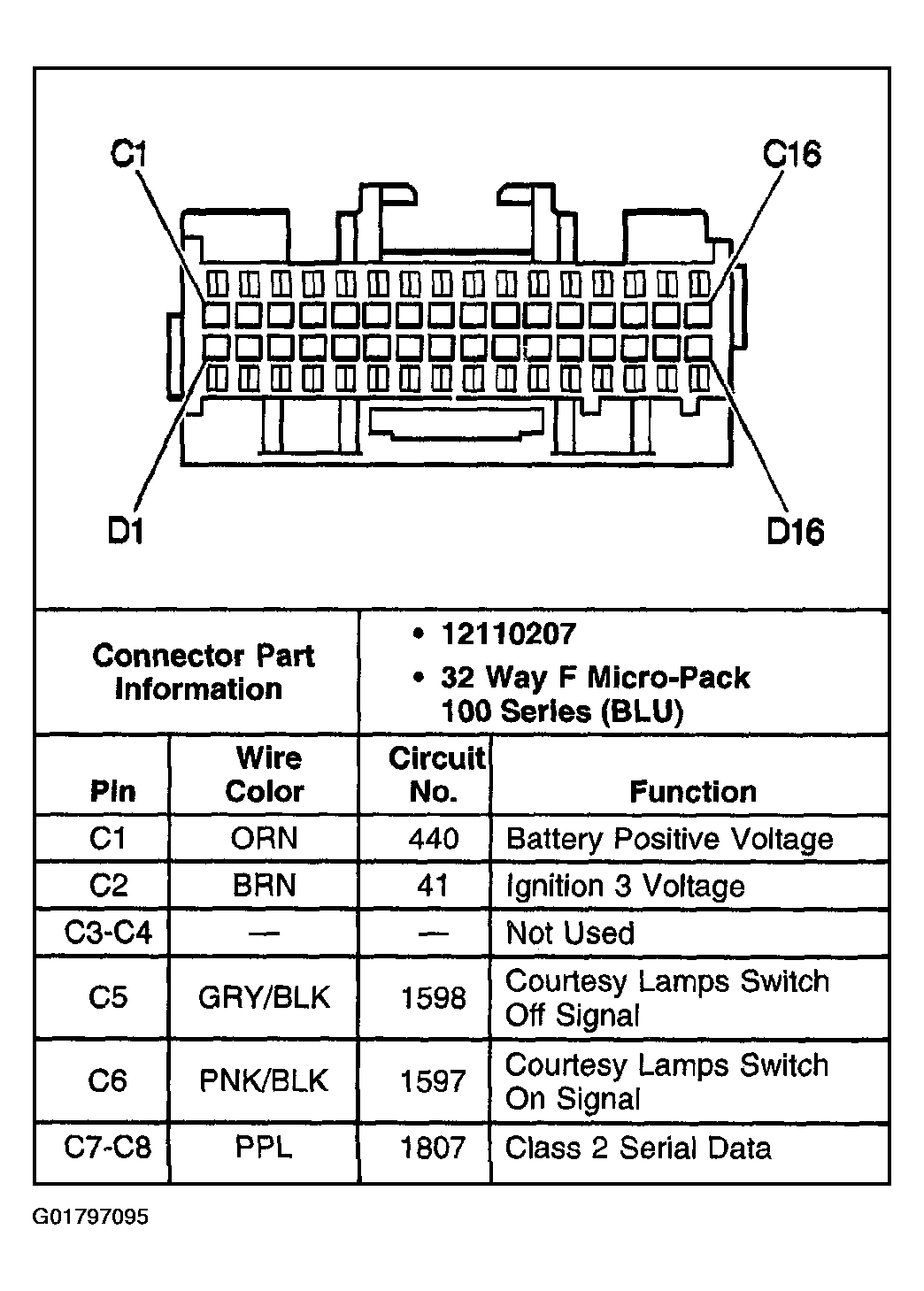

Fig 4: Instrument Panel Integration Module (IPM) C1 (1 Of 2)
G01797095Courtesy of GENERAL MOTORS CORP.

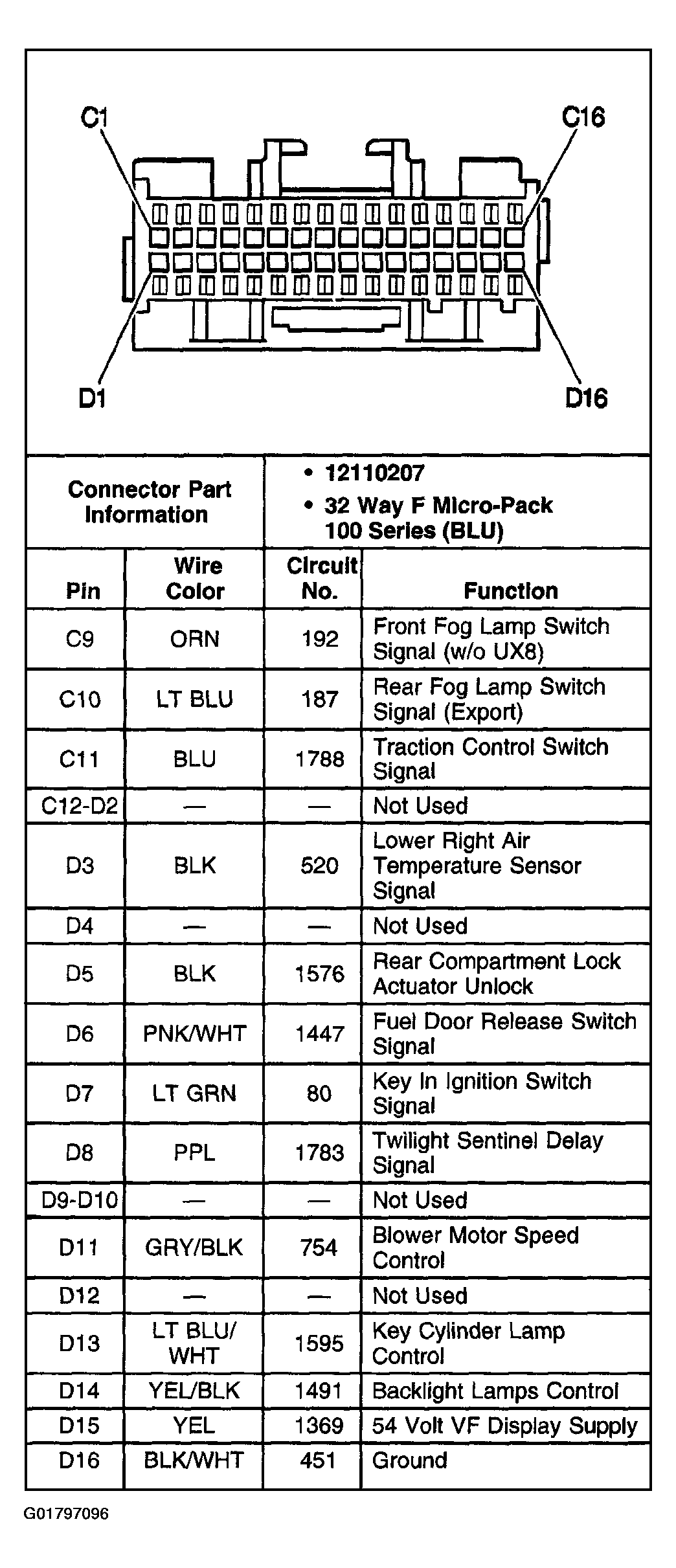

Fig 5: Instrument Panel Integration Module (IPM) C1 (2 Of 2)
G01797096Courtesy of GENERAL MOTORS CORP.

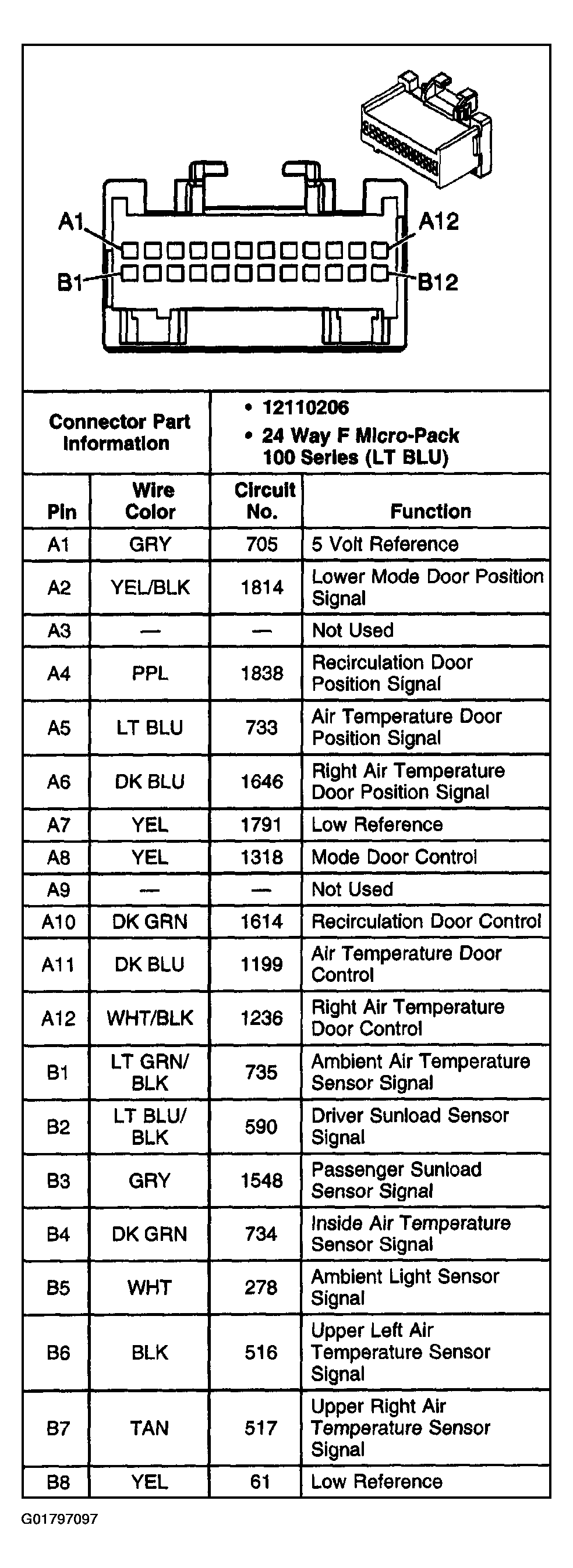

Fig 6: Instrument Panel Integration Module (IPM) C2 (1 Of 2)
G01797097Courtesy of GENERAL MOTORS CORP.
Fig 7: Instrument Panel Integration Module (IPM) C2 (2 Of 2)
G01797098Courtesy of GENERAL MOTORS CORP.

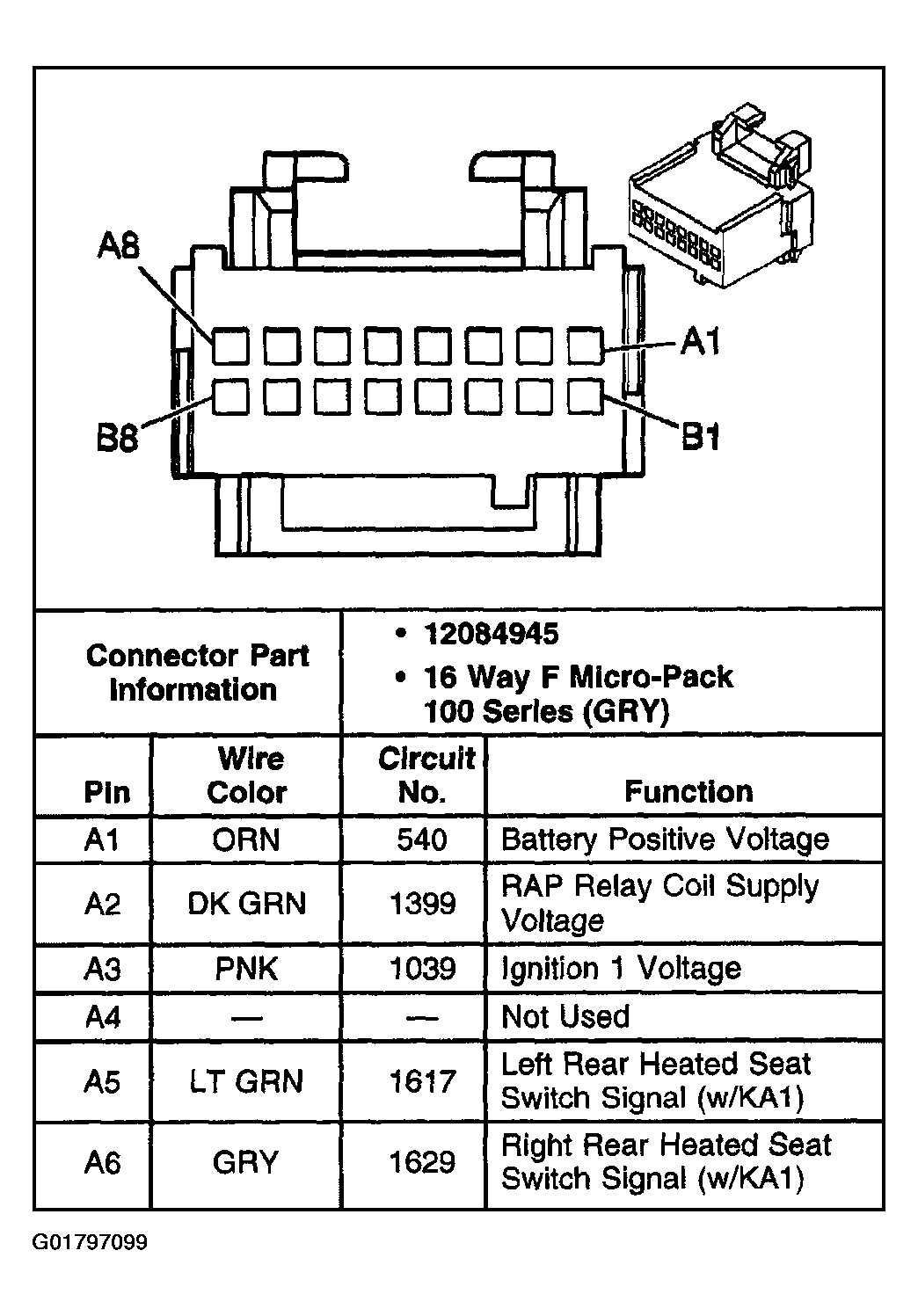

Fig 8: Rear Integration Module (RIM) C1 (1 Of 2)
G01797099Courtesy of GENERAL MOTORS CORP.

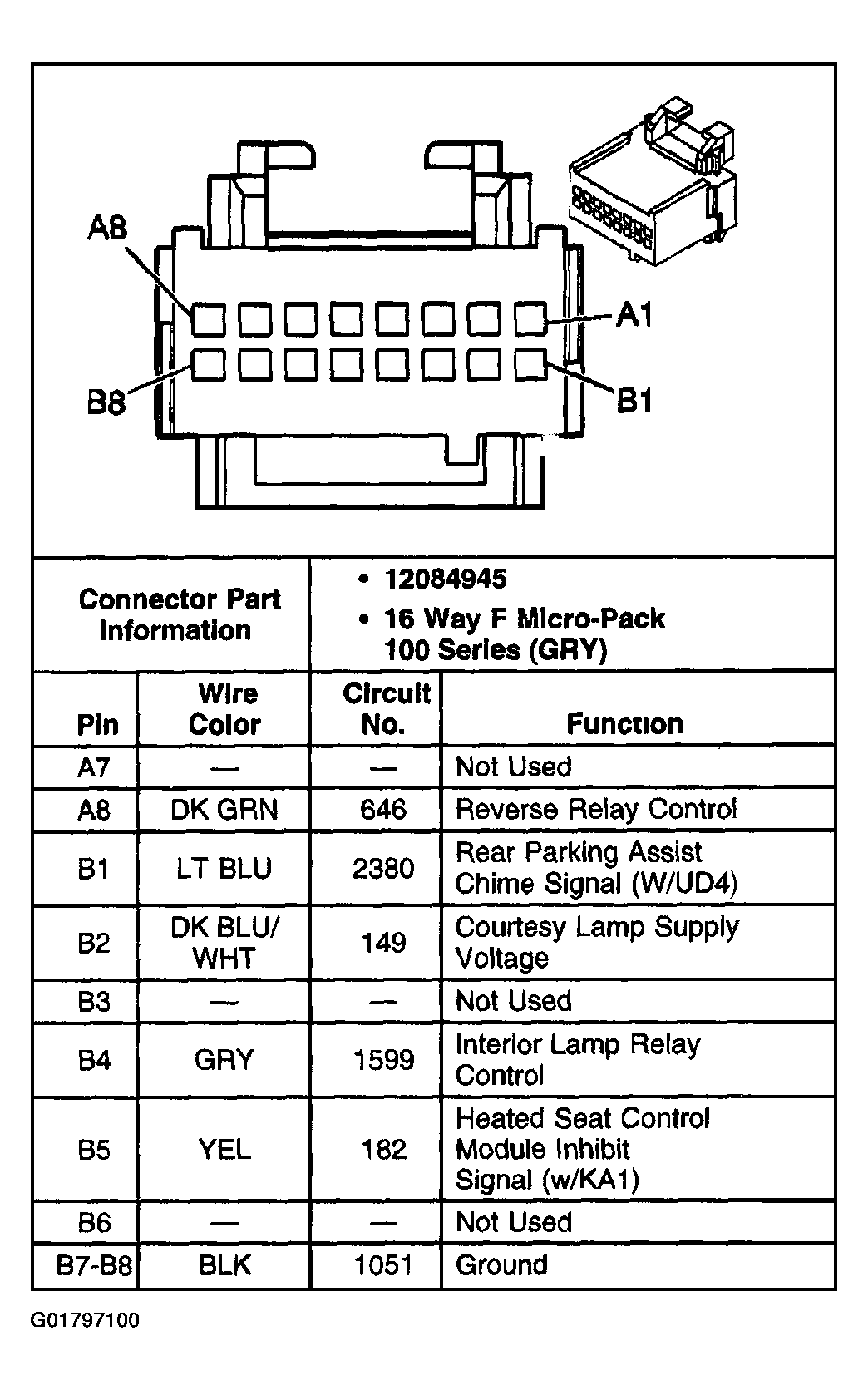

Fig 9: Rear Integration Module (RIM) C1 (2 Of 2)
G01797100Courtesy of GENERAL MOTORS CORP.

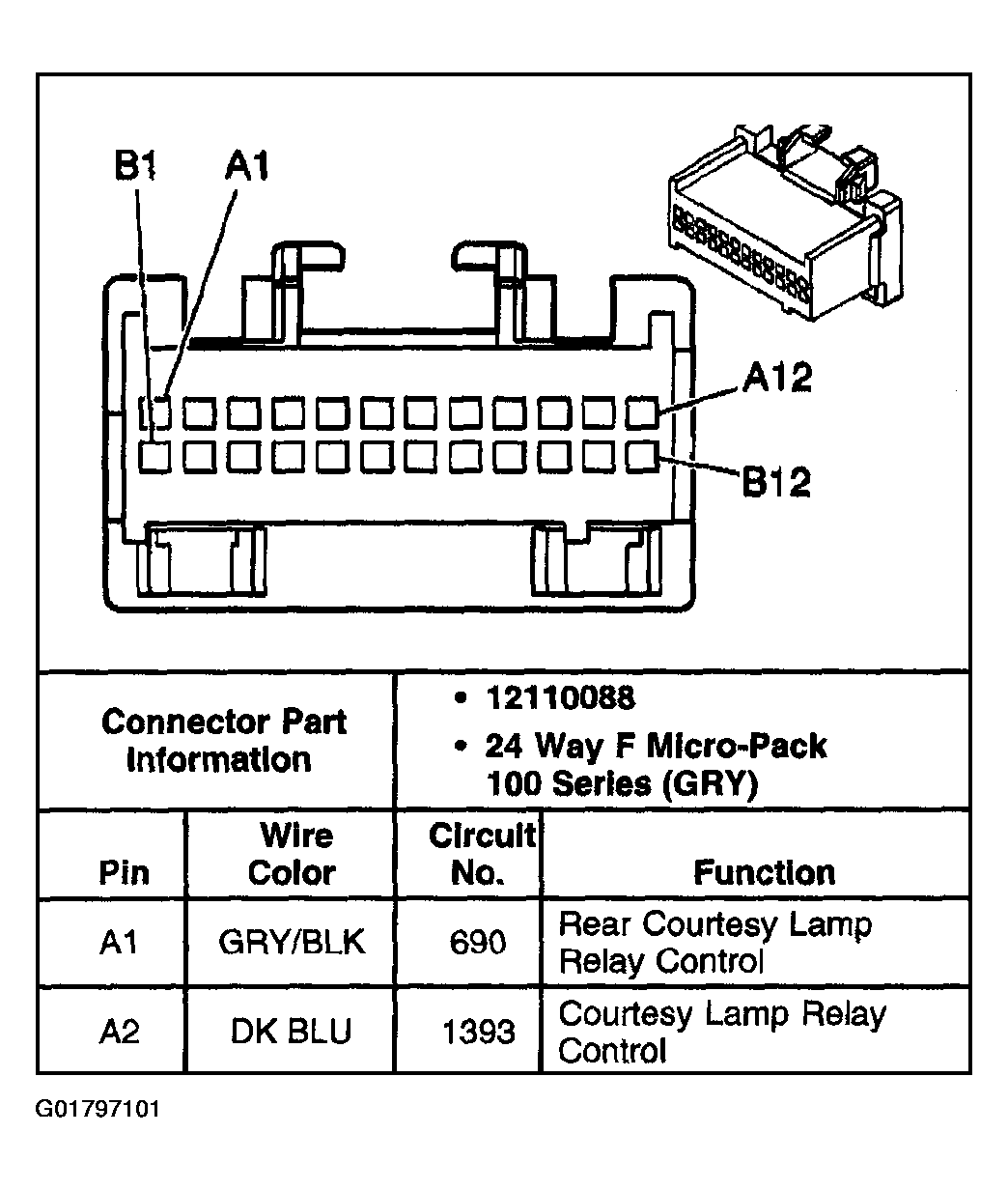

Fig 10: Rear Integration Module (RIM) C2 (1 Of 2)
G01797101Courtesy of GENERAL MOTORS CORP.

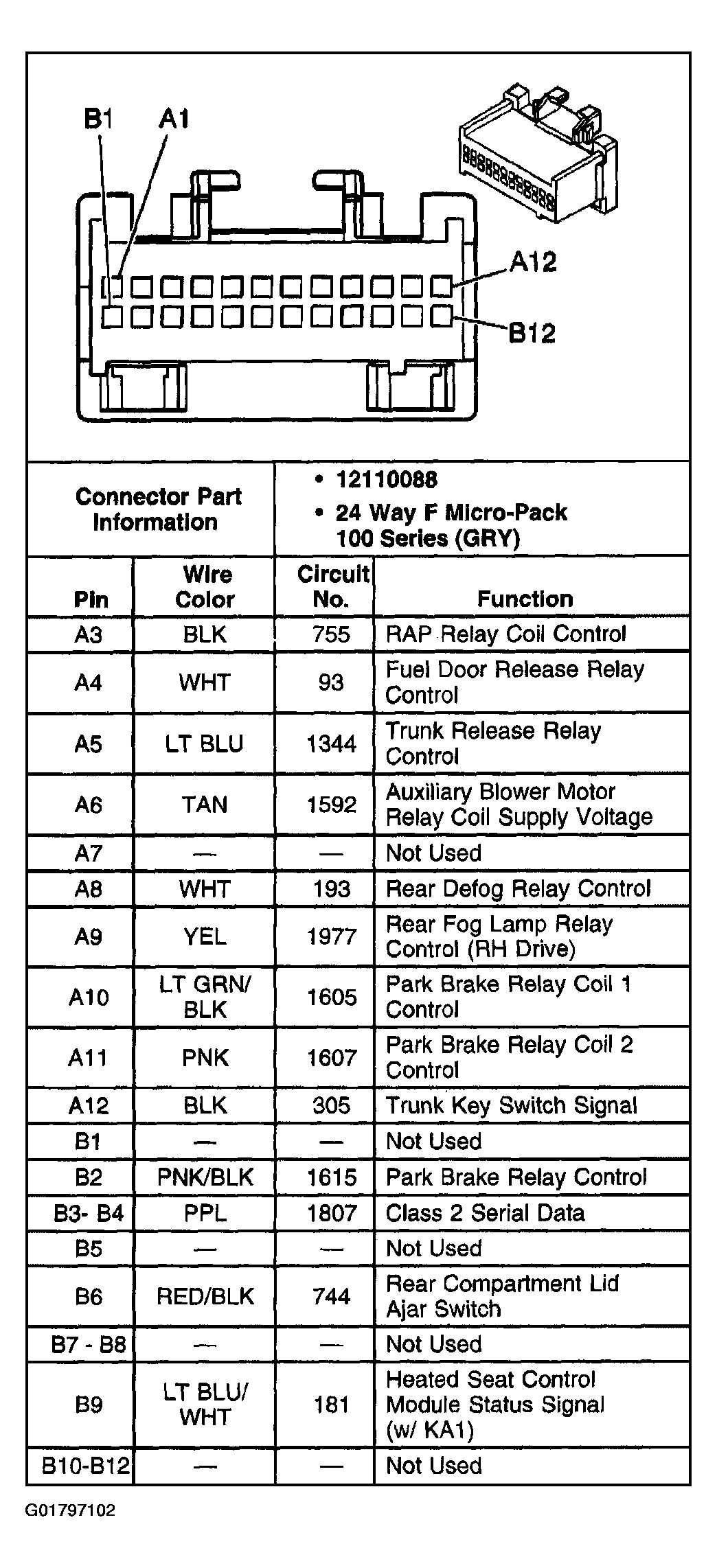

Fig 11: Rear Integration Module (RIM) C2 (2 Of 2)
G01797102Courtesy of GENERAL MOTORS CORP.
