Installation Procedure

  1. Install the module to the bracket.
  2. Slide the DIM upward until it is fully engaged.

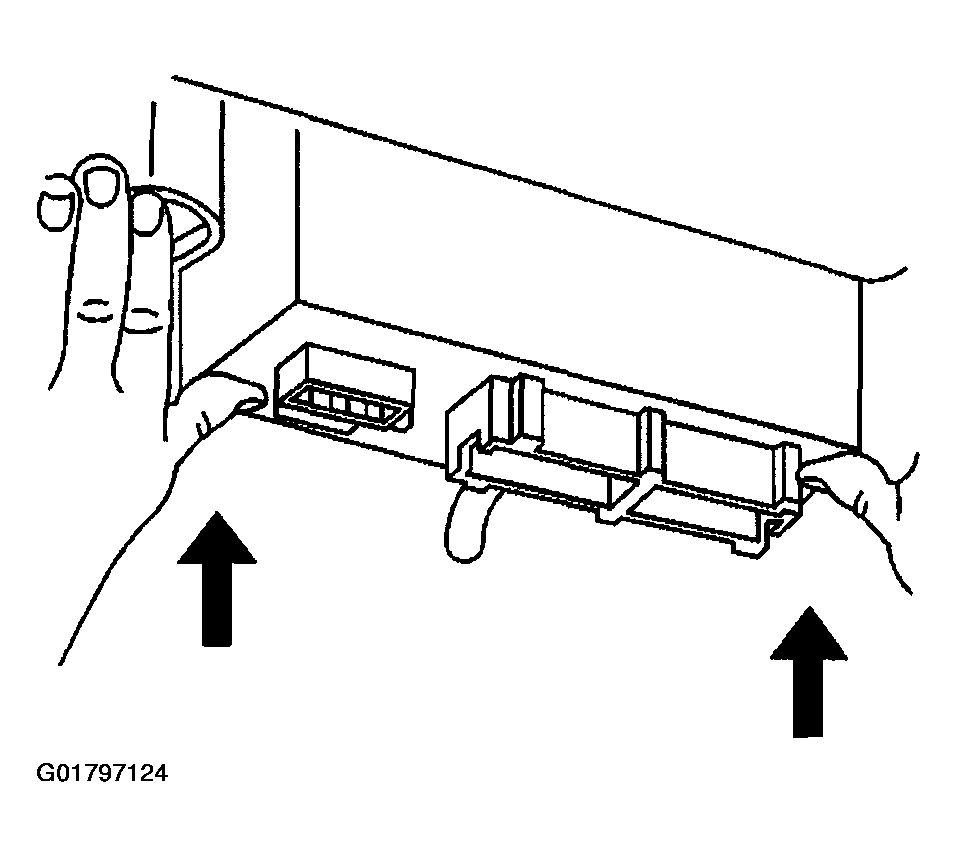

    Fig 1: Installing Module & Locking Tab (LHD)
    G01797124Courtesy of GENERAL MOTORS CORP.
  3. Connect the DIM electrical connectors (2).
  4. Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT or CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  5. Reprogram the Dash Integration Module. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)1 .

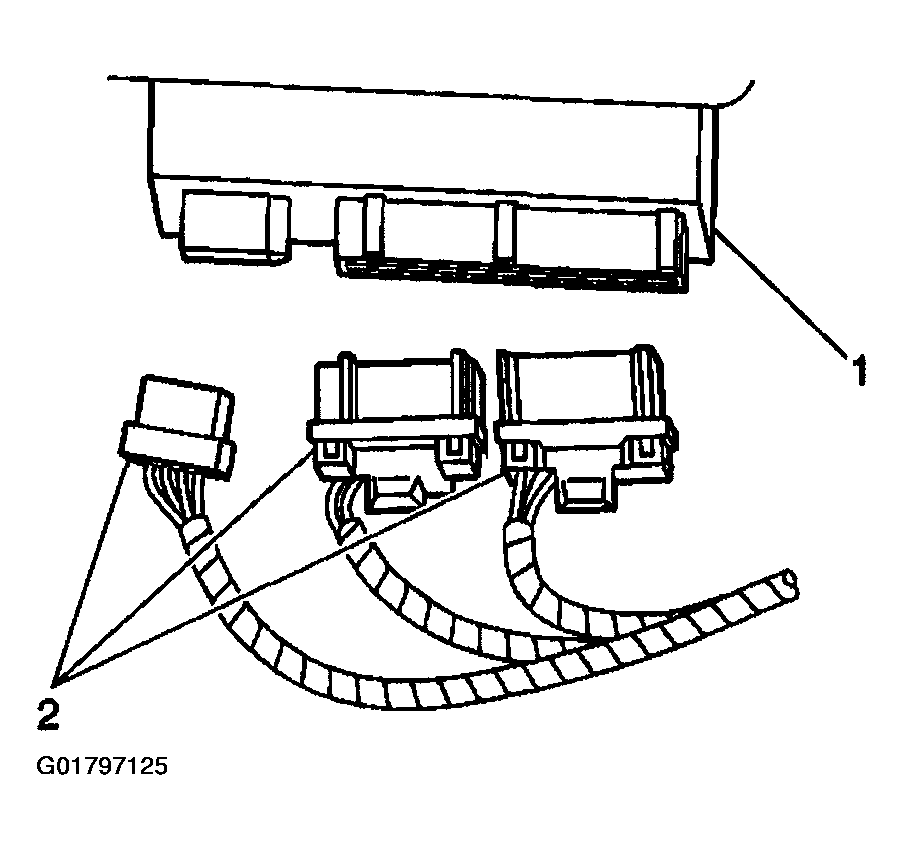

    Fig 2: Connecting DIM Electrical Connectors (LHD)
    G01797125Courtesy of GENERAL MOTORS CORP.
