Installation Procedure

  1. Install the module to the bracket.
  2. Slide the DIM upward until it is fully engaged.

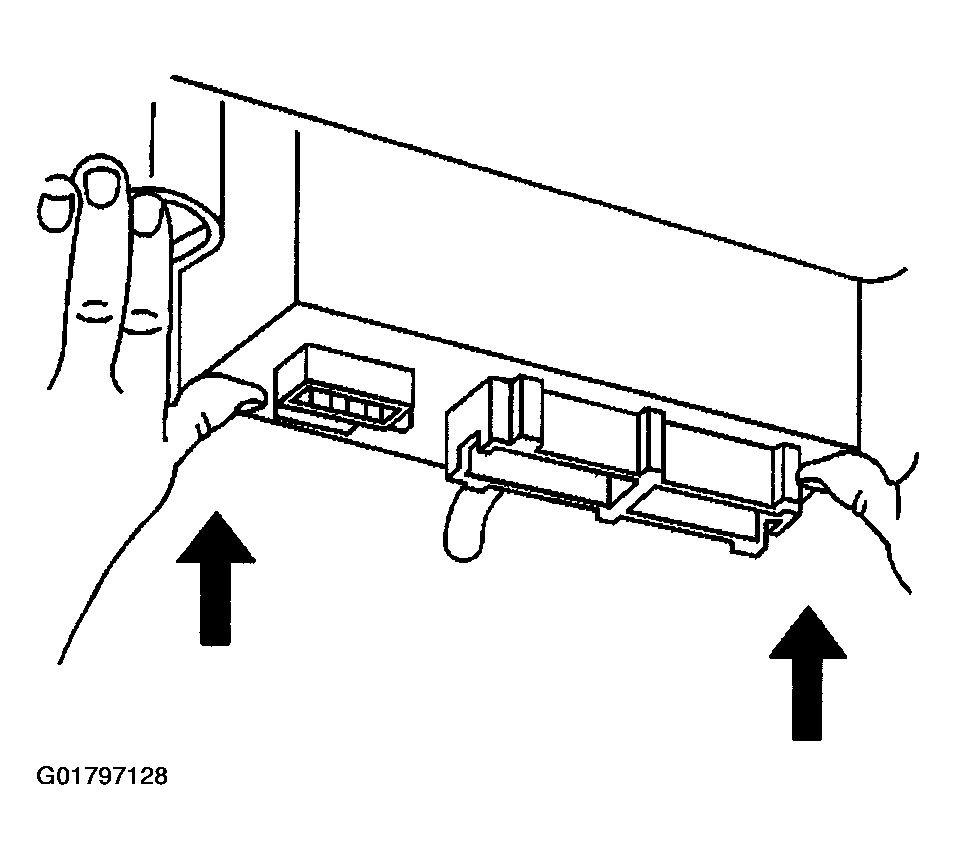

    Fig 1: Installing Module & Locking Tab (RHD)
    G01797128Courtesy of GENERAL MOTORS CORP.
  3. Connect the DIM electrical connectors (2).
  4. Install the left sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT ( or CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT ( .
  5. Reprogram the Dash Integration Module. Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)1 .

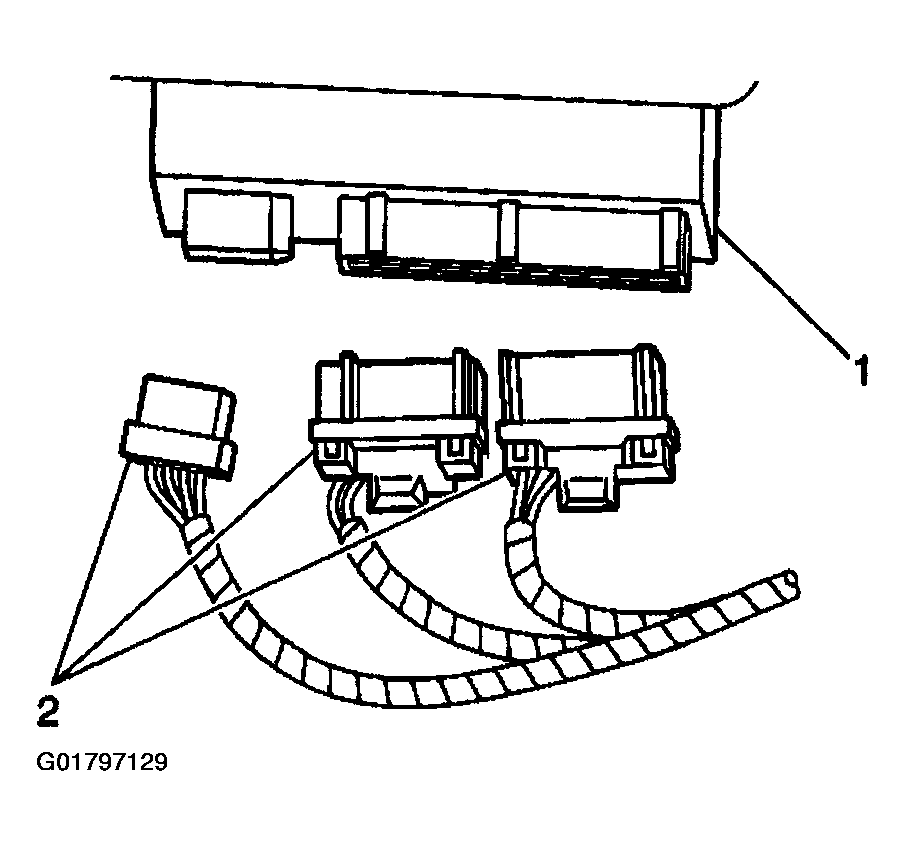

    Fig 2: Disconnecting DIM Electrical Connectors (RHD)
    G01797129Courtesy of GENERAL MOTORS CORP.
