Installation Procedure

  1. Install the RIM (1) to the electrical component mounting panel.
  2. Push the RIM (1) into the opening on the electrical component mounting panel, until an audible click is heard, indicating the Rim (1) is secured to the electrical component mounting panel.
  3. Connect the electrical connections to the RIM (1).

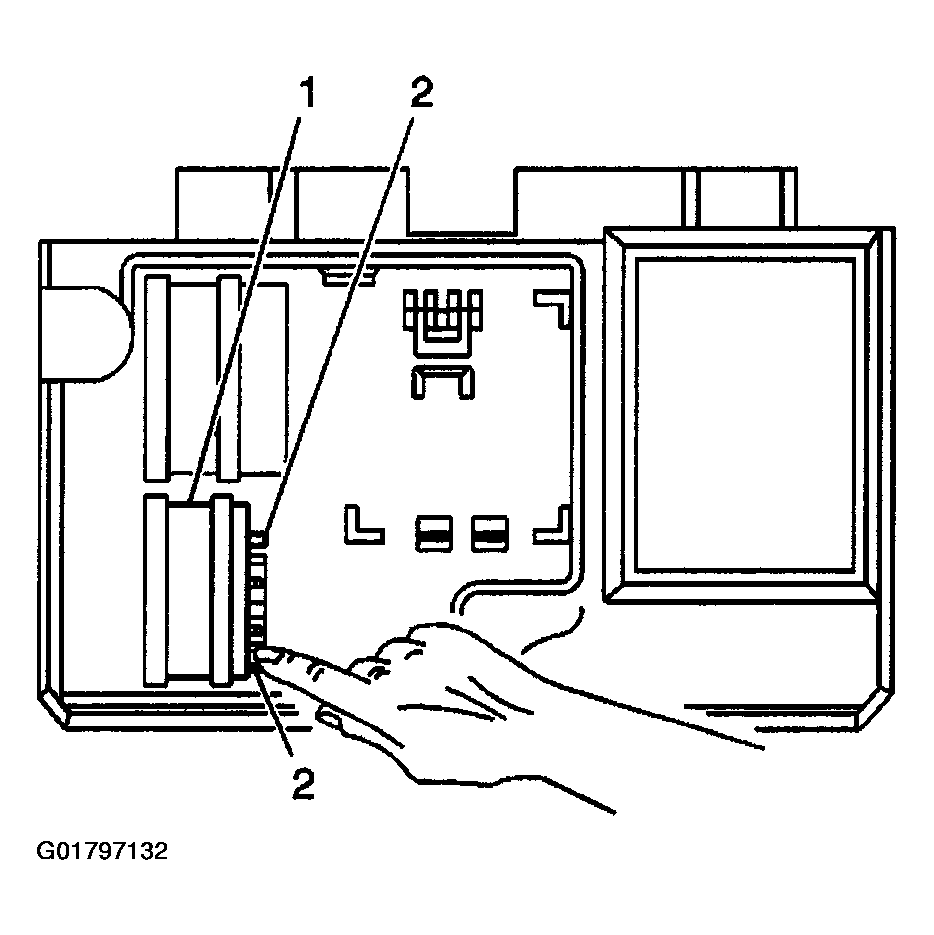

    Fig 1: Connecting RIM Electrical Connectors
    G01797132Courtesy of GENERAL MOTORS CORP.
  4. Install the electrical component mounting panel (1) to the vehicle body.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the electrical component mounting panel nuts (2).

    Tighten

    Tighten the nuts (2) to 9 N.m (80 lb in).

  6. Install the rear storage compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
  7. Restore the drivers personalization settings. Refer to DRIVER PERSONALIZATION .

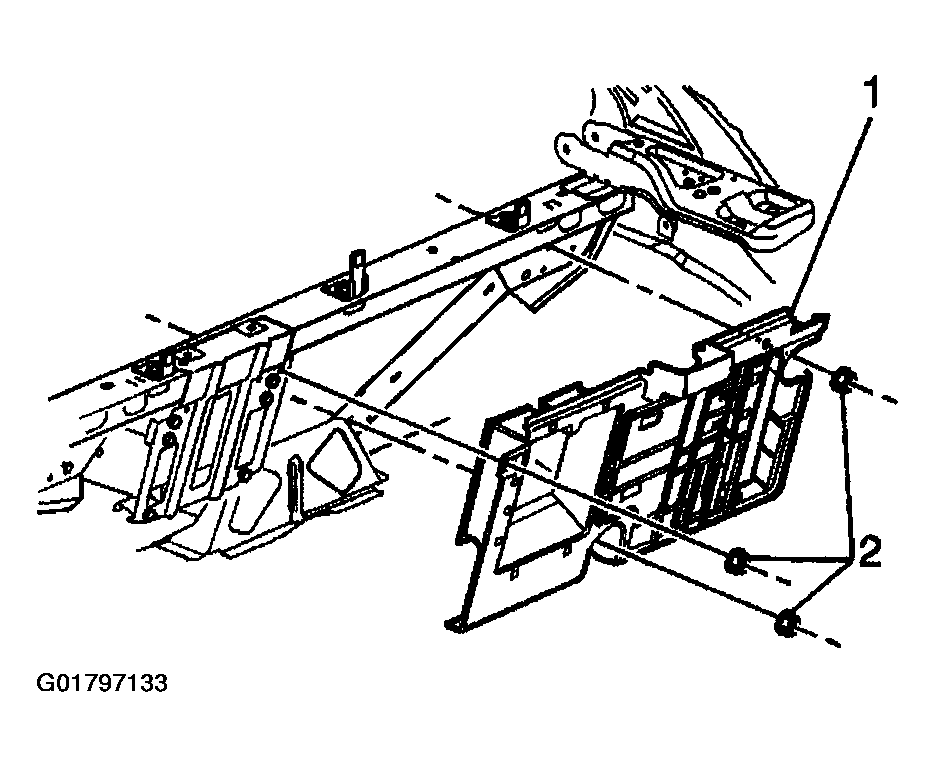

    Fig 2: Installing Electrical Component Mounting Panel & Nuts
    G01797133Courtesy of GENERAL MOTORS CORP.
