Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Automatic Level Control (ALC) Module | Under rear of vehicle, near rear suspension carrier. |

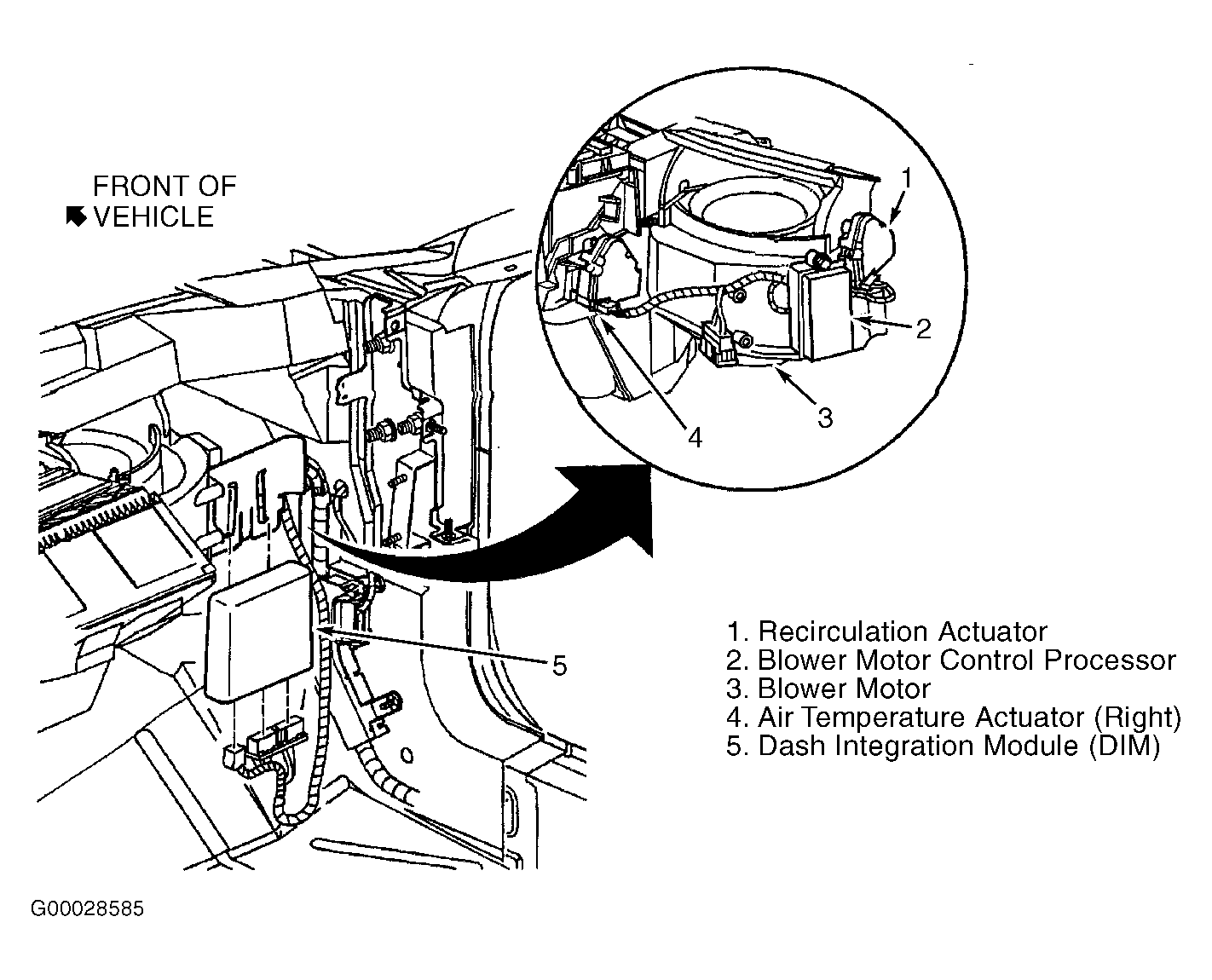

| Blower Motor Control Processor | Under right side of dash, near center heater outlets. See Figure . |
| Cellular Telephone Module | Under right side of rear speaker shelf. |
| Continuously Variable Road Sensing Suspension (CVRSS) Module | Behind right rear seat back. See Figure . |

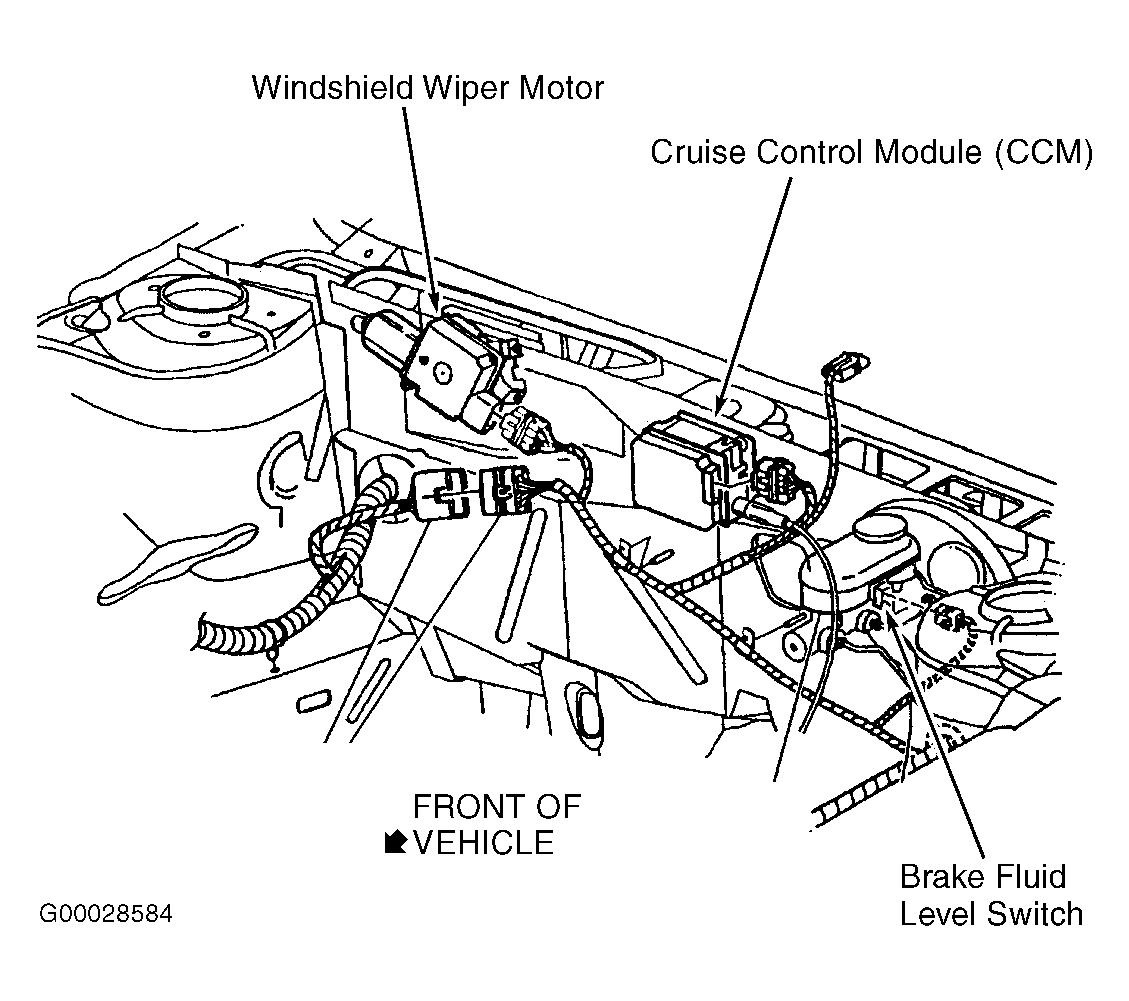

| Cruise Control Module (CCM) | On center rear of engine compartment, near power brake booster. See Figure . |
| Dash Integration Module (DIM) | On right side of dash, near blower motor. See Figure . |
| Digital Radio Receiver | On left side of rear compartment. |
| Door Module (Left Rear) (LRDM) | In front of left rear door, near radio speaker. |
| Door Module (Right Rear) (RRDM) | In front of right rear door, near radio speaker. |
| Driver Door Module (DDM) | In front of left front door, near radio speaker. |
| Electronic Brake Control Module (EBCM) | On left front corner of engine compartment, below air cleaner housing. See Figure . |
| Front Heated Seat Module (Driver/Passenger) | Under respective front seat. |
| Front Passenger Door Module (FPDM) | In front of right front door, near radio speaker. |
| Ignition Control Module (ICM) Bank 1 | Under intake manifold top cover, right side of engine. |
| Ignition Control Module (ICM) Bank 2 | Under intake manifold top cover, left side of engine. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat. |
| Instrument Panel Integration Module (IPM) | Behind center of dash, above radio. |
| Memory Seat Module (MSM) | Under left front seat. |
| Powertrain Control Module (PCM) | At left front corner of engine compartment, below air cleaner. |
| Radio Antenna Module | Above center rear of headliner. |
| Rear Heated Seat Module (Left/Right) | In center of rear seat back. |
| Rear Integration Module (RIM) | Behind right side of rear seat back. See Figure . |
| Rear Object Sensor Control Module | In right side of rear compartment. |
| Remote Control Door Lock Receiver (RCDLR) | Under rear speaker shelf. |

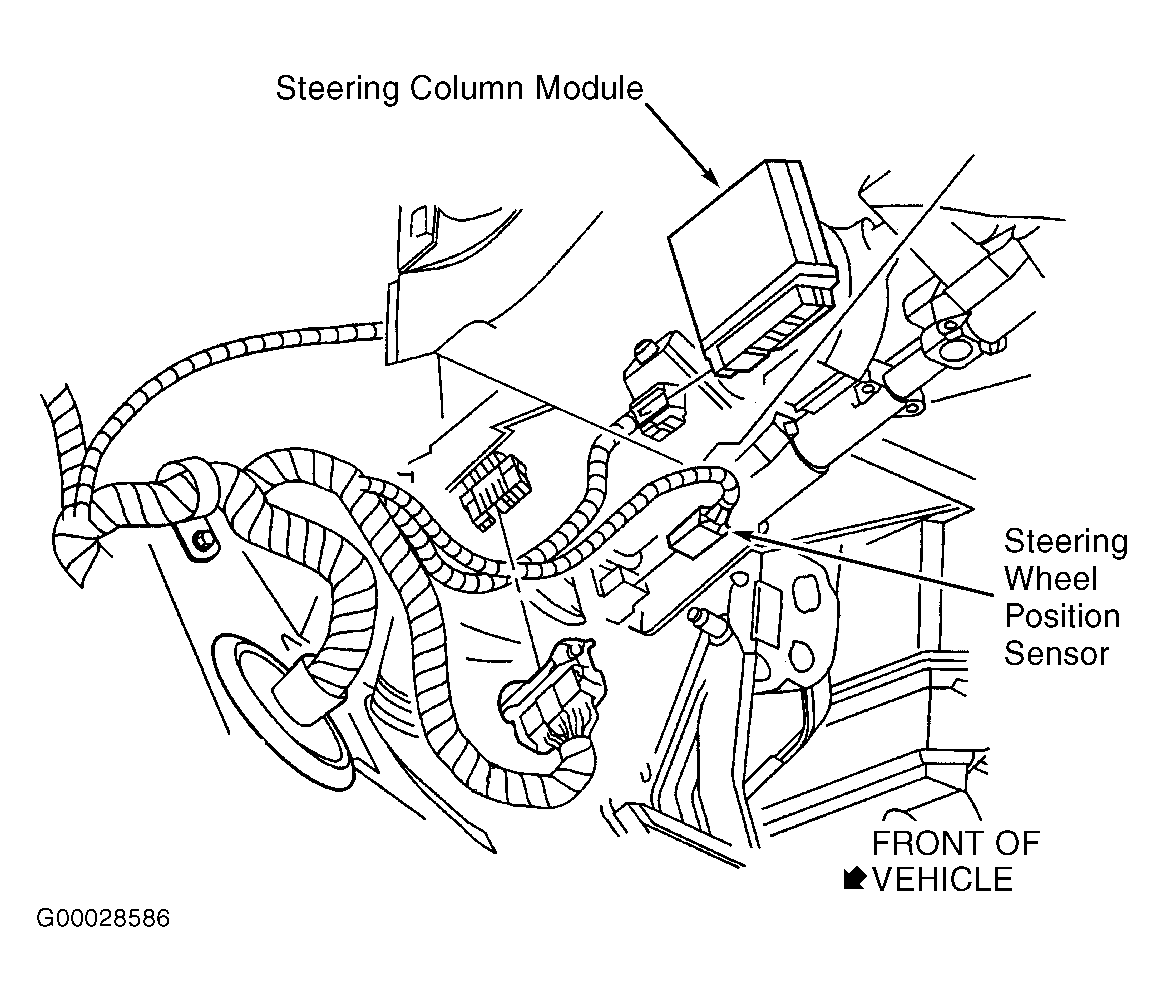

| Steering Column Module | Behind left side of dash, left of steering column. See Figure . |
| Sun Roof Module | Above headliner, near rear of sun roof. |
| Theft Deterrent Control Module | Behind left side of dash, right of steering column. |
| Theft Deterrent Exciter Module | On ignition switch. |
| Traffic Information Receiver | Behind right rear seat back. |
| TV Antenna Module | Under right side of rear speaker shelf. |
| Vehicle Communication Interface Module (VCIM) | Behind right rear seat back. |
