Connector Identification

Fig 1: Identifying AIR Relay Connector Terminals (DeVille & Seville)

G00121111

Courtesy of GENERAL MOTORS CORP.

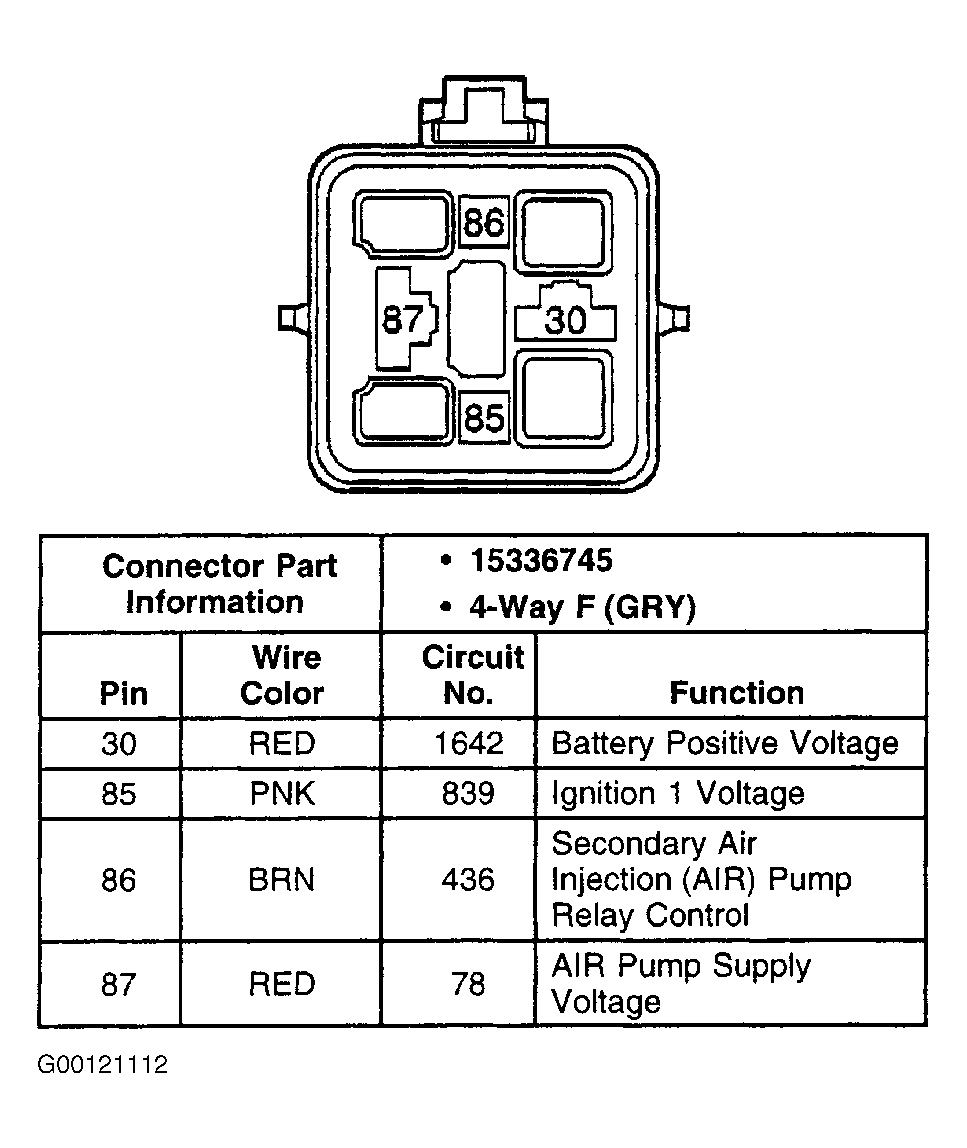

Fig 2: Identifying AIR Relay Connector Terminals (Eldorado)

G00121112

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying CMP Sensor Connector Terminals

G00115008

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying CKP Sensor A Connector Terminals

G00115009

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying CKP Sensor B Connector Terminals (DeVille & Seville)

G00115010

Courtesy of GENERAL MOTORS CORP.

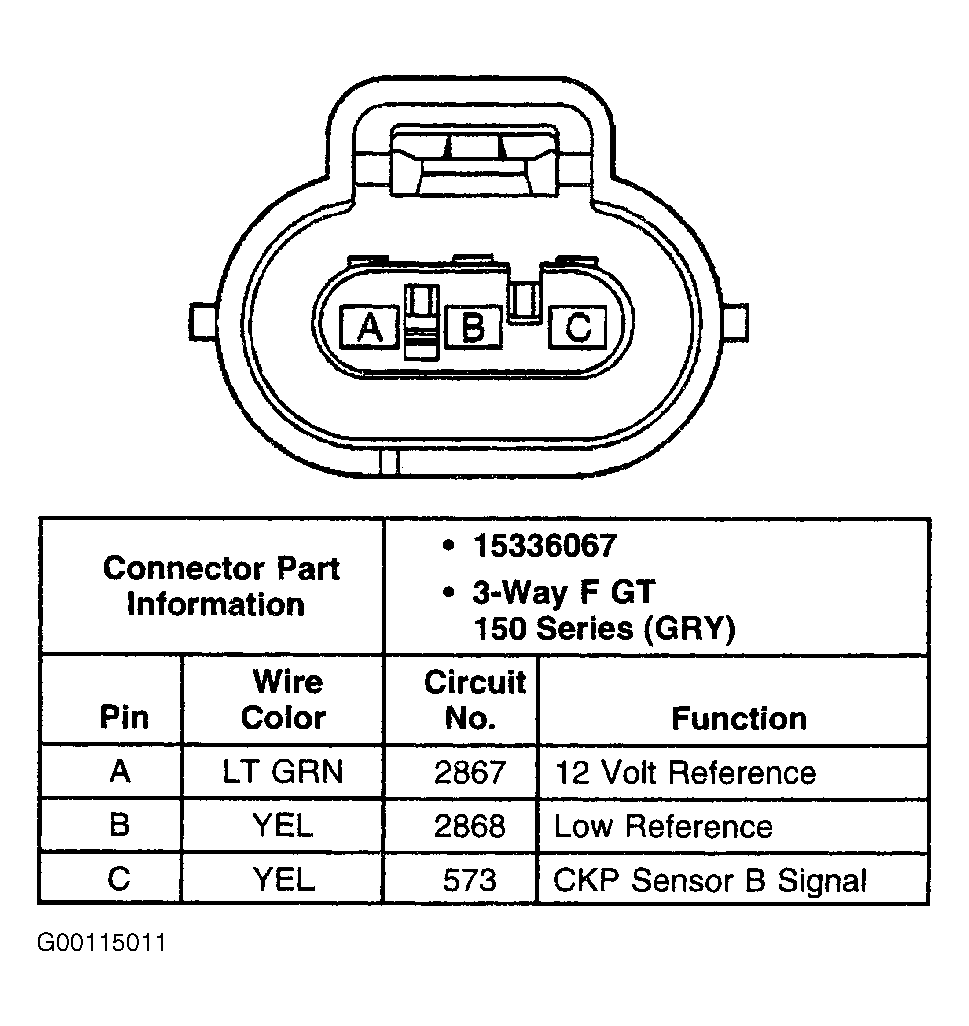

Fig 6: Identifying CKP Sensor B Connector Terminals (Eldorado)

G00115011

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying ECT Sensor Connector Terminals (Deville & Seville)

G00115012

Courtesy of GENERAL MOTORS CORP.

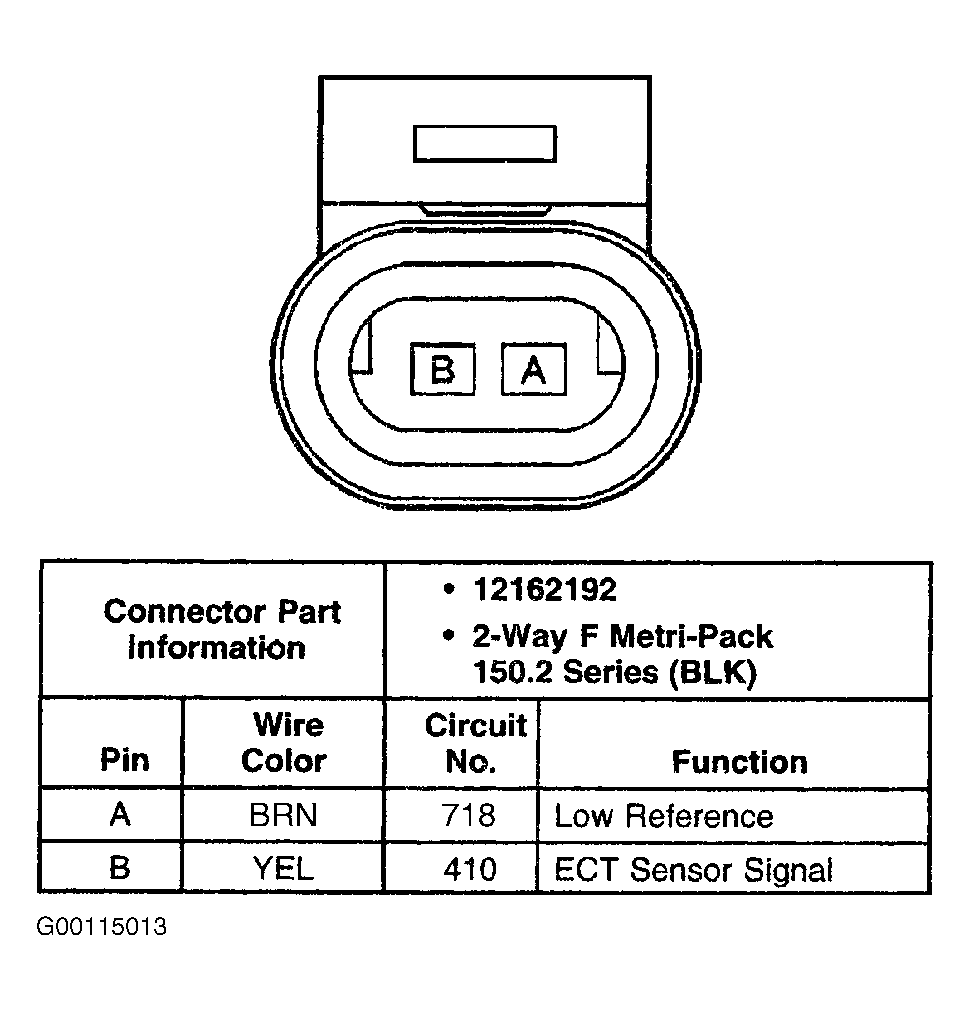

Fig 8: Identifying ECT Sensor Connector Terminals (Eldorado)

G00115013

Courtesy of GENERAL MOTORS CORP.

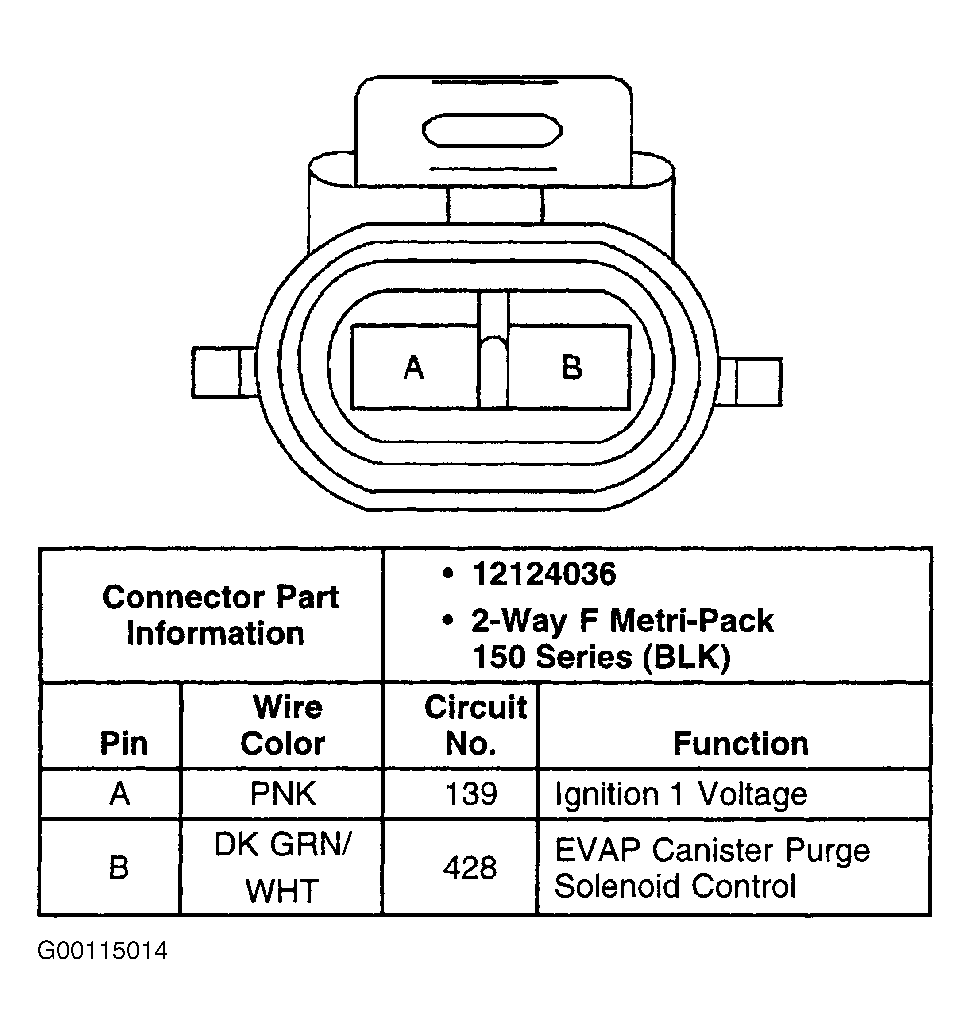

Fig 9: Identifying EVAP Purge Solenoid Connector Terminals (DeVille)

G00115014

Courtesy of GENERAL MOTORS CORP.

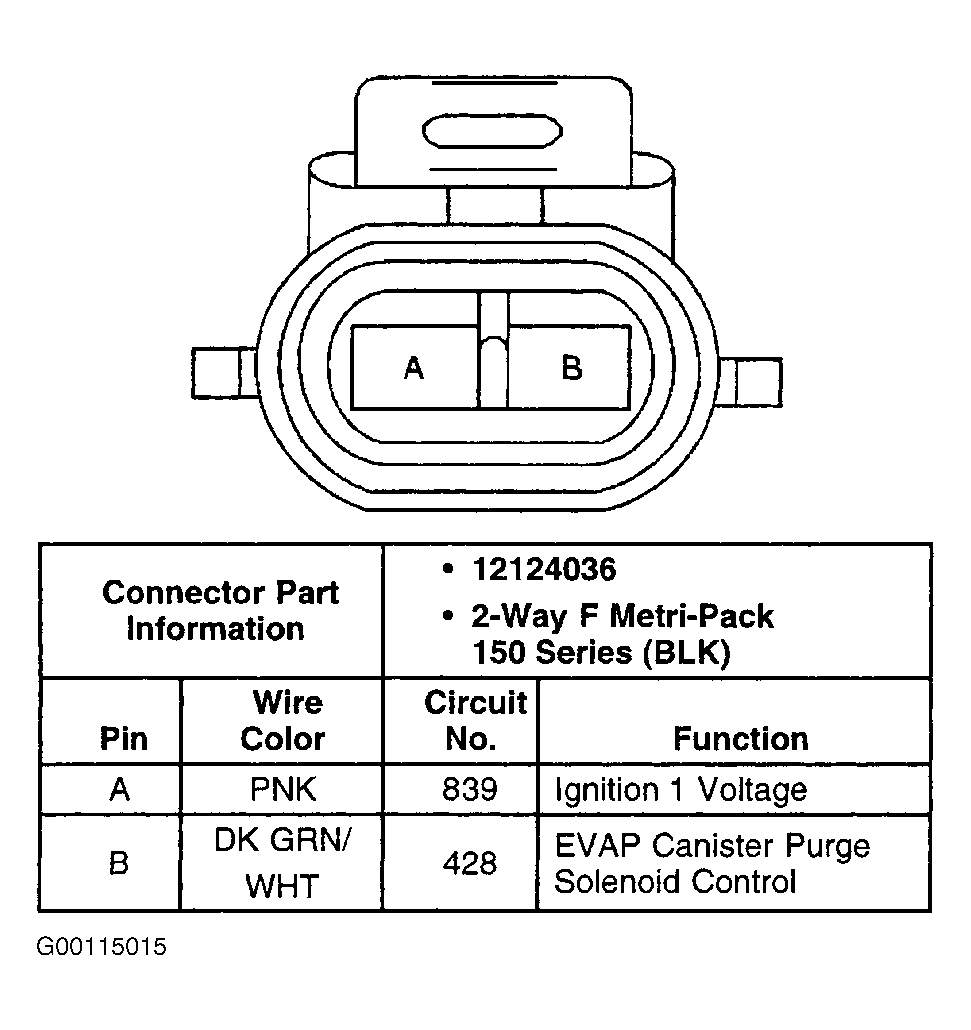

Fig 10: Identifying EVAP Purge Solenoid Connector Terminals (Eldorado)

G00115015

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying EVAP Purge Solenoid Connector Terminals (Seville)

G00115016

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying EVAP Vent Solenoid Connector Terminals (DeVille)

G00115017

Courtesy of GENERAL MOTORS CORP.

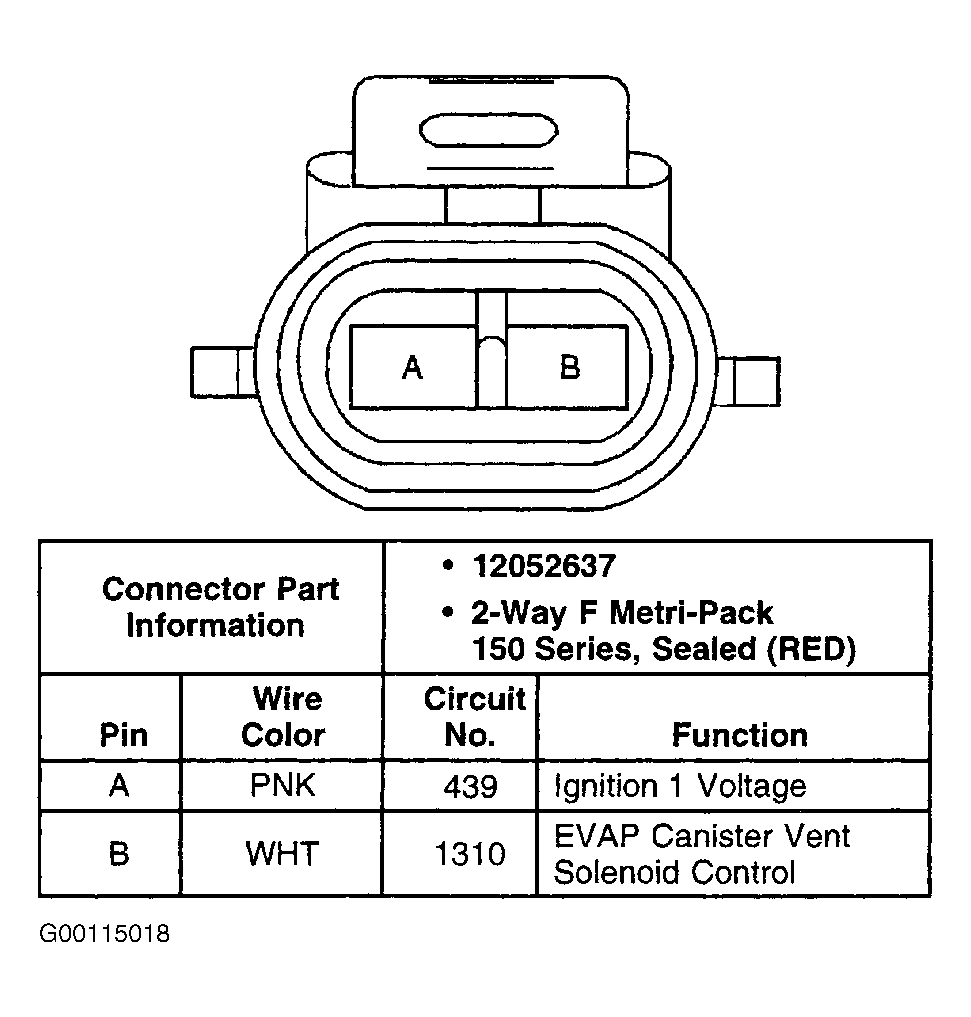

Fig 13: Identifying EVAP Vent Solenoid Connector Terminals (Eldorado)

G00115018

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying EVAP Vent Solenoid Connector Terminals (Seville)

G00115019

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying EGR Valve Connector Terminals

G00115020

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying FTP Sensor Connector Terminals

G00115023

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying Fuel Pump & Sender Connector Terminals (DeVille & Seville)

G00115021

Courtesy of GENERAL MOTORS CORP.

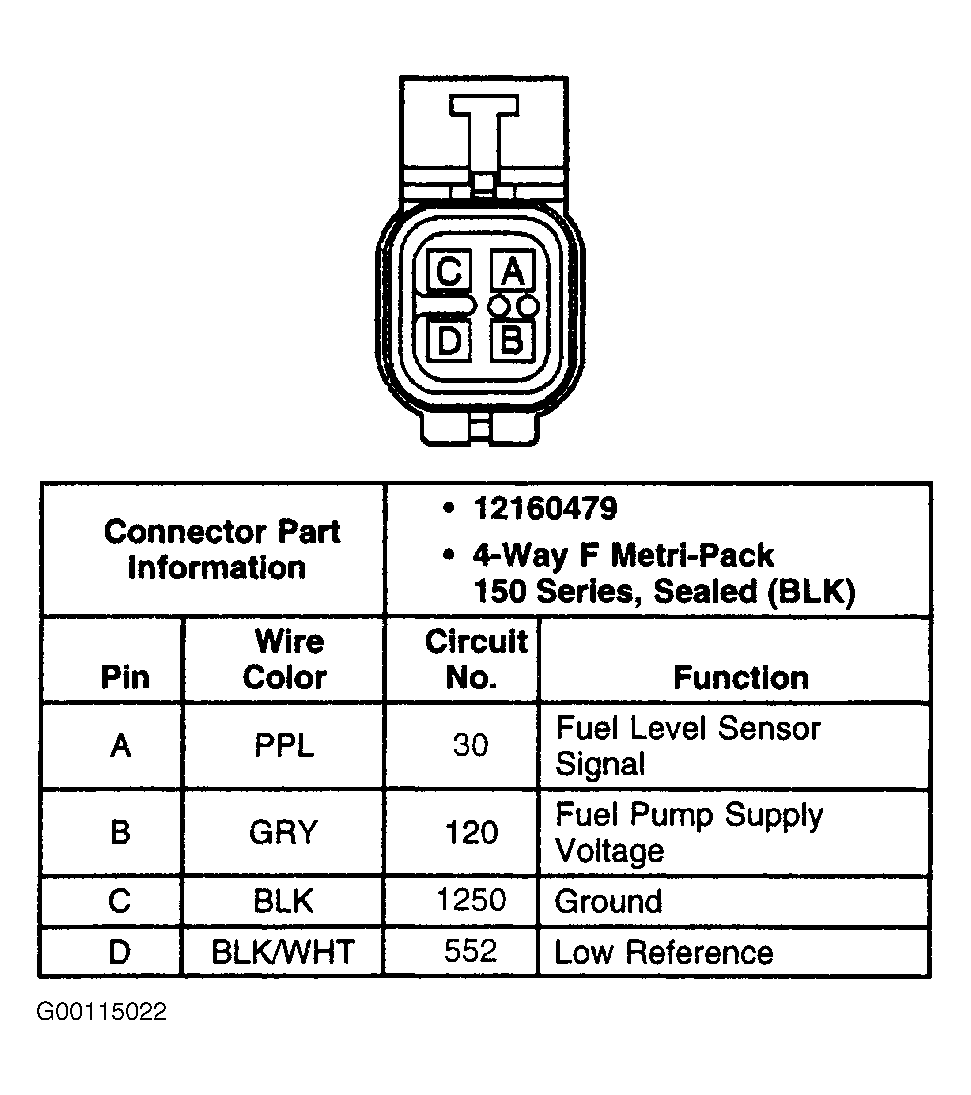

Fig 18: Identifying Fuel Pump & Sender Connector Terminals (Eldorado)

G00115022

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying HO2S Bank 1, Sensor 1 Connector Terminals

G00115024

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying HO2S Bank 1, Sensor 2 Connector Terminals (DeVille)

G00115025

Courtesy of GENERAL MOTORS CORP.

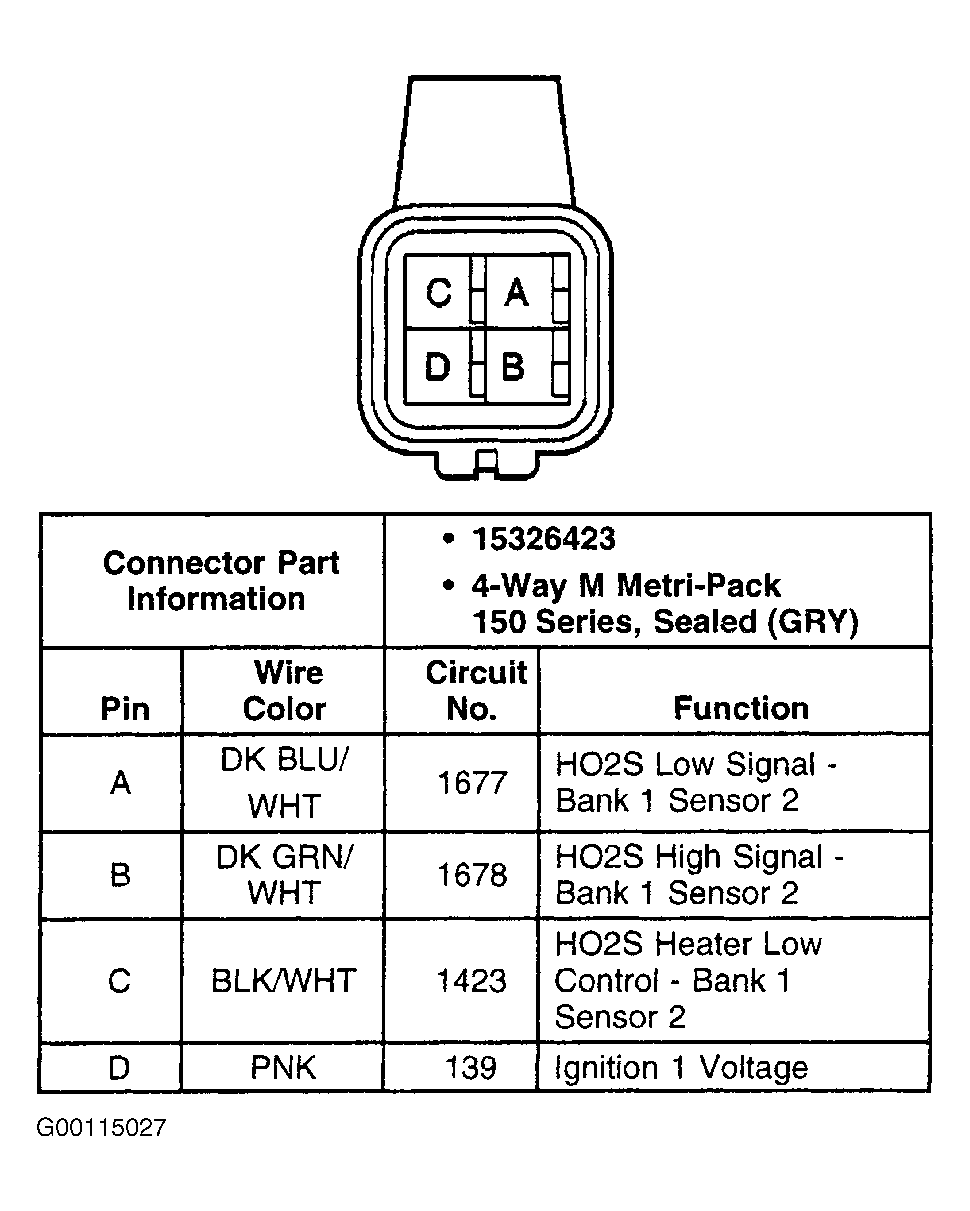

Fig 21: Identifying HO2S Bank 1, Sensor 2 Connector Terminals (Eldorado)

G00115027

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying HO2S Bank 1, Sensor 2 Connector Terminals (Seville)

G00115026

Courtesy of GENERAL MOTORS CORP.

Fig 23: Identifying HO2S Bank 2, Sensor 1 Connector Terminals (DeVille & Seville)

G00115028

Courtesy of GENERAL MOTORS CORP.

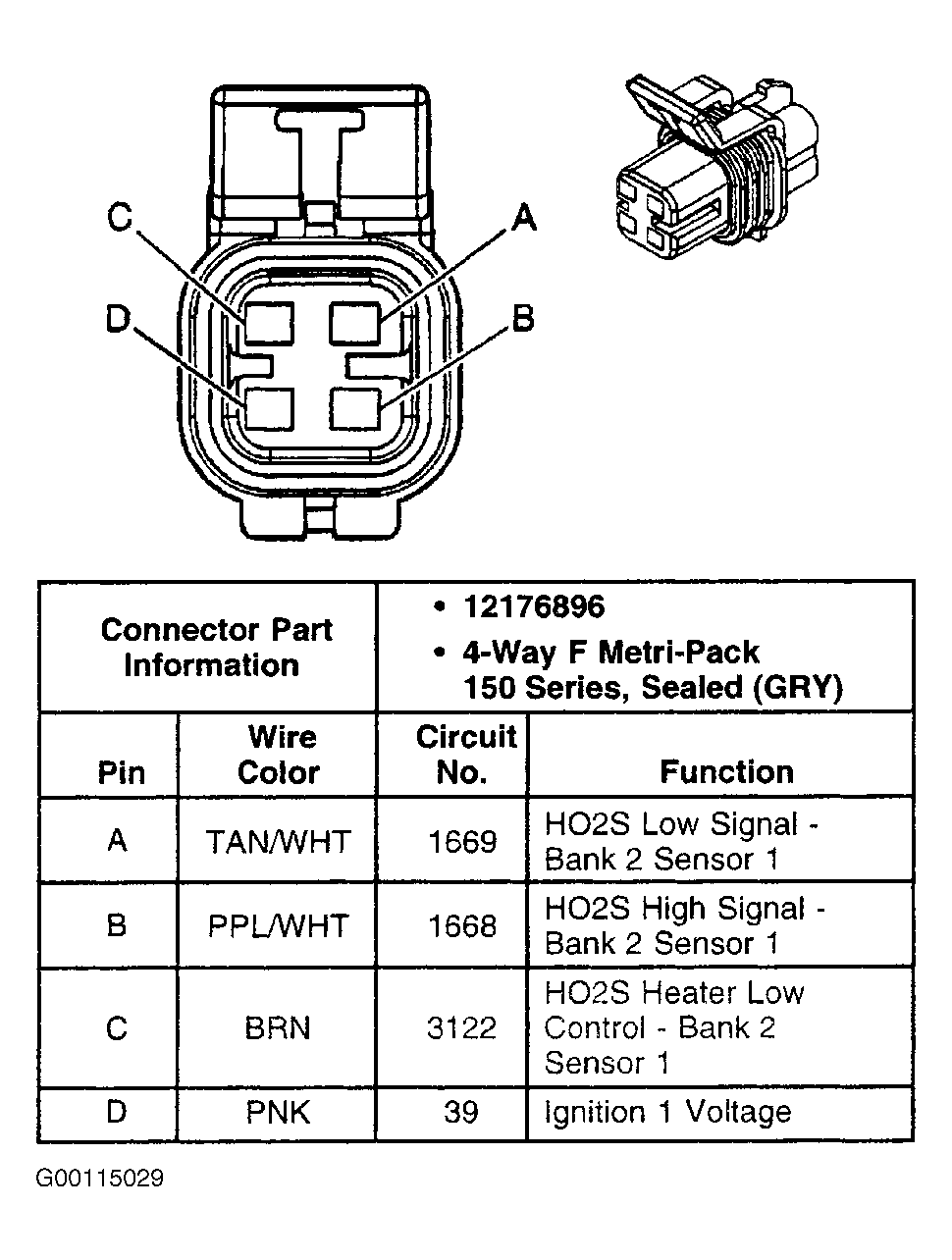

Fig 24: Identifying HO2S Bank 2, Sensor 1 Connector Terminals (Eldorado)

G00115029

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying IAC Sensor Connector Terminals

G00115030

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying ICM Bank 1 Connector Terminals (DeVille)

G00115031

Courtesy of GENERAL MOTORS CORP.

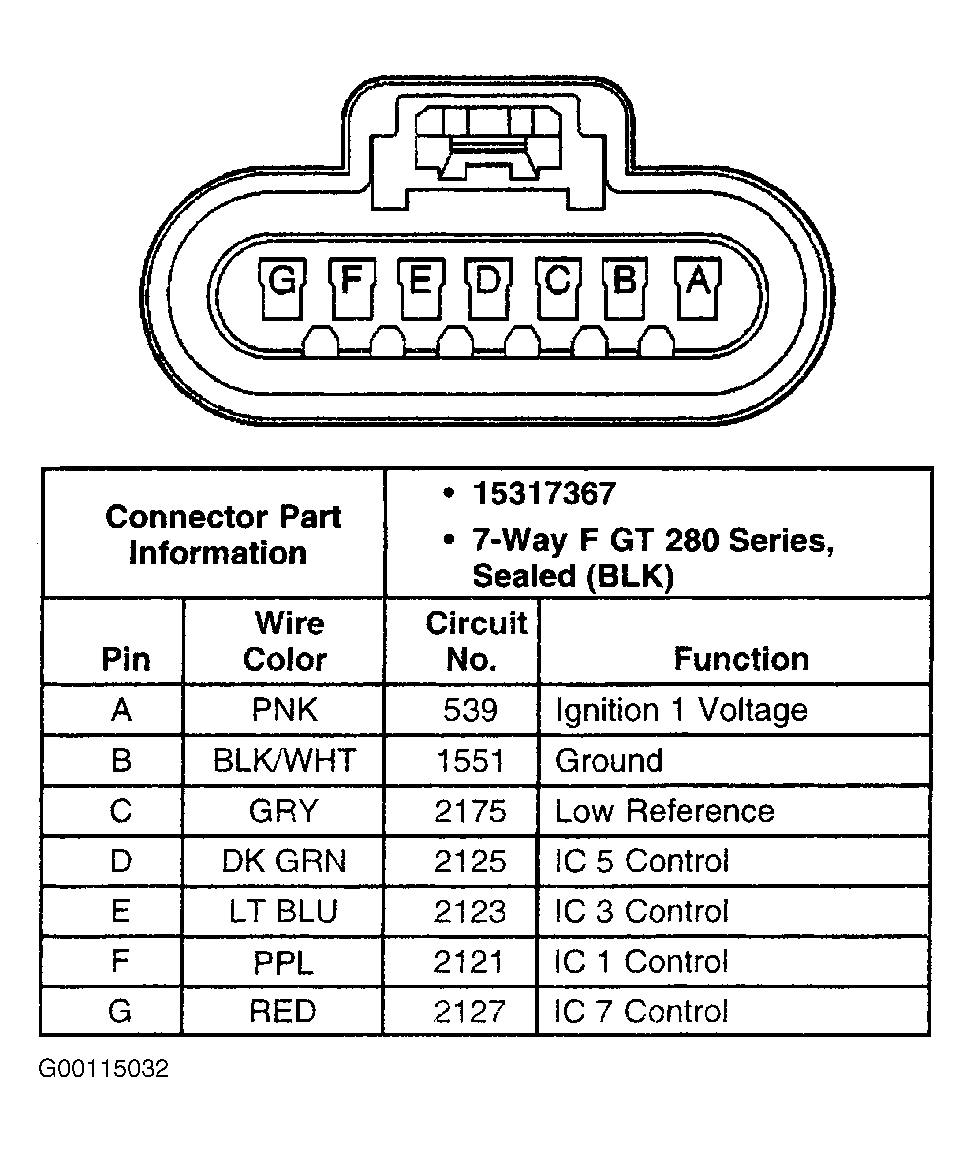

Fig 27: Identifying ICM Bank 1 Connector Terminals (Eldorado)

G00115032

Courtesy of GENERAL MOTORS CORP.

Fig 28: Identifying ICM Bank 1 Connector Terminals (Seville)

G00115033

Courtesy of GENERAL MOTORS CORP.

Fig 29: Identifying ICM Bank 2 Connector Terminals (DeVille & Seville)

G00115034

Courtesy of GENERAL MOTORS CORP.

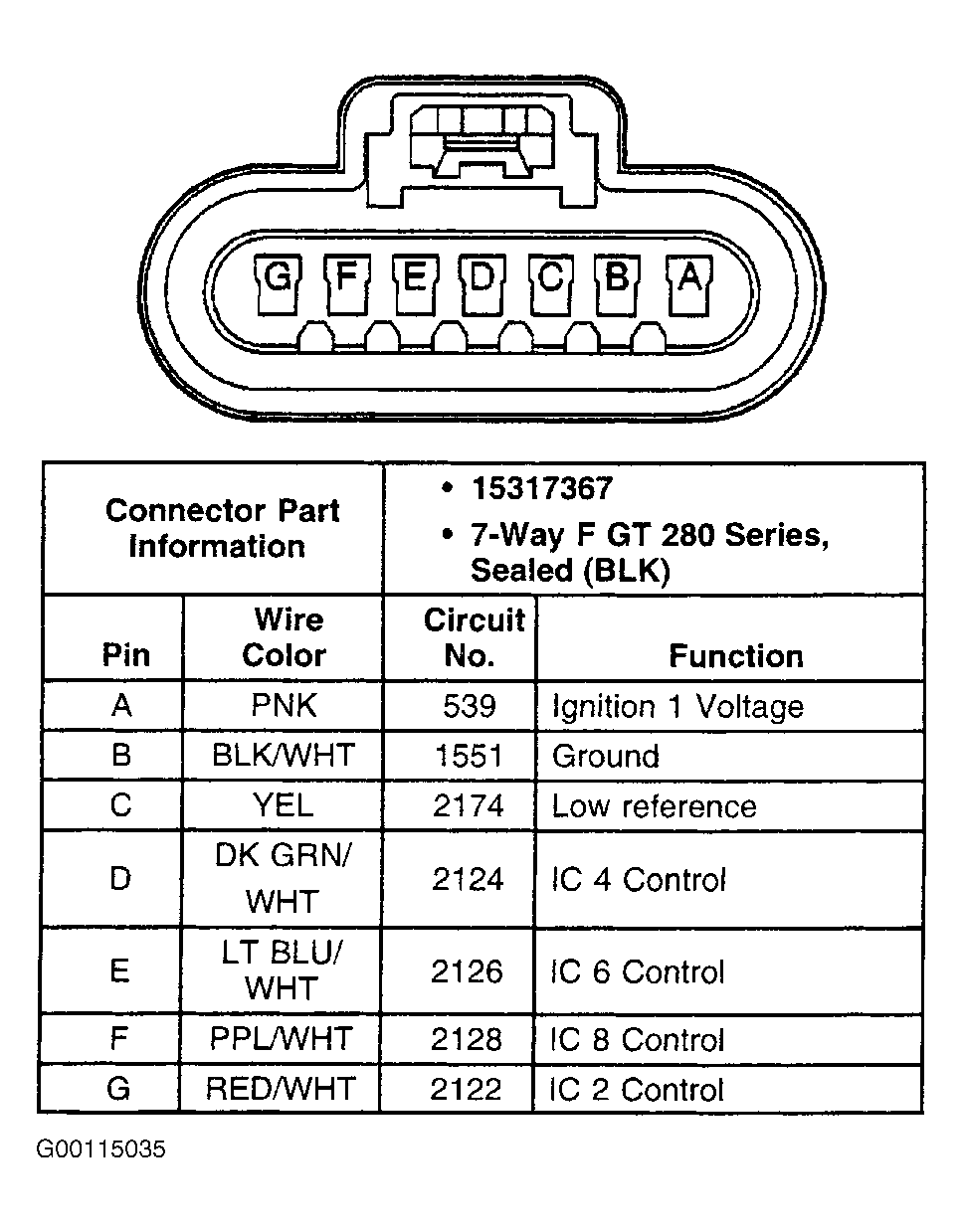

Fig 30: Identifying ICM Bank 2 Connector Terminals (Eldorado)

G00115035

Courtesy of GENERAL MOTORS CORP.

Fig 31: Identifying Knock Sensor Connector Terminals

G00115036

Courtesy of GENERAL MOTORS CORP.

Fig 32: Identifying MAP Sensor Connector Terminals (DeVille & Seville)

G00121106

Courtesy of GENERAL MOTORS CORP.

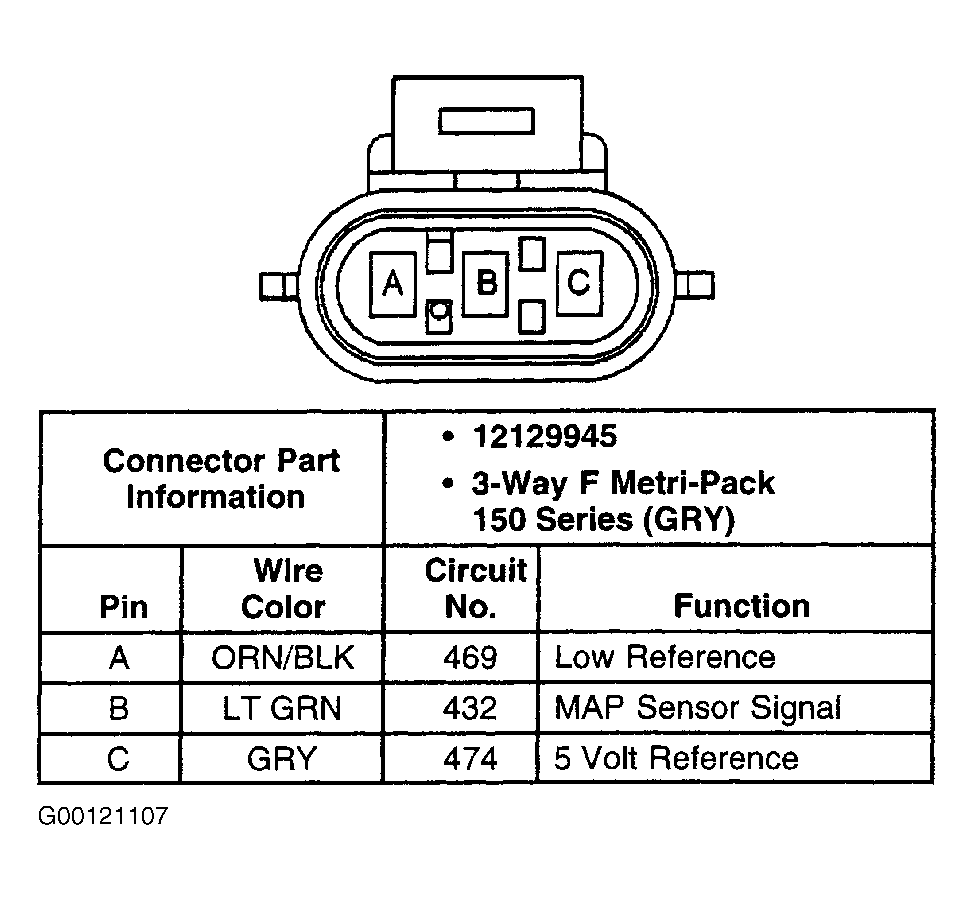

Fig 33: Identifying MAP Sensor Connector Terminals (Eldorado)

G00121107

Courtesy of GENERAL MOTORS CORP.

Fig 34: Identifying MAF/IAT Sensor Connector Terminals (DeVille)

G00121108

Courtesy of GENERAL MOTORS CORP.

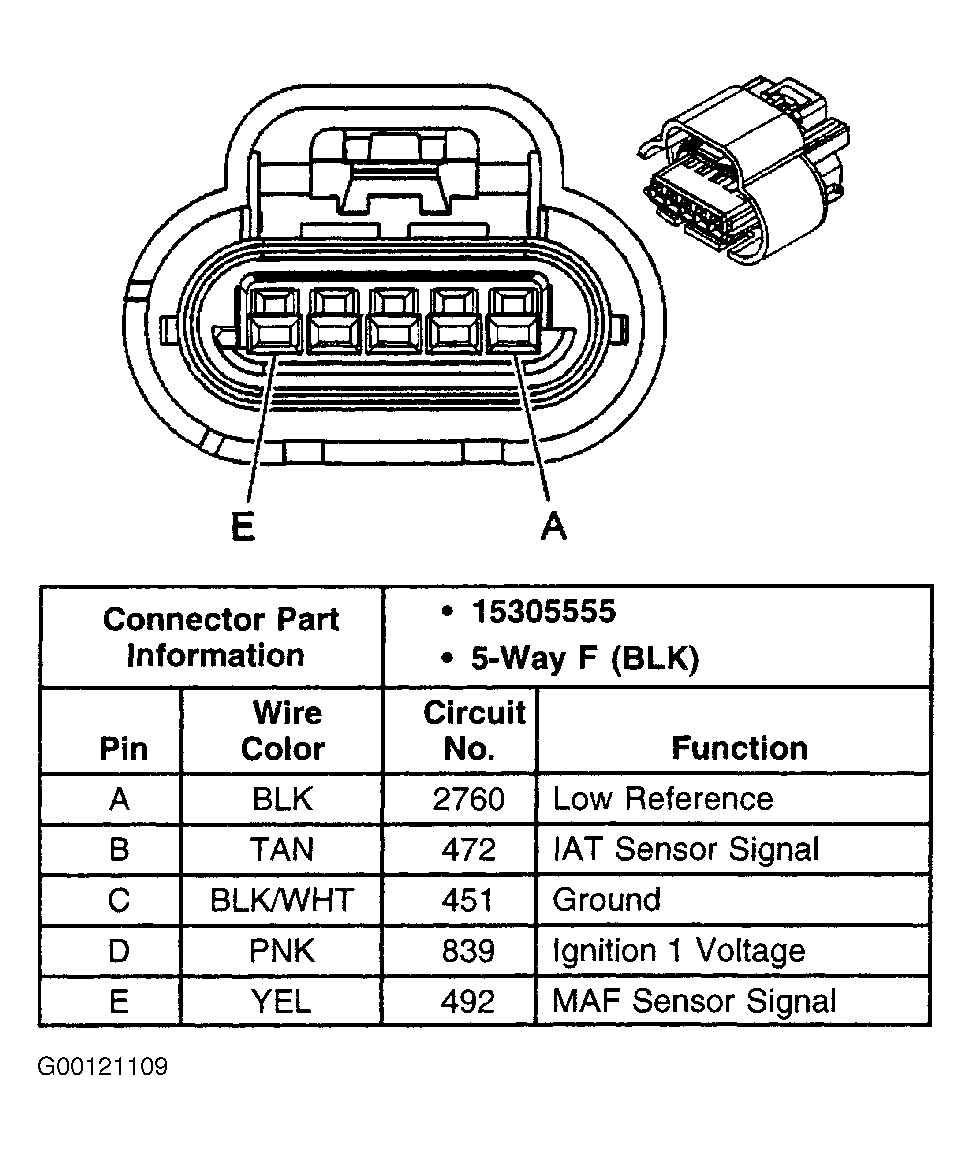

Fig 35: Identifying MAF/IAT Sensor Connector Terminals (Eldorado)

G00121109

Courtesy of GENERAL MOTORS CORP.

Fig 36: Identifying MAF/IAT Sensor Connector Terminals (Seville)

G00121110

Courtesy of GENERAL MOTORS CORP.

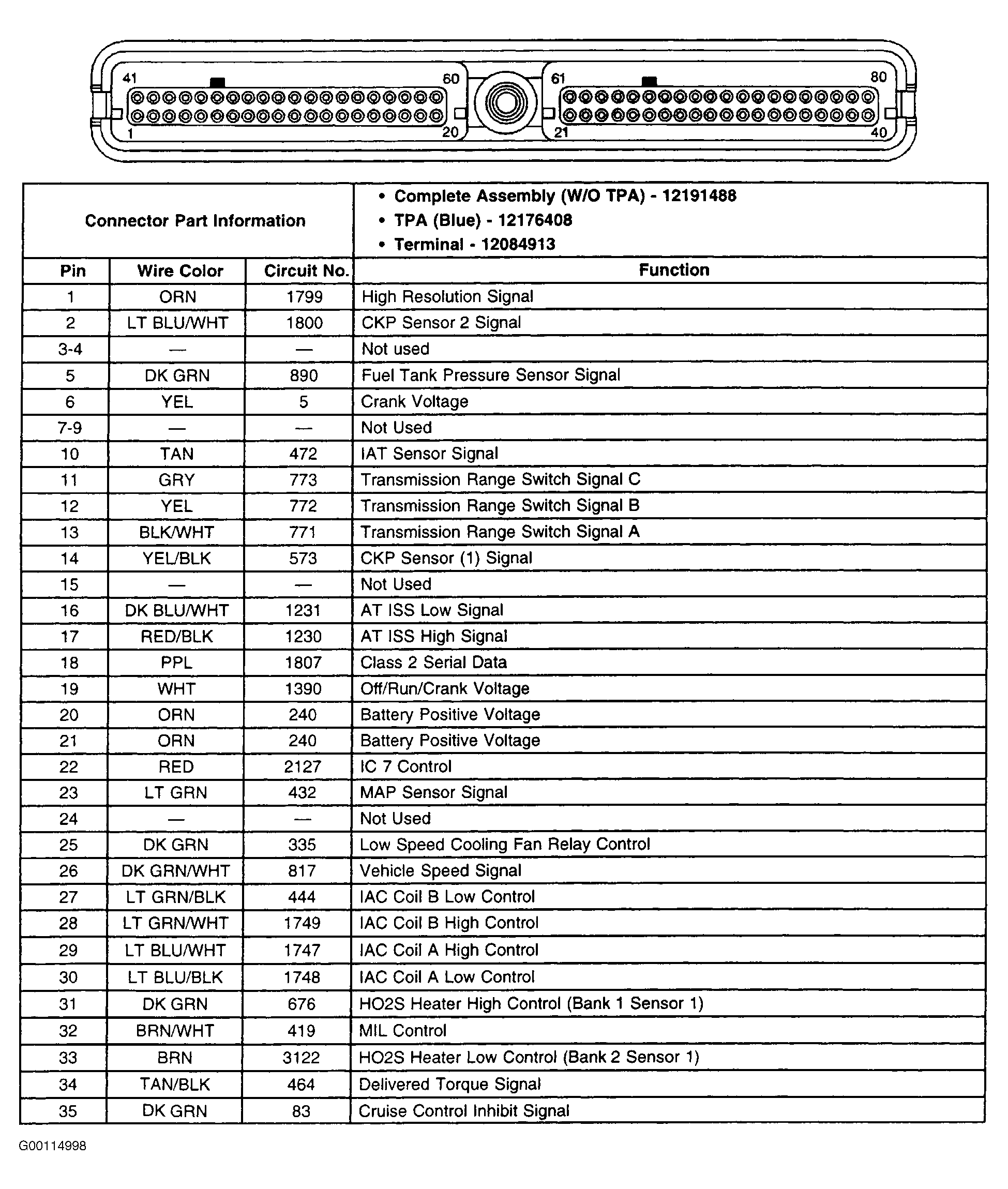

Fig 37: Identifying PCM Connector C1 Terminals (DeVille & Seville - 1 Of 3)

G00114998

Courtesy of GENERAL MOTORS CORP.

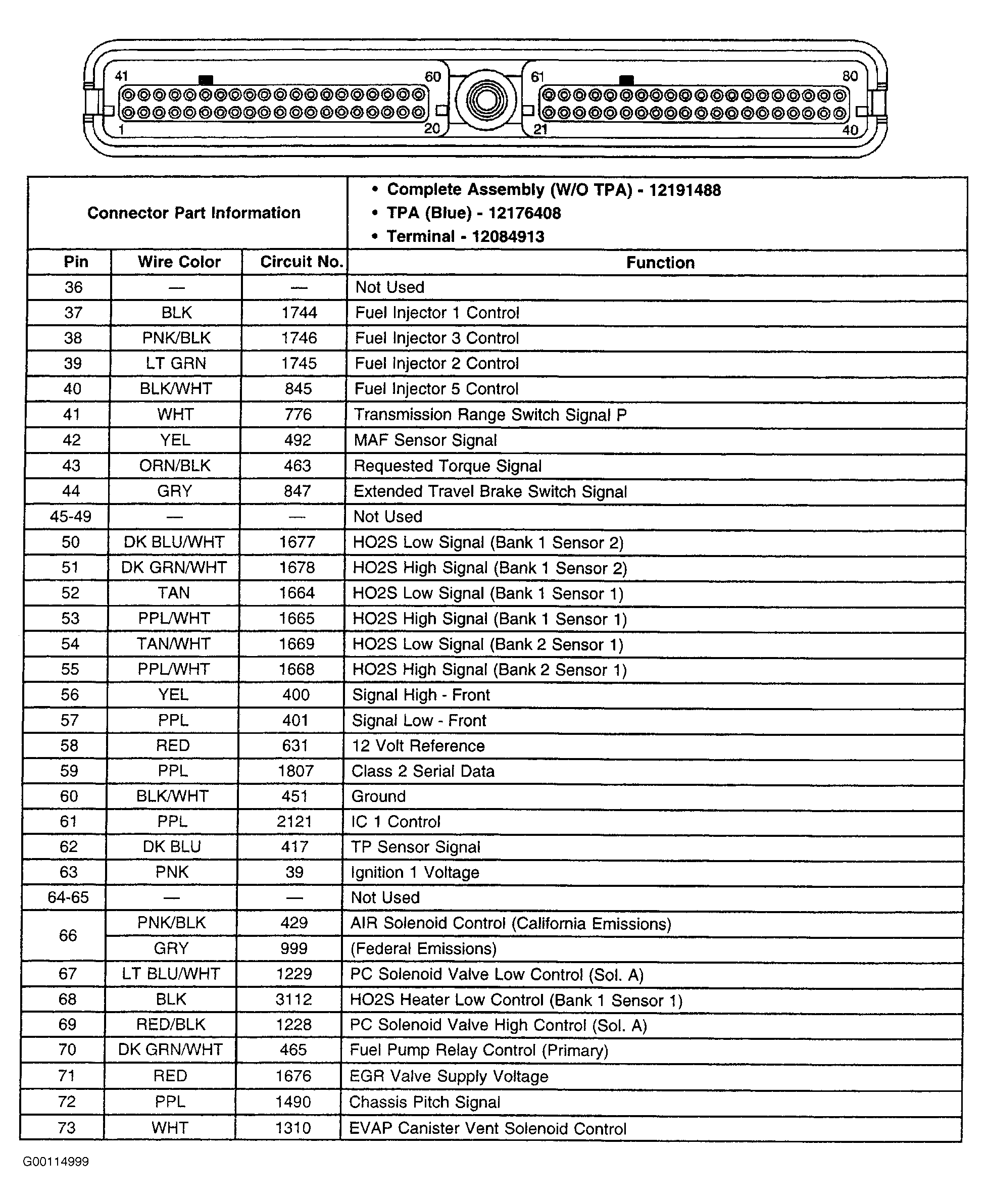

Fig 38: Identifying PCM Connector C1 Terminals (DeVille & Seville - 2 Of 3)

G00114999

Courtesy of GENERAL MOTORS CORP.

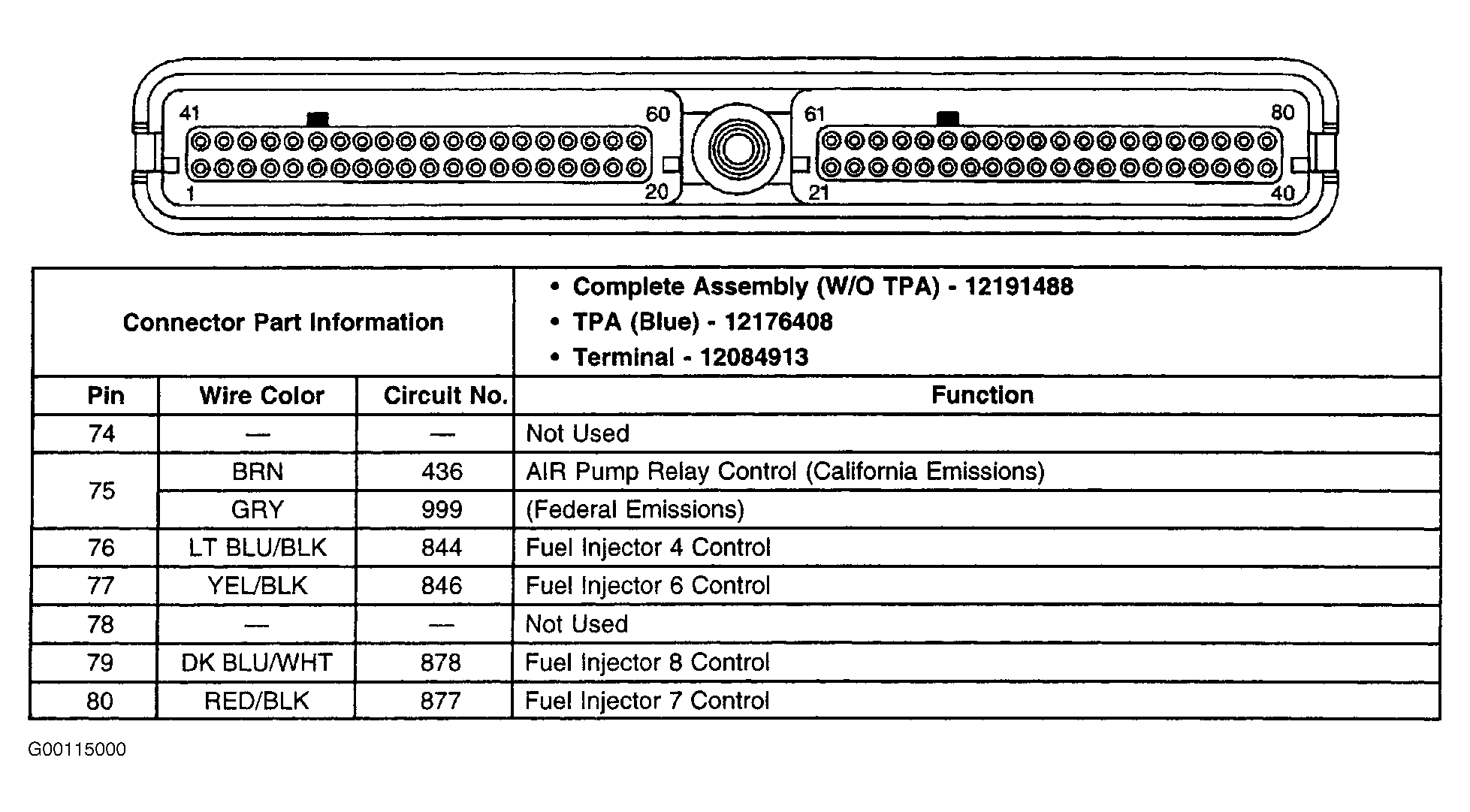

Fig 39: Identifying PCM Connector C1 Terminals (DeVille & Seville - 3 Of 3)

G00115000

Courtesy of GENERAL MOTORS CORP.

Fig 40: Identifying PCM Connector C2 Terminals (DeVille & Seville - 1 Of 3)

G00115001

Courtesy of GENERAL MOTORS CORP.

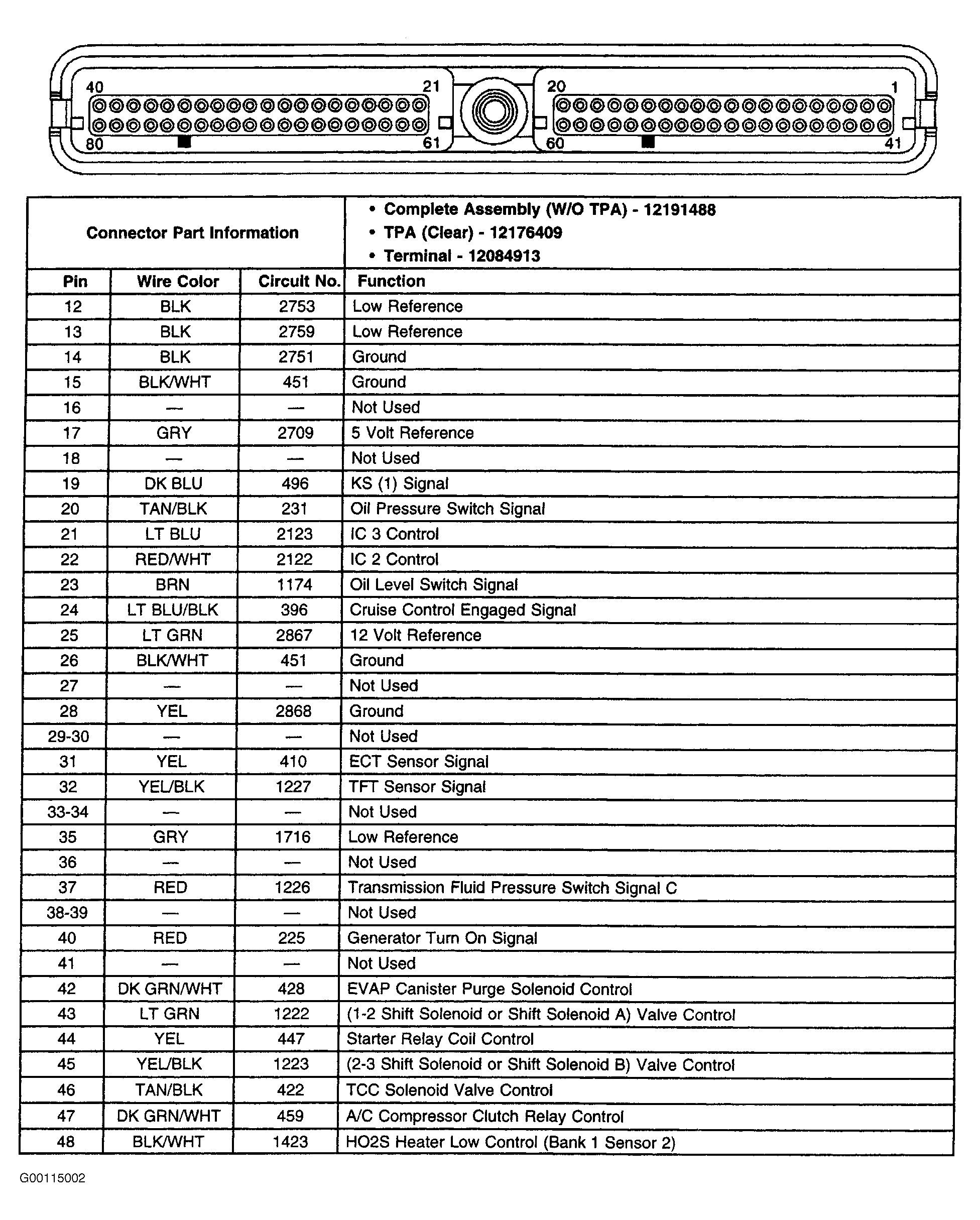

Fig 41: Identifying PCM Connector C2 Terminals (DeVille & Seville - 2 Of 3)

G00115002

Courtesy of GENERAL MOTORS CORP.

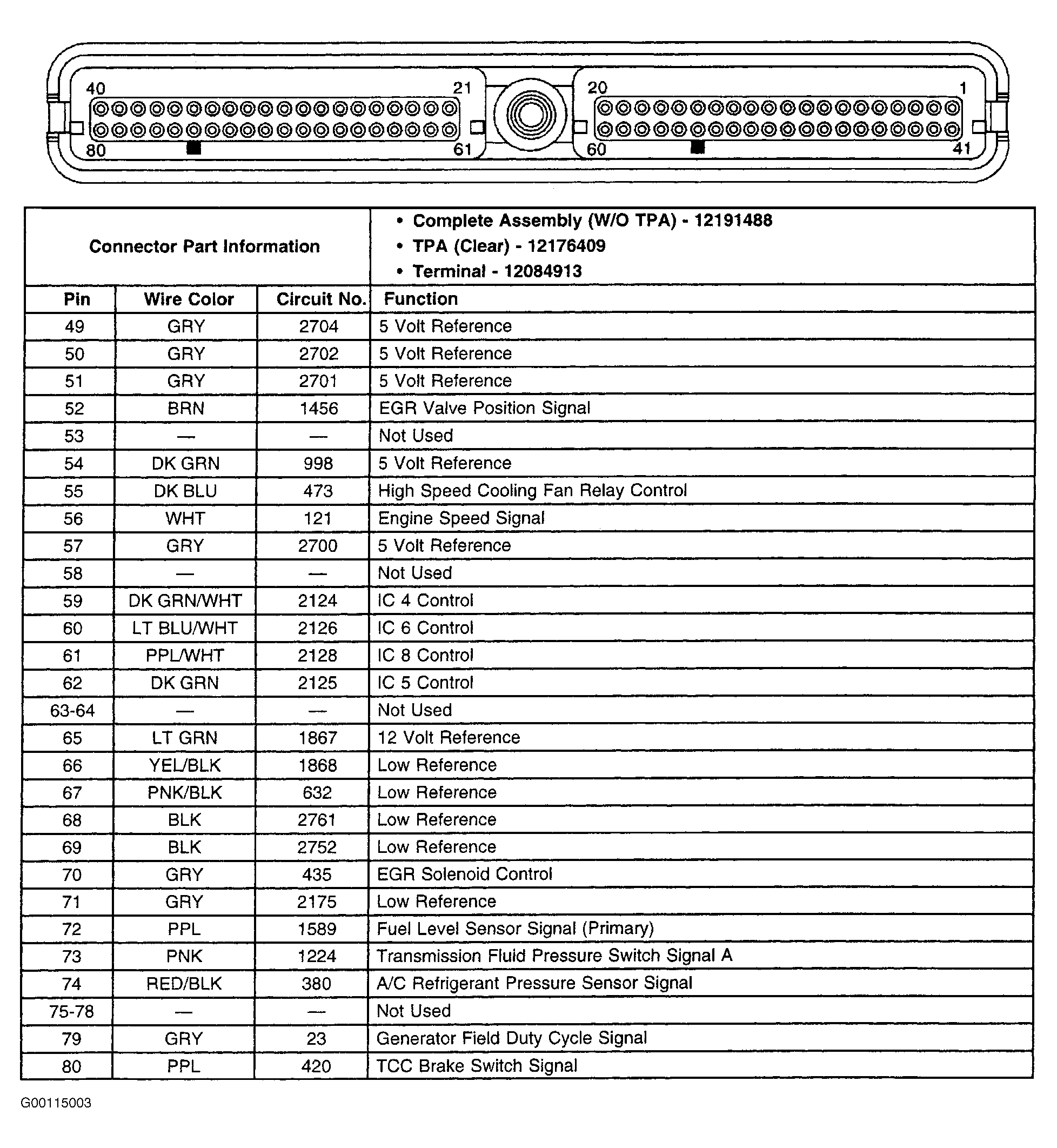

Fig 42: Identifying PCM Connector C2 Terminals (DeVille & Seville - 3 Of 3)

G00115003

Courtesy of GENERAL MOTORS CORP.

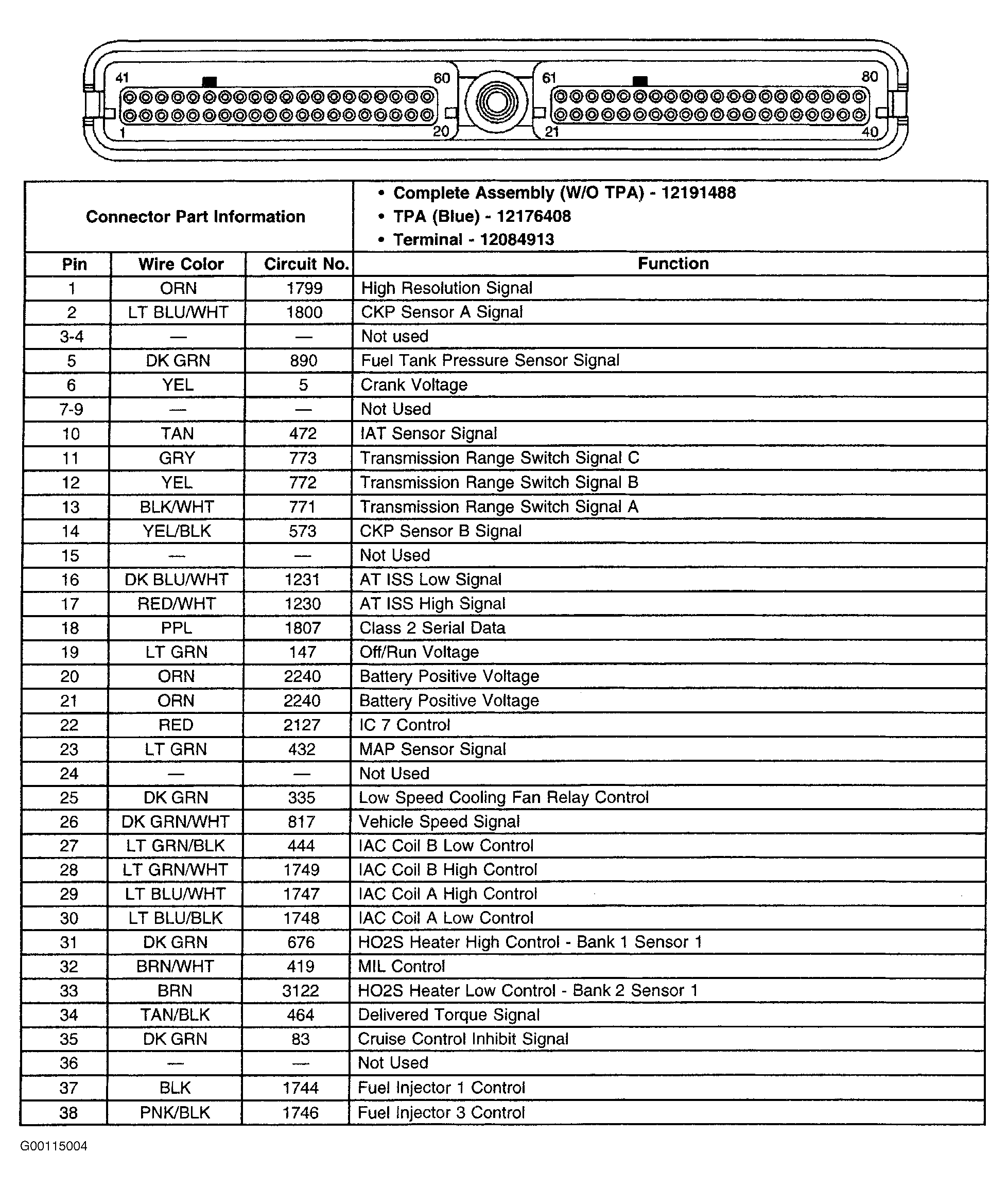

Fig 43: Identifying PCM Connector C1 Terminals (Eldorado - 1 Of 2)

G00115004

Courtesy of GENERAL MOTORS CORP.

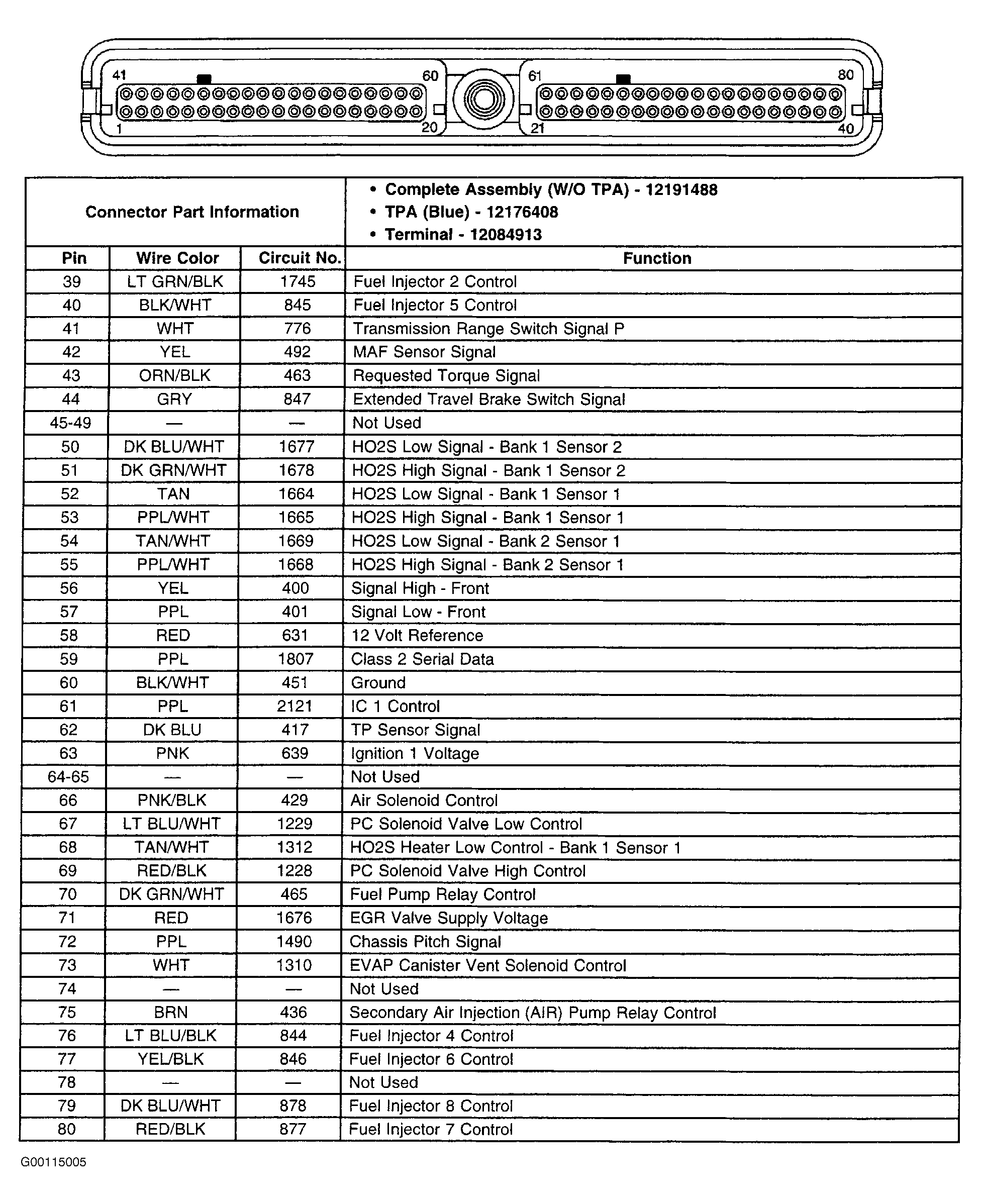

Fig 44: Identifying PCM Connector C1 Terminals (Eldorado - 2 Of 2)

G00115005

Courtesy of GENERAL MOTORS CORP.

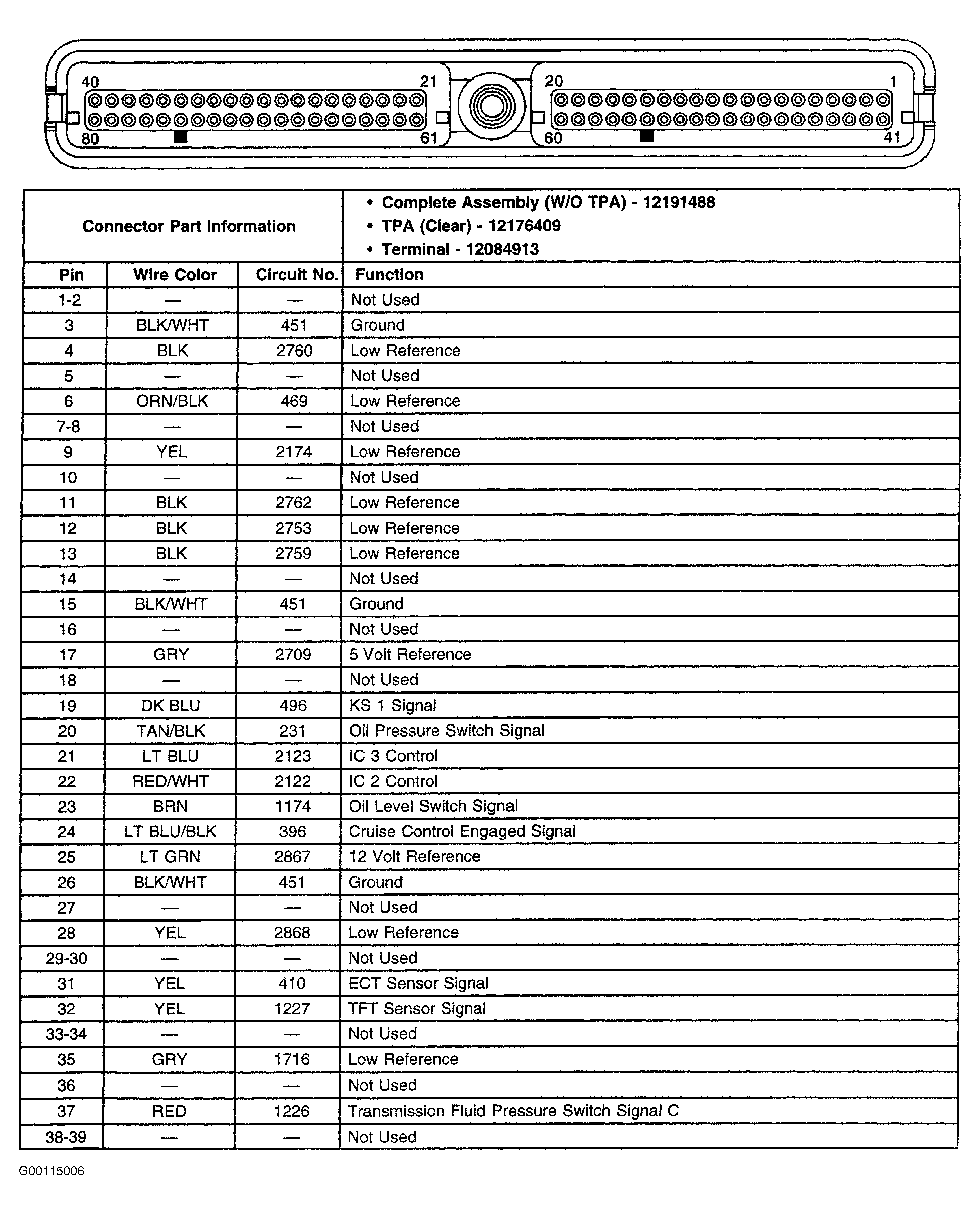

Fig 45: Identifying PCM Connector C2 Terminals (Eldorado - 1 Of 2)

G00115006

Courtesy of GENERAL MOTORS CORP.

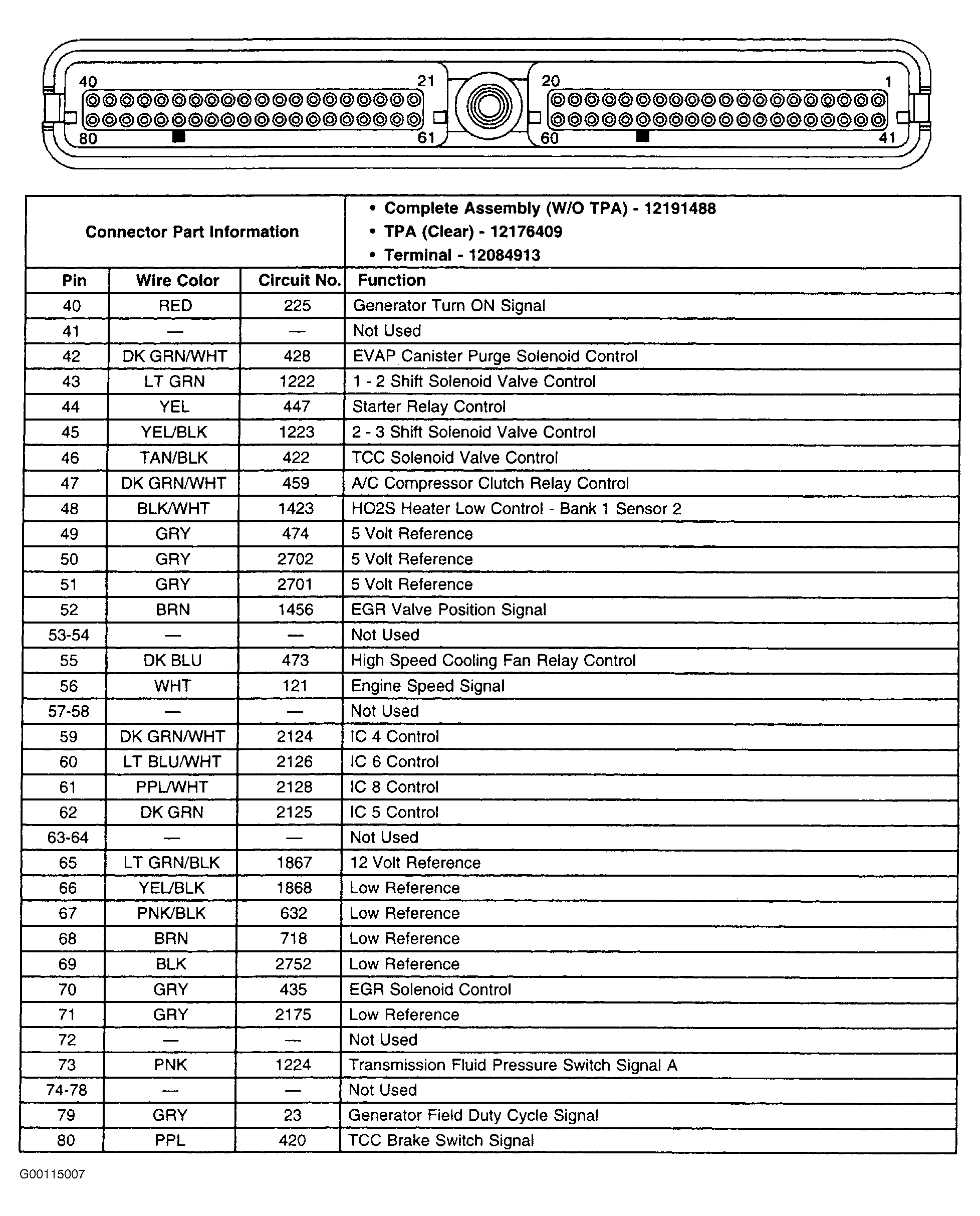

Fig 46: Identifying PCM Connector C2 Terminals (Eldorado - 2 Of 2)

G00115007

Courtesy of GENERAL MOTORS CORP.

Fig 47: Identifying Stop Light Switch Connector Terminals

G00121113

Courtesy of GENERAL MOTORS CORP.

Fig 48: Identifying TP Sensor Connector Terminals

G00121114

Courtesy of GENERAL MOTORS CORP.

Fig 49: Identifying VSS Connector Terminals

G00121115

Courtesy of GENERAL MOTORS CORP.
