Seat Belt Connector End Views

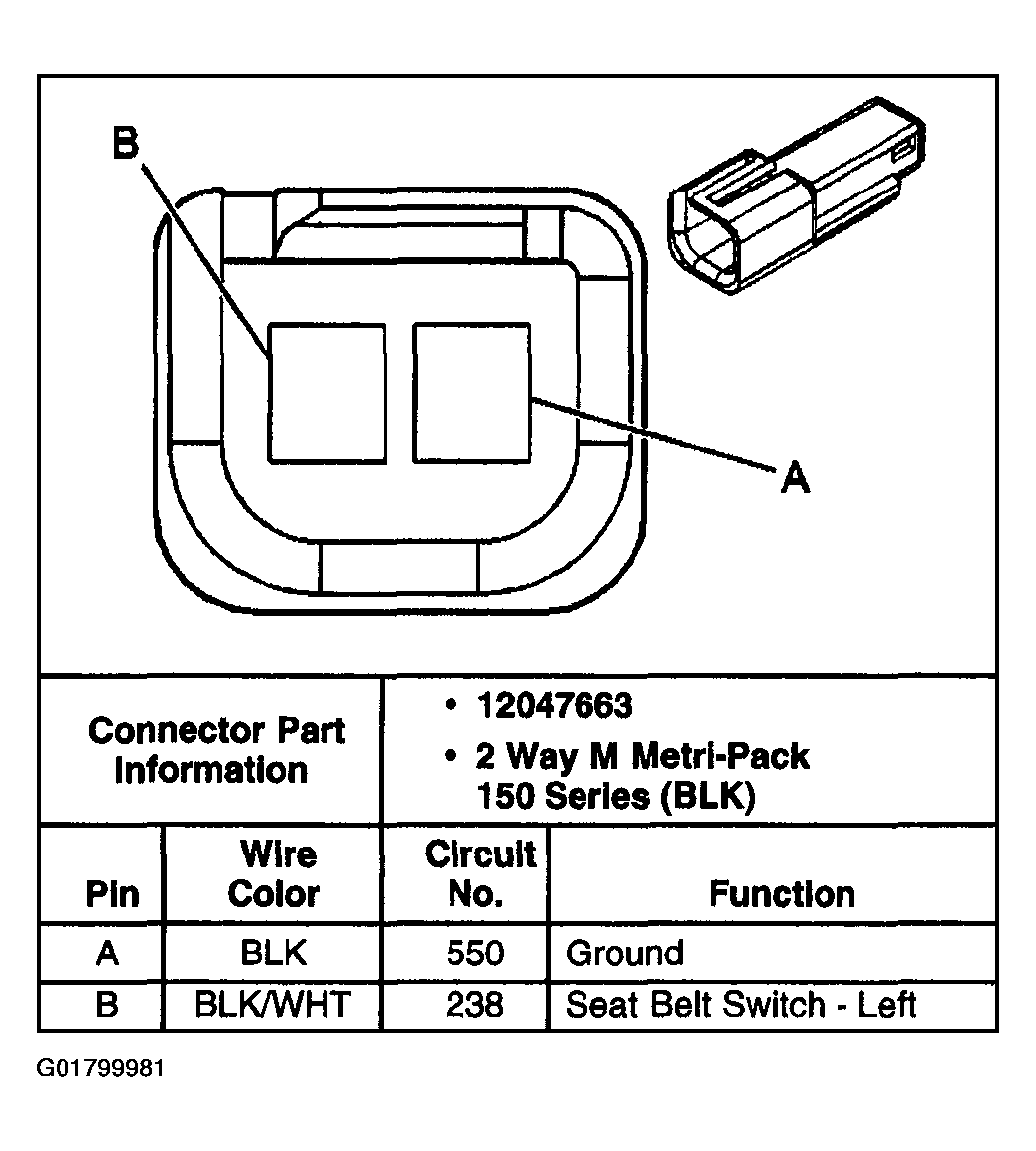

Fig 1: Seat Belt Switch - LF
G01799981Courtesy of GENERAL MOTORS CORP.

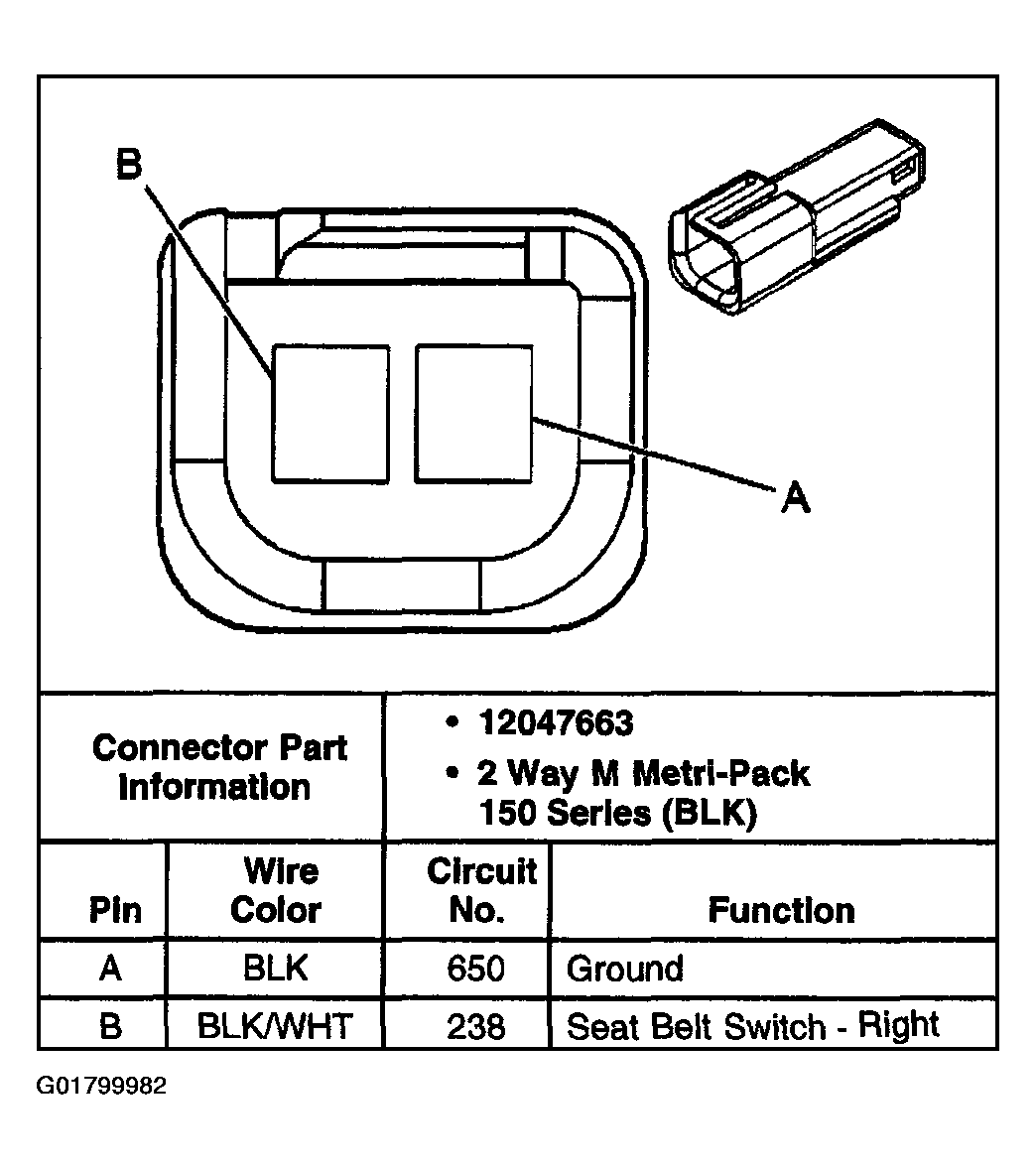

Fig 2: Seat Belt Switch - RF
G01799982Courtesy of GENERAL MOTORS CORP.
