Installation Procedure

  1. Install the power steering reservoir. Refer to Power Steering Reservoir Replacement - Off Vehicle .
  2. Install the power steering pulley. Refer to Power Steering Pulley Replacement .
  3. Install the power steering pump to the vehicle.

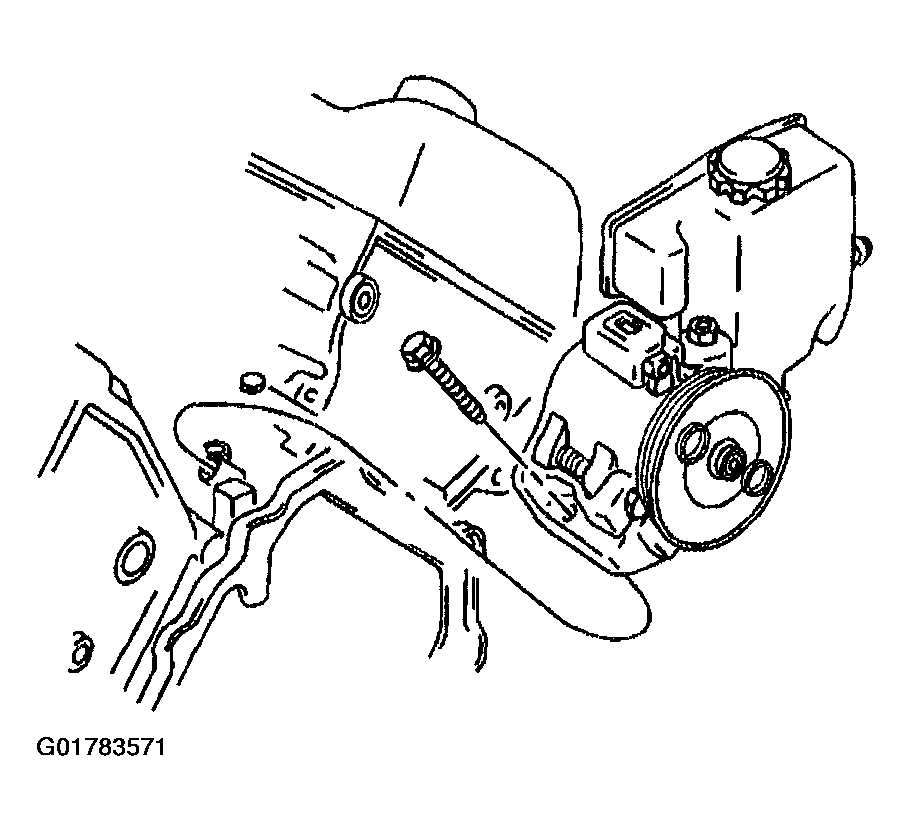

    Fig 1: Installing Power Steering Pump
    G01783571Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the power steering pump mounting bolt.

    Tighten

    Tighten the power steering pump mounting bolt to 50 N.m (37 lb ft).

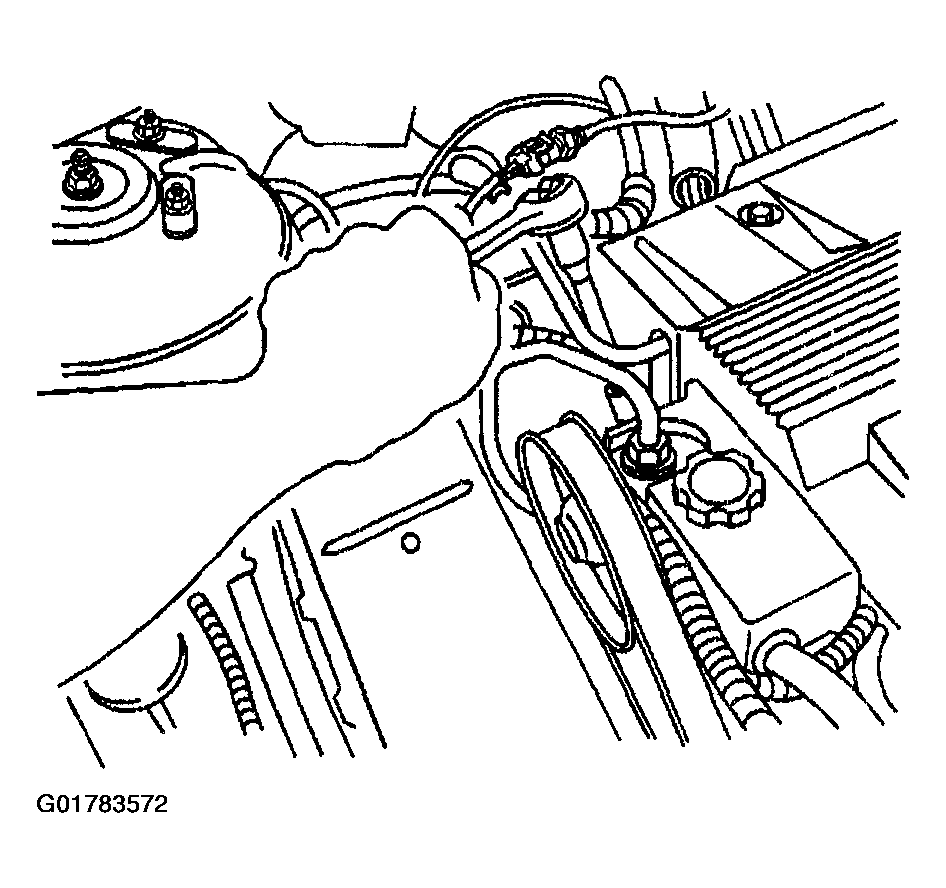

    Fig 2: Tightening Power Steering Pump Mounting Bolt
    G01783572Courtesy of GENERAL MOTORS CORP.
  5. Install the power steering pressure hose to the power steering pump.

    Tighten

    Tighten the power steering pressure hose to 30 N.m (22 lb ft).

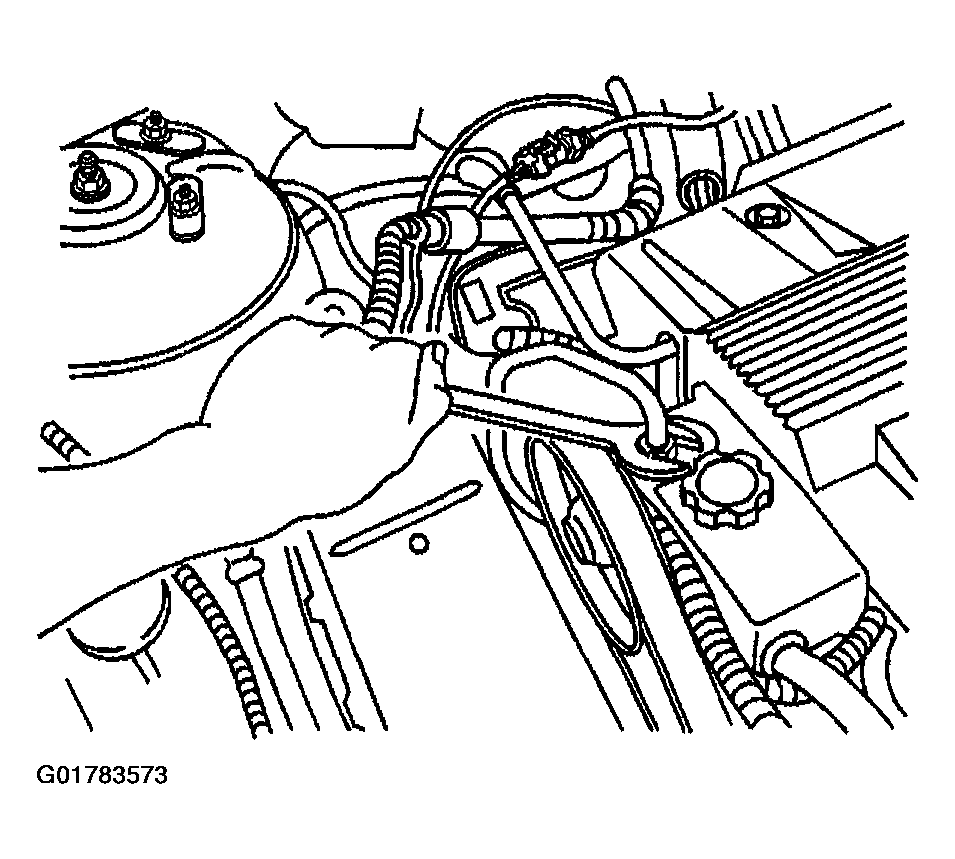

    Fig 3: Tightening Power Steering Pressure Hose
    G01783573Courtesy of GENERAL MOTORS CORP.
  6. Install the power steering return hose to the power steering reservoir.
  7. Remove the drain pan from under vehicle.
  8. Install the drive belt. Refer to DRIVE BELT REPLACEMENT .
  9. Bleed the power steering system. Refer to Bleeding the Power Steering System .

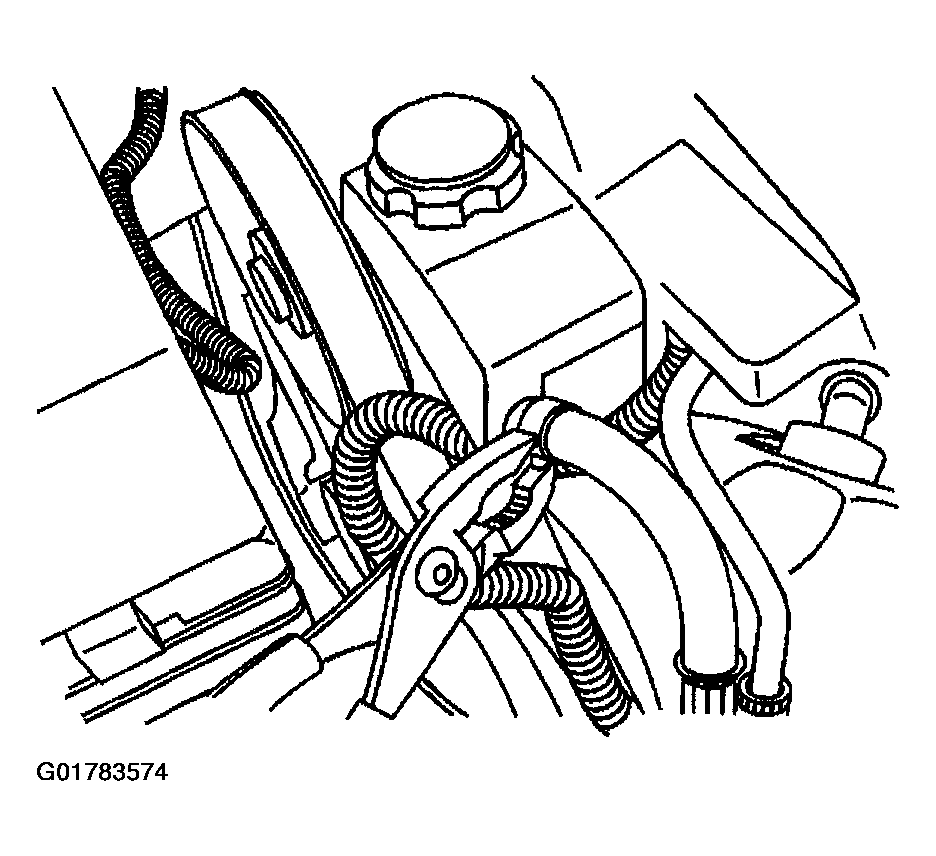

    Fig 4: Installing Power Steering Hose
    G01783574Courtesy of GENERAL MOTORS CORP.
