Park Lock Cable

NOTE: Lock cylinder must be in RUN position when park lock cable is removed from or inserted into ignition switch inhibitor.
  1. Disconnect negative battery cable. Block the vehicle wheels. Remove center console trim for access to base of gearshift lever. See Fig 1 . Place gearshift lever in Park. Turn lock cylinder to RUN position to energize shift interlock actuator. Unlock cable adjuster at base of gearshift lever by pressing locking tab upward. Turn lock cylinder to LOCK position.
  2. Push cable housing toward gearshift lever to remove slack. With no load applied to cable, lock cable adjuster tab by pressing locking tab down. See Fig 2 . Install center console trim. Connect negative battery cable. Recheck shift interlock actuator. If system does not operate as specified, repeat step  1 .

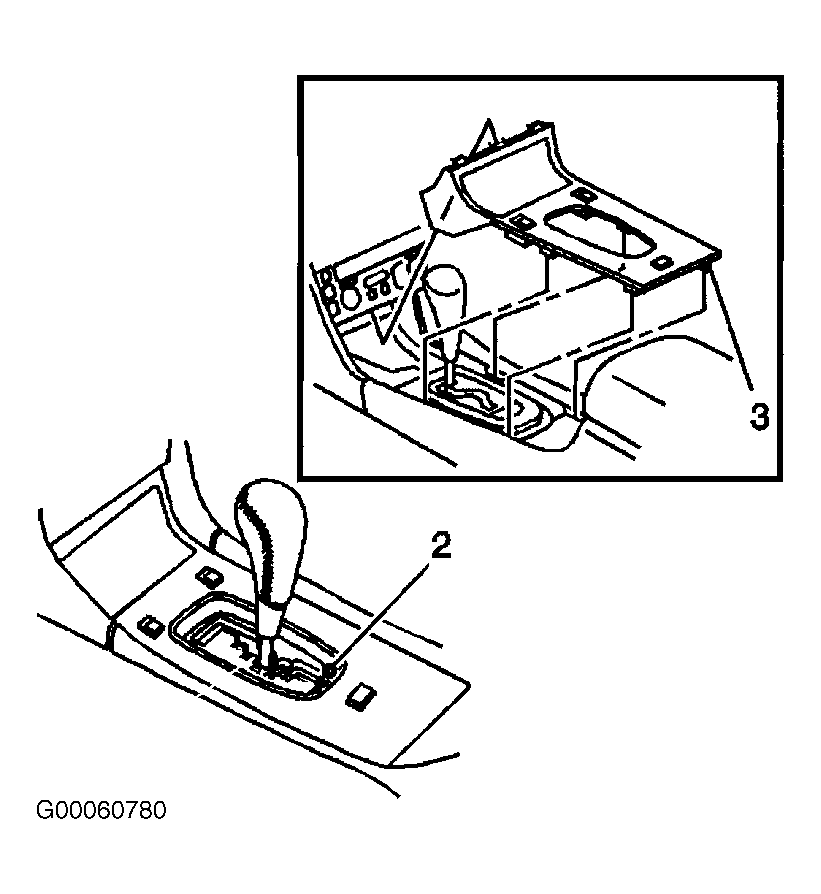

Fig 1: Removing/Installing Center Console Trim
G00060780Courtesy of GENERAL MOTORS CORP.

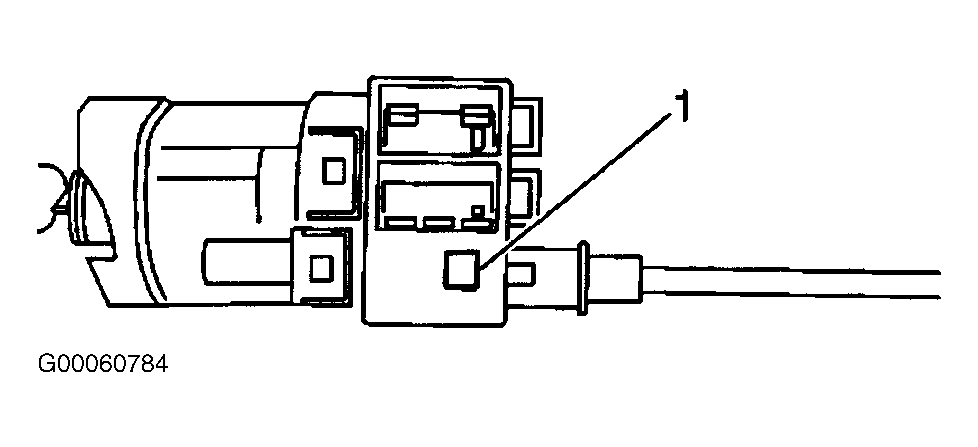

Fig 2: Identifying Park Lock Cable Locking Tab
G00060784Courtesy of GENERAL MOTORS CORP.
