Installation Procedure

  1. Install the power steering pump pulley to the power steering pump shaft.
  2. Install J 25033-C  to the power steering pump shaft.
  3. Using J 25033-C  install the power steering pulley to the power steering pump.

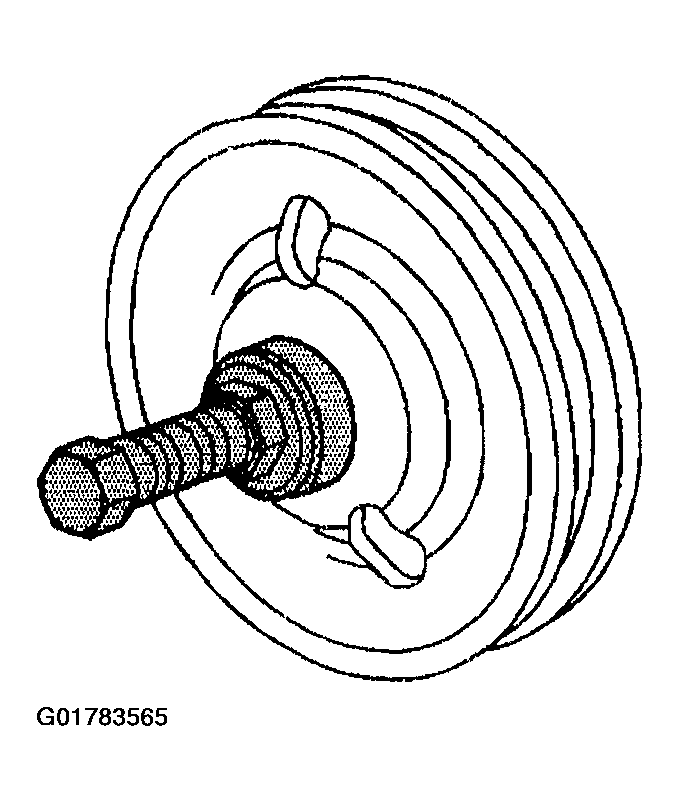

    Fig 1: Installing Power Steering Pulley
    G01783565Courtesy of GENERAL MOTORS CORP.
  4. Ensure that the axial tolerance of the power steering pulley on the power steering pump is within 0.25 mm (0.010 in), plus or minus.
  5. Install the power steering pump. Refer to Power Steering Pump Replacement .

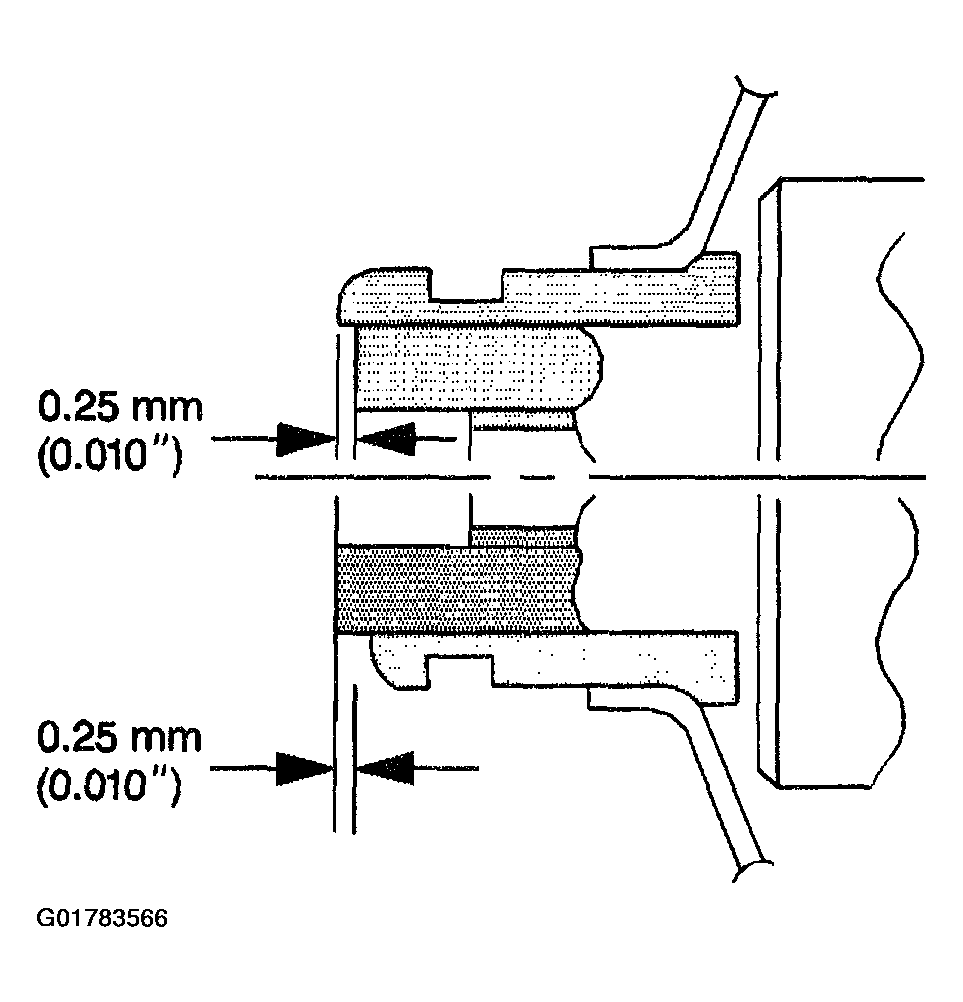

Fig 2: Ensuring Proper Axial Tolerance
G01783566Courtesy of GENERAL MOTORS CORP.
